| Chassis |
|
| Frame: |
Ballistec Hi-Mod Carbon frame, 160/95mm travel (flow/elevation mode), 1.5" head tube, PF30 bottom bracket, ISCG03 chain guide mount, 12 x 142mm thru axle |
| Fork: |
Lefty Supermax PBR 2.0, air suspension system (adjustable), 160mm travel, adjustable rebound and lock out
|
| Shock: |
FOX Dyad RT2, air suspension system (adjustable) with new tune, adjustable rebound and compression, remote control |
|
|
| Drivetrain/Brakes |
|
| Shifters: |
SRAM X1, 11-speed |
| Rear derailleur: |
SRAM X01 |
| Front derailleur: |
- |
| Crankset: |
Cannondale Hollowgram SI, 30 teeth chain ring |
| Bottom bracket: |
Cannondale PF30 |
| Pedals: |
- |
| Chain: |
SRAM PC-X1, 11-speed |
| Cogs: |
SRAM XG-1180, 11-speed, 10-42 teeth |

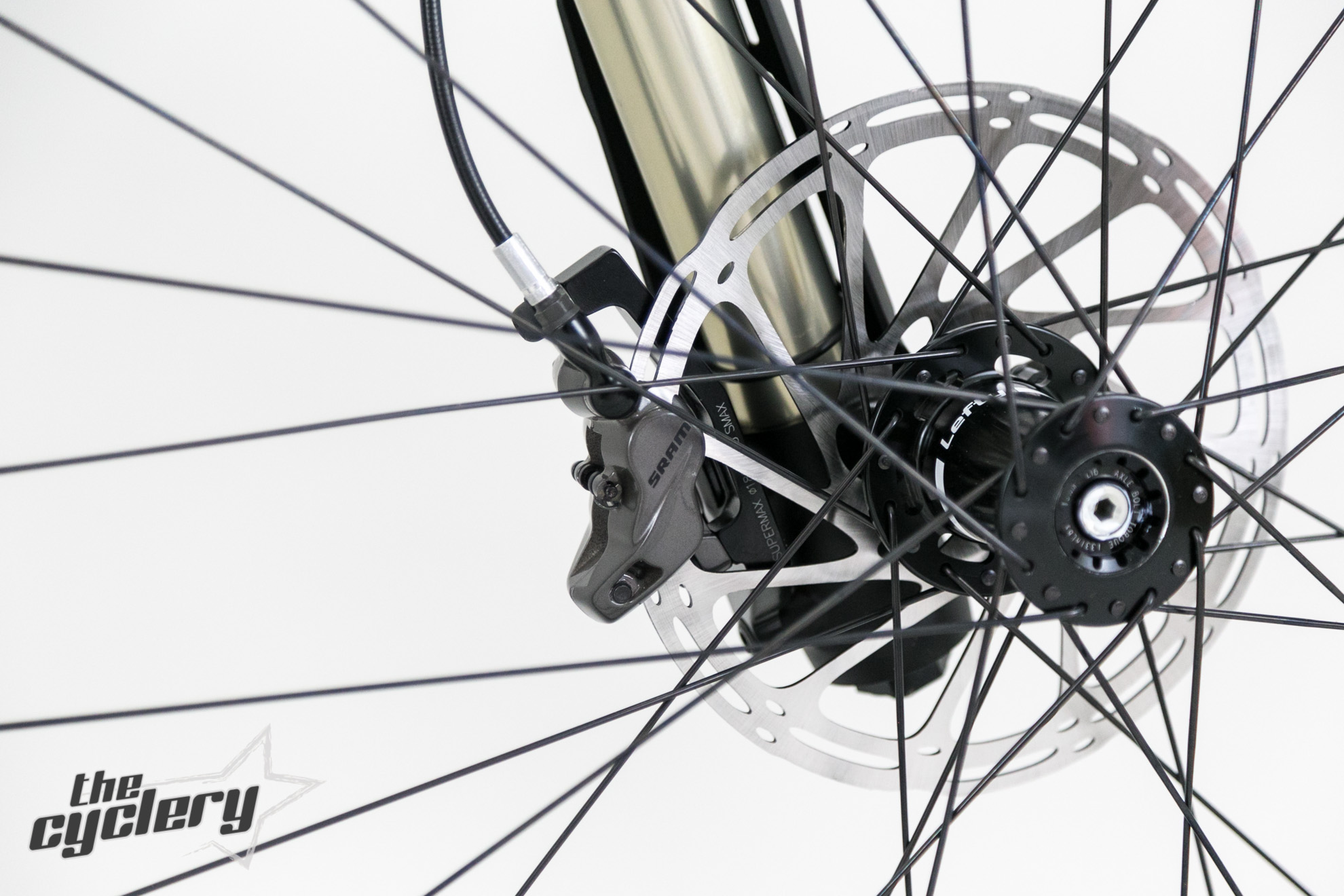

| Brakes: |
SRAM Guide RS, hydraulic disc brakes, 180/180mm Centerline discs (f/r) |
| Brake levers: |
SRAM Guide RS |
|
|
| Wheels |
|
| Front hub: |
Lefty 60 |
| Rear hub: |
Formula DCL361, 12 x 142mm thru axle |
| Rims: |
WTB Frequency Team i25 TCS, tubeless ready |
| Tires: |
Schwalbe Hans Dampf Performance, Snakeskin, 27,5 x 2,35", foldable, tubeless ready |
|
|
| Components |
|
| Stem: |
FSA Gravity Light 1.5", 31,8mm diameter |
| Handlebar: |
Cannondale C1 Carbon Riser, 15mm rise, 780mm width, 31,8mm diameter |
| Headset: |
Cannondale Headshock SI |
| Saddle: |
WTB Silverado Team |
| Seat post: |
KS Lev integra (internal housing), 125mm adjustable height with remote control |
| Other: |
high pressure air pump (for suspension setup) |
|
|
| Table of geometry: |
click here |
