| Chassis |
|
| Frame: |
Enduroad/Fitness frame, SmartForm C1 premium aluminum, Di2 ready, SAVE PLUS rear stay, 1.5" head tube, BB30a bottom bracket housing, Syntace X-12 thru axle |
| Fork: |
Cannondale Solo Rigid, OPI One-Piece aluminum, 1.5" steerer |
| Shock: |
- |
|
|
| Drivetrain/Brakes |
|
| Shifters: |
SRAM Apex 1, 10-speed |

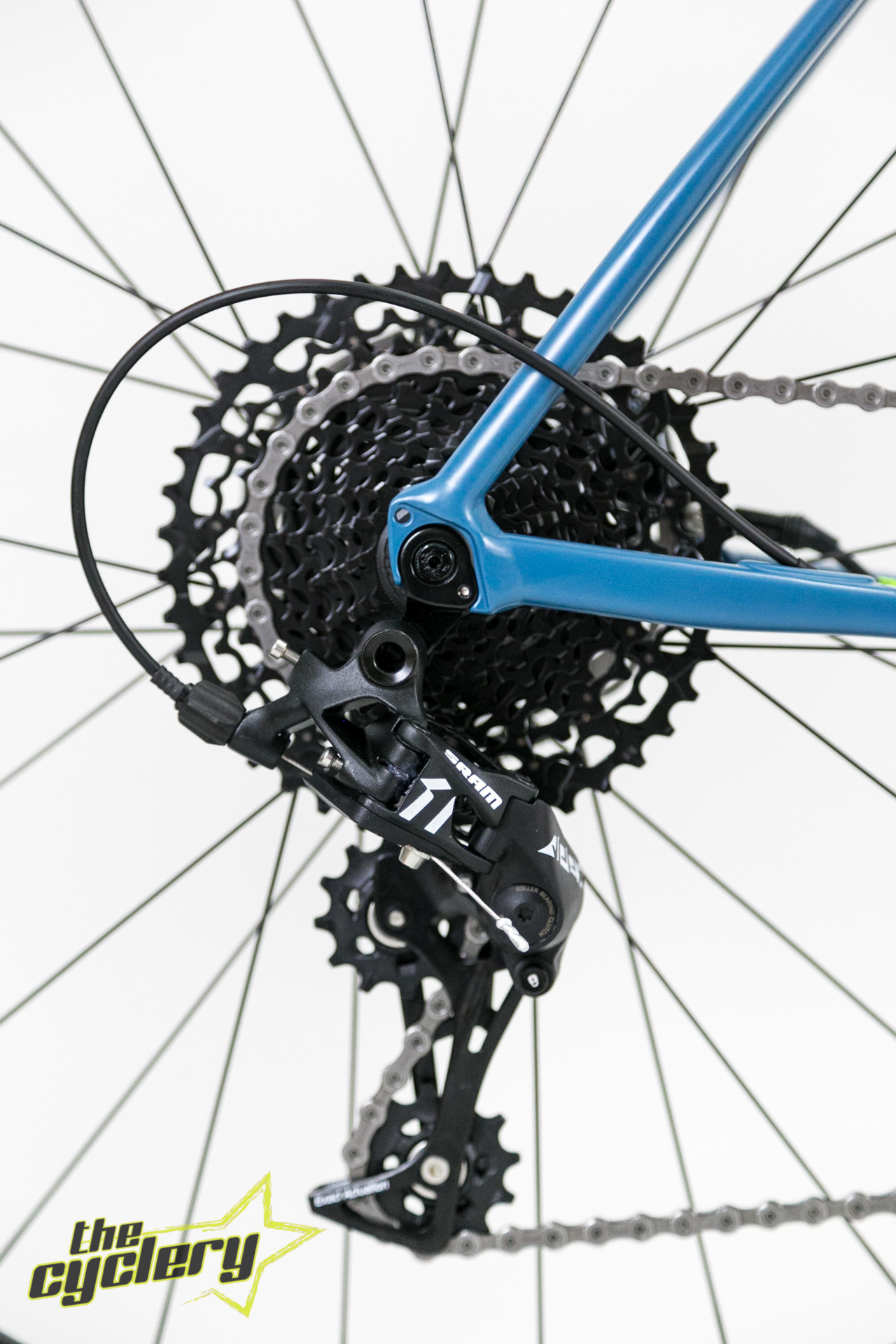

| Rear derailleur: |
SRAM Apex, Type 2.1 |
| Front derailleur: |
- |
| Crankset: |
SRAM S350-1, 44 teeth chain ring |
| Bottom bracket: |
SRAM BB30 |
| Pedals: |
- |
| Chain: |
SRAM PC-1110 |
| Cogs: |
SRAM PG-1130, 10-speed, 10-42 teeth |
| Brakes: |
SRAM Apex 1, hydraulic disc brakes, 140mm Centerline discs (f/r) |
| Brake levers: |
SRAM Apex 1 |
|
|
| Wheels |
|
| Front hub: |
Lefty 50 Road, 6-hole mount |
| Rear hub: |
Formula, 12 x 142mm thru axle, 6-hole mount |
| Rims: |
Mavic XM419 Disc 27.5", 28 hole, tubeless ready |
| Tires: |
Cannondale Slate, tubeless ready, 650 x 42c (f/r) |
|
|
| Components |
|

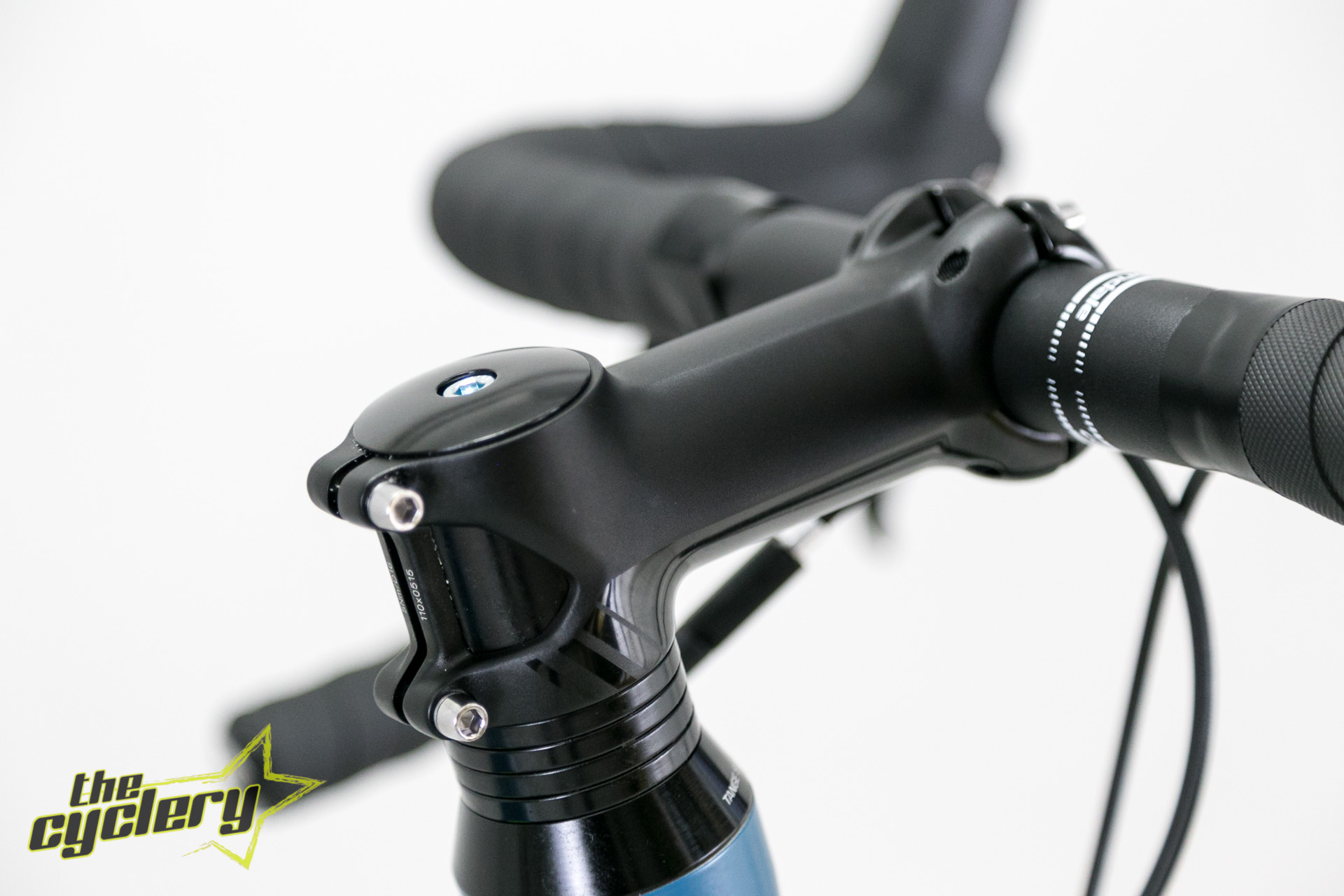

| Stem: |
Cannondale C1, 6061 aluminum, 100mm length, 31,8mm diameter |
| Handlebar: |
Cannondale C3, 6061 butted aluminum, compact, 31,8mm diameter |
| Headset: |
Tange Seiki, integrated |
| Saddle: |
Fabric Scoop Radius Sport, cromoly rails |
| Seat post: |
Cannondale C3, aluminum, 27,2 x 350mm |
| Other: |
- |
|
|
| Table of geometry |
