Chassis |
|
Frame: |
Smartformed aluminum frame, 130/80mm travel (flow/elevation mode), 1.5" head tube, BB30 bottom bracket, ISCG03 chain guide mount, 12 x 142mm thru axle |
Fork: |

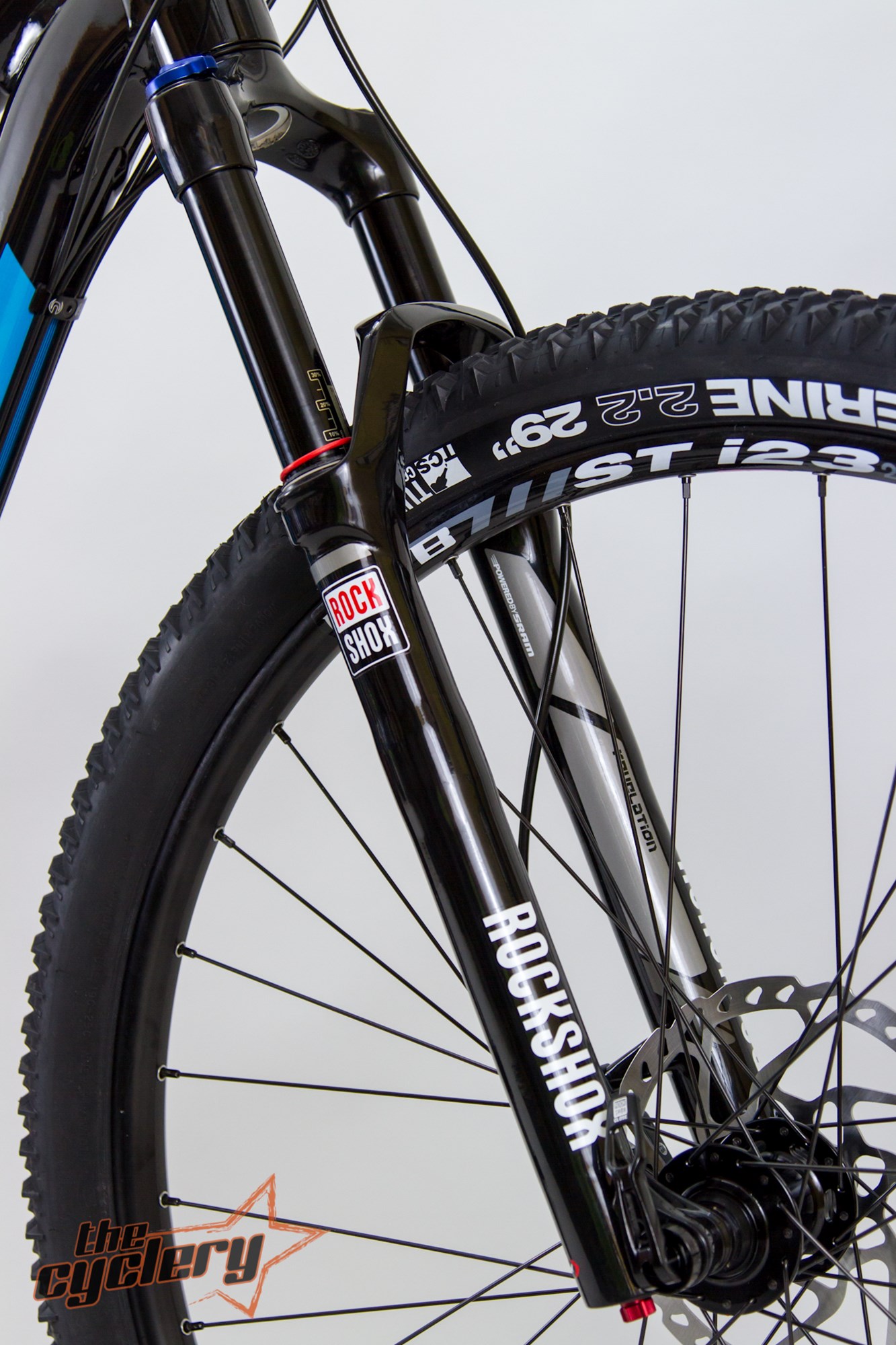

Rock Shox Revelation RL, Air spring system (adjustable), 130mm travel, 1.5" aluminum steerer, 15 x 100mm thru axle, adjustable rebound |
Shock: |

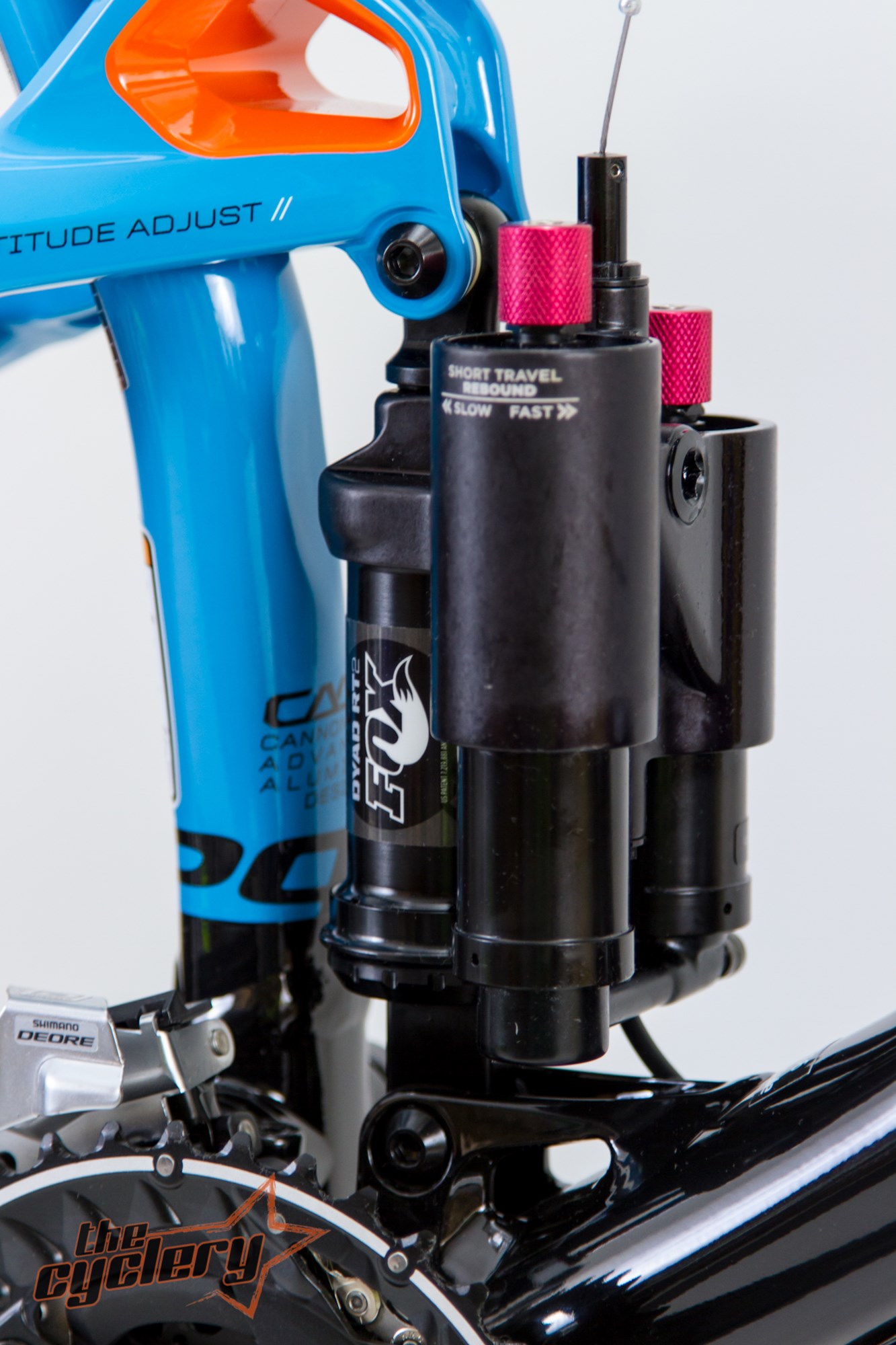

FOX Dyad RT2, air spring system (adjustable), adjustable rebound and compression, remote control |
|
|
Drivetrain/Brakes |
|
Shifters: |
Shimano SLX, 3 x 10-speed |
Rear derailleur: |
Shimano SLX Shadow |
Front drailleur: |
Shimano Deore |
Crankset: |
Shimano Deore Hollowtech II, 40/30/22 teeth chain rings |
Bottom bracket: |
Shimano Deore |
Pedals: |
- |
Chain: |
KMC X10, 10-speed |
Cogs: |
Shimano Deore, 10-speed, 11-36 teeth |
Brakes: |
Shimano SLX, hydraulic disc brakes, 180/180mm discs (f/r) |
Brake levers: |
Shimano SLX |
|
|
Wheels |
|

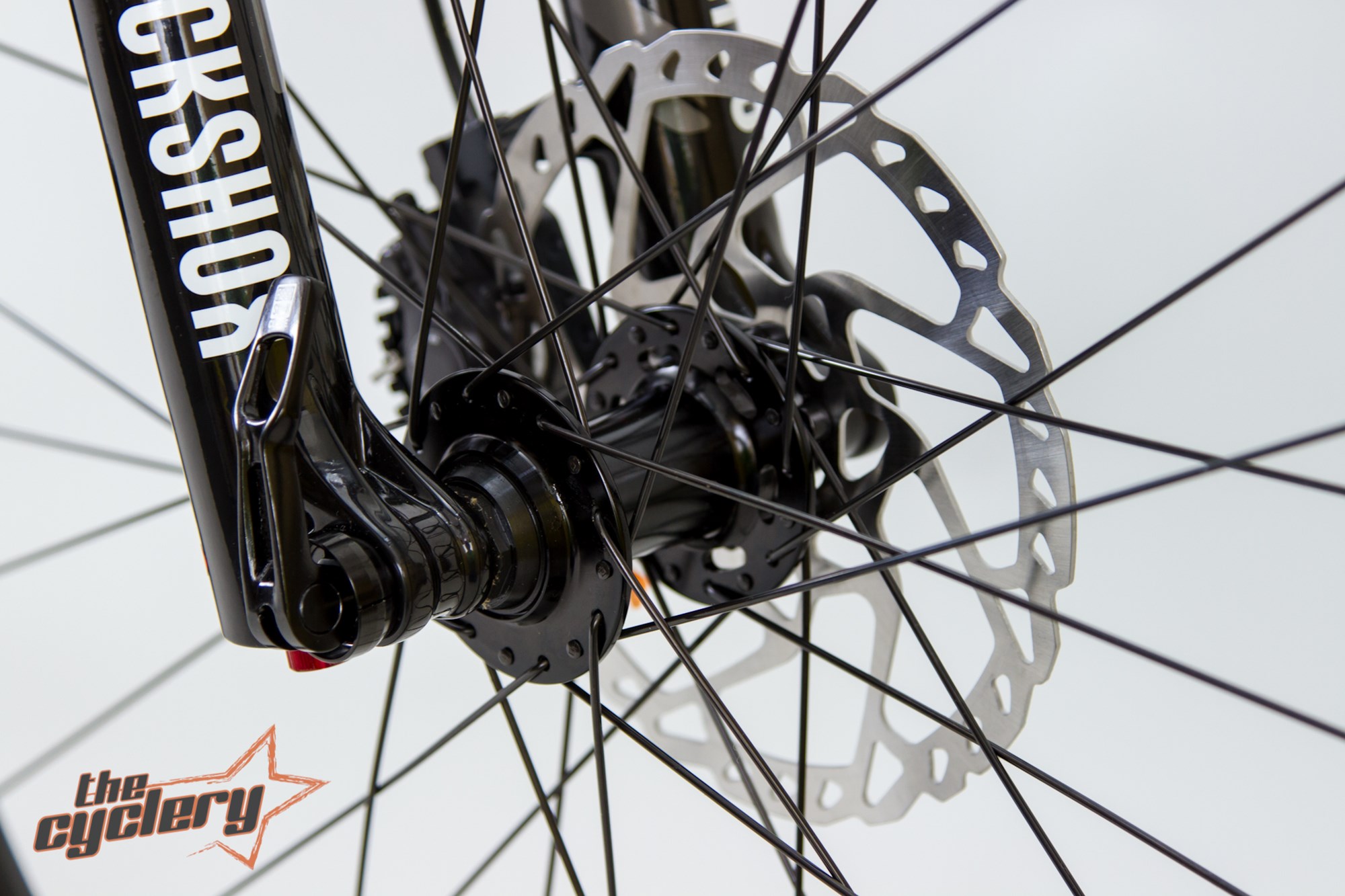

Front hub: |
Formula, 15 x 100mm thru axle |
Rear hub: |
Formula, 12 x 142mm thru axle |
Rims: |
WTB ST i23 TCS, Tubeless ready |
Tires: |

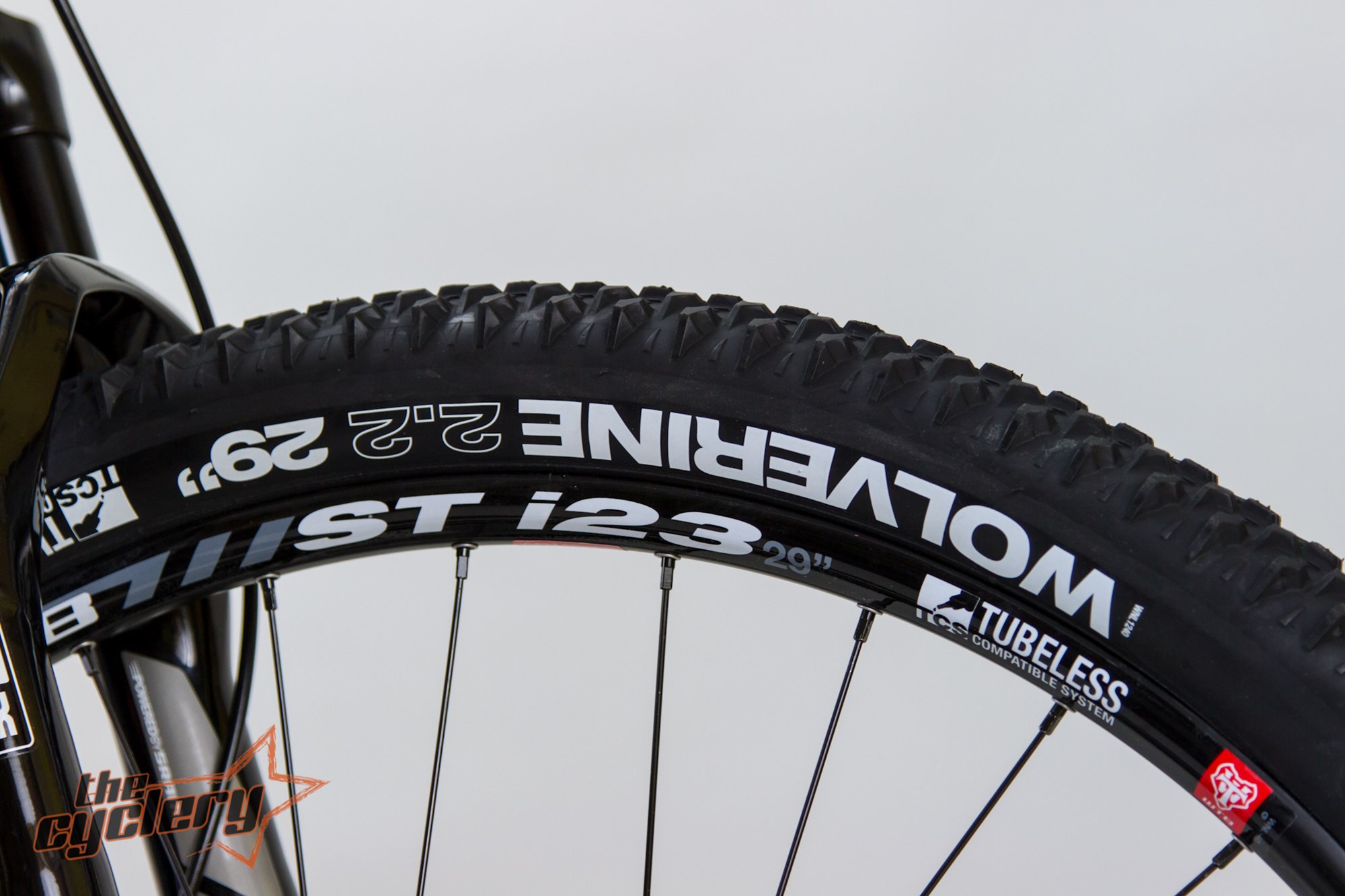

WTB Wolverine TCS 26 x 2,2", folding, tubeless ready |
|
|
Components |
|
Stem: |

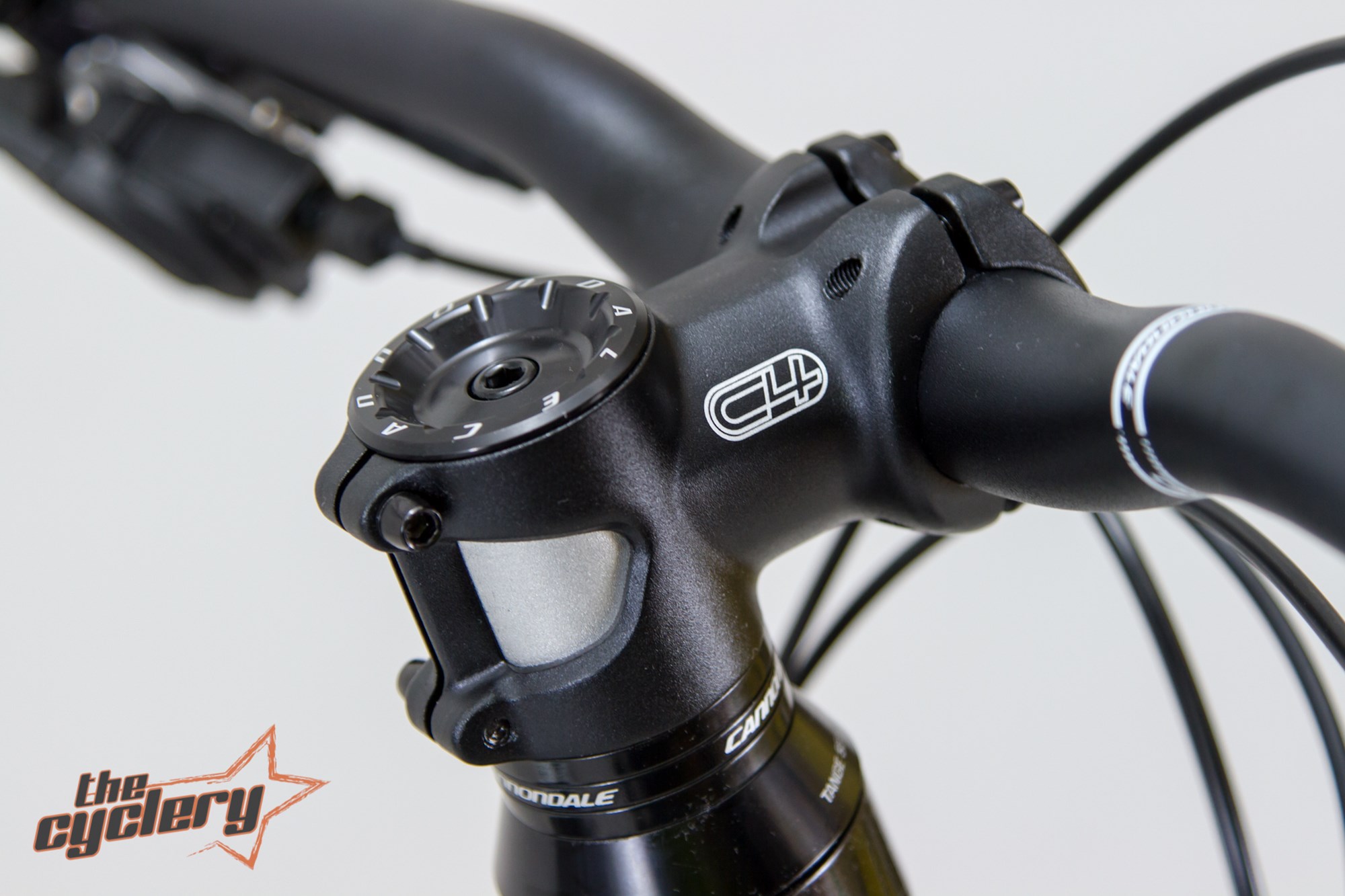

Cannondale C4 1.5", 31,8mm diameter |
Handlebar: |

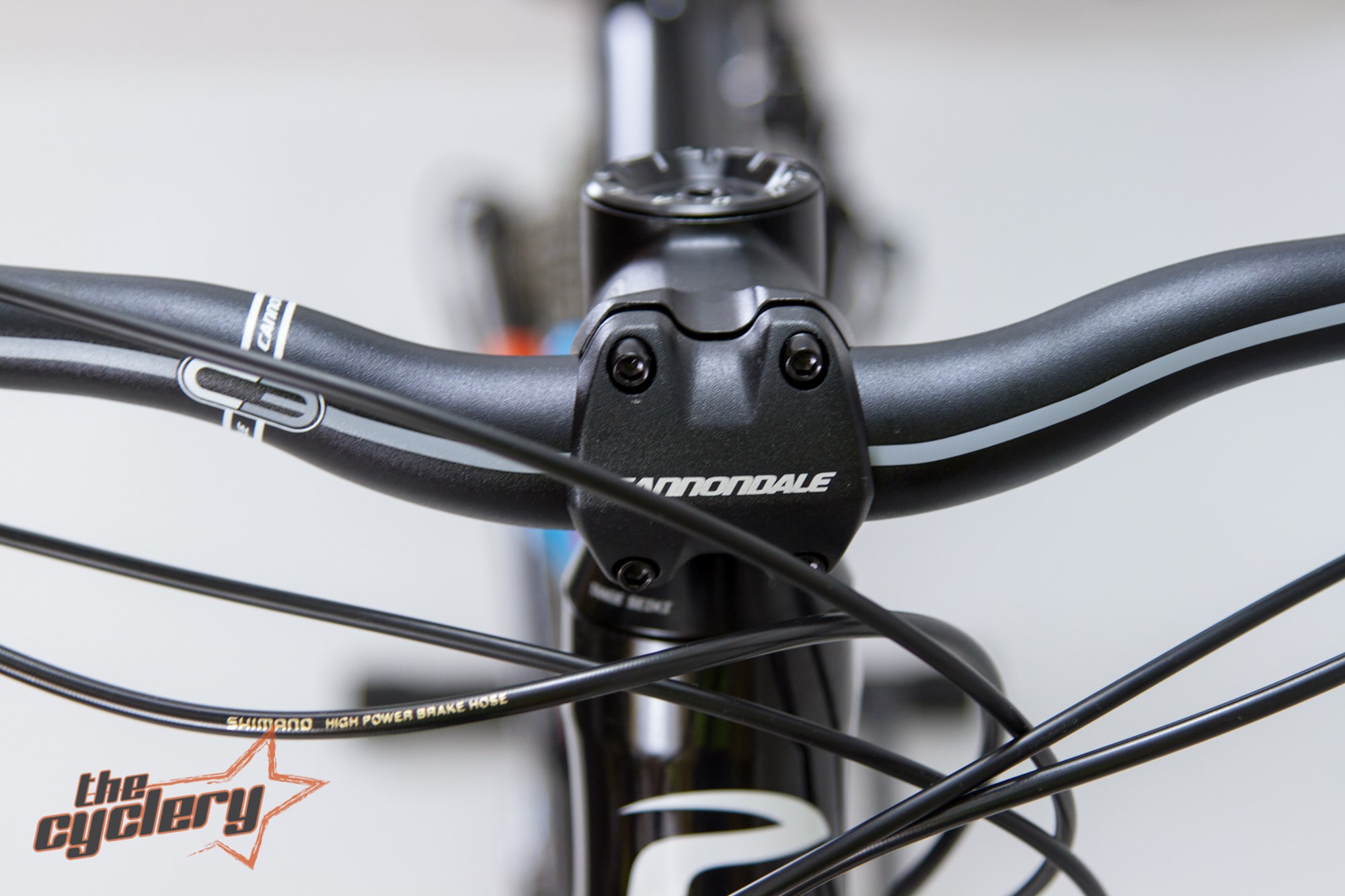

Cannondale C2, double butted 2014 alumnum, 5mm rise, 740mm width, 31,8mm diameter |
Headset: |
Tange Seiki, 1.5" integrated |
Saddle: |
WTB Volt |
Seat post: |
Cannondale C3, 31,6 x 350/400mm (S, M/L, XL) |
Other: |
- |
