| Chassis | |

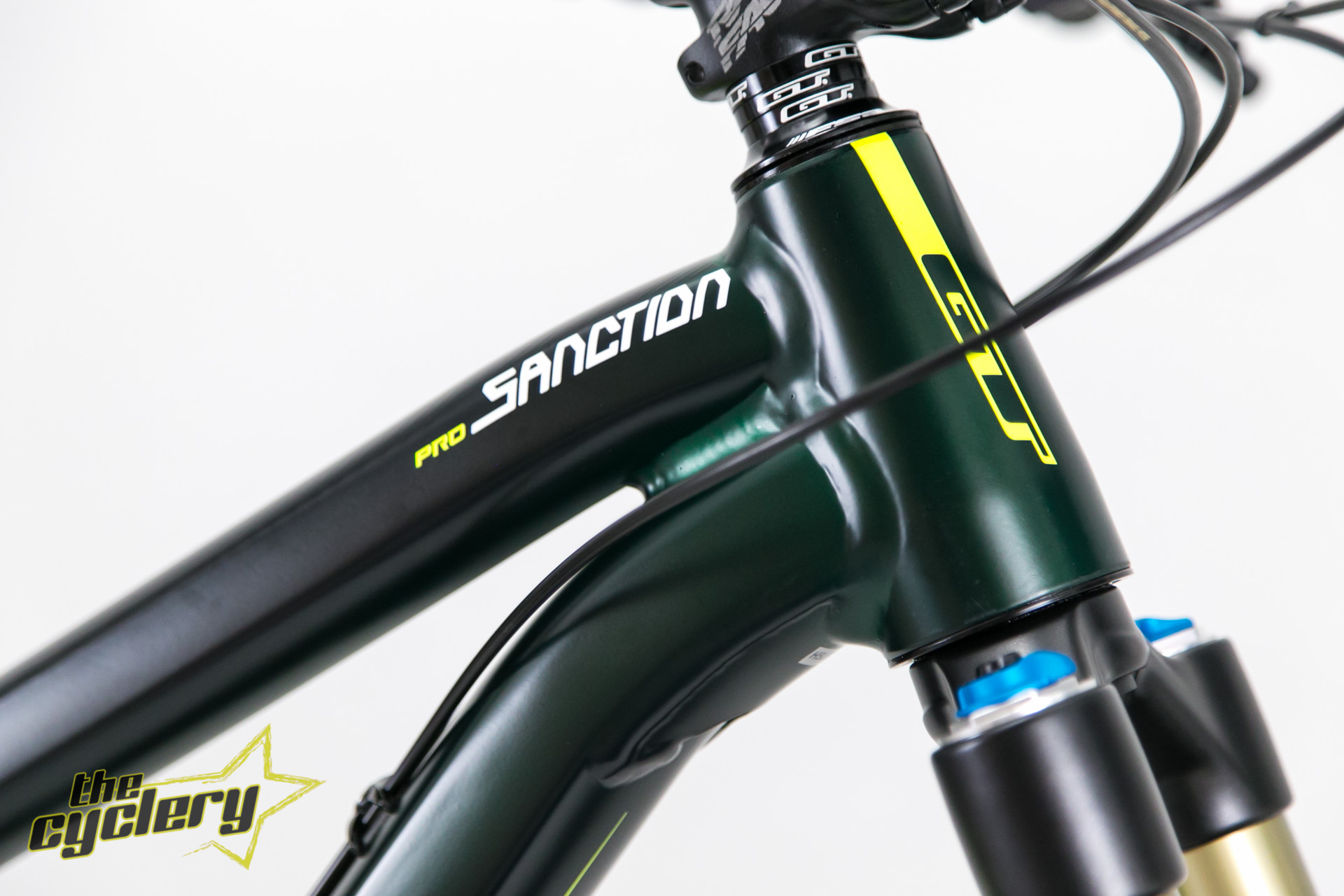

| Frame: | Enduro frame with COR design (Centered on Rider) and 27.5" specific geometry, 6069-T6 aluminum, 160mm travel via independent drivetrain system, 1.5" head tube, ISCG03 chain guide mount, 12 x 142mm thru axle |
| Fork: | FOX 36 Float Elite 27.5, Air spring system (adjustable), 170mm travel, FIT4 damping, 15 x 100mm thru axle, adjustable rebound and compression, Lock out |

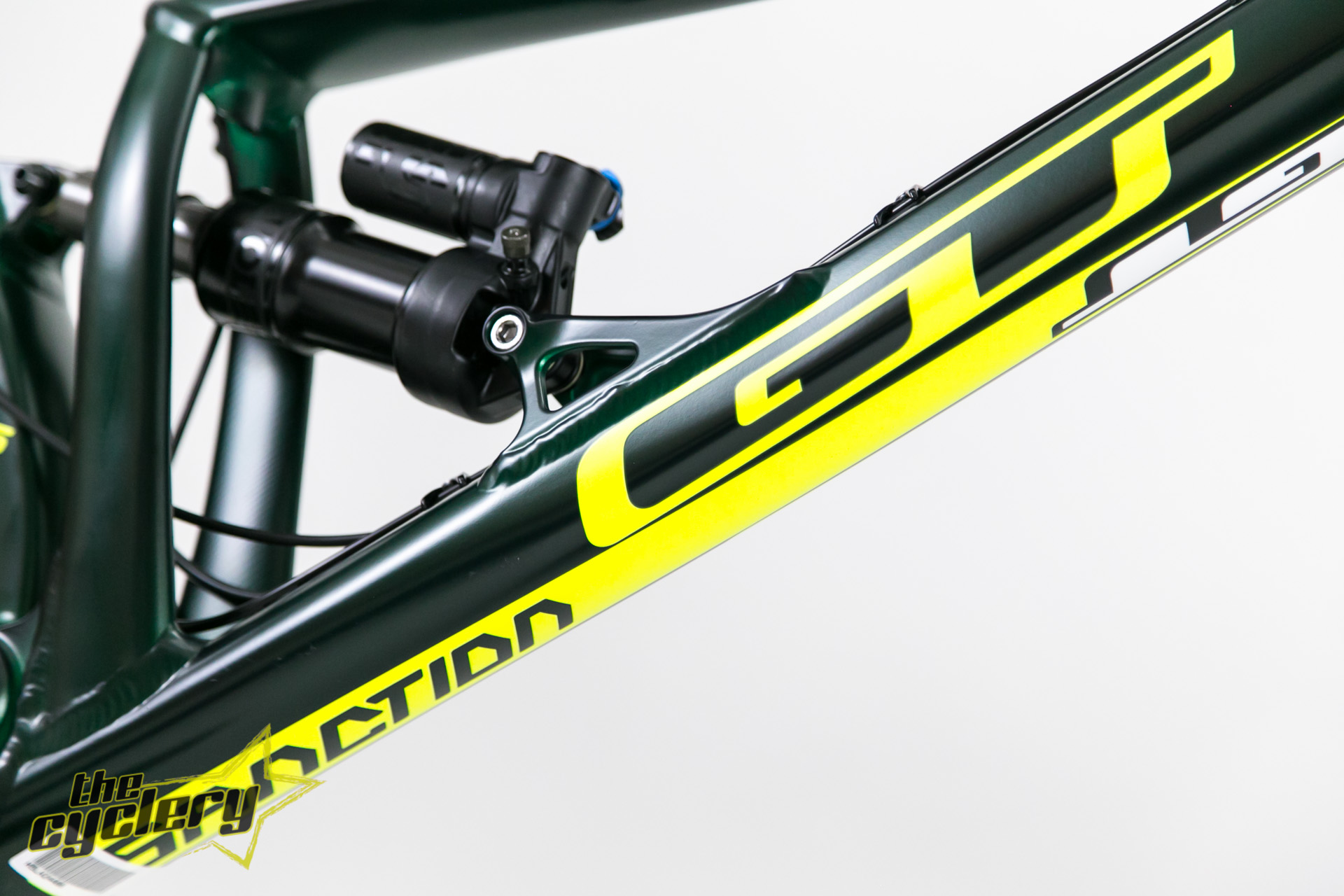

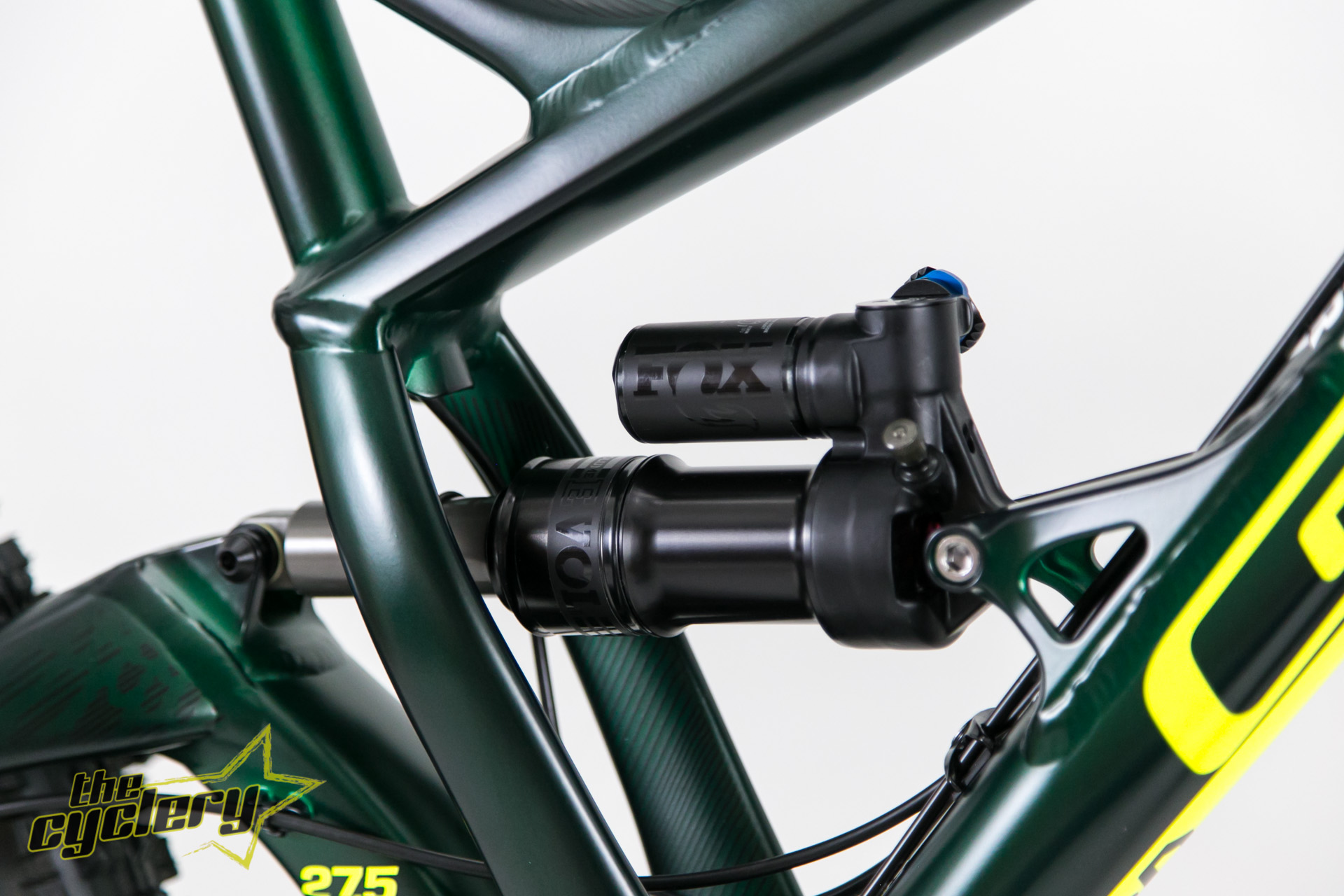

| Shock: | FOX Float X Elite, Air spring system (adjustable), adjustable rebound and lock out |
| Drivetrain/Brakes | |
| Shifters: | Shimano Deore XT (SL-M8000), 11-speed |

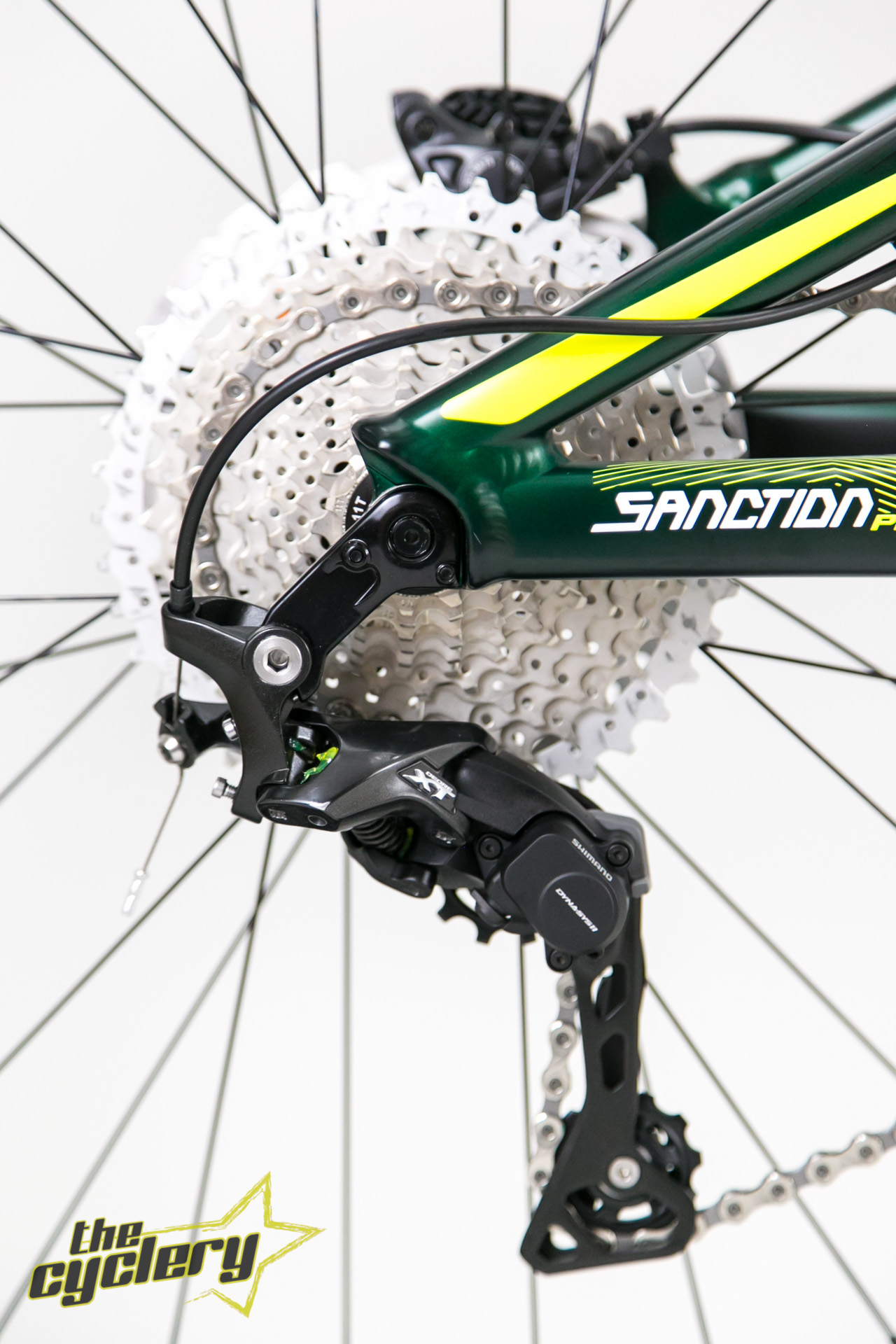

| Rear derailleur: | Shimano Deore XT Shadow+ (RD-M8000-D), Direct mount |
| Chain guide: | e.thirteen LG1+ with bash guard |
| Crankset: | Race Face AEffect, 32 teeth narrow wide chain ring |
| Bottom bracket: | Race Face X-Type |
| Pedals: | - |
| Chain: | KMC X11 |
| Cogs: | Sunrace CSMS8, 11-speed, 11-42 teeth |

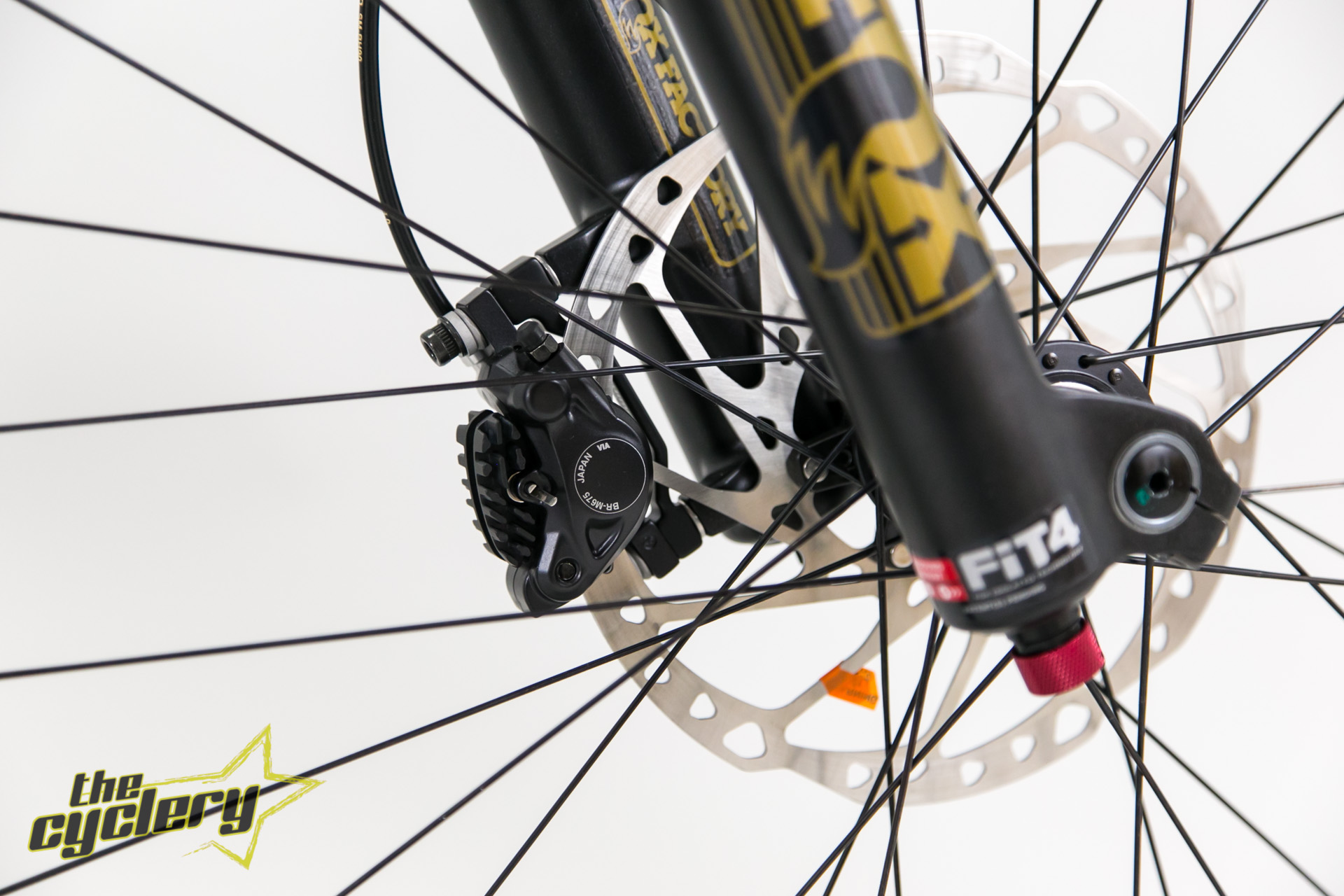

| Brakes: | Shimano SLX (BR-M675), hydraulic disc brakes, 203/180mm Centerlock IceTech discs (f/r) |

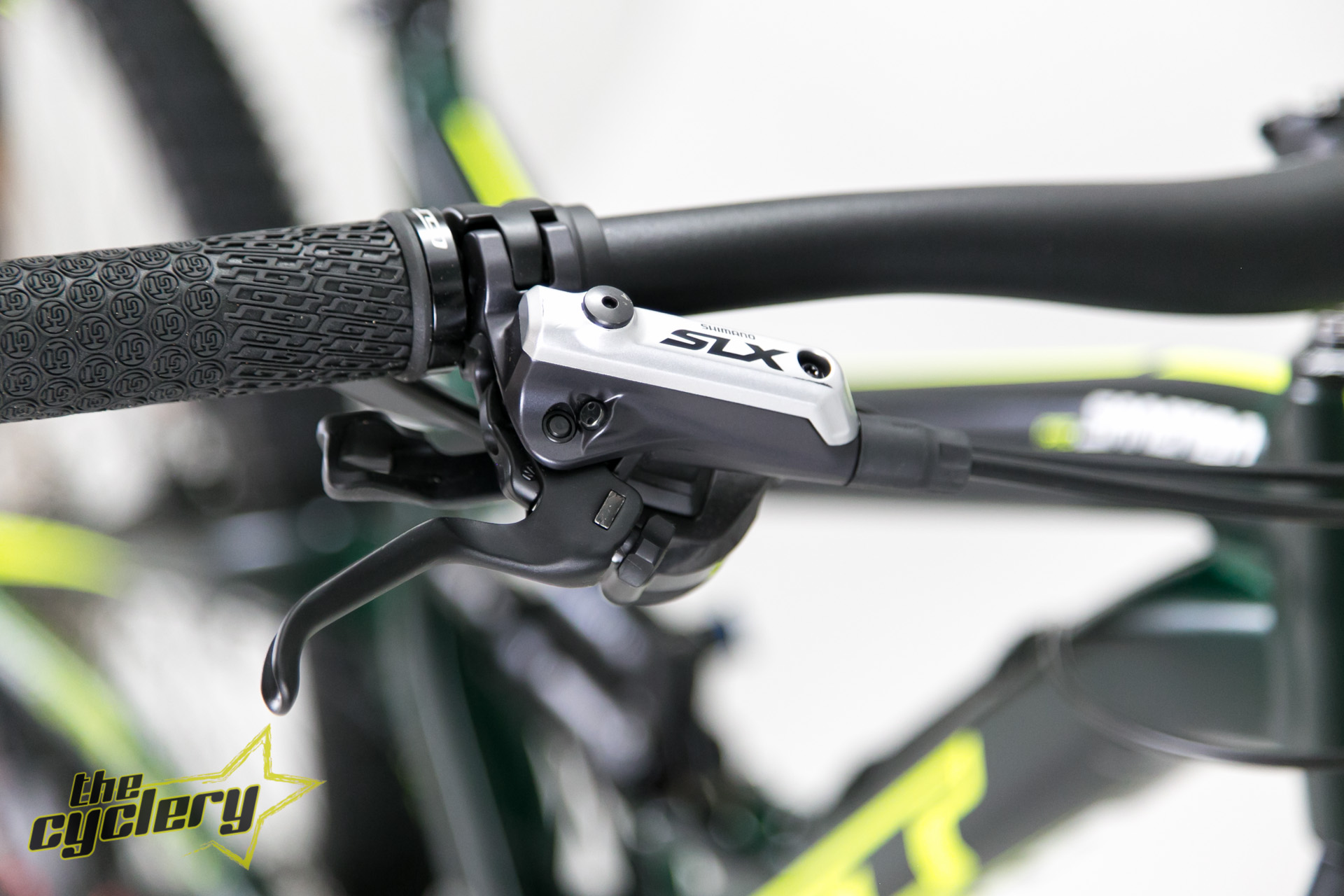

| Brake levers: | Shimano SLX (BL-M675) |
| Wheels | |
| Front hub: | Shimano SLX (HB-M678), 15 x 100mm thru axle, Centerlock mount |
| Rear hub: | Shimano SLX (FH-M678), 12 x 142mm thru axle, Centerlock mount |
| Rims: | Stan's NoTubes Rapid 30 27.5", 32 hole |

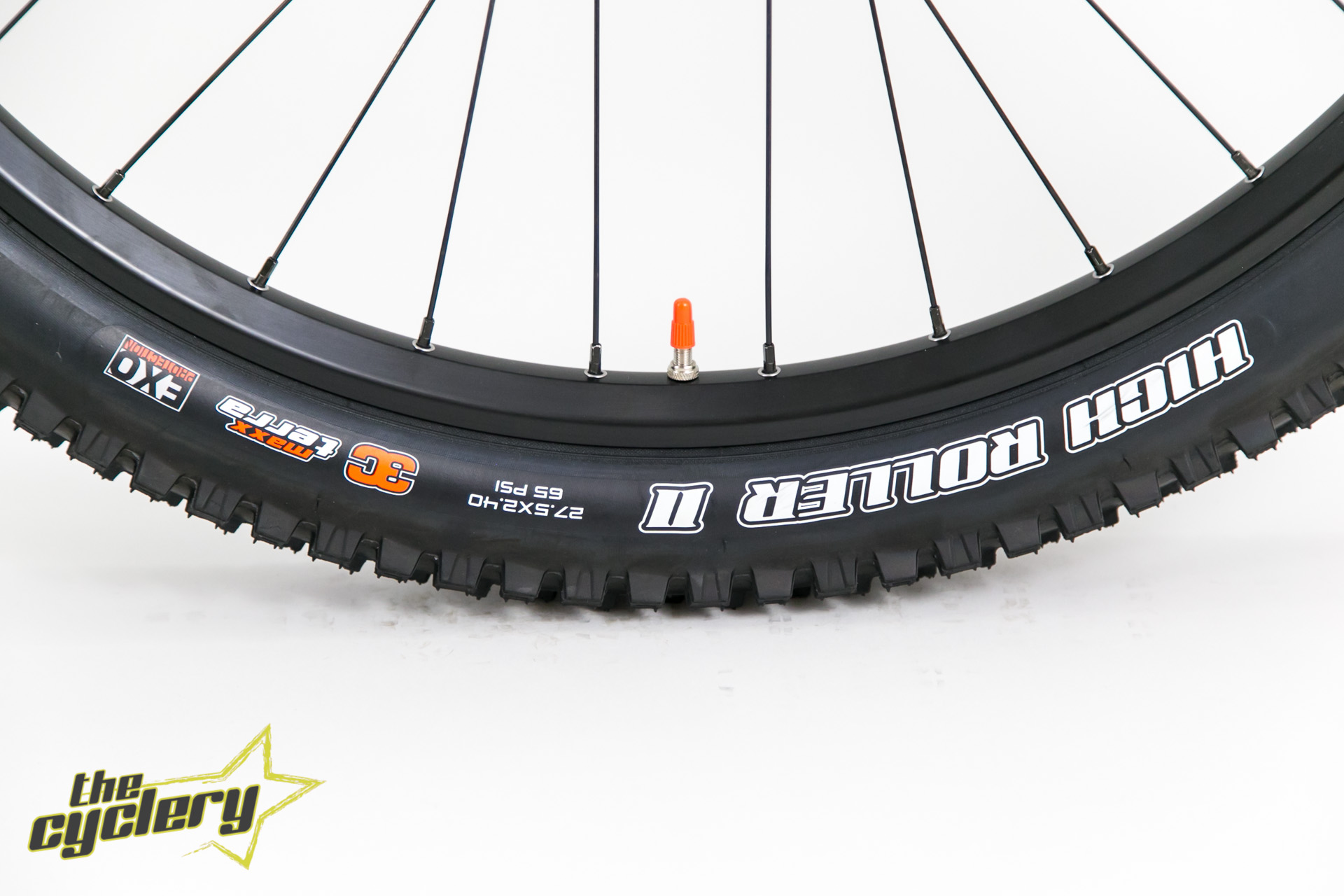

| Tires: | Maxxis High Roller 2, folding, 27.5 x 2.4" (f/r) |
| Components | |

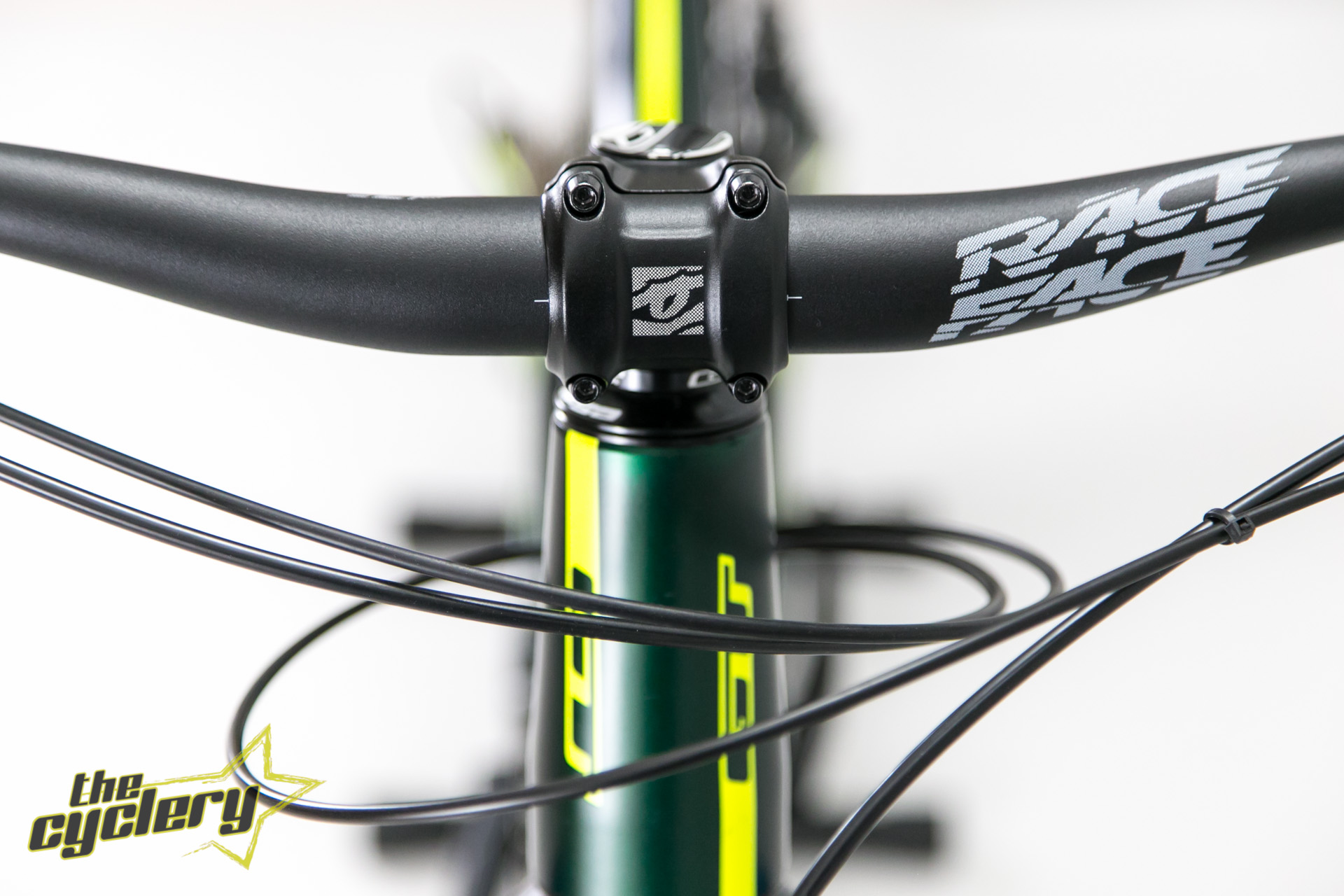

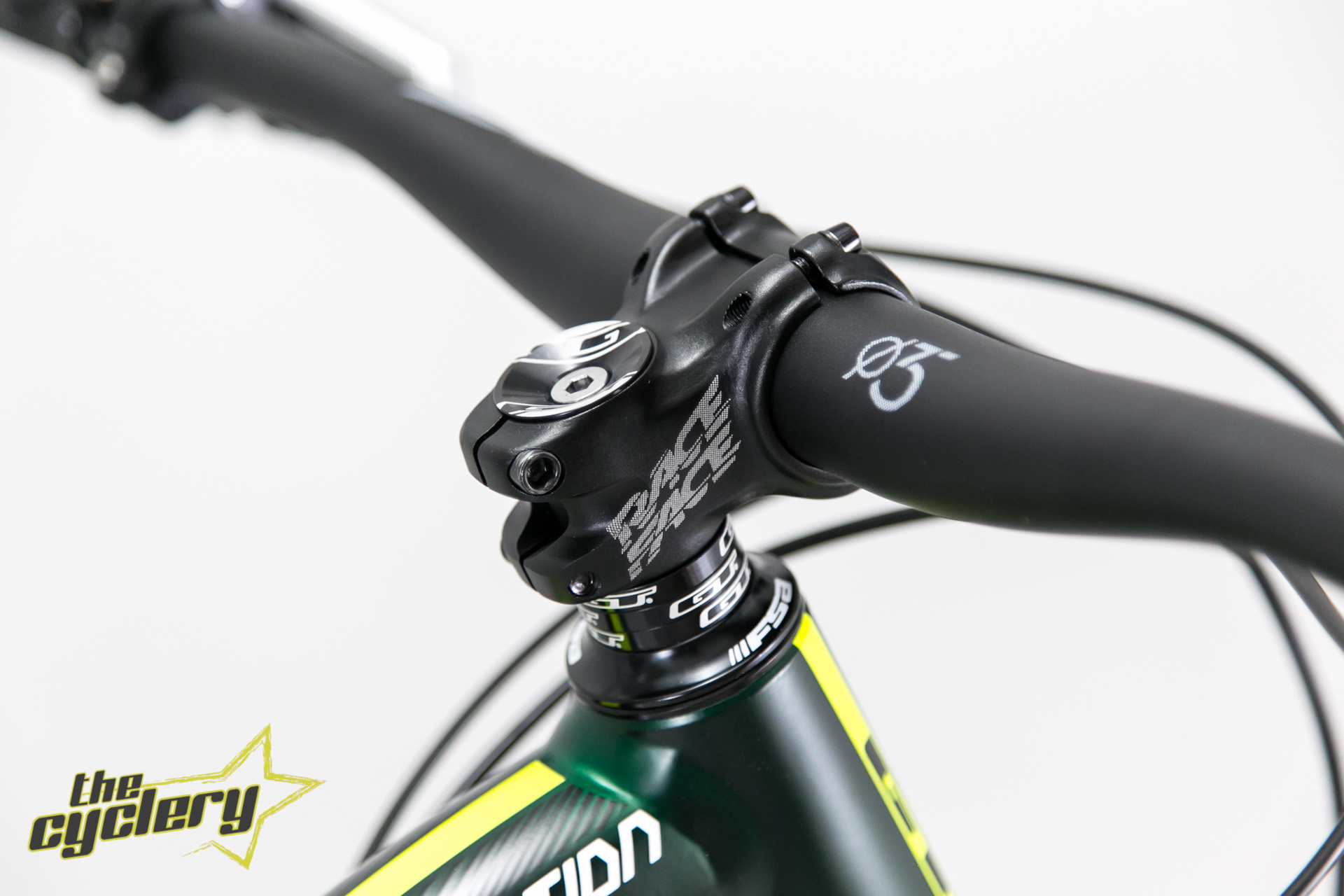

| Stem: | Race Face Chester, 40mm length |
| Handlebar: | Race Face Chester, 20mm rise, 780mm width |
| Headset: | FSA Orbit 1.5 Zero Stack, sealed bearings |

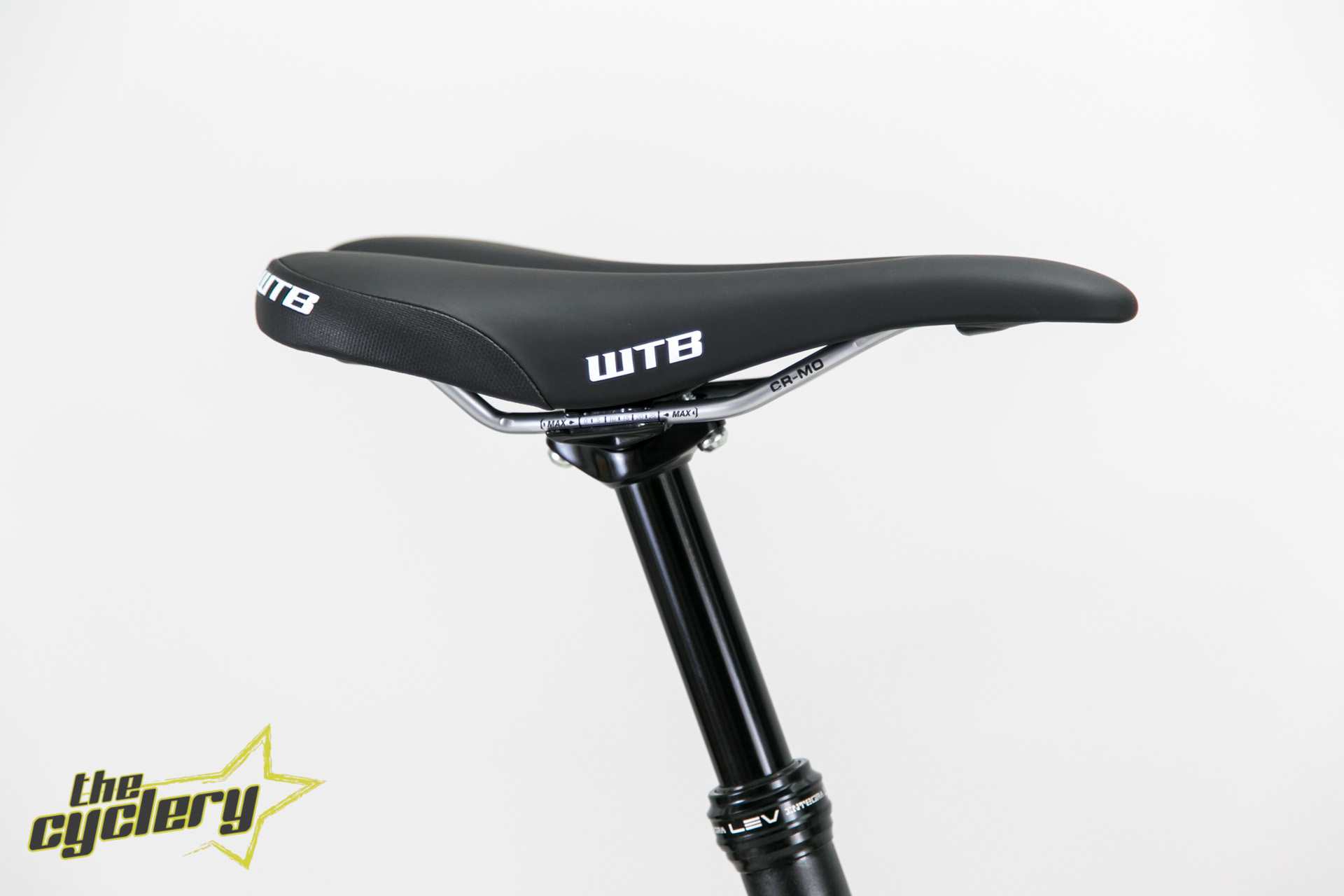

| Saddle: | WTB Silverado Race SL, cromoly rails |
| Seat post: | KS LEV, adjustable height via remote control |
| Other: | - |
| Table of geometry | click here |
Product video:
Video of the Sanction series:
| Model year | 2016 |
| Intended use | Enduro |
| Wheel size | 27.5"/650b |
| Frame material | Aluminum |
| Shifting type | Derailleur |
| Gears | 11 |
