| Chassis | |

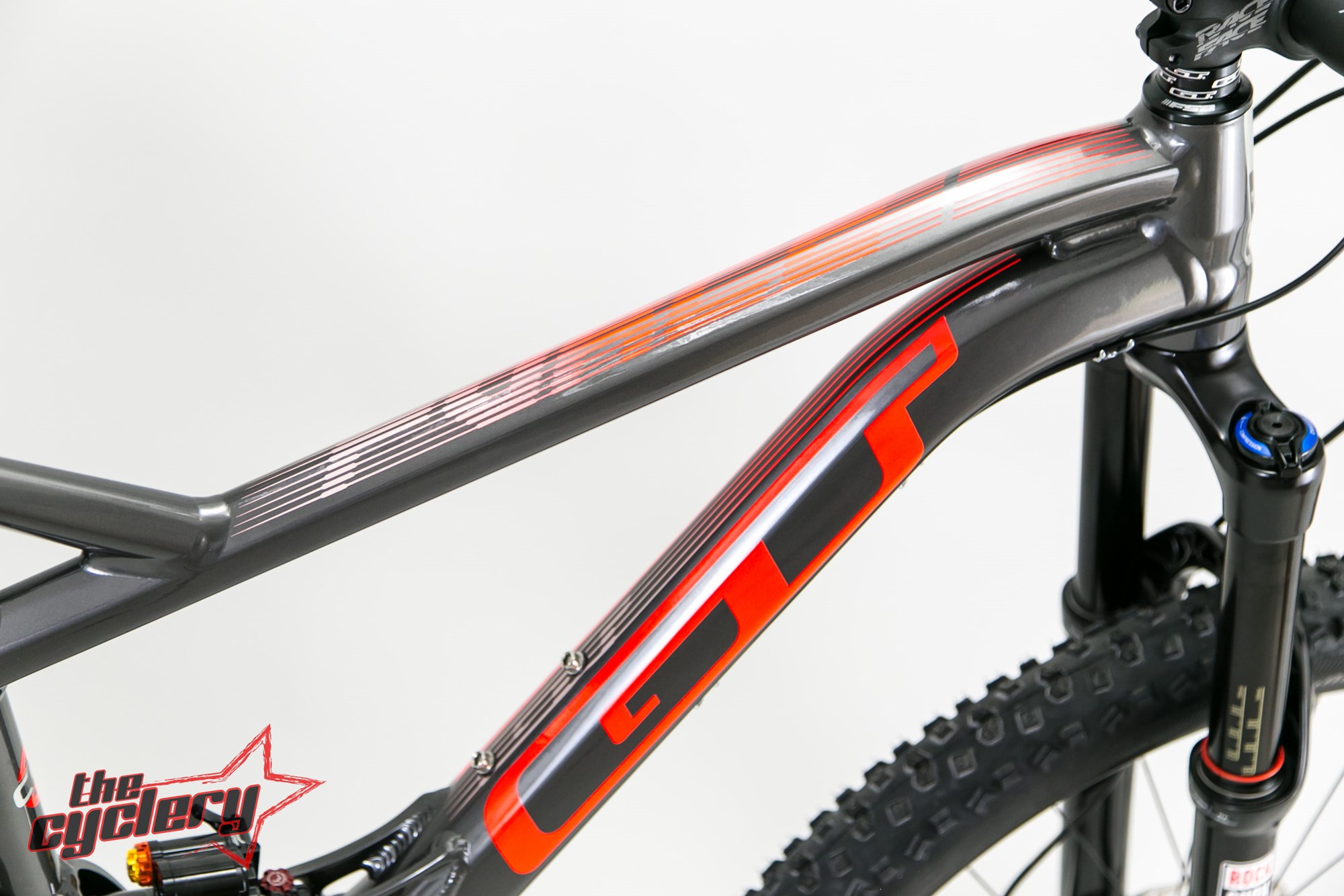

| Frame: | 27.5" all mountain frame with COR design (Centered on Rider), 6069 hydro formed aluminum, 150mm travel via AOS-system (Angle Optimized Suspension), tapered head tube, 12 x 142mm thru axle |

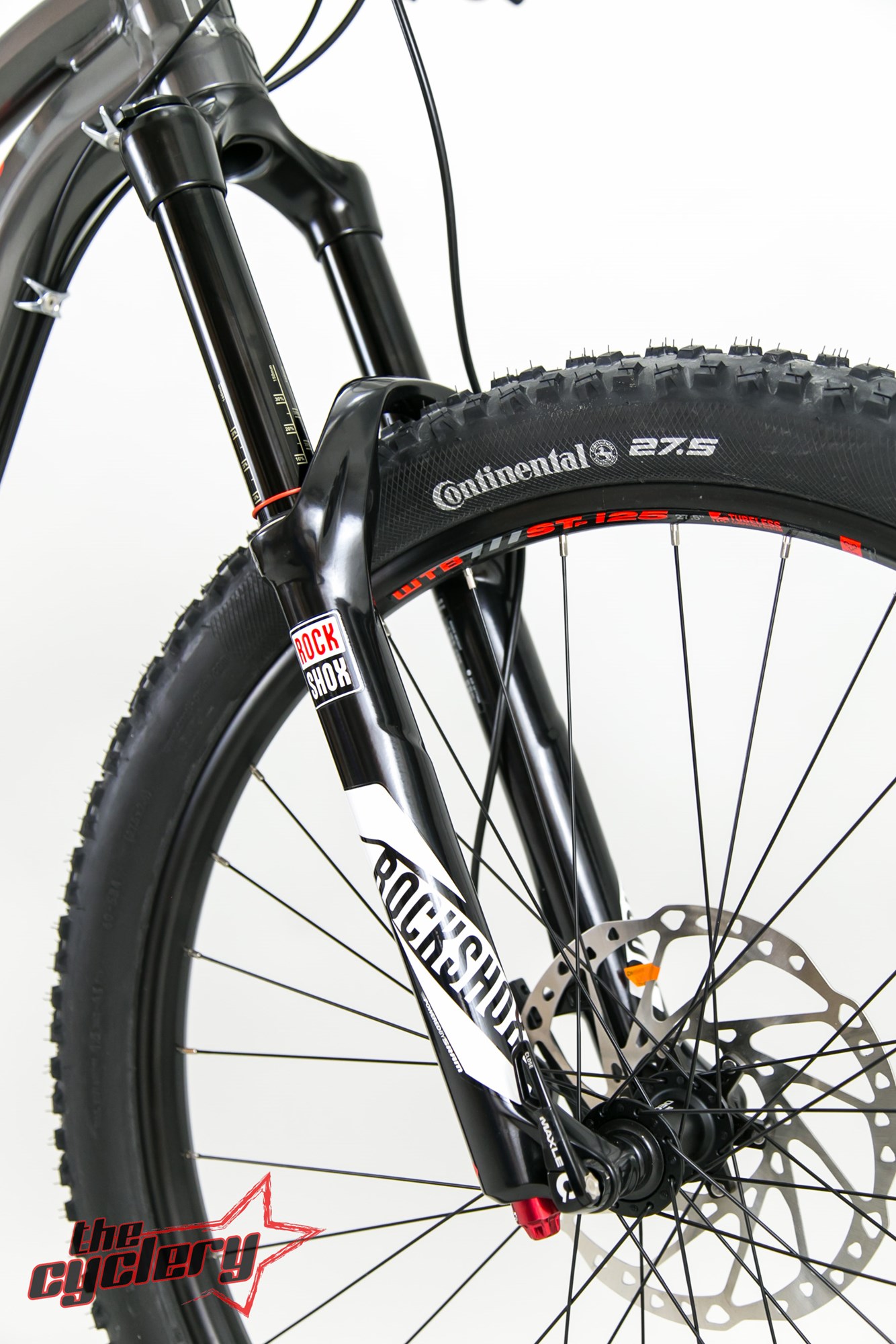

| Fork: | Rock Shox Pike RC, air spring system (adjustable), 160mm travel, 15 x 100mm thru axle, adjustable rebound and lock-out |

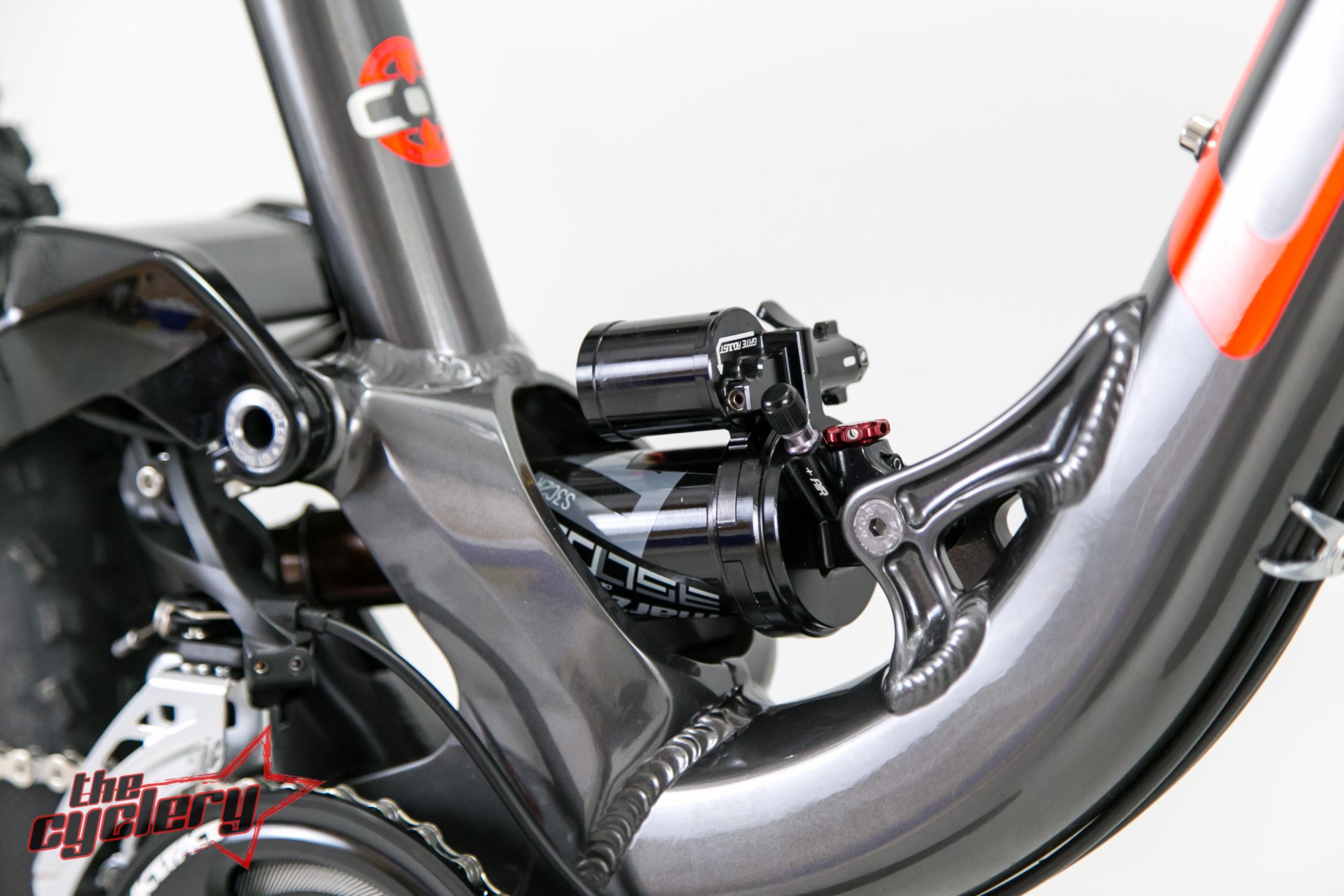

| Shock: | Marzocchi 053 C2R, air spring system (adjustable), adjustable rebound and lock-out |
| Drivetrain/Brakes | |
| Shifters: | Shimano SLX (SL-M670), 2 x 10-speed |

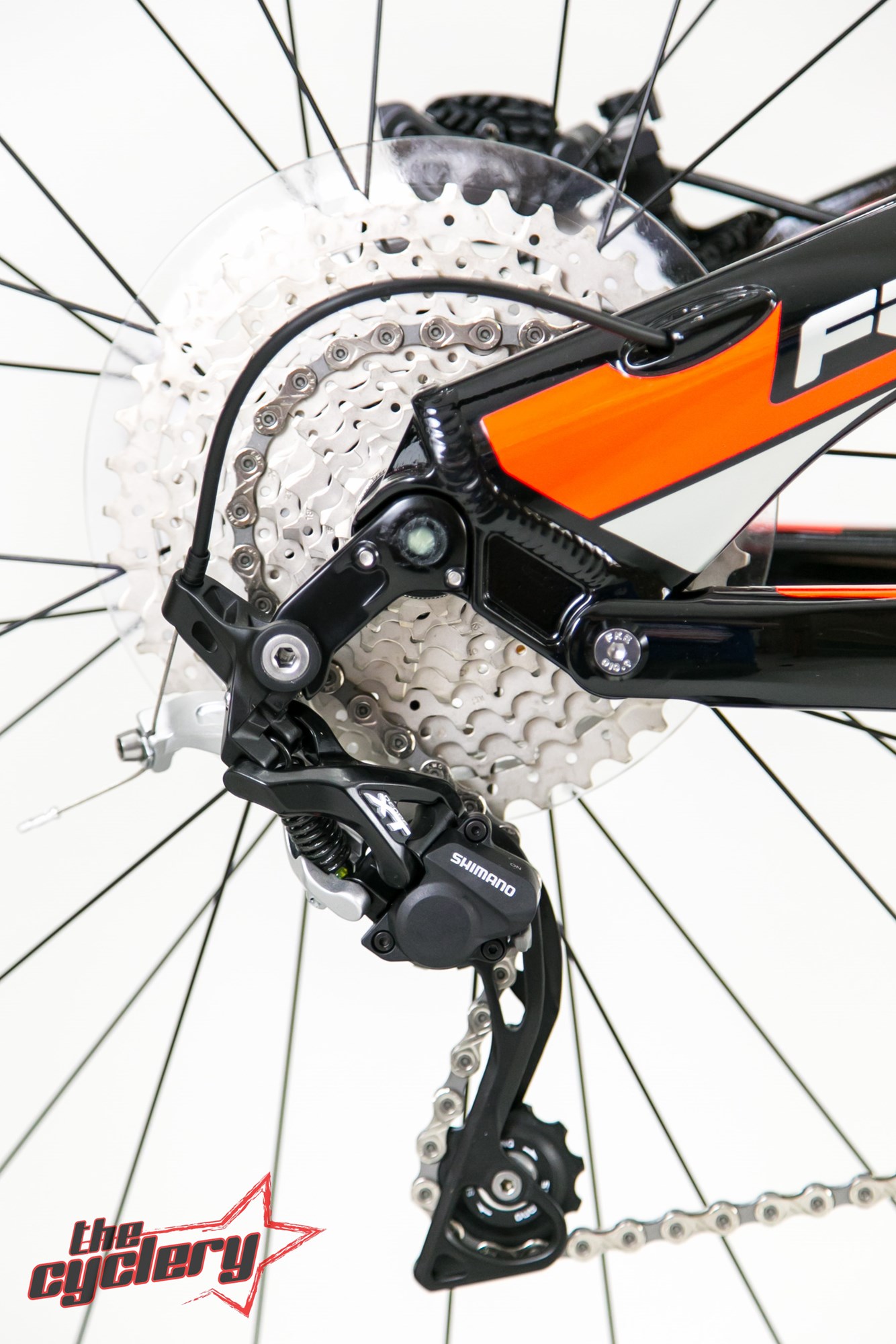

| Rear derailleur: | Shimano Deore Shadow+ (RD-M786-D), direct mount, GS cage |
| Front derailleur: | Shimano Deore (FD-M617-D), direct mount |

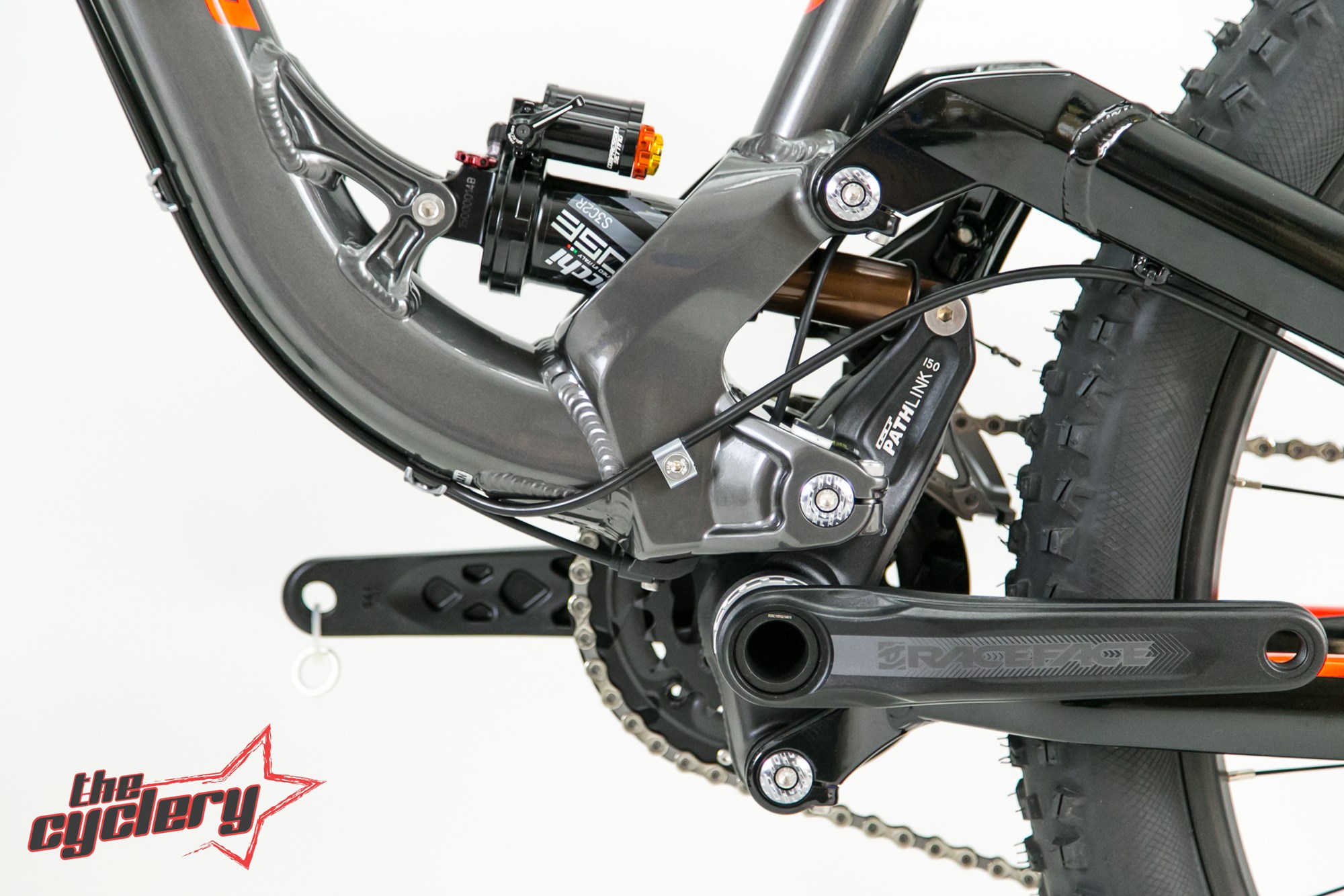

| Crankset: | Race Face AEffect, 36/24 teeth chain rings+ bash guard |
| Bottom bracket: | Race Face |
| Pedals: | - |
| Chain: | KMC X10 |
| Rear cogs: | Sunrace SCMS3, 10-speed, 11-42 teeth |

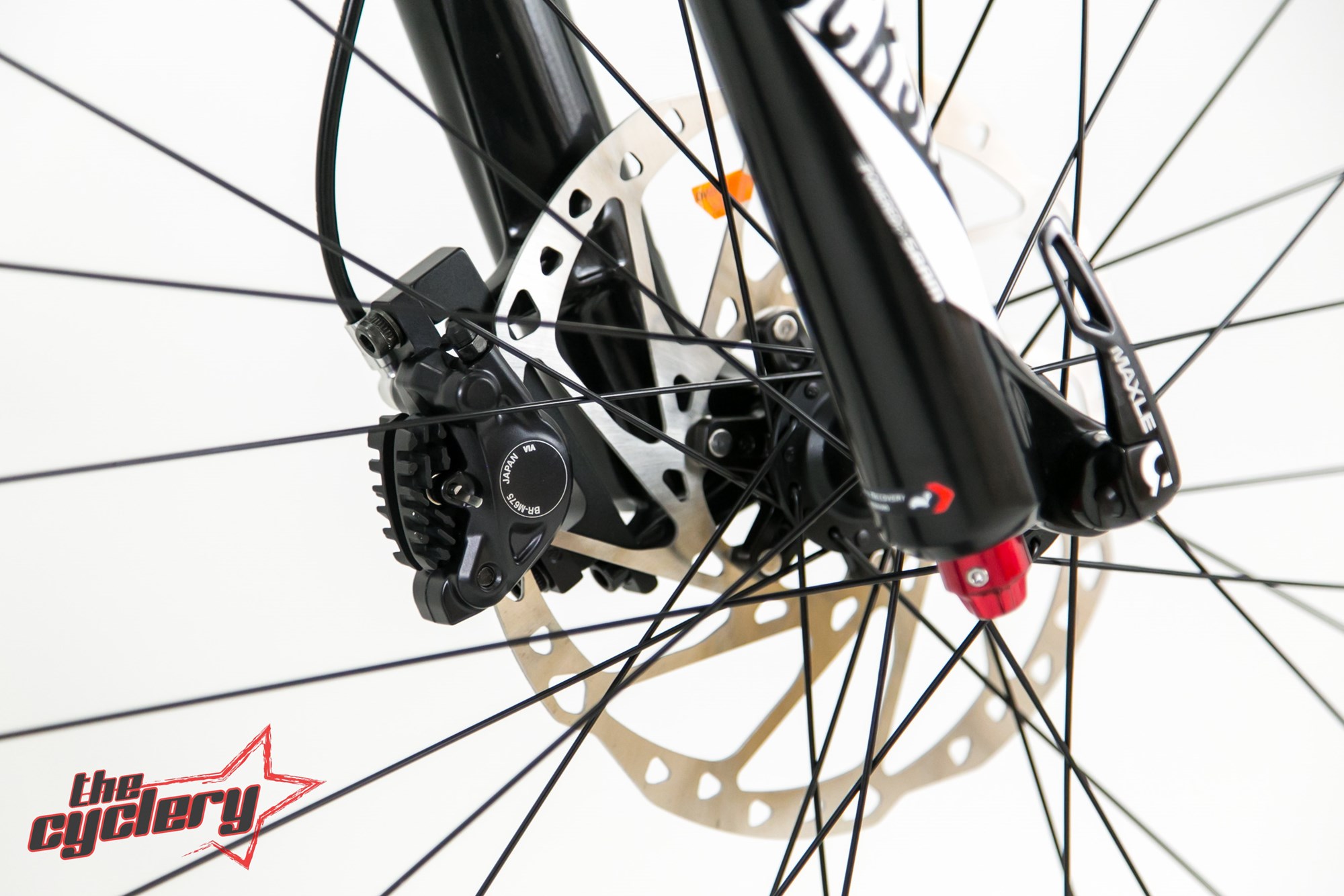

| Brakes: | Shimano SLX (BR-M675), hydraulic disc brakes, 203/180mm Centerlock IceTech discs (f/r) |

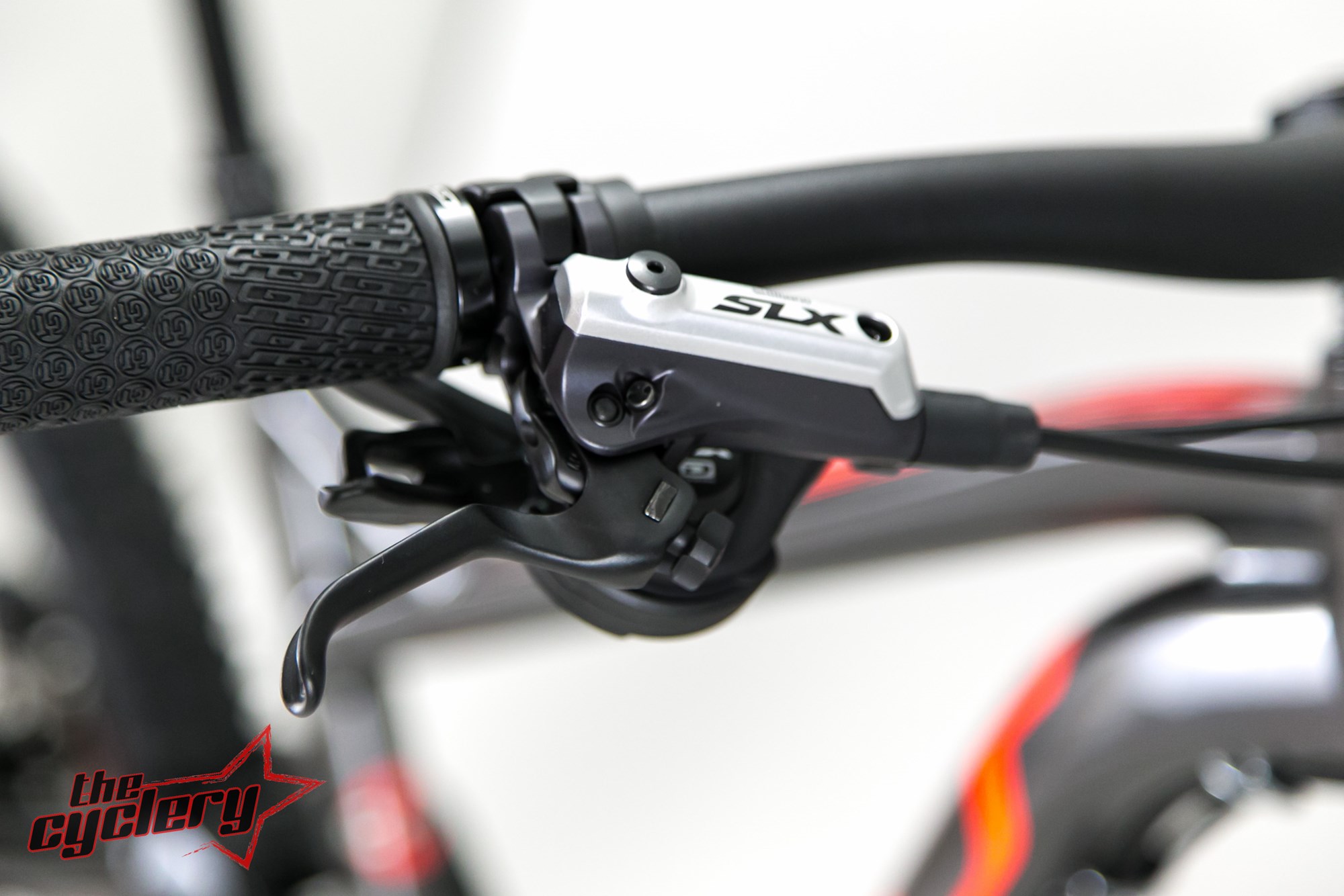

| Brake levers: | Shimano SLX (BR-M675) |
| Wheels | |
| Front hub: | Shimano SLX (HB-M618), 15 x 100mm thru axle |
| Rear hub: | Shimano SLX (FH-M618), 12 x 142mm thru axle |
| Rims: | WTB STP i25, 32 hole, tubeless ready |

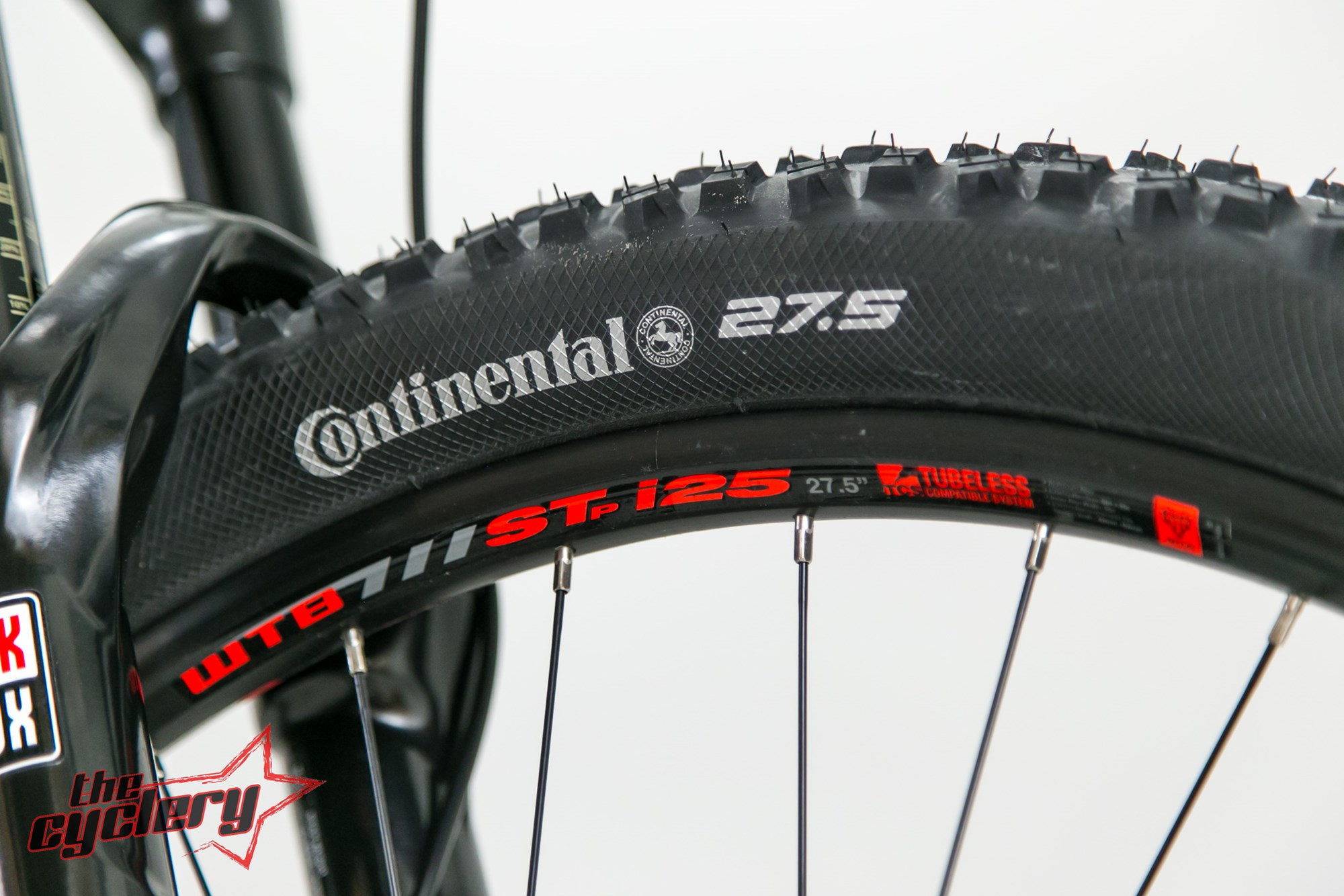

| Tires: | Continental Mountain King, folding, 27.5 x 2.4" (f/r) |
| Components | |

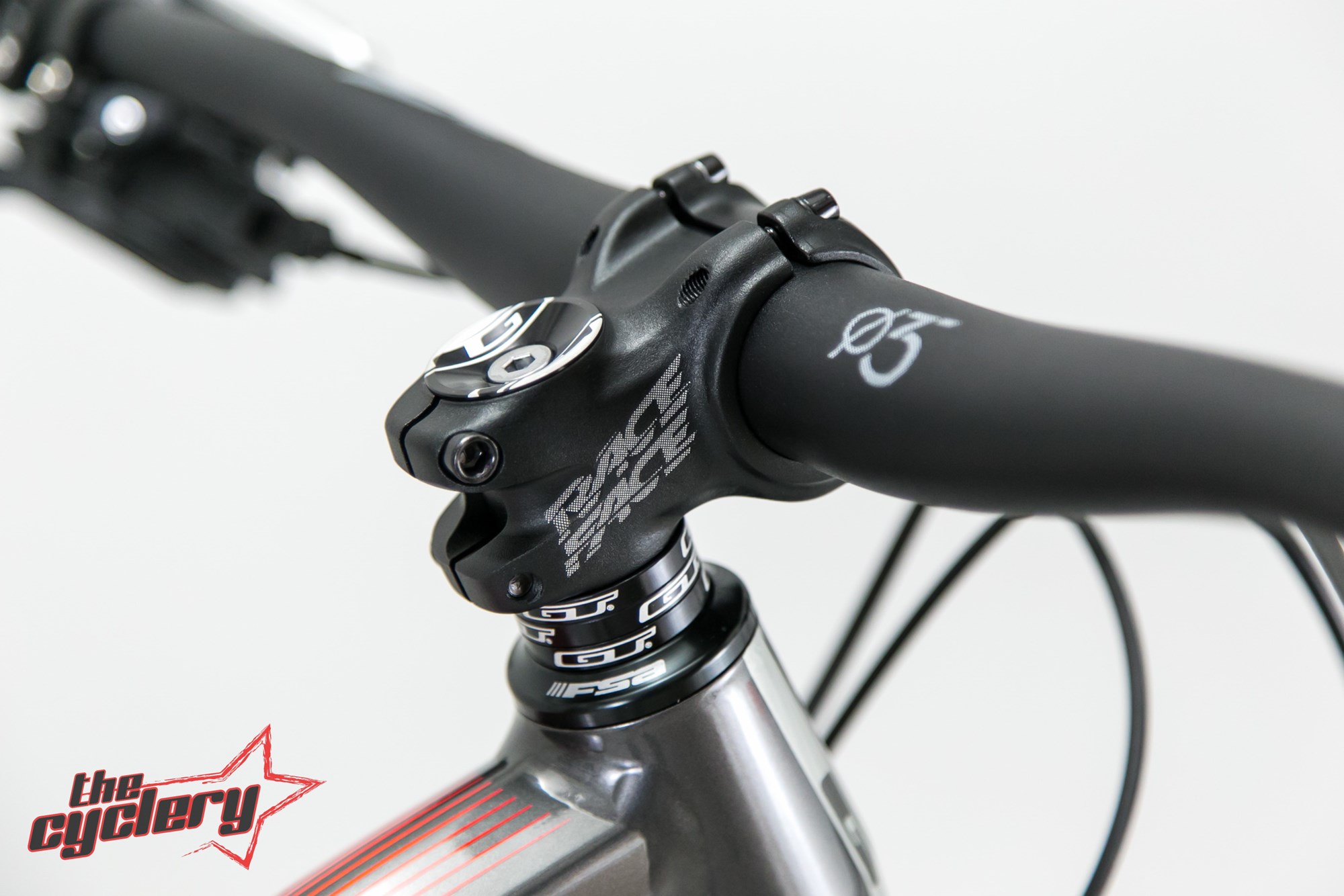

| Stem: | Race Face Chester, 40mm length |
| Handlebar: | Race Face Chester, 20mm rise, 780mm width |
| Headset: | FSA Orbit C-40-ACB Zero Stack |

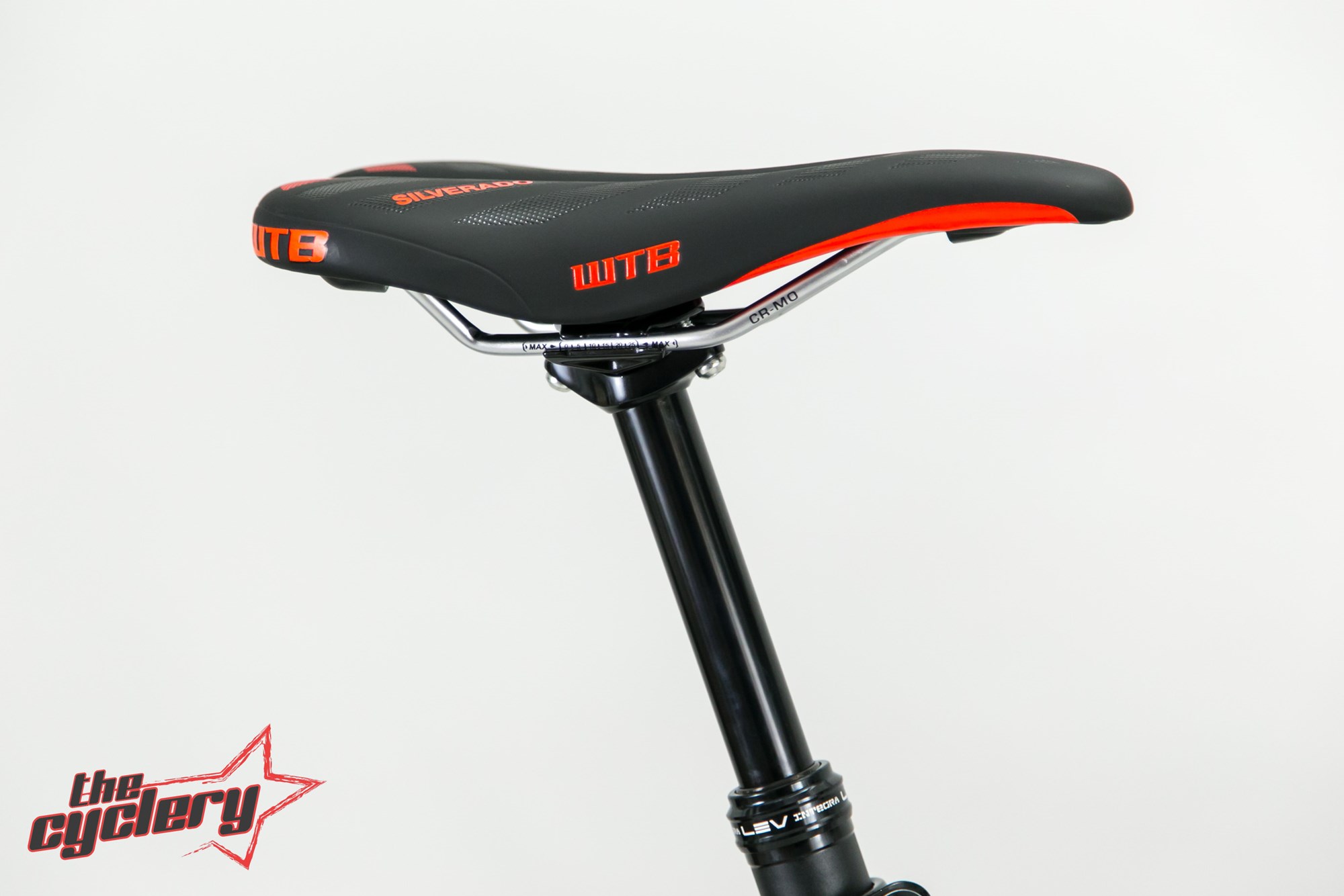

| Saddle: | WTB Silverado Race SL, CroMo rails |
| Seatpost: | KS Lev Integra (internal routing), adjustable height via remote control |
| Other: | - |
Product video:
| Model year | 2016 |
| Intended use |
|
| Wheel size | 27.5"/650b |
| Frame material | Aluminum |
| Shifting type | Derailleur |
| Gears | 20 |
