| Chassis |
|

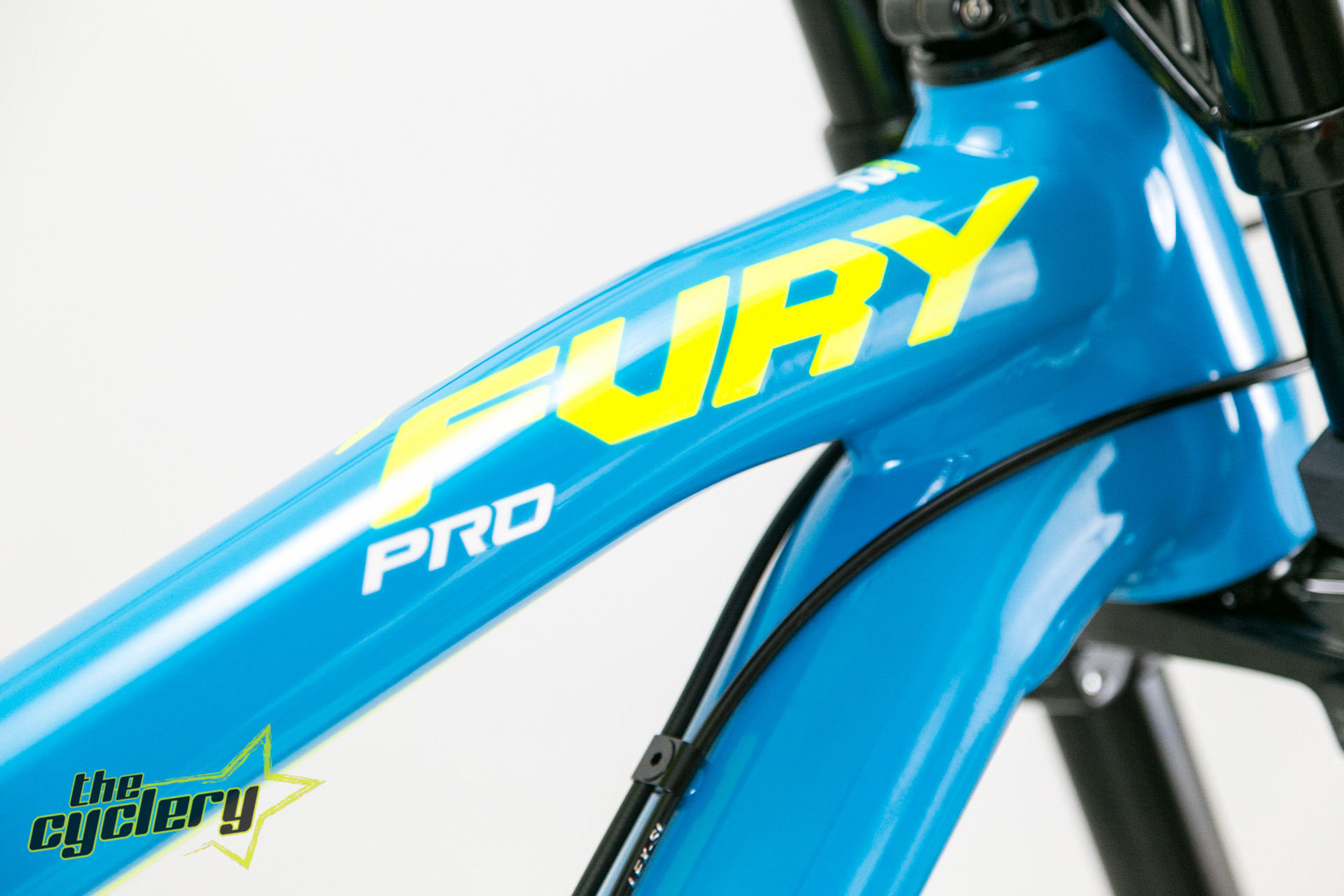

| Frame: |
Downhill frame with COR design (Centered on Rider) and 27.5" specific geometry, 6069-T6 aluminum, 210mm travel via independent drivetrain system, 1.5" head tube, ISCG03 chain guide mount, 12 x 150mm thru axle |
| Fork: |

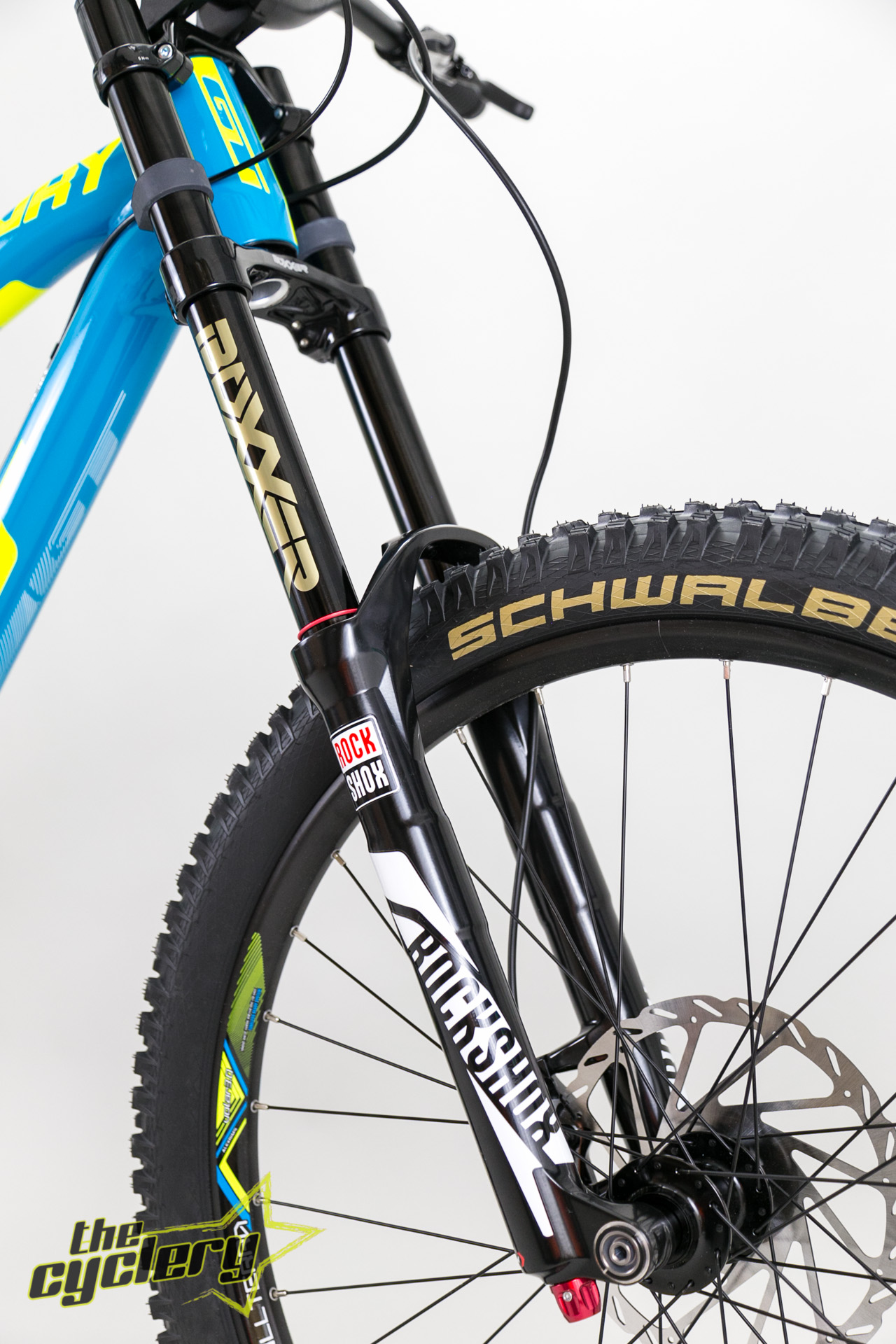

Rock Shox Boxxer Team, coil springs system, 200mm travel, 20 x 110mm thru axle, adjustable rebound |

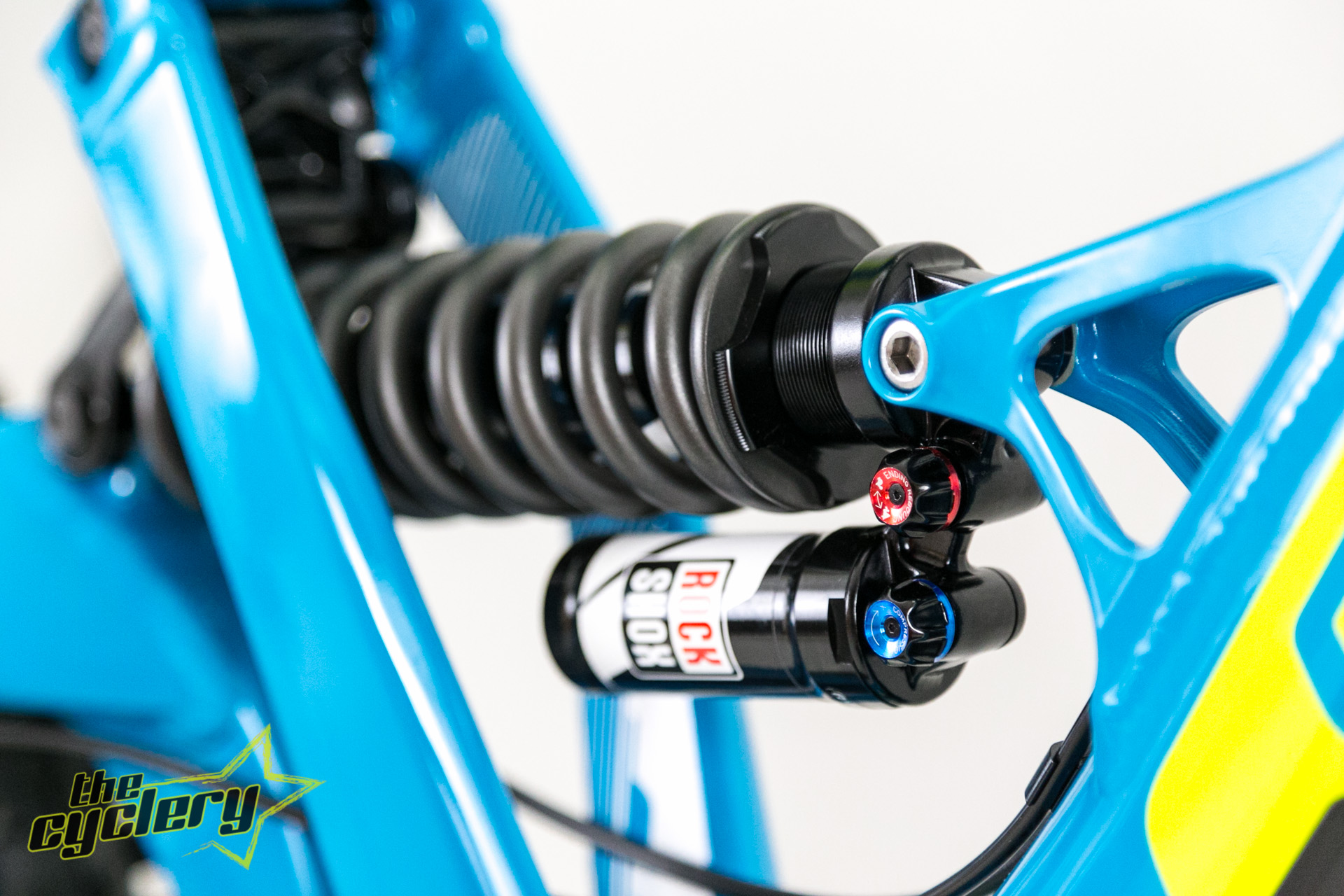

| Shock: |

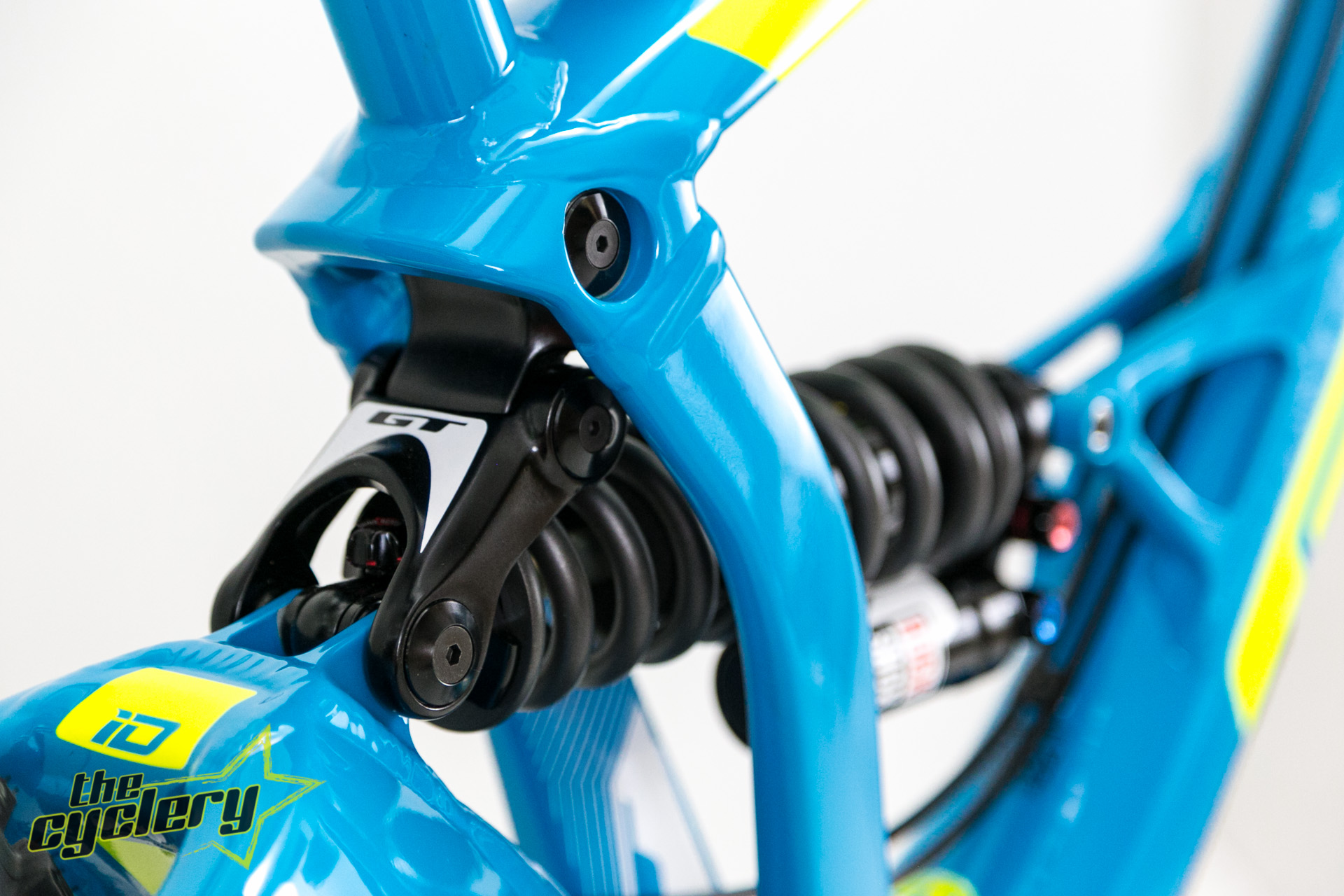

Rock Shox Vivid R2C, coil spring system (adjustable), adjustable rebound and compression |
|
|
| Drivetrain/Brakes |
|
| Shifters: |
SRAM GX DH, 10-speed |

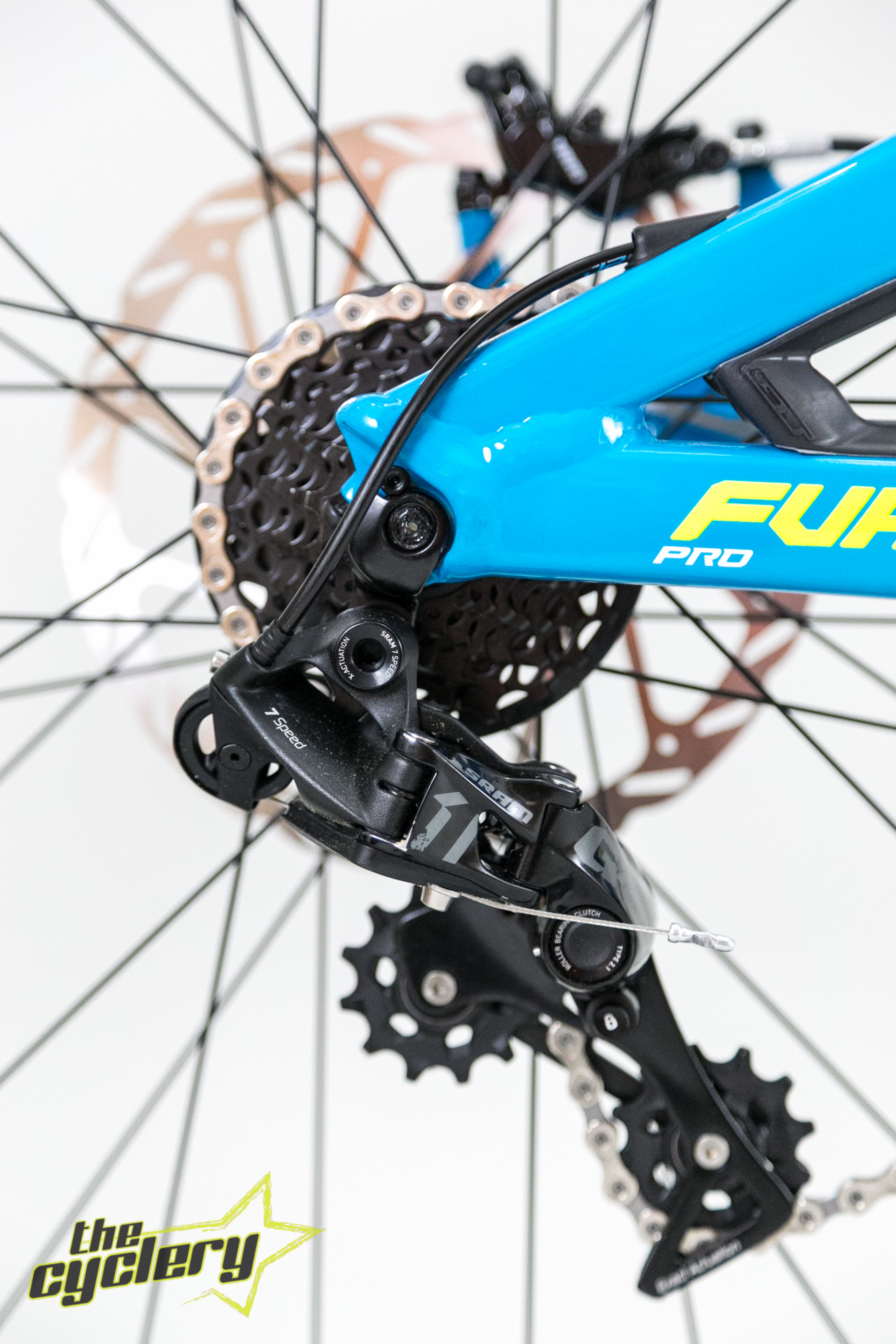

| Rear derailleurs: |
SRAM GX DH, medium cage |
| Chain Guide: |
e.thirteen LG1+ with bash guard |

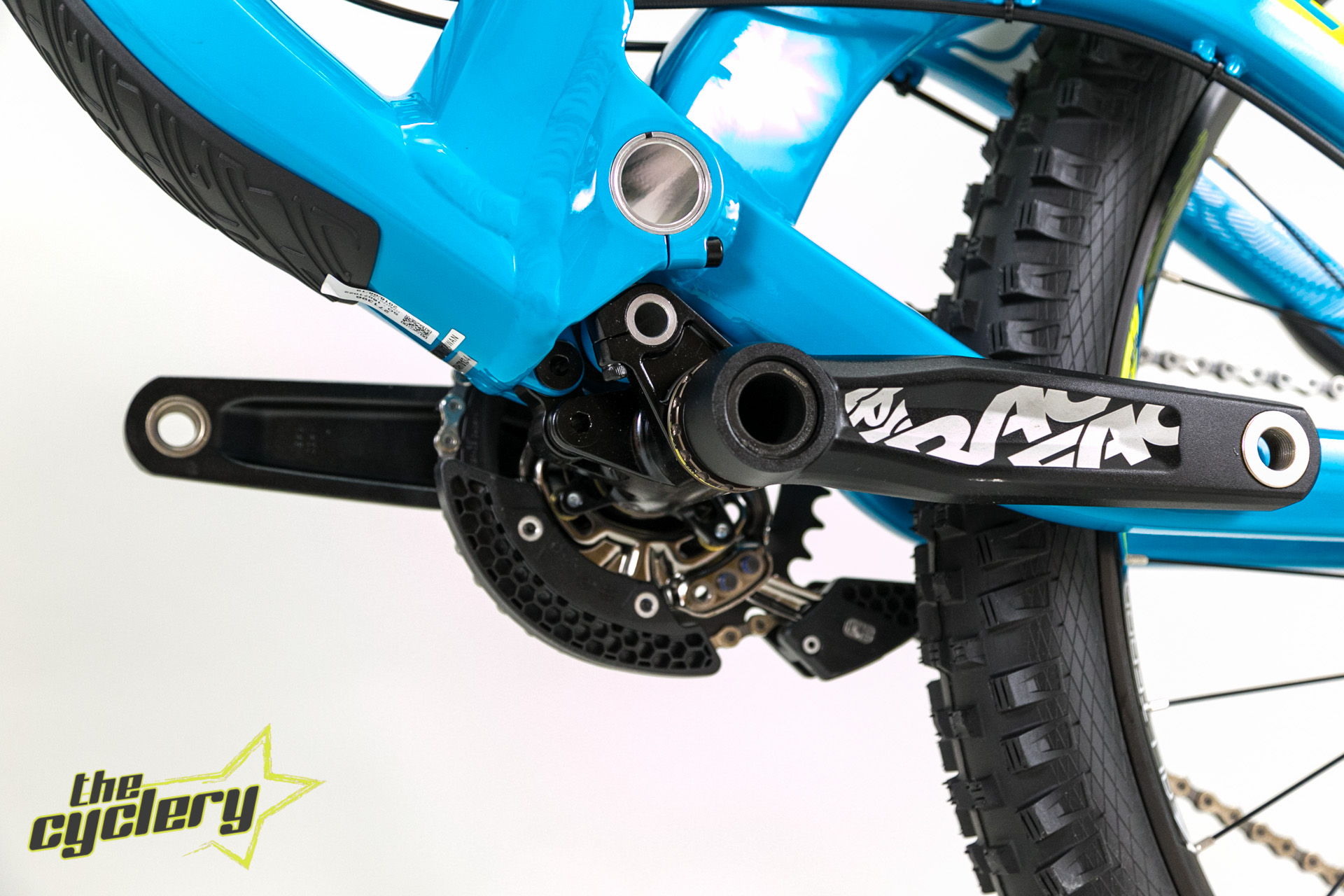

| Crankset: |
Race Face Chester, 36 teeth chain ring, 165mm length |
| Bottom bracket: |
Race Face X-Type, 83mm housing |
| Pedals: |
- |
| Chain: |
KMC X10 |
| Cogs: |
SRAM PG-720, 10-speed, 11-25 teeth |

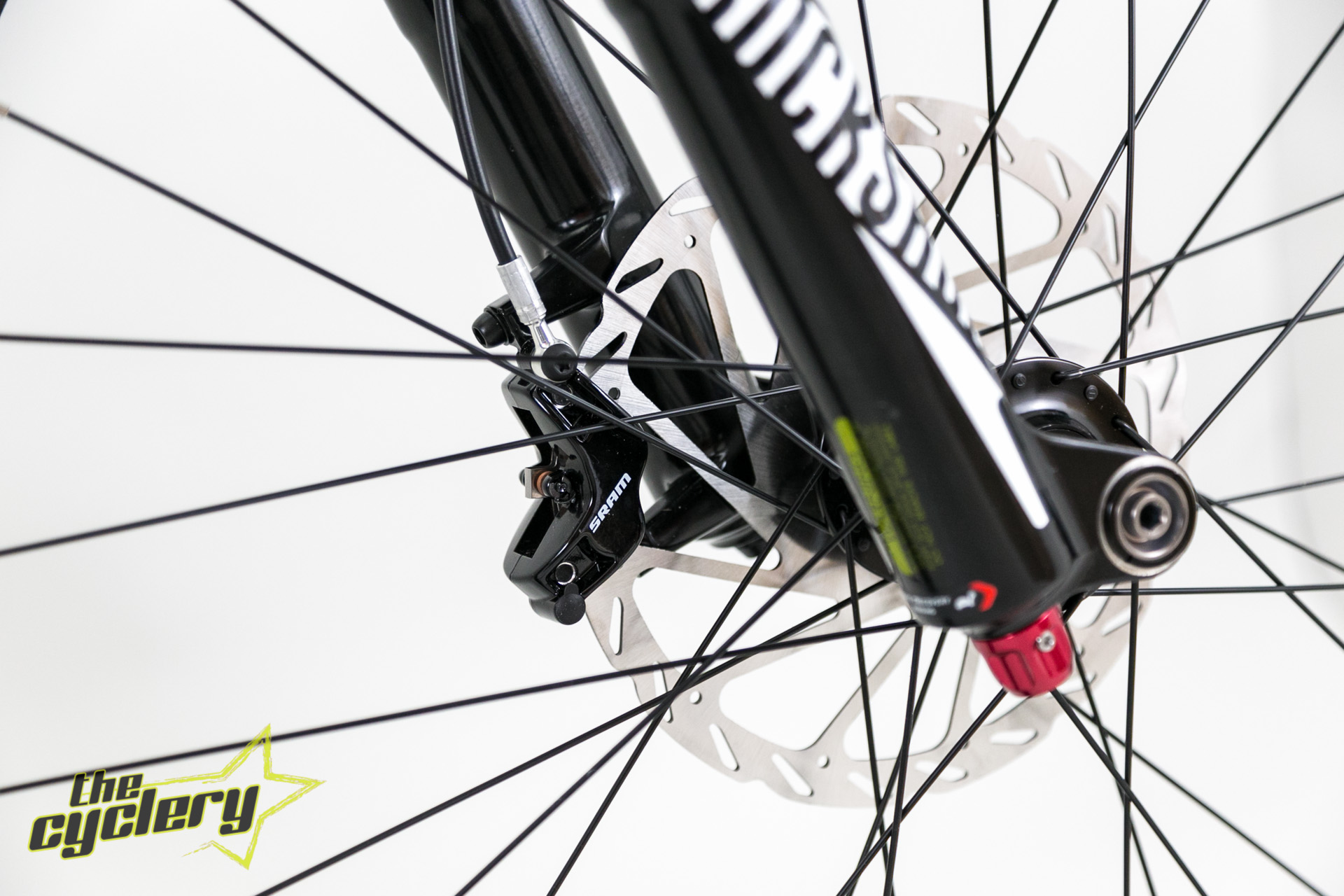

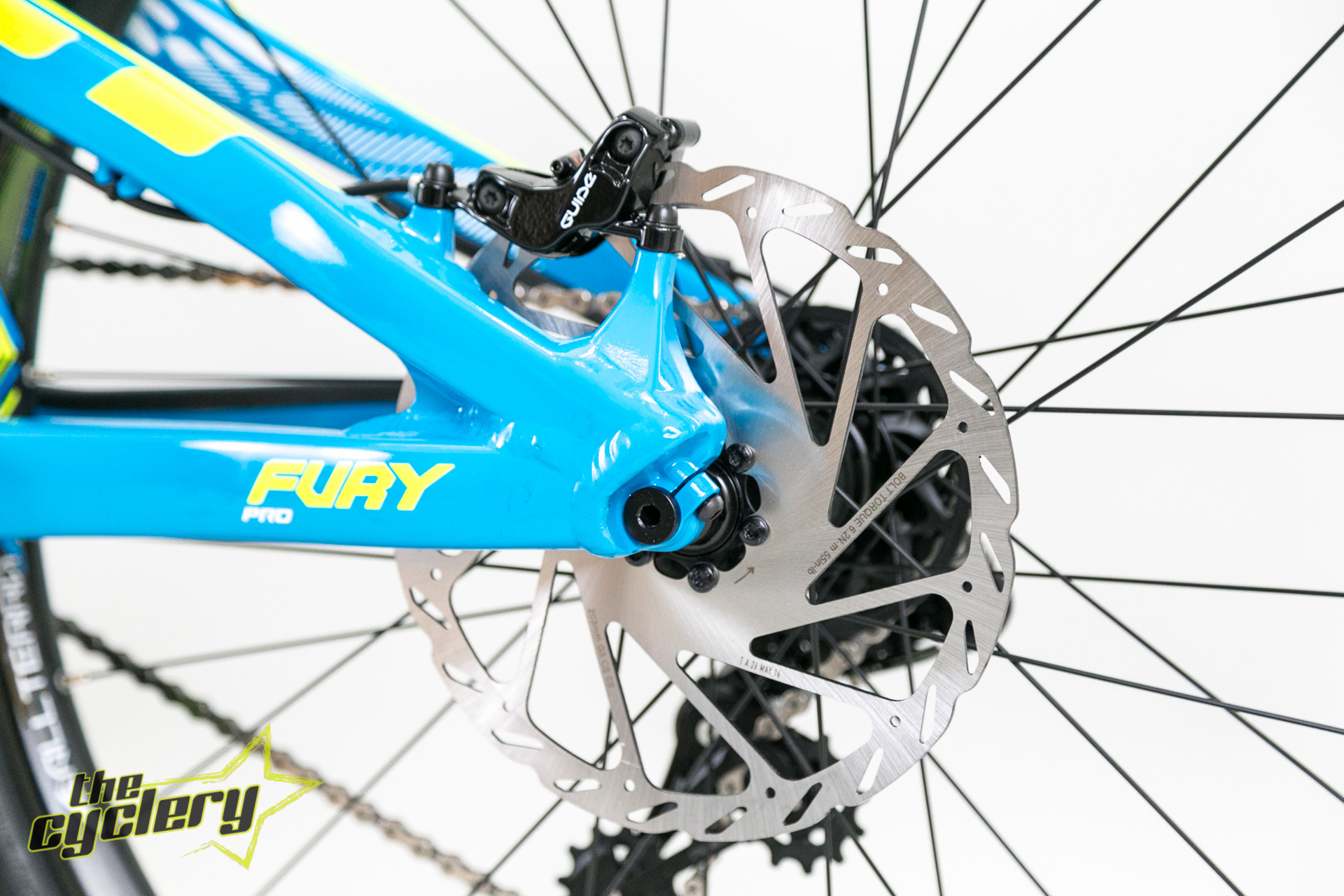

| Brakes: |
SRAM Guide R, hydraulic disc brakes, 203mm G2 discs (f/r) |

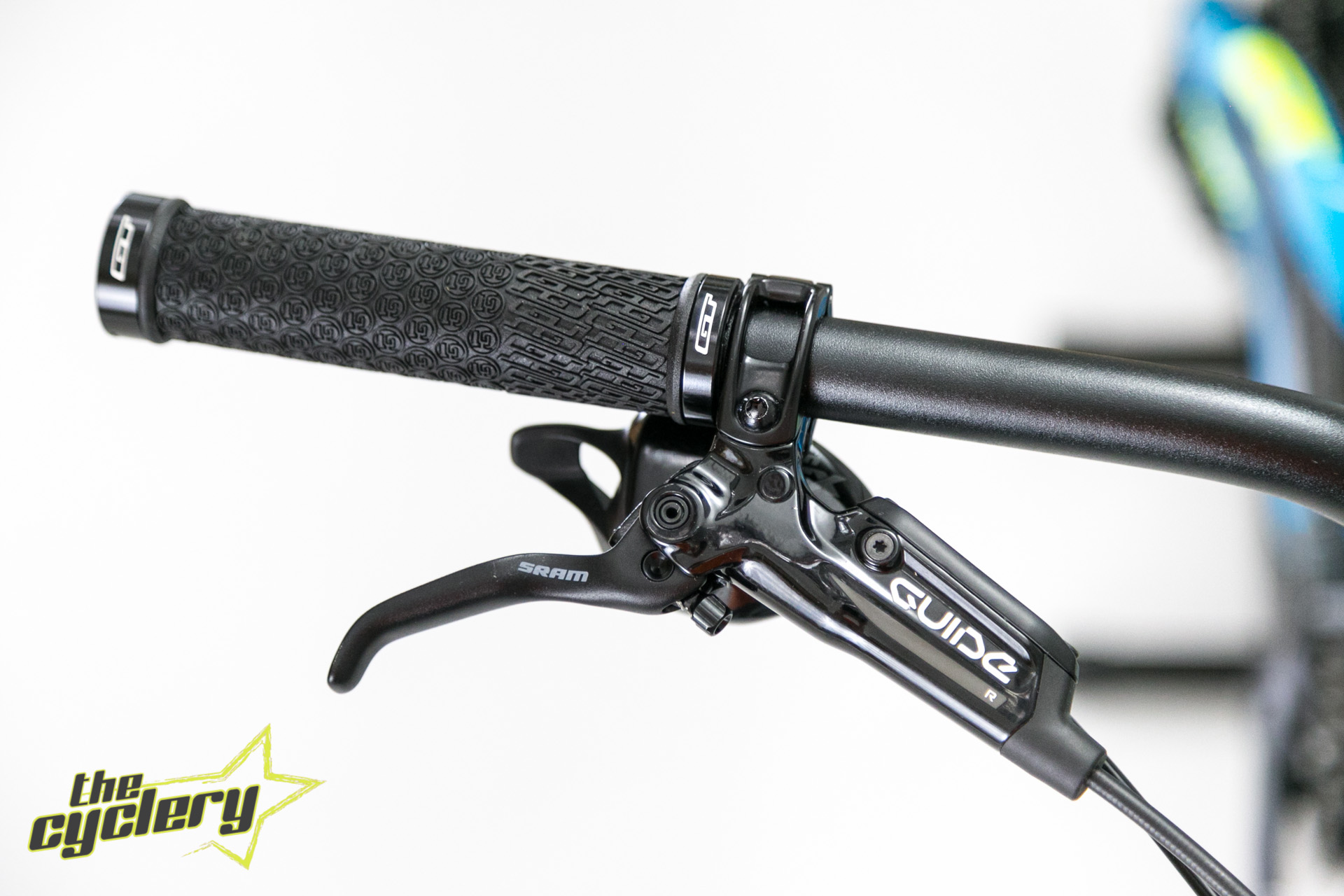

| Brake levers: |
SRAM Guide R |
|
|
| Wheels |
|
| Front hub: |
All Terra, sealed bearings, 20 x 110mm thru axle, 6-hole mount |
| Rear hub: |
All Terra, sealed bearings, 12 x 150mm thru axle, 6-hole mount |
| Rims: |
Alex Volar 3 27.5", 32 hole, tubeless ready |

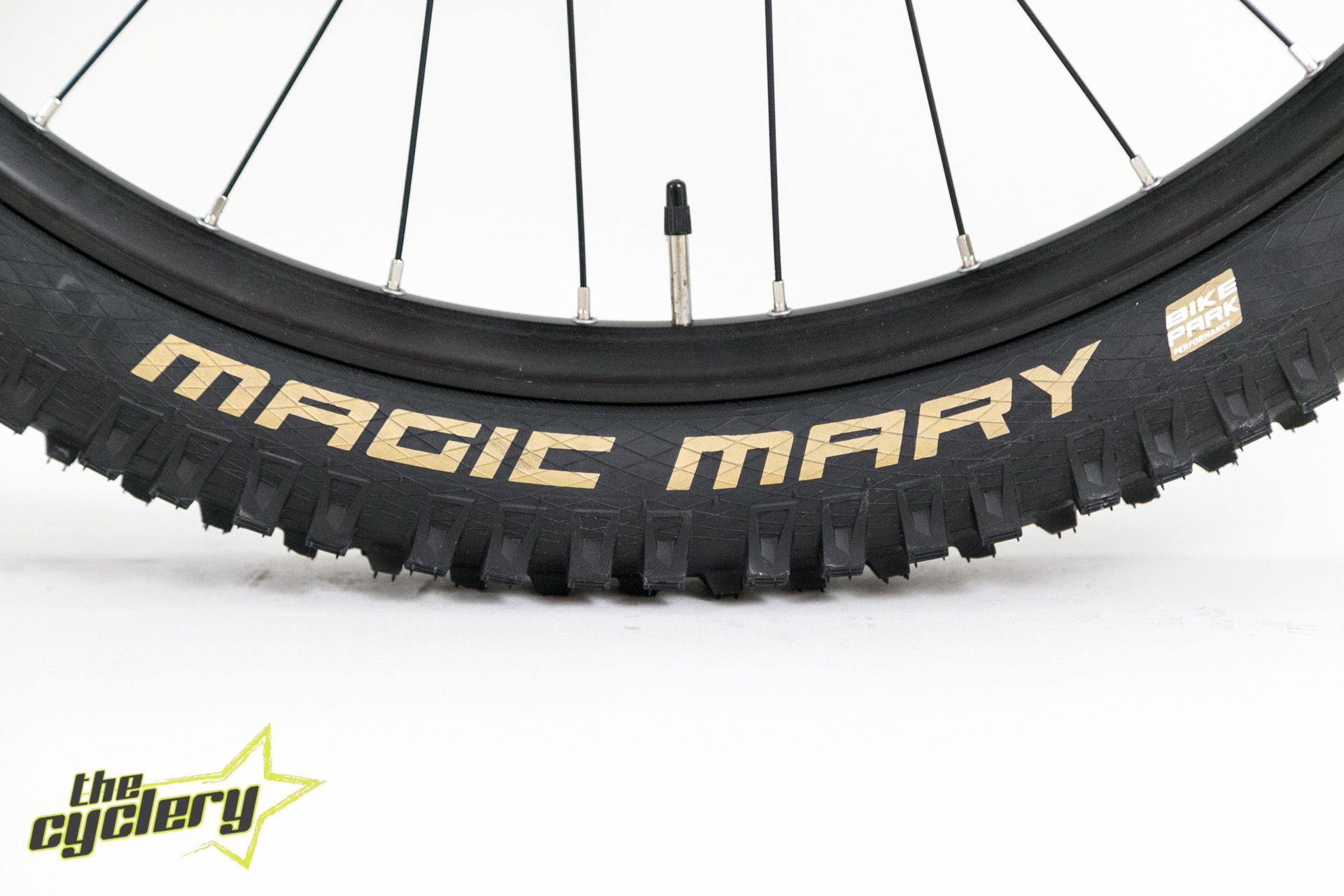

| Tires: |
Schwalbe Magic Mary bikepark, 27.5 x 2.35" (f/r) |
|
|
| Components |
|

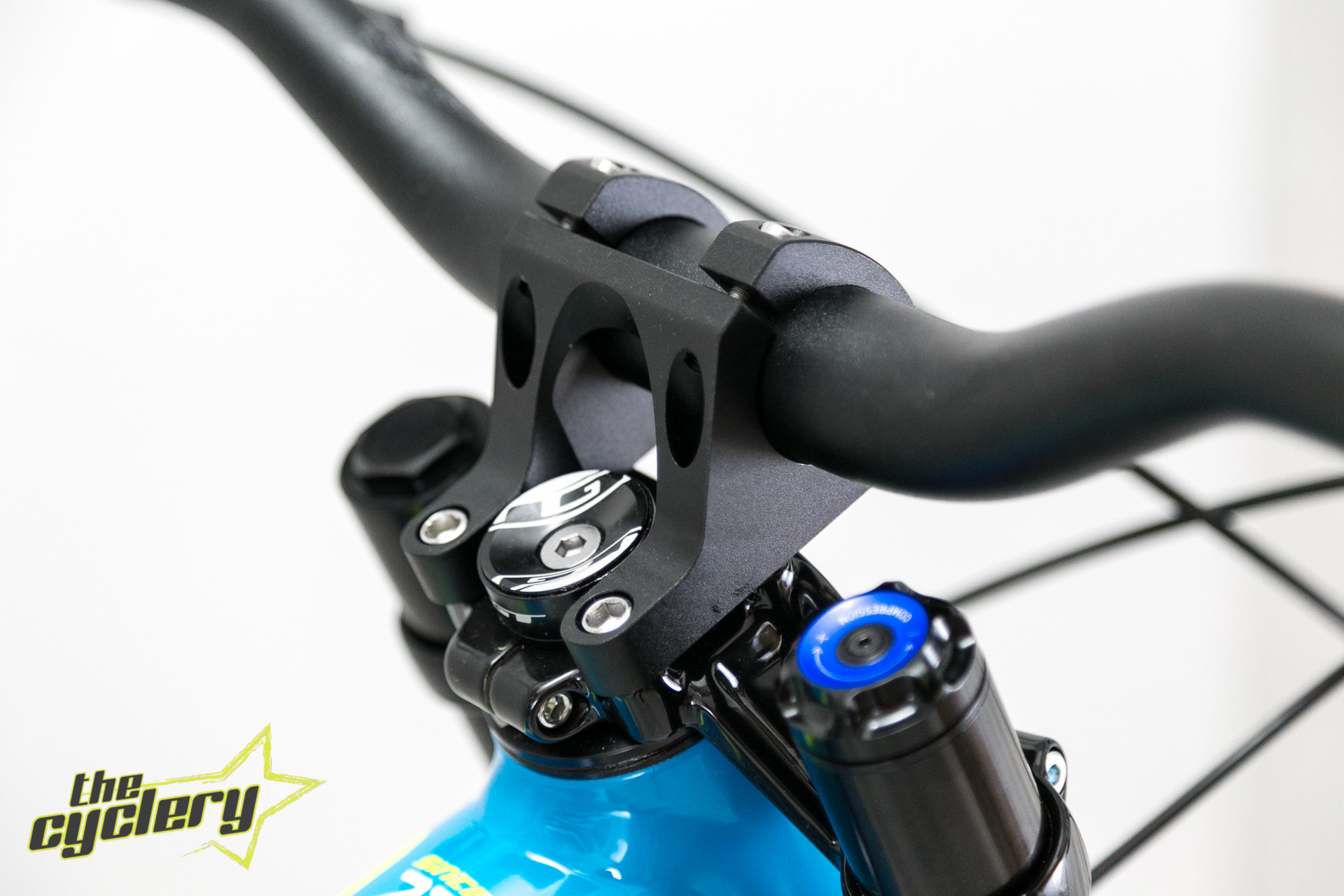

| Stem: |
Direct Mount, 6061 T6 aluminium, 35mm length, 31,8mm diameter |

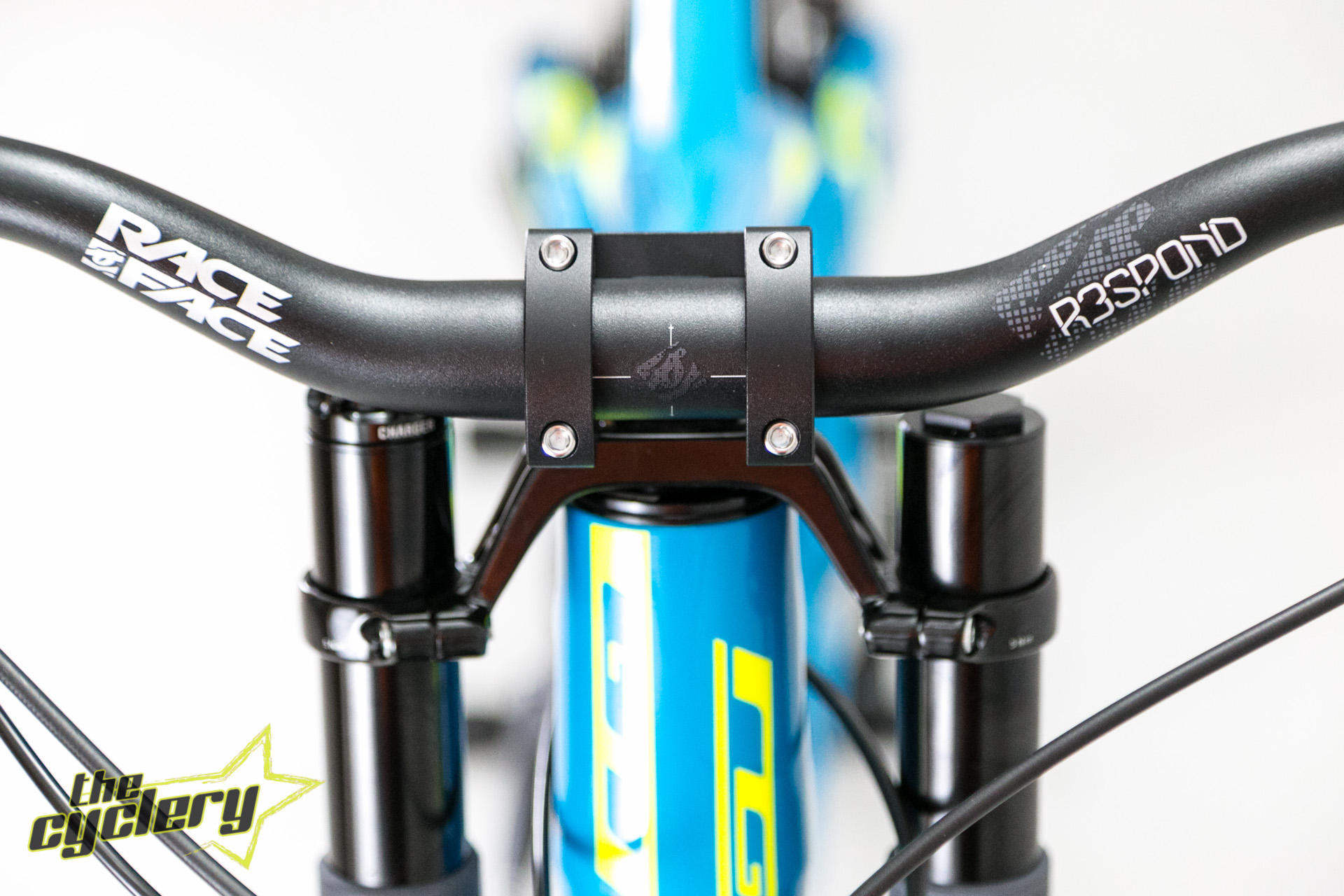

| Handlebar: |
Race Face Respond, 1.5" rise, 785mm width, 31,8mm diameter |
| Headset: |
FSA Orbit Z 1.5R, 1.5" >>> 1 1/8" reducer headset, sealed bearings |

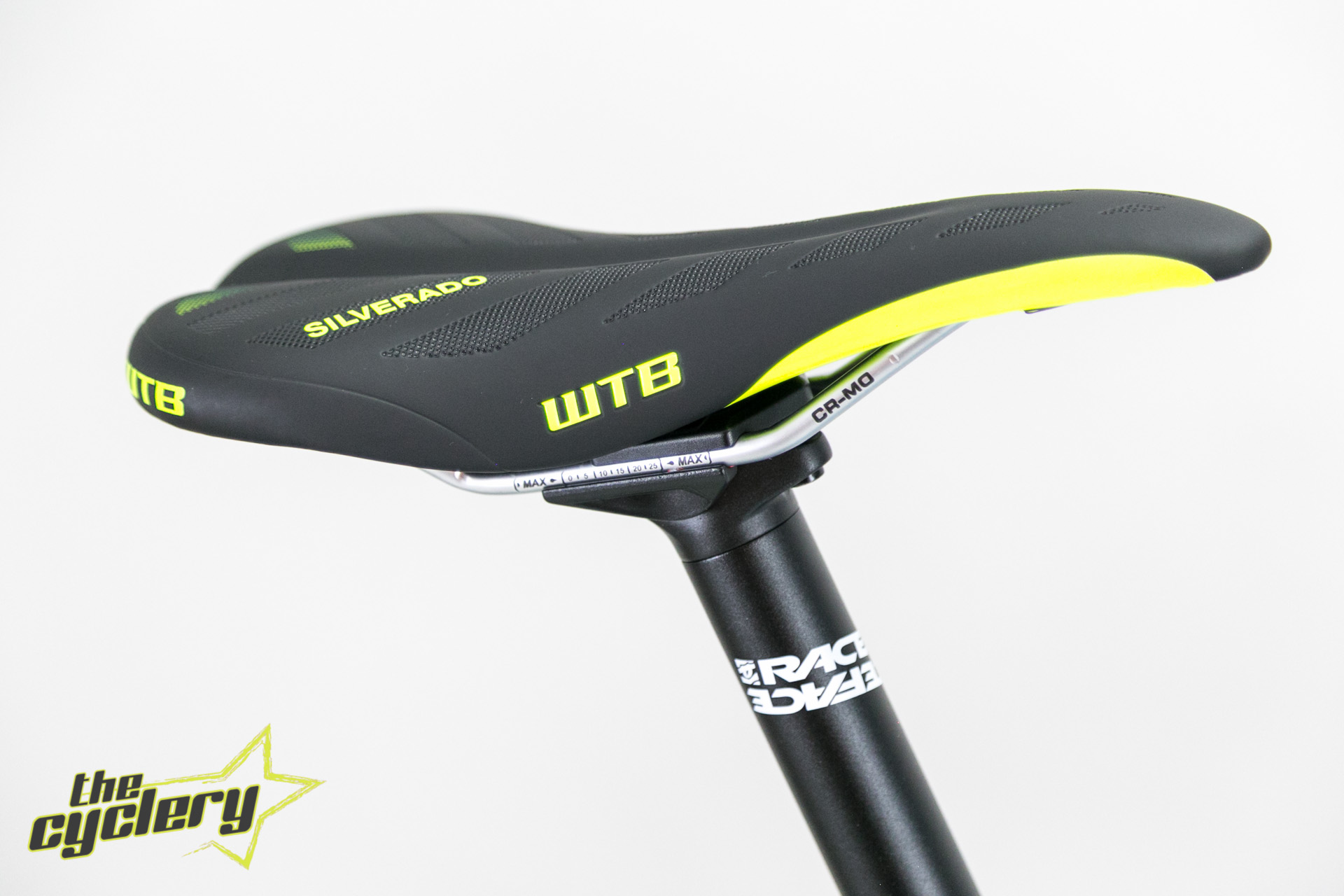

| Saddle: |
WTB Silverado Race SL, cromoly rails |
| Seat post: |
Race Face Ride, 31,6 x 350mm |
| Other: |
- |
|
|
| Table of geometry |
