Chassis | |

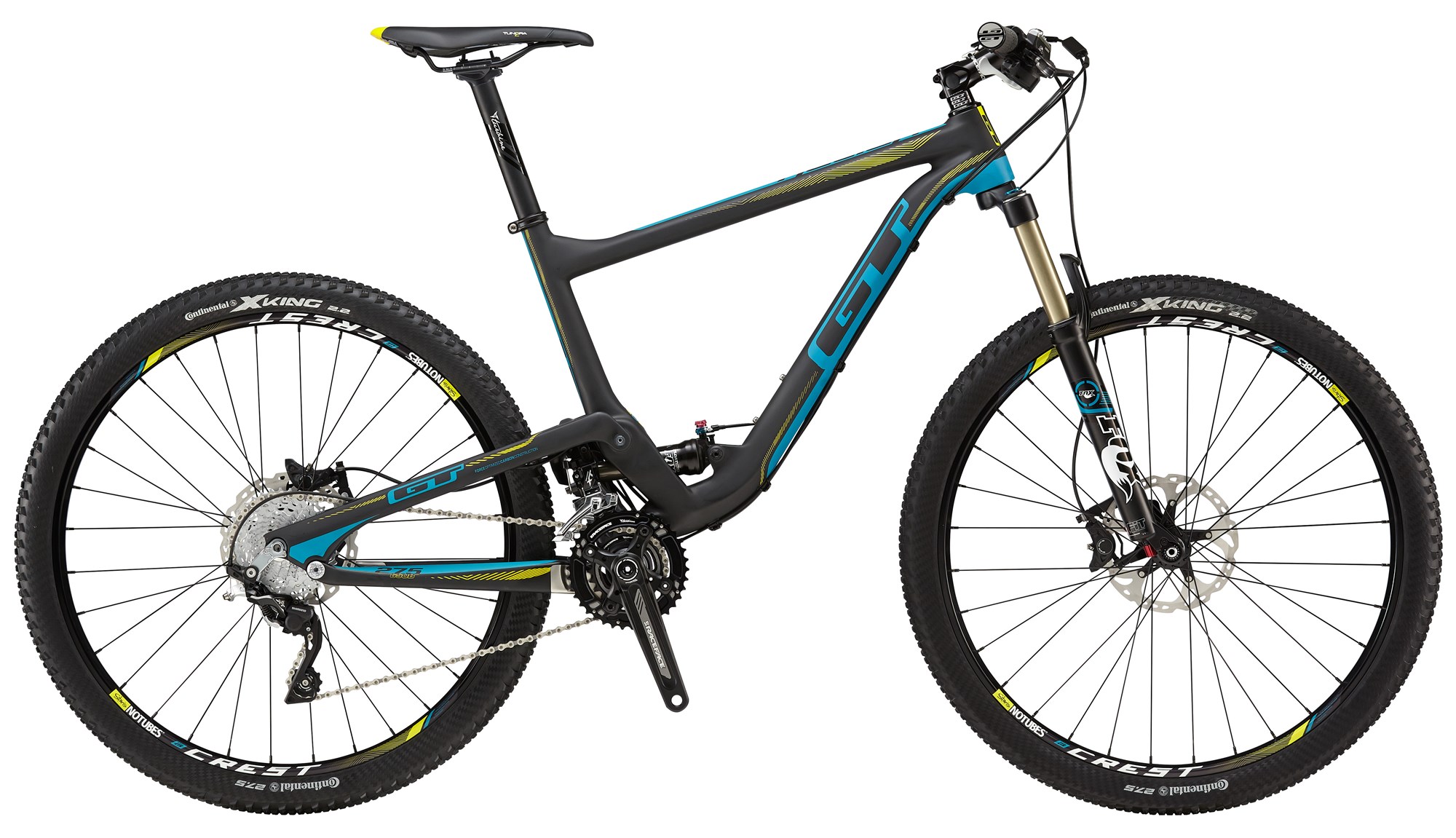

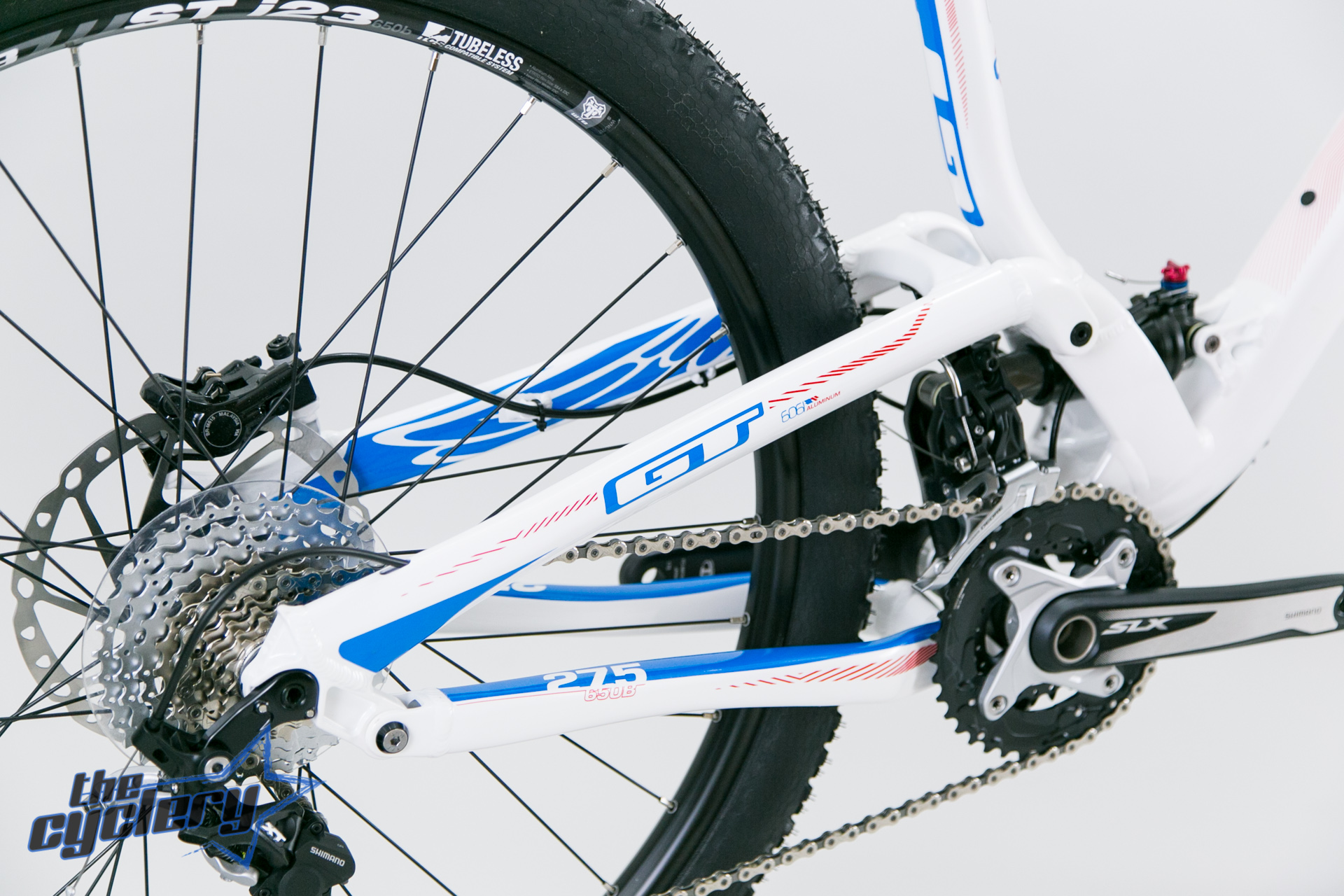

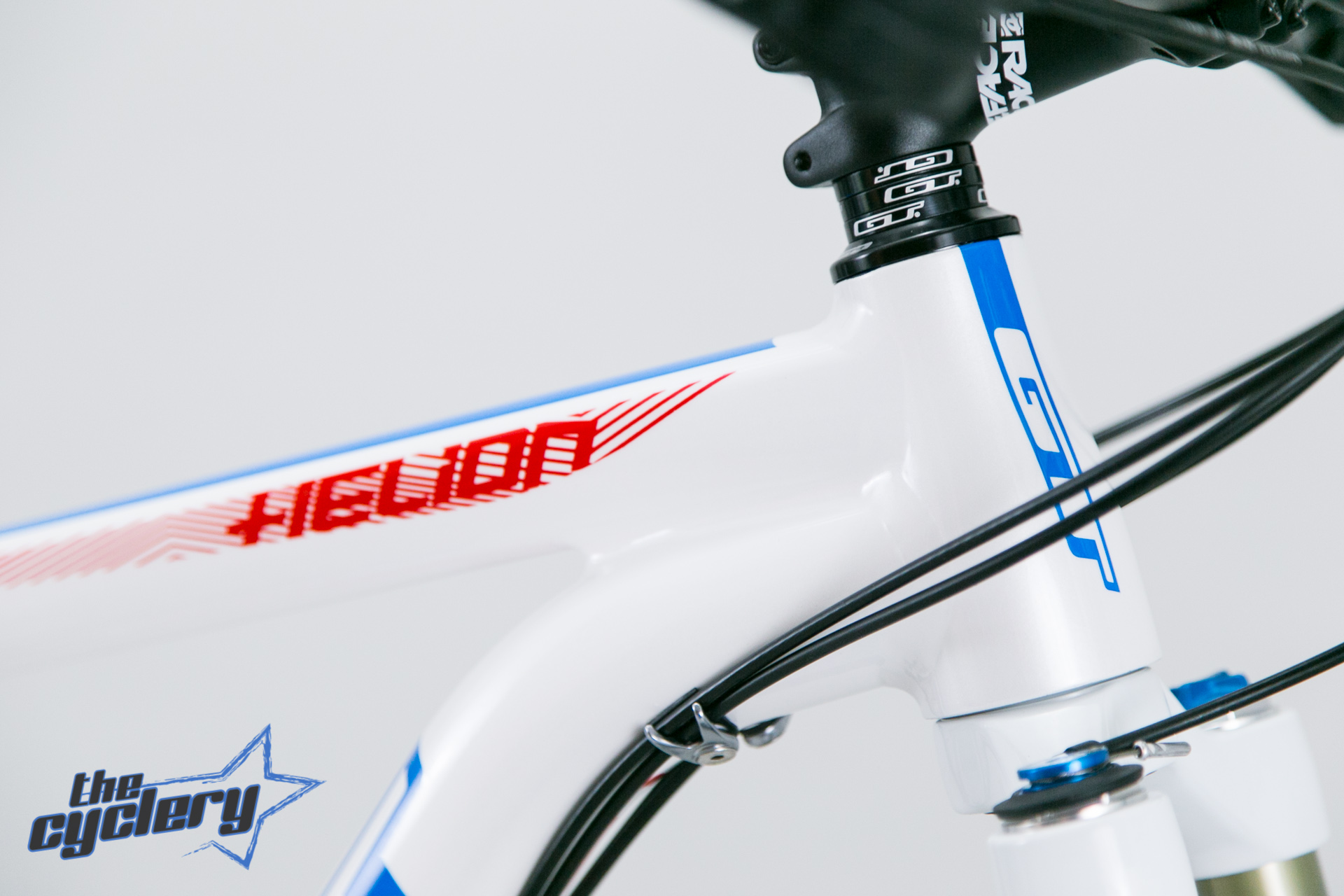

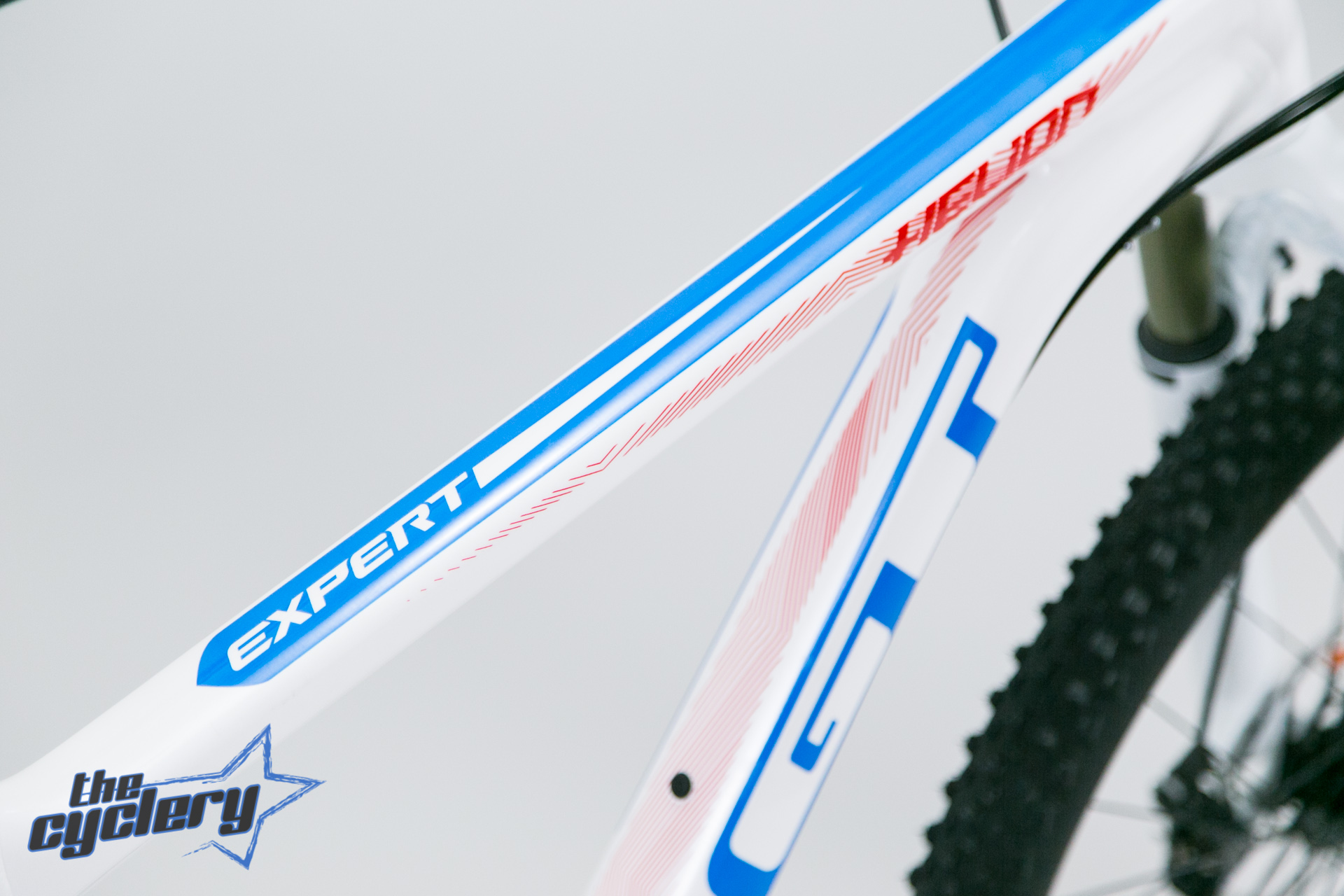

Frame: | 27.5" Cross Country frame with COR design (Centered on Rider), hydroformed 6061-T6 aluminum, 110mm travel via AOS-system (Angle Optimized Suspension), integrated tapered head tube, 12 x 142mm thru axle |

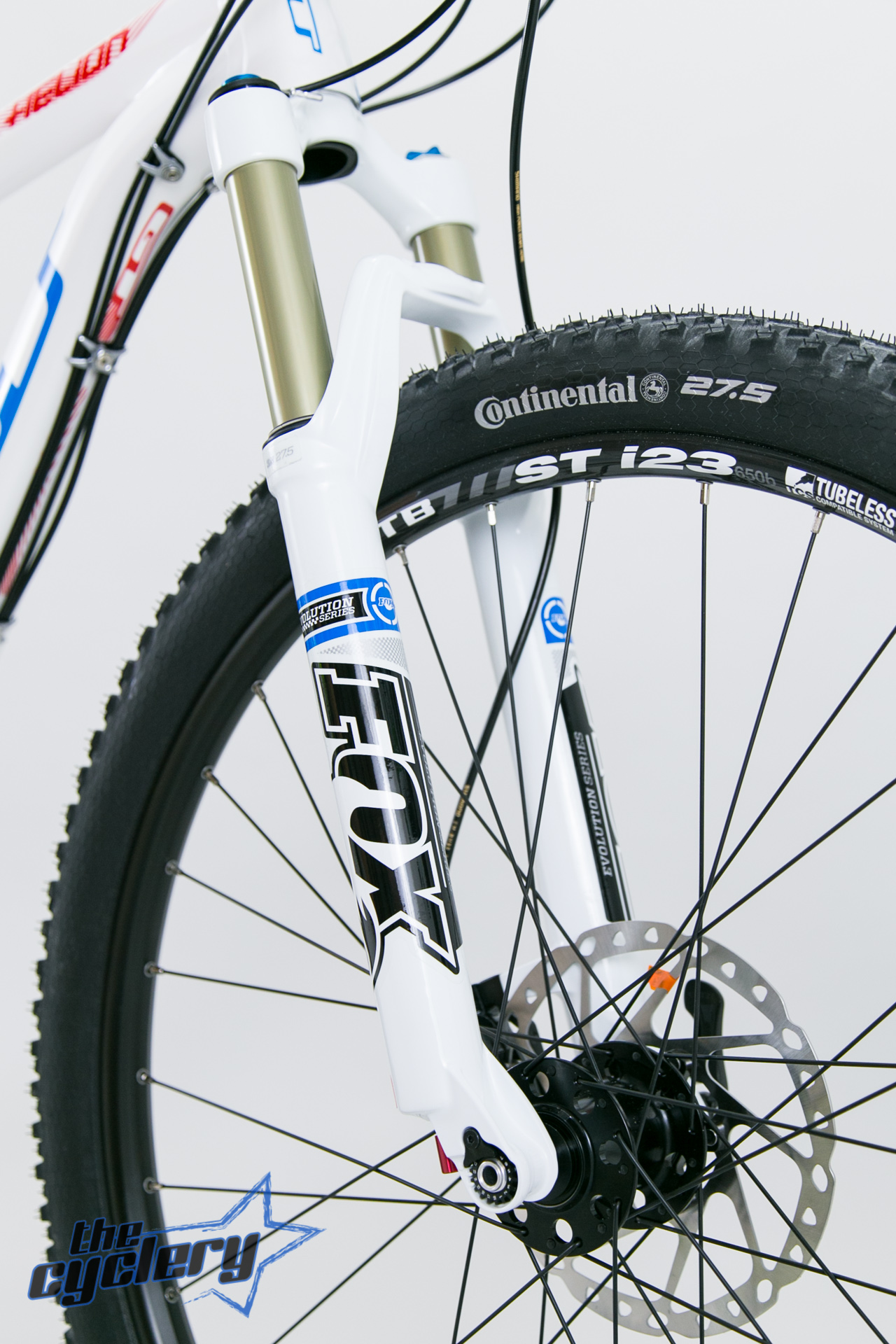

Fork: | FOX 32 Float 27.5 CTD, air spring system (adjustable), 110mm travel, CTD (Climb, Trail, Descent) adjustment, 15 x 100mm thru axle, adjustable rebound and remote lock-out |

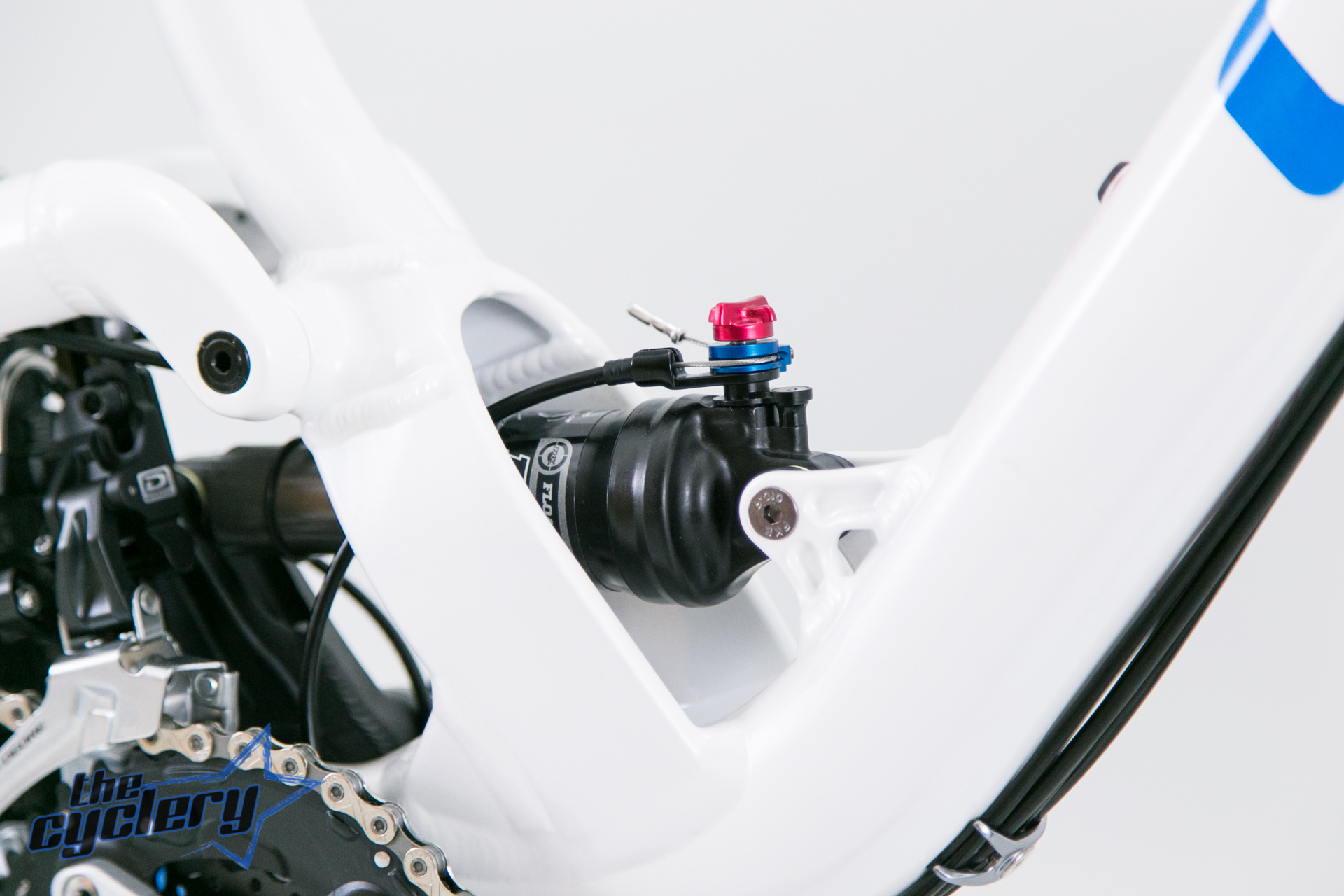

Shock: | FOX Float CTD, air spring system (adjustable), CTD (Climb, Trail, Descent) adjustment, adjustable rebound and remote lock-out |
Drivetrain/Brakes | |
Shifters: | Shimano SLX (SL-M670), 2 x 10-speed |

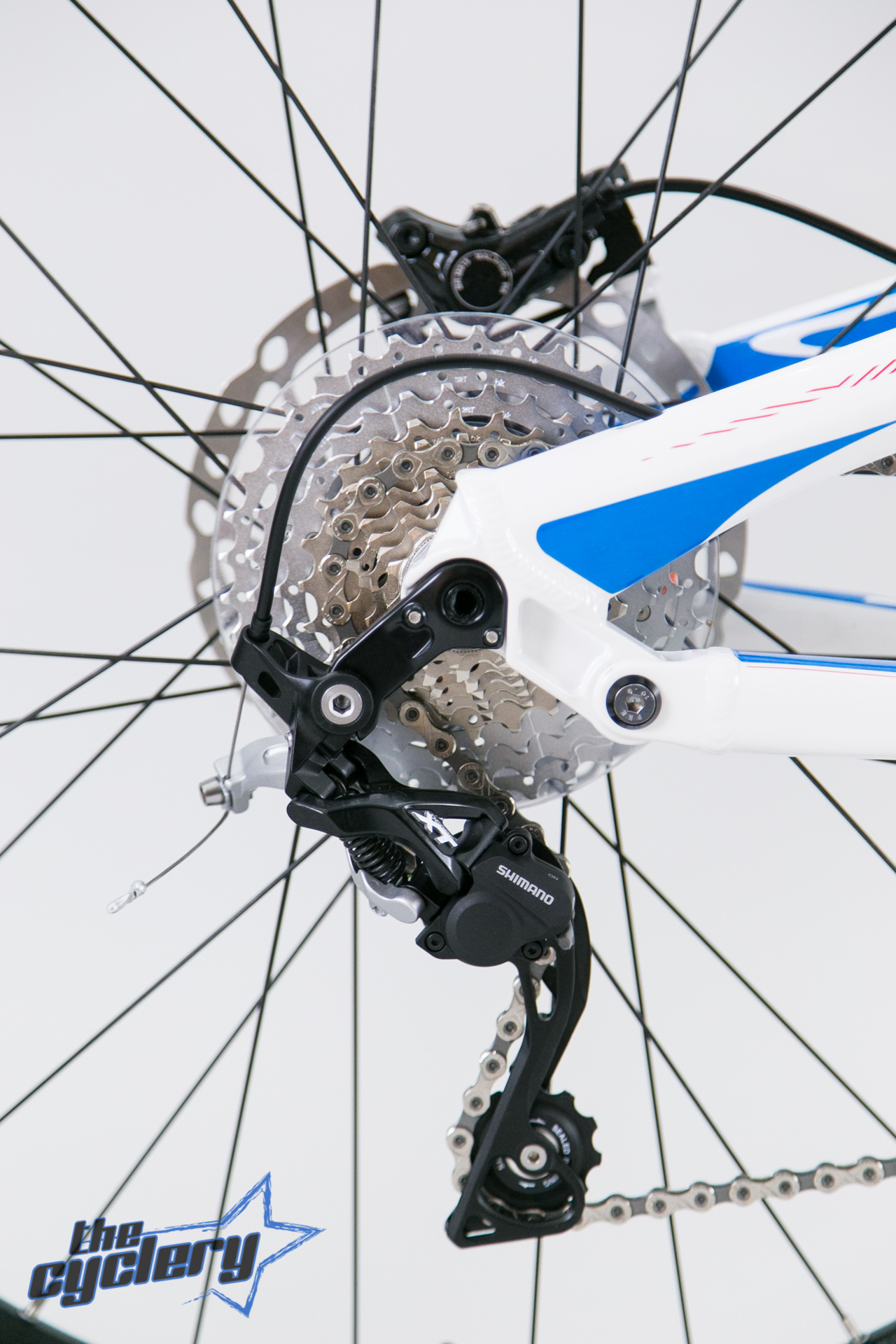

Rear derailleur: | Shimano Deore XT Shadow+ (RD-M786-D), direct mount |
Front derailleur: | Shimano Deore (FD-M616-D), high direct mount |

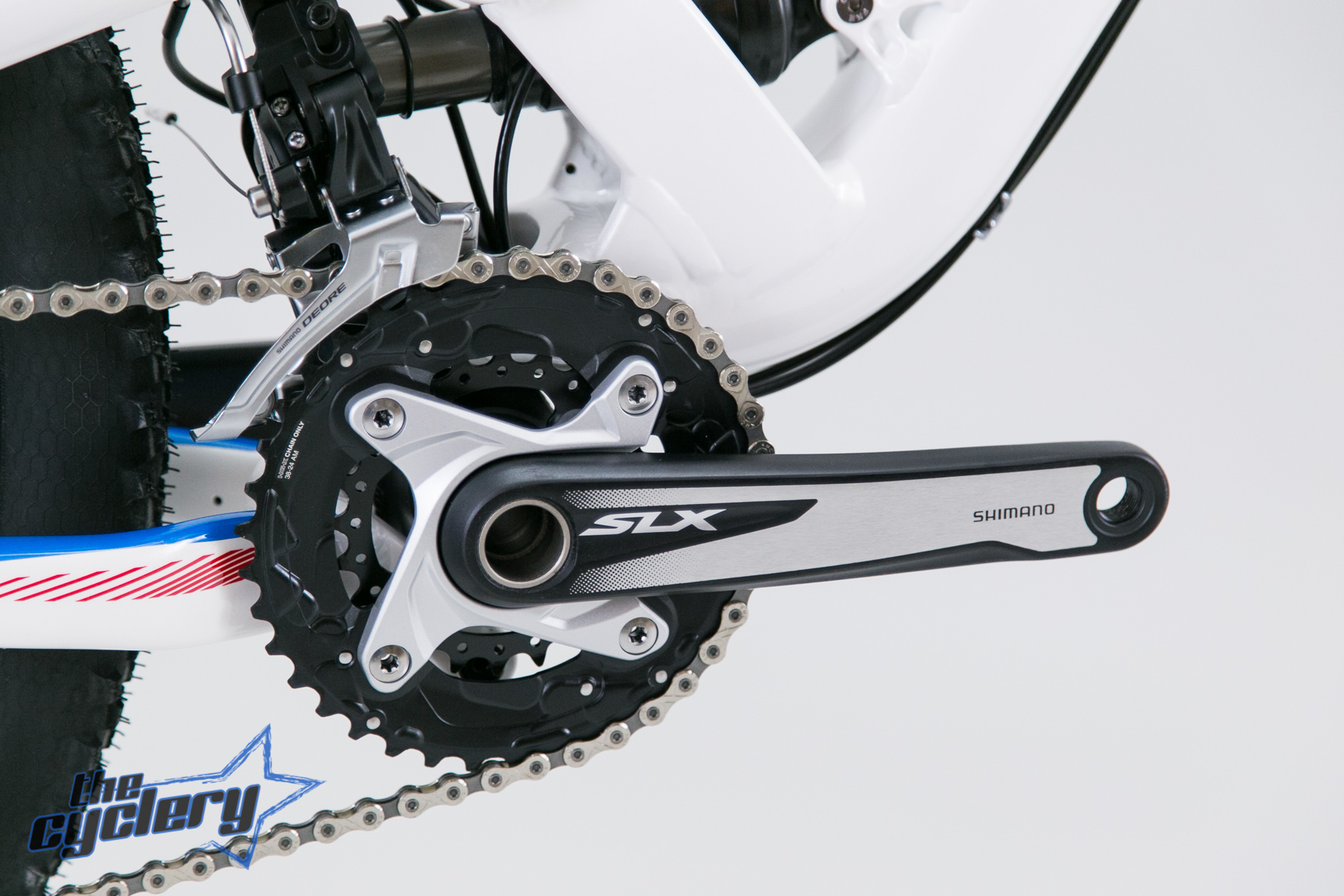

Crankset: | Shimano SLX (FC-M675), 38/24 teeth chain rings |
Bottom bracket: | Shimano |
Pedals: | - |
Chain: | KMC X10, 10-speed |
Rear cogs: | Shimano SLX (CS-HG81-10), 10-speed, 11-36 teeth |

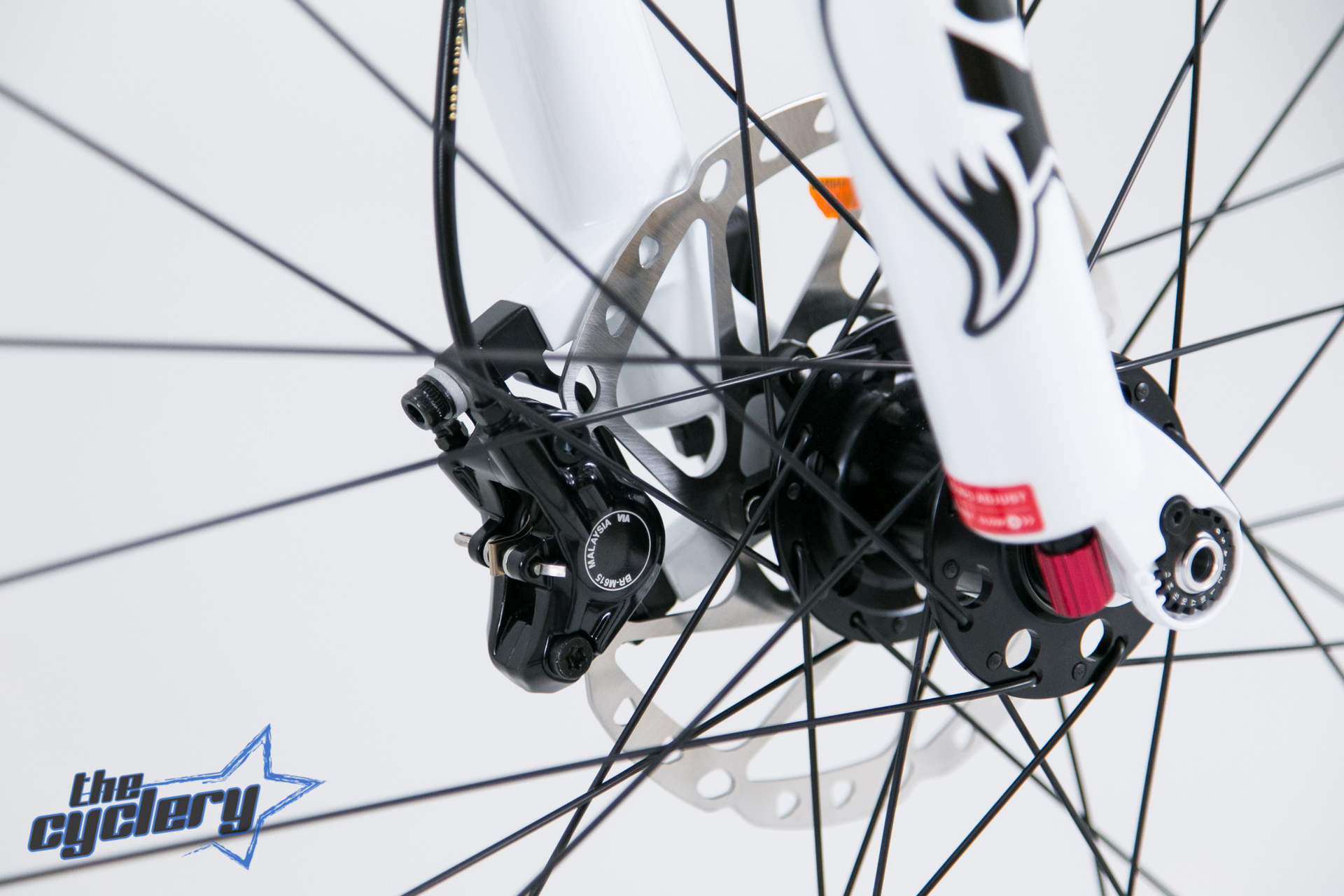

Brakes: | Shimano Deore (BR-M615), hydraulic disc brakes, 180/180mm Centerlock discs (f/r) |
Brake levers: | Shimano Deore (BR-M675) |
Wheels | |
Front hub: | Shimano SLX (HB-M678), 15 x 100mm thru axle |
Rear hub: | Shimano SLX (FH-M678), 12 x 142mm thru axle |

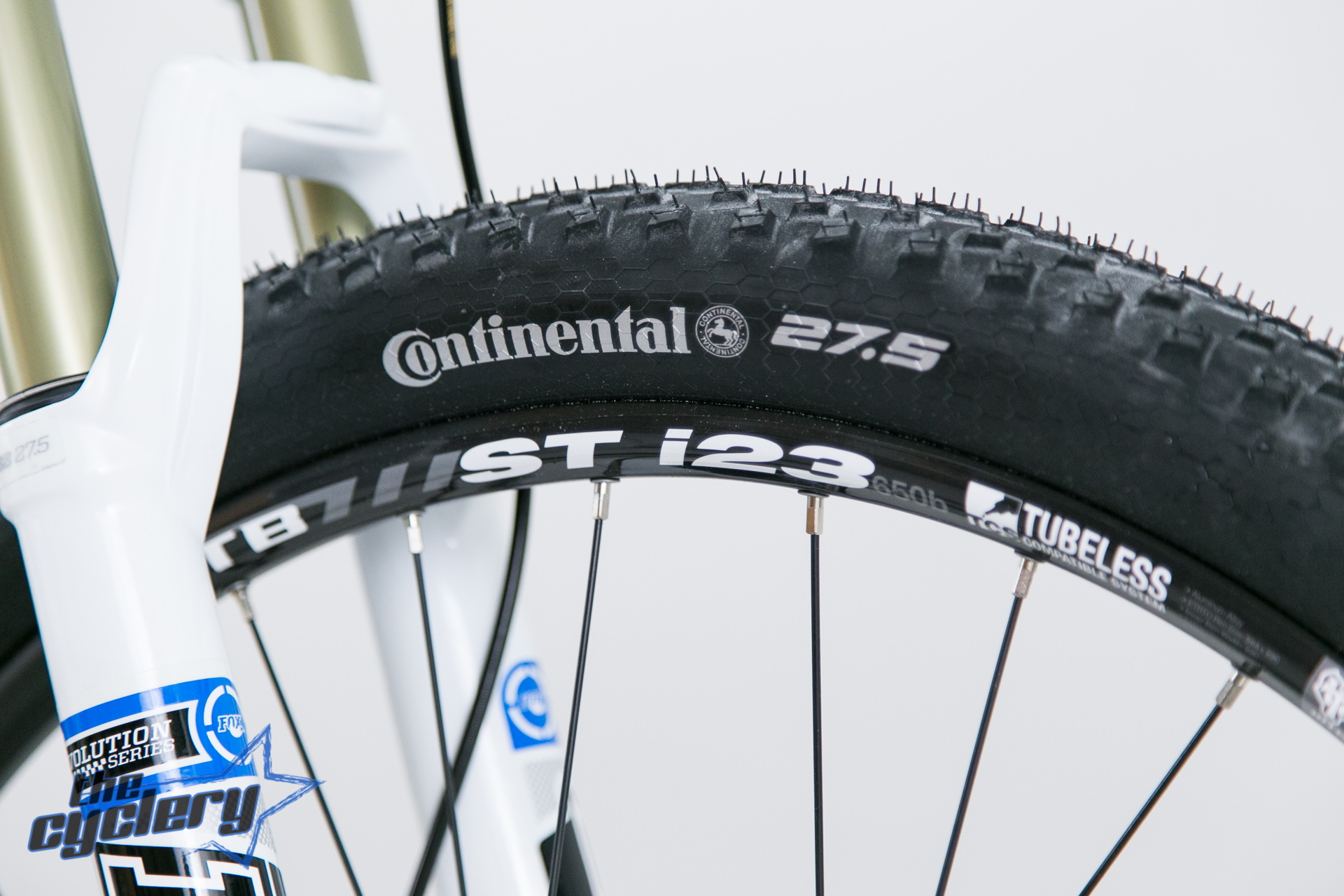

Rims: | WTB STi23, UST tubeless 27.5" |
Tires: | Continental X-King, folding, 27.5 x 2.2" (f/r) |
Components | |

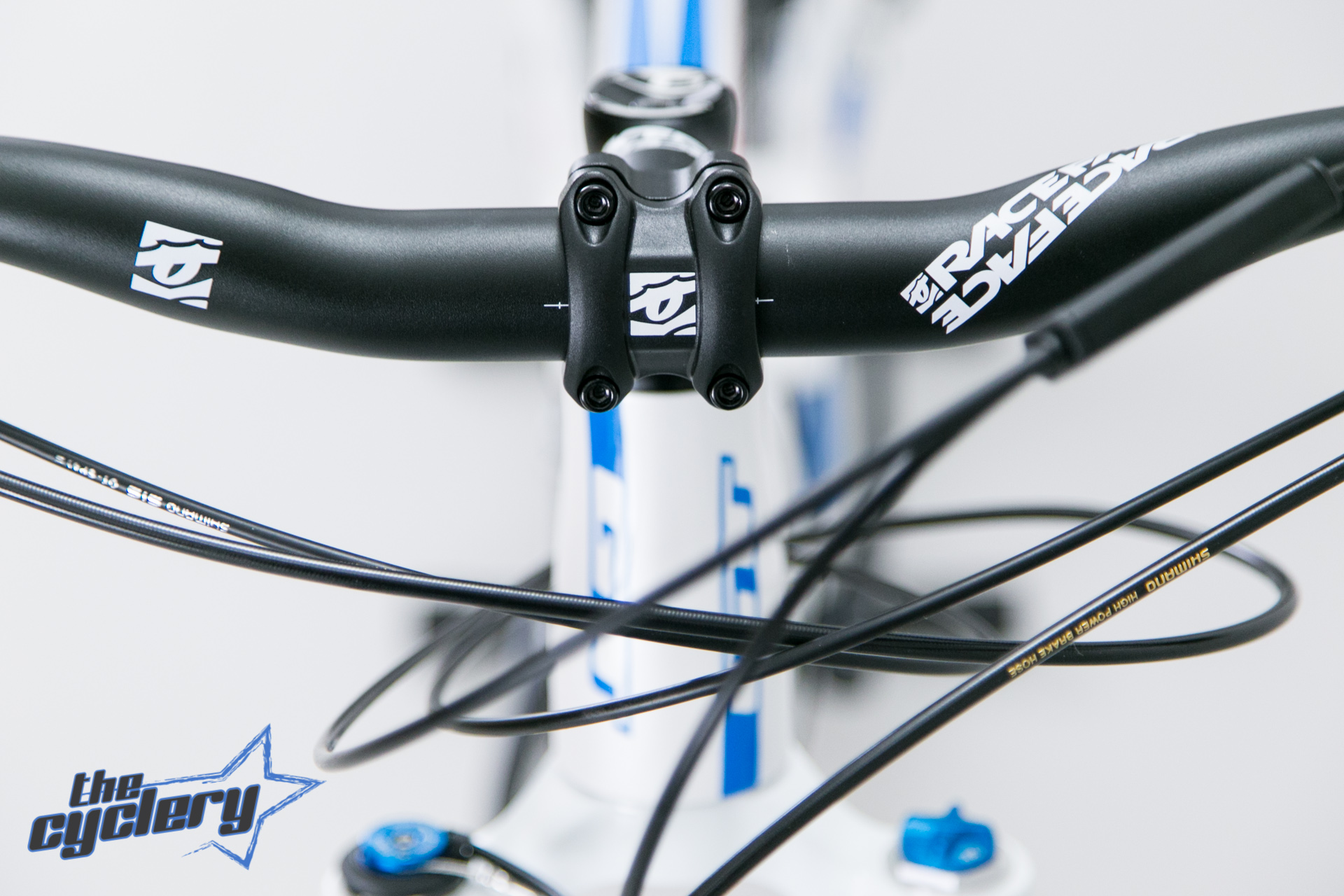

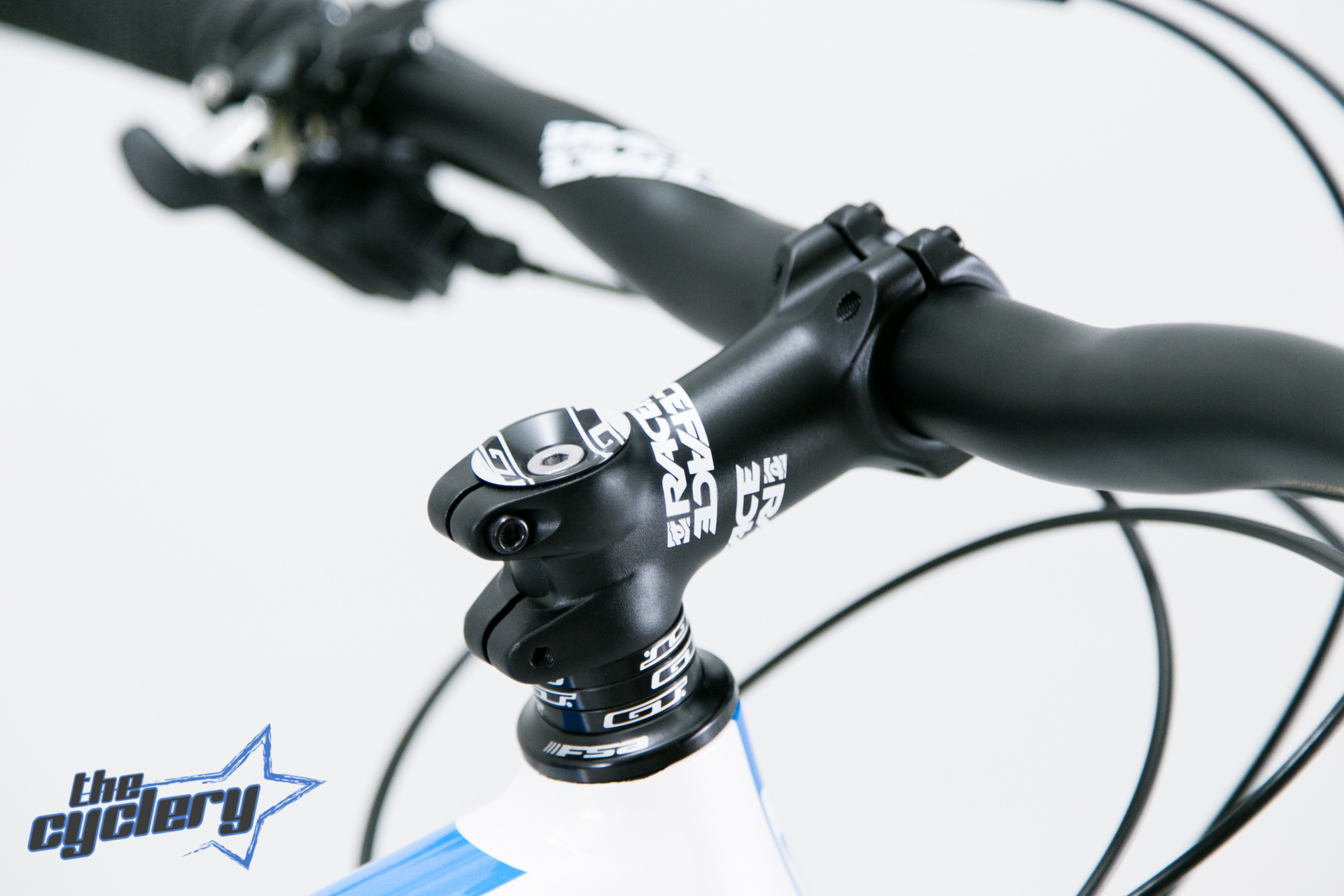

Stem: | Race Face Ride, 80mm length, 31,8mm clamp |
Handlebar: | Race Face Ride, low rise, 740mm width, 31,8mm clamp |
Headset: | FSA Orbit C-40-ACB Zero Stack, sealed bearings |

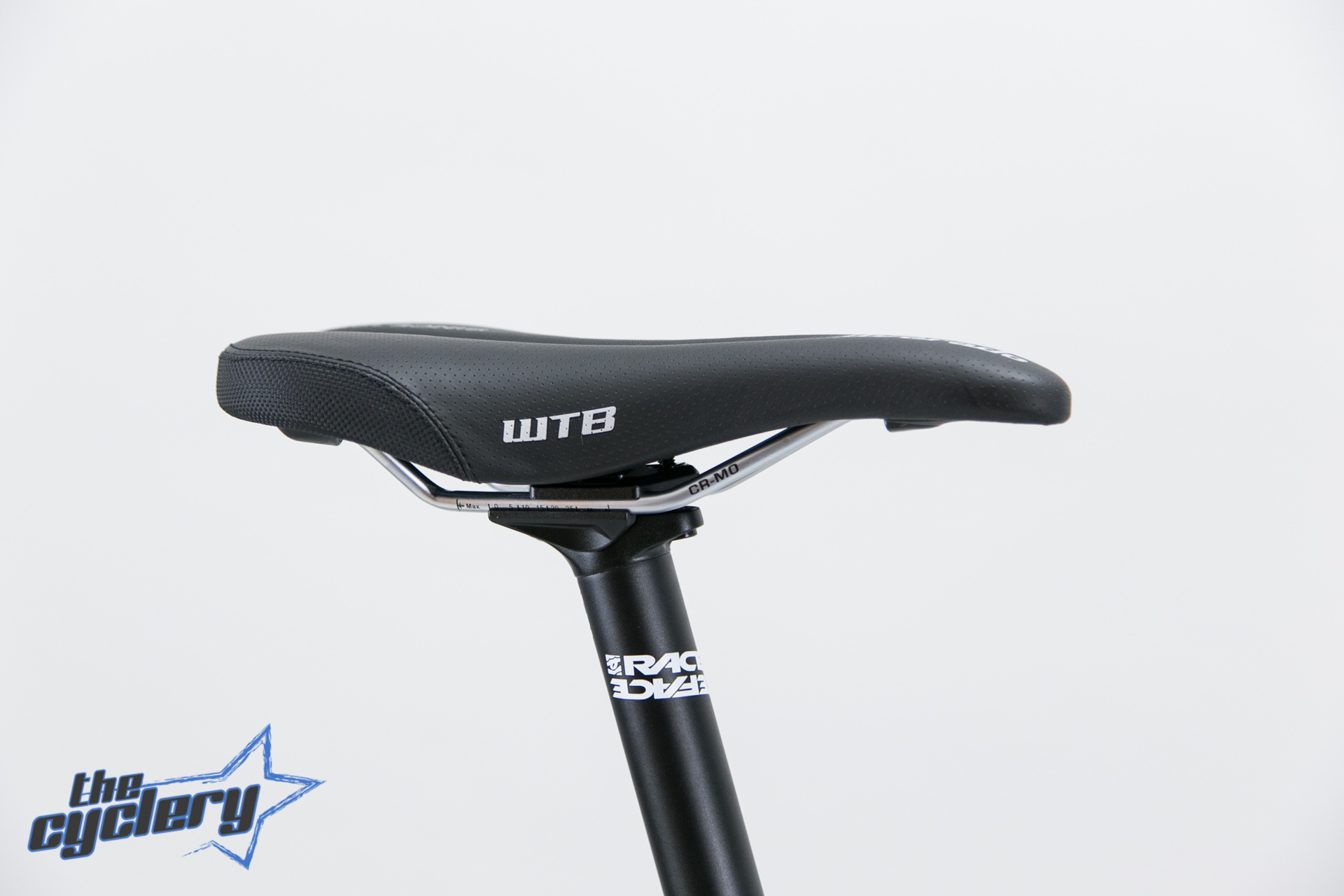

Saddle: | WTB Silverado Race SL, CroMo rails |
Seatpost: | Race Face Ride, 31,6 x 375mm |
Other: | - |
Table of geometry | Click here |
Product video:
Video about the Helion series:
Model year | 2015 |
Intended use | Cross Country |
Wheel size | 27.5"/650b |
Frame material | Aluminum |
Shifting type | Derailleur |
Gears | 20 |
