| Chassis |
|
| Frame: |

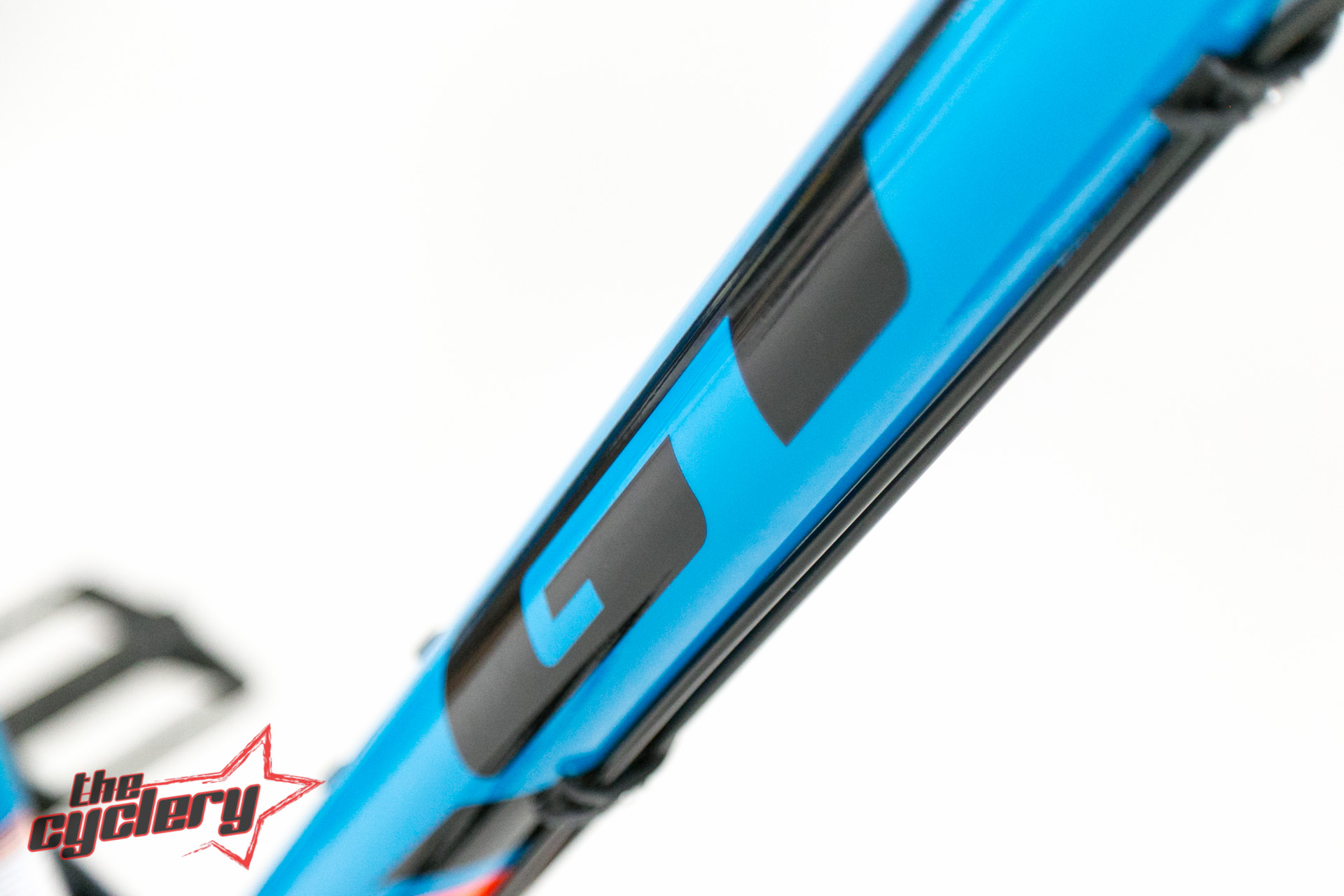

Trail frame with 27.5+ specific geometry, 6061er T6 aluminum with Triple Triangle design, integrierted tapered head tube, replacebale derailleur hanger, postmount disc brake mount |
| Fork: |
Rock Shox Revelation RL, Solo Air spring system (adjustable), 120mm travel, 15 x 110mm thru axle, adjustable rebound and lock-out |
| Shock: |
- |
|
|
| Drivetrain/Brakes |
|
| Shifters: |

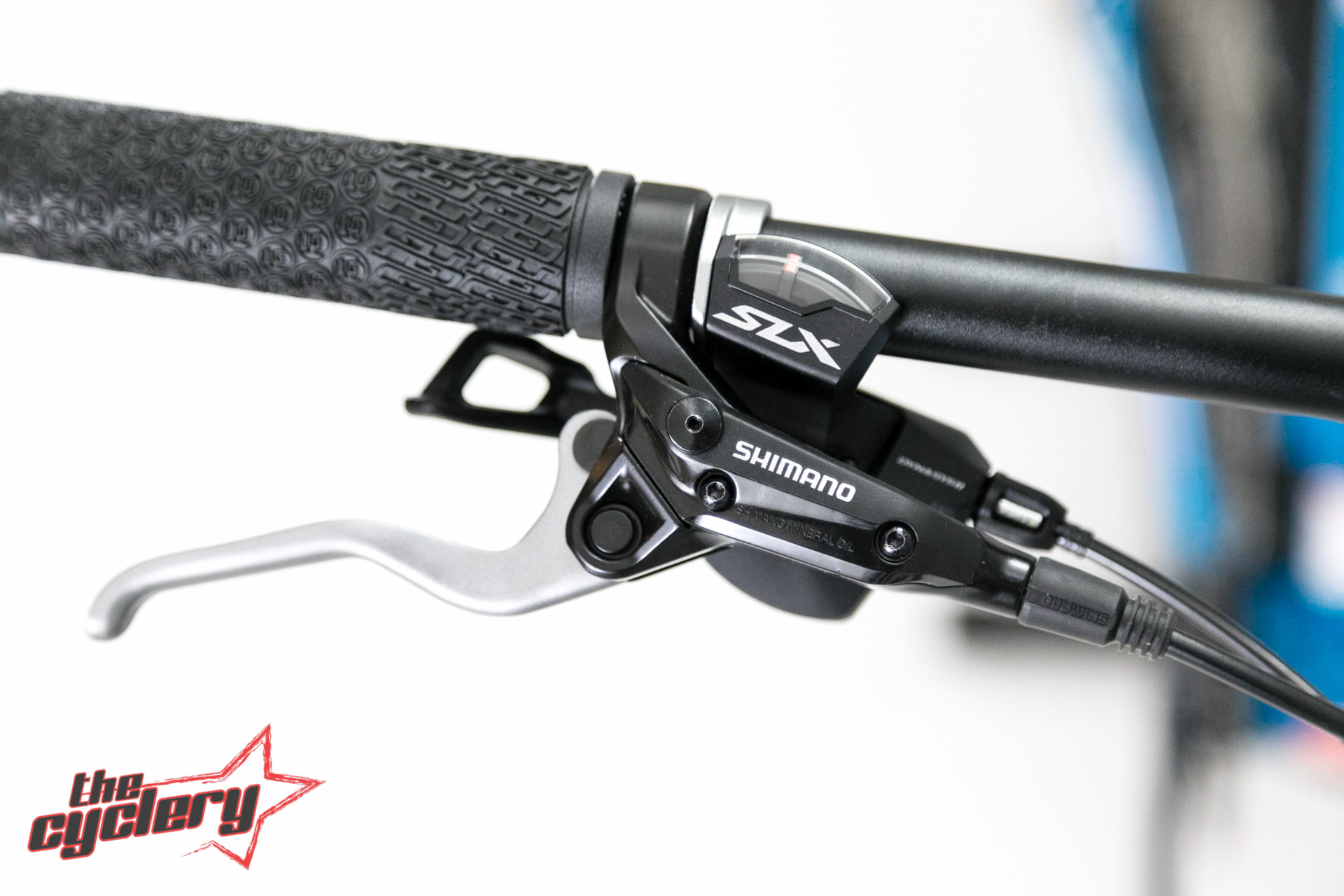

Shimano SLX, 11-speed |
| Rear derailleur: |
Shimano Deore XT Shadow+ |
| Chain guide: |

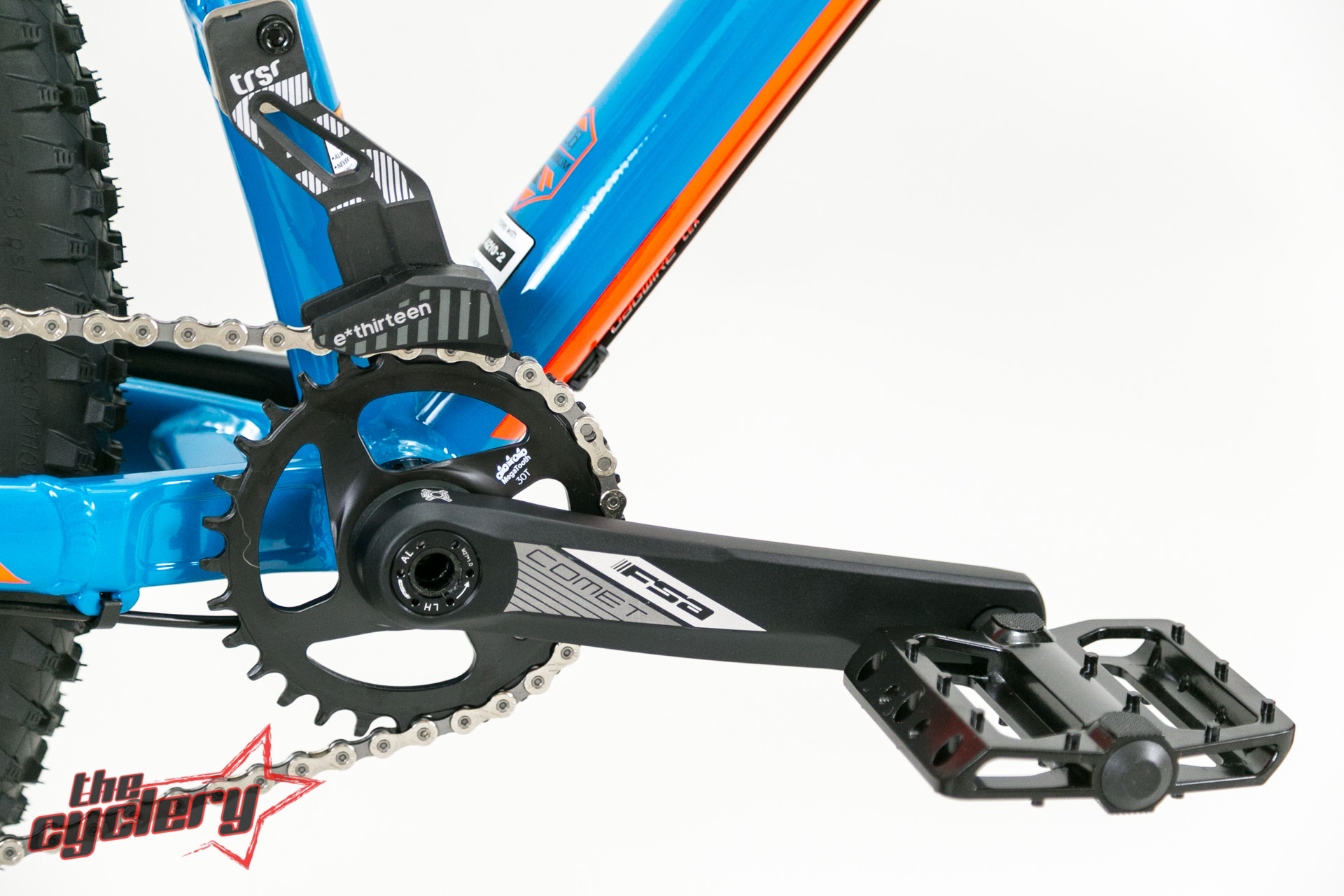

e.thirteen TRS Race, high direct mount |
| Crankset: |
FSA Comet MegaExo, 30 teeth chain ring |
| Bottom bracket: |
FSA BB-7100 |
| Pedals: |
GT Platform |
| Chain:: |
KMC X11 |
| Cogs: |
Sunrace CS-MS8, 11-speed, 11-42 teeth |
| Brakes: |

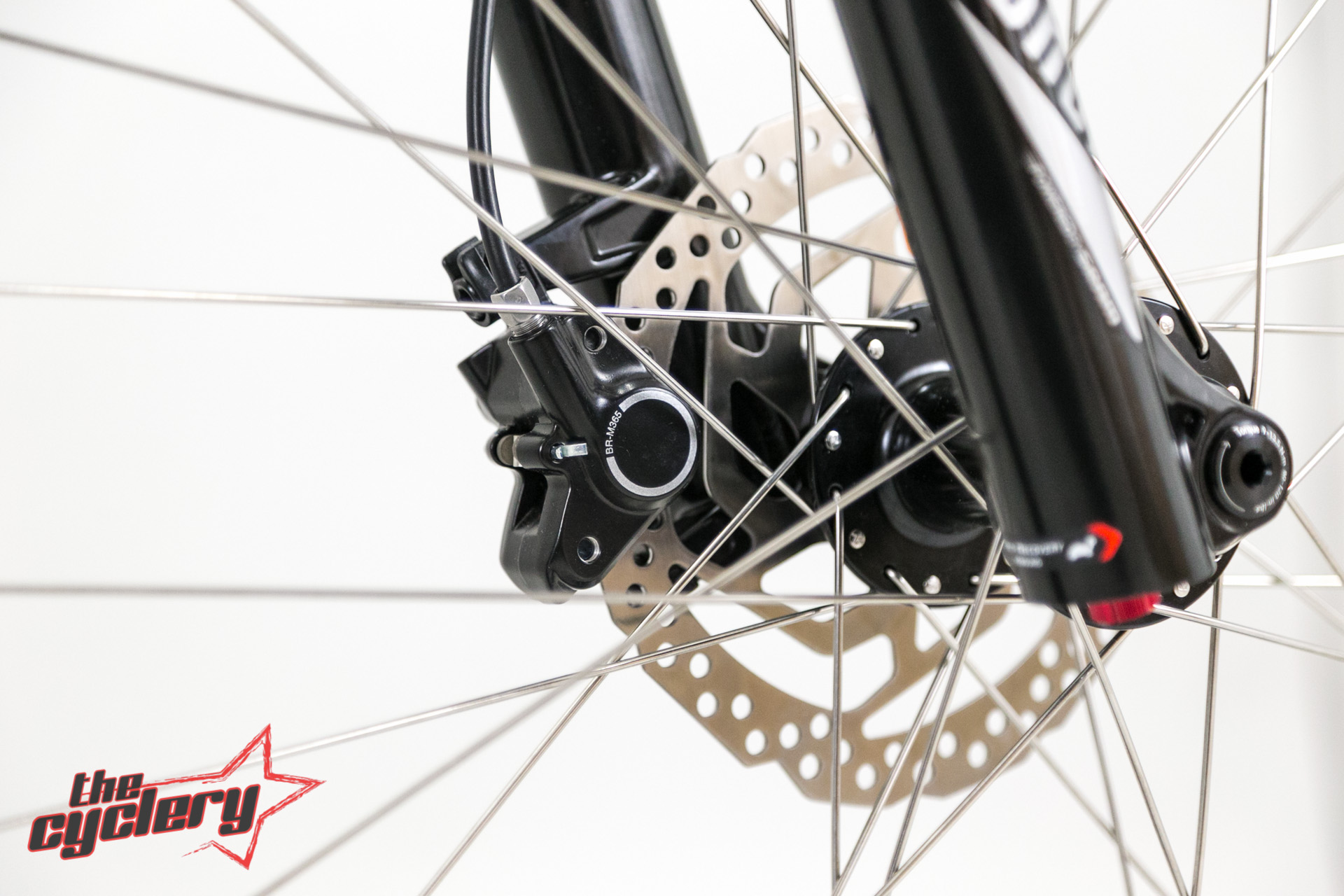

Shimano (BR-M365), hydraulic disc brakes, 160/160mm discs (f/r) |
| Brake levers: |
Shimano |
|
|
| Wheels |
|
| Front hub: |
All Terra, 15 x 110mm thru axle, 6-hole mount |
| Rear hub: |
All Terra, quick release, 6-hole mount |
| Rims: |
All Terra DB-X40 27.5", 32 hole, 40mm width |
| Tires: |
Schwalbe Rocket Ron Performance, 27,5 x 2,8" (f/r) |
|
|
| Components |
|

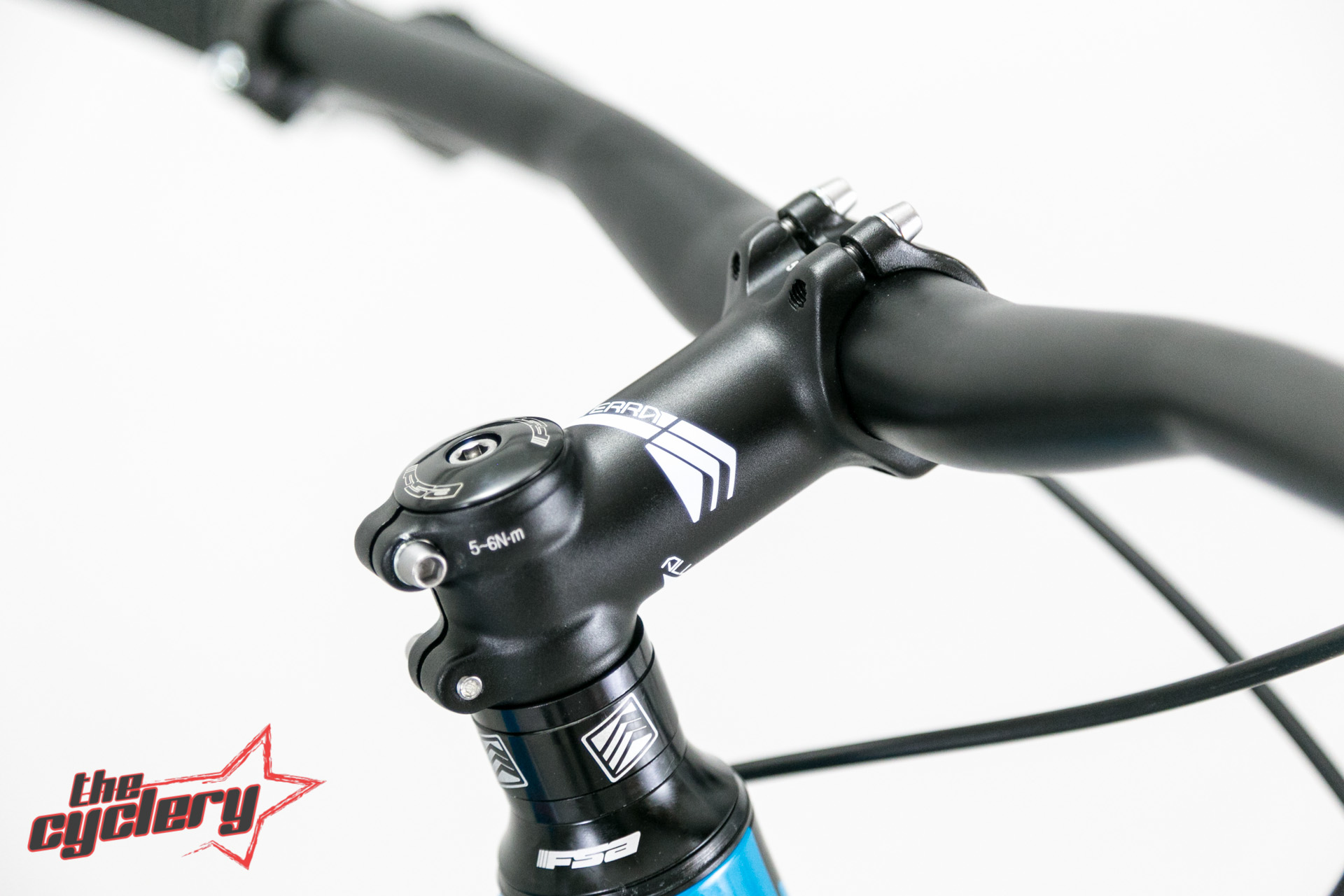

| Stem: |
All Terra, 3D-forged aluminum, 31,8mm diameter |
| Handlebar: |
All Terra, 15mm rise, 710mm width, 31,8mm diameter |
| Headset: |
Tapered integrated |
| Saddle: |
WTB Silverado Sport, cromoly rails |
| Seat post: |
All Terra, aluminum |
| Other: |
- |
|
|
| Table of geometry |
