| Chassis |
|
| Frame: |

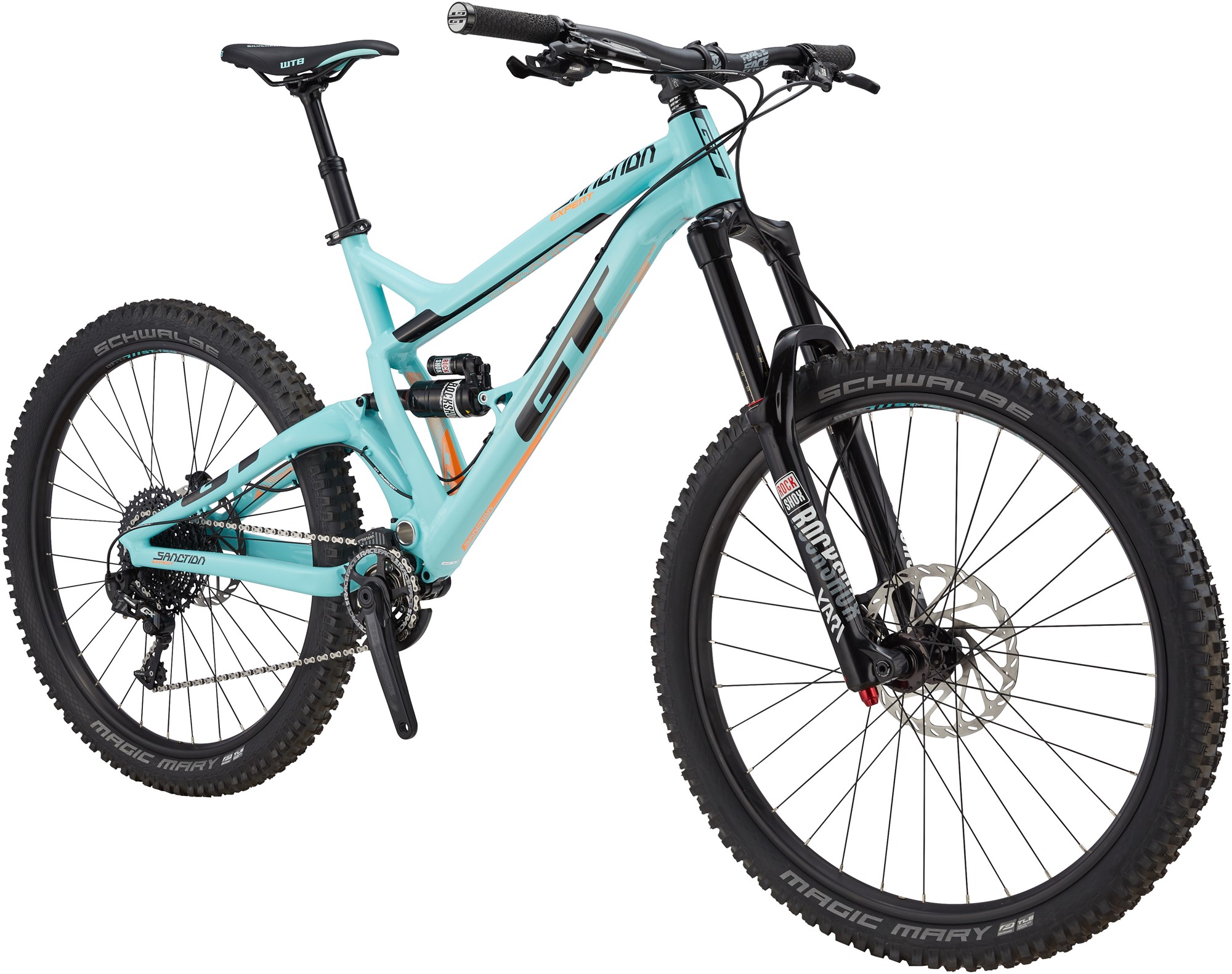

Enduro frame with COR design (Centered on Rider) and 27.5" specific geometry, 6069-T6 aluminum, 160mm travel via
independent drivetrain system, 1.5" head tube, ISCG03 chain guide mount, 12 x 142mm thru axle |
| Fork: |

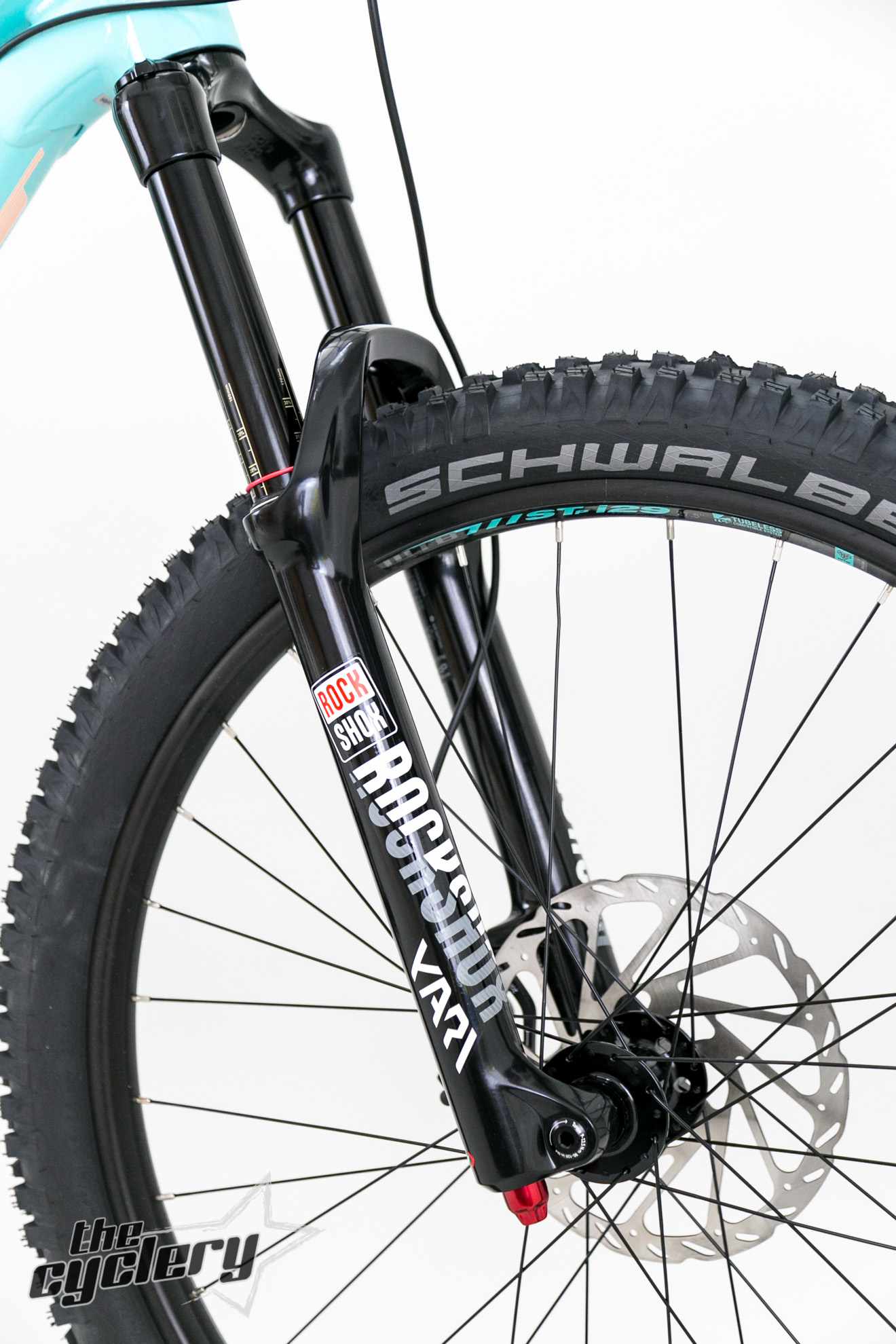

Rock Shox Yari RC Boost, Solo Air system (adjustable), 170mm
travel, 15 x 110mm thru axle, adjustable rebound and compression |
| Shock: |

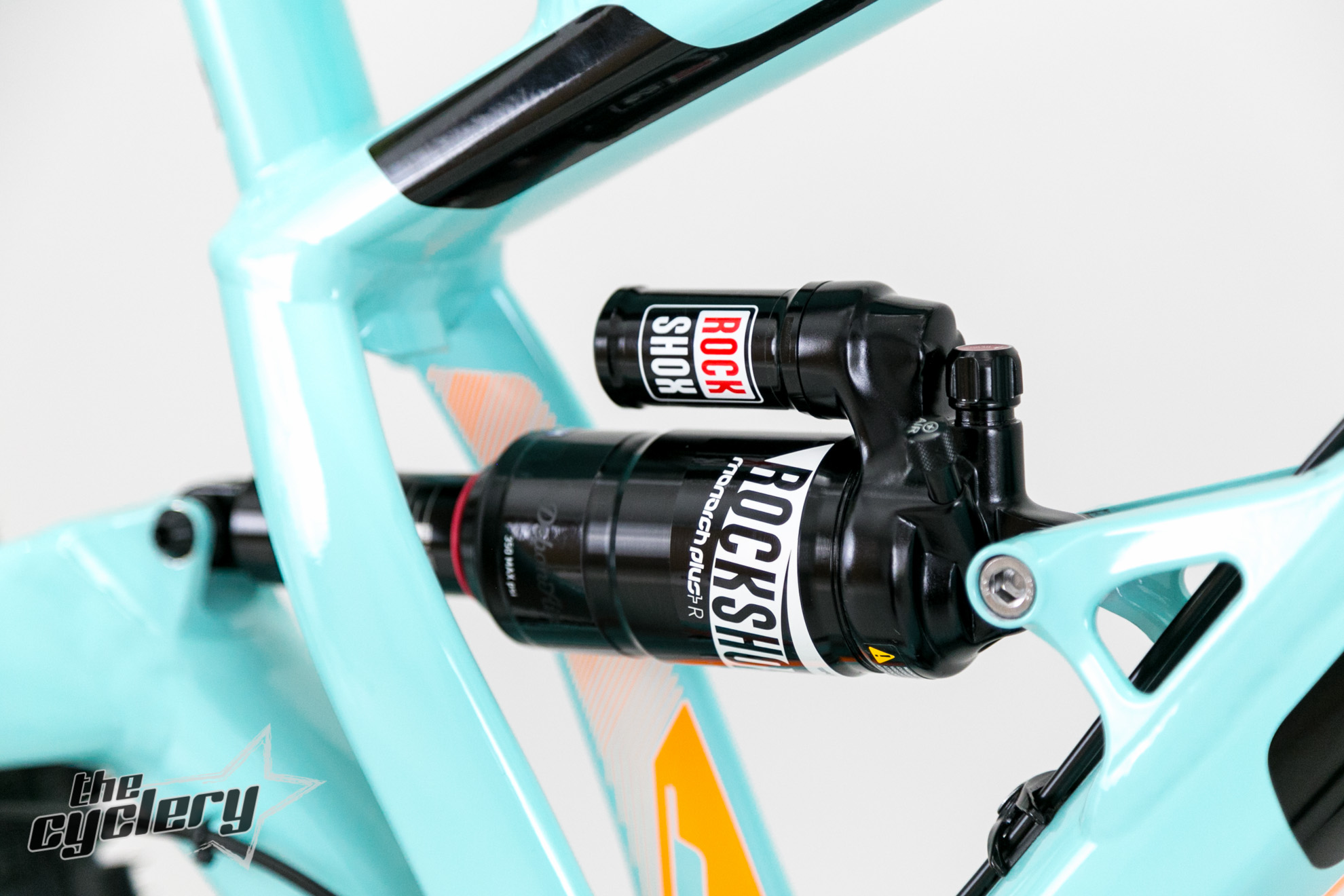

Rock Shox Monarch Plus R, Solo Air system (adjustable), DebonAir housing, adjustable rebound |
|
|
| Drivetrain/Brakes |
|
| Shifters: |
SRAM GX, 11-speed |
| Rear derailleur: |
SRAM GX, long cage |
| Chain guide: |
e.thirteen TRS with bash guard |
| Crankset: |
Race Face Ride, 32 teeth narrow wide chain ring |
| Bottom bracket: |
Race Face X-Type |
| Pedals: |
- |
| Chain: |
KMC X11-1 |
| Cogs: |
Sunrace CSMS8, 11-speed, 11-46 teeth |
| Brakes: |
SRAM Guide R, hydraulic disc brakes, 200/180mm G2 discs (f/r) |
| Brake levers: |
SRAM Guide R |
|
|
| Wheels |
|
| Front hub: |
All Terra, sealed bearings, 15 x 110mm thru axle, 6-hole mount |
| Rear hub: |
All Terra, 12 x 142mm thru axle, 6-hole mount |
| Rims: |
WTB STP i29 27.5", 32 hole, tubeless ready |
| Tires: |
Schwalbe Magic Mary Performance, TL Easy, 27.5 x 2.35" |
|
|
| Components |
|
| Stem: |

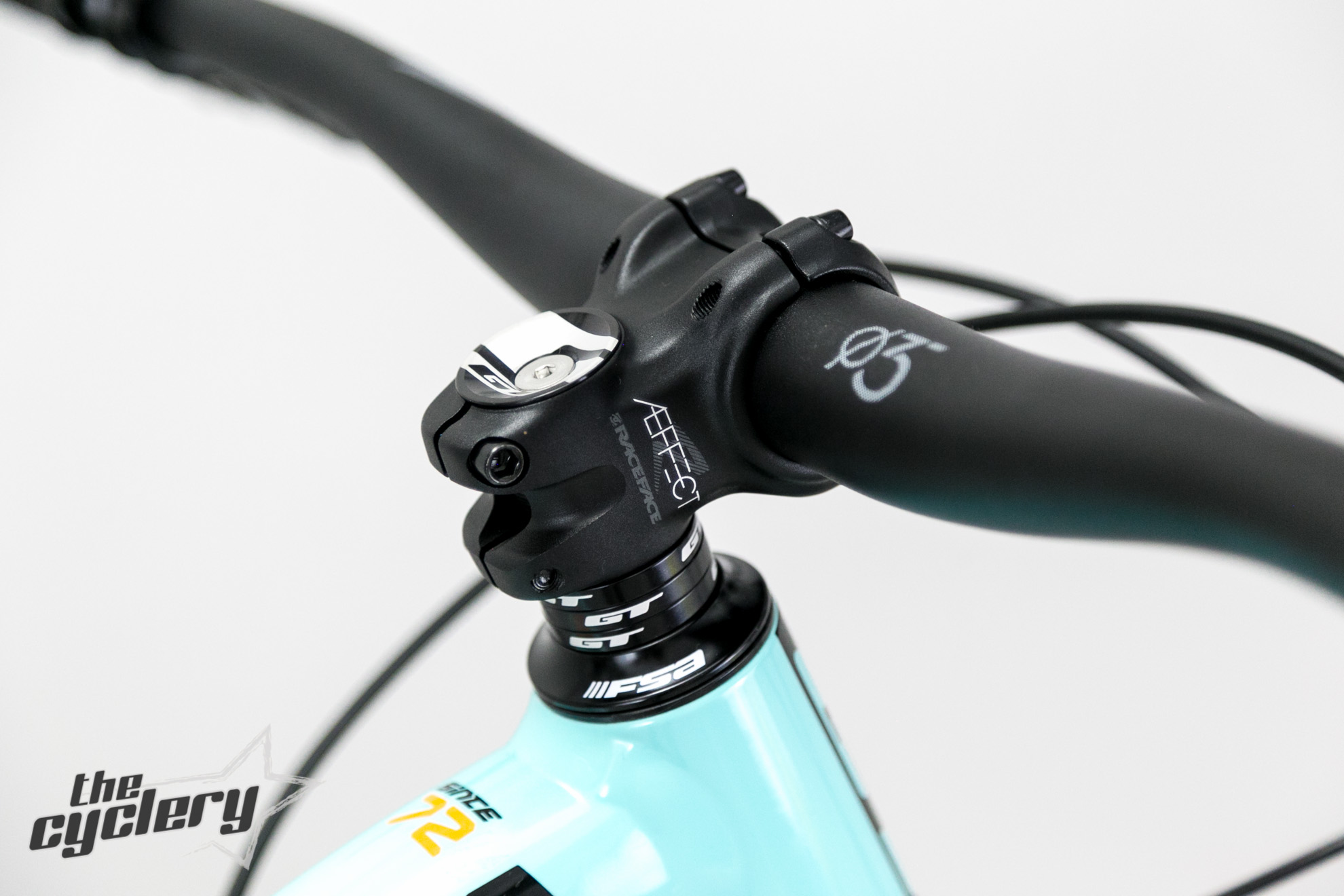

Race Face Aeffect, 40mm length |

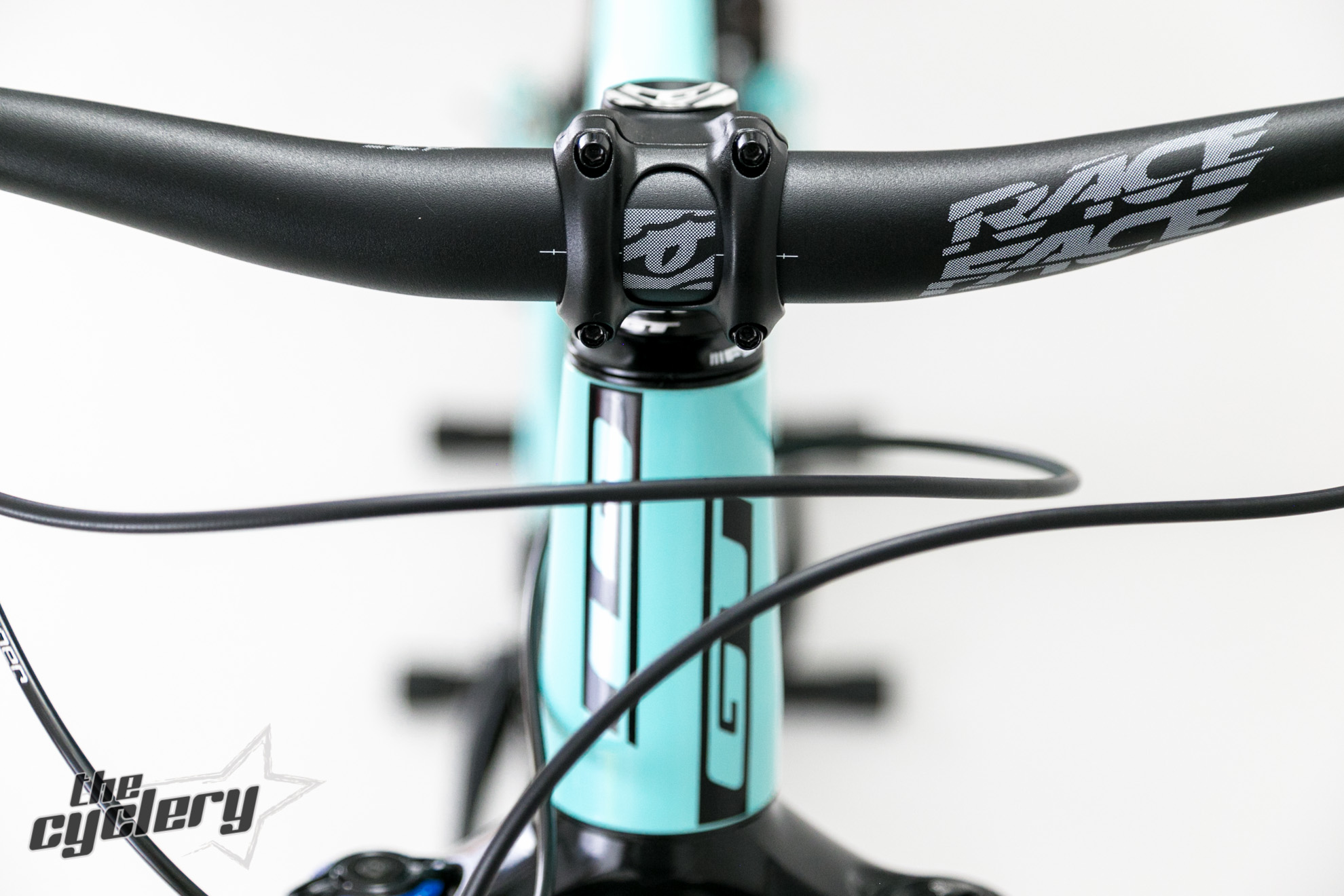

| Handlebar: |
Race Face Chester, 20mm rise, 780mm width |
| Headset: |
FSA Orbit 1.5 Zero Stack, sealed bearings |
| Saddle: |
WTB Silverado Sport, cromoly rails |
| Seatpost: |
All Terra, adjustable heigth via remote control |
| Other: |
- |
