| Chassis |
|
| Frame: |

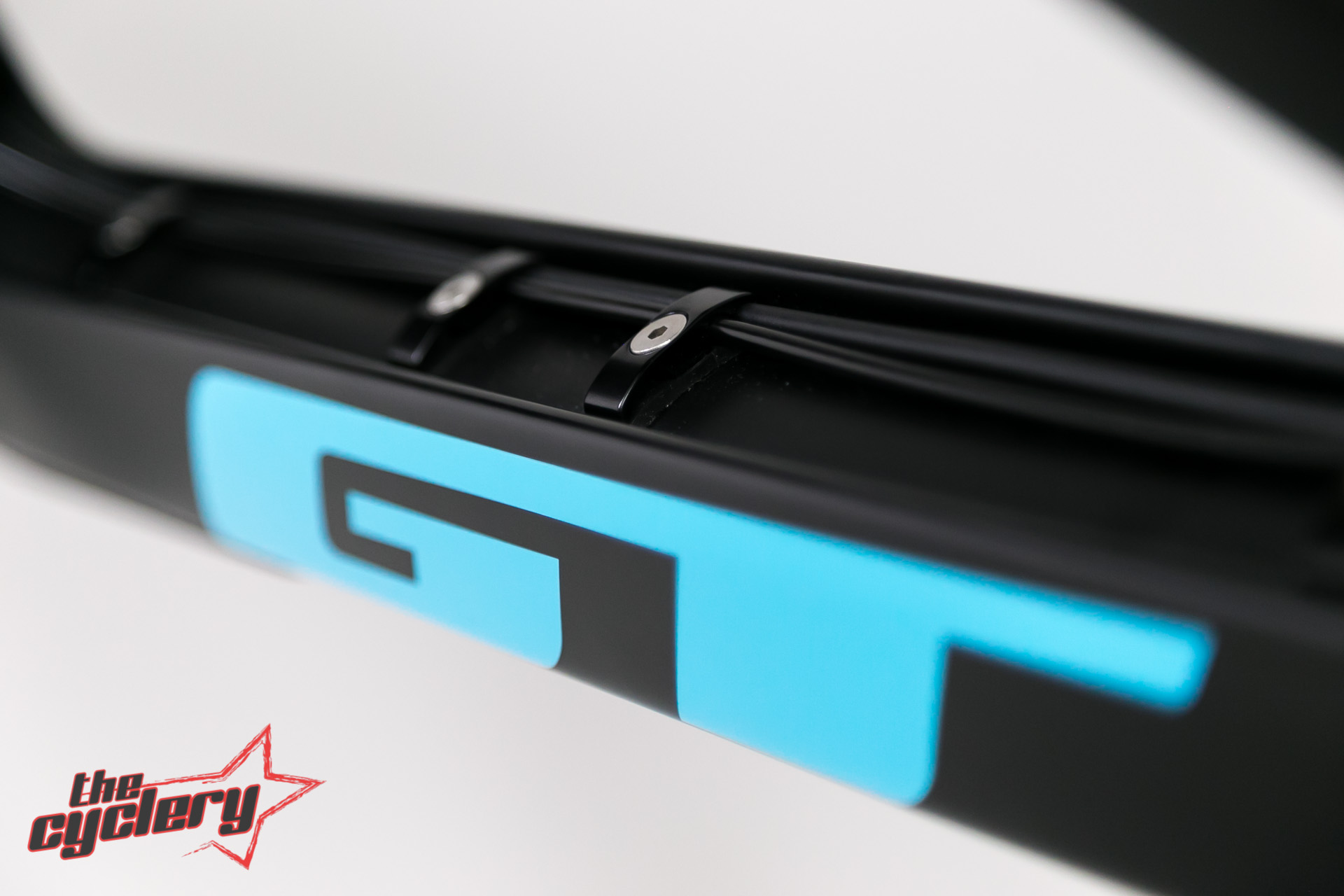

Trail frame with carbon main and aluminum rear frame, 130mm travel via LTS-system (Linkage Tuned Suspension), adjustable geometry with flip chips, integrated tapered head tube, 12 x 148mm thru axle, ISCG05 chain guide mount |
| Fork: |
Rock Shox Sektor RL, Solo air spring system (adjustable), 130mm travel, Motion control damper, 15 x 110mm thru axle, adjustable compression and rebound |
| Shock: |
Rock Shox Deluxe R, air spring system (adjustable), adjustable rebound |
|
|
| Drivetrain/Brakes |
|
| Shifters: |
SRAM NX Eagle, 1 x 12-speed |

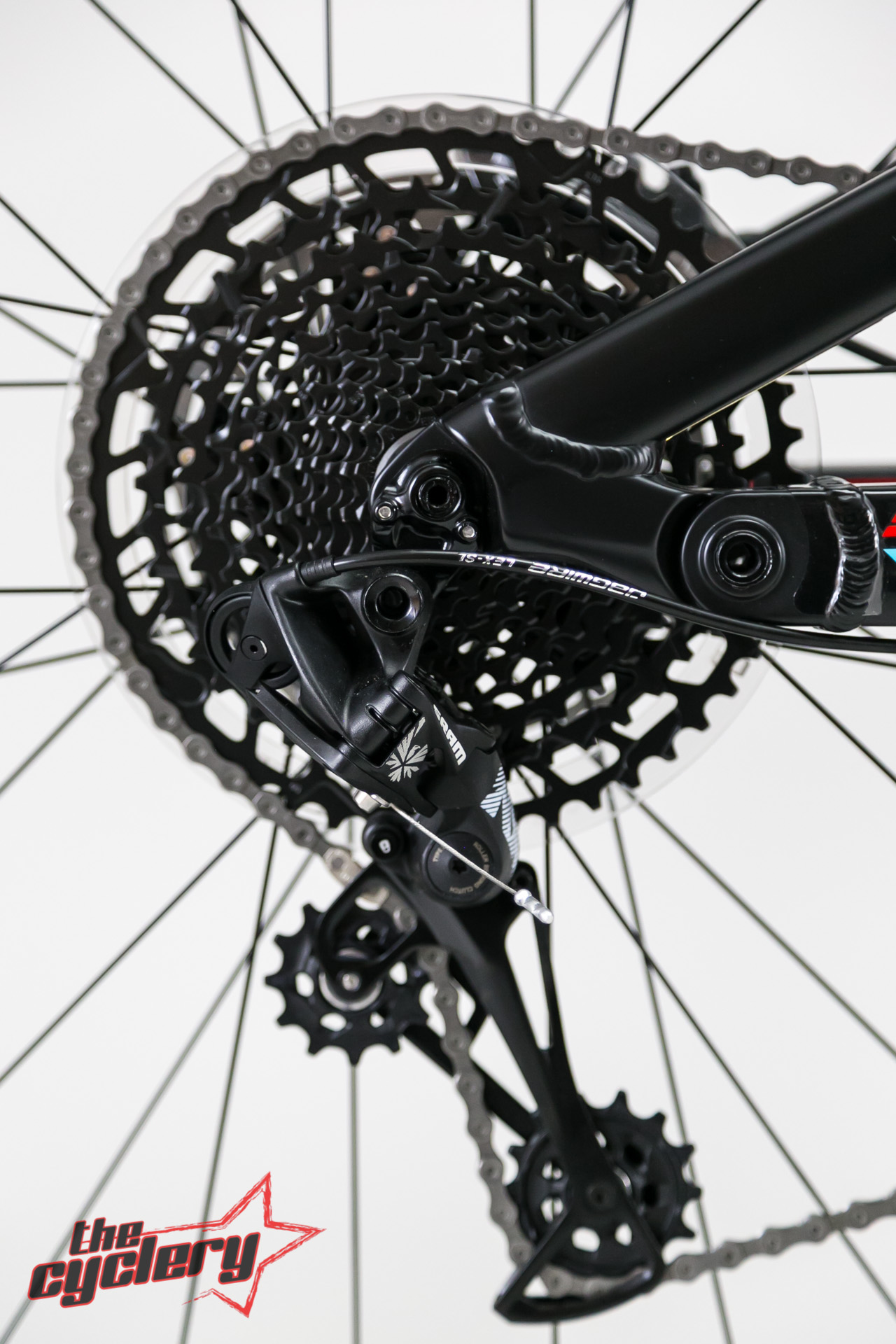

| Rear derailleur: |
SRAM NX Eagle |
| Front derailleur: |
- |
| Crankset: |
Truvativ Descendant 6K, 32 teeth chain ring |
| Bottom bracket: |
SRAM Dub, 73mm housing |
| Pedals: |
- |
| Chain: |
SRAM Eagle, 12-speed |
| Cogs: |
SRAM PG-1230, 12-speed, 11-50 teeth |
| Brakes: |

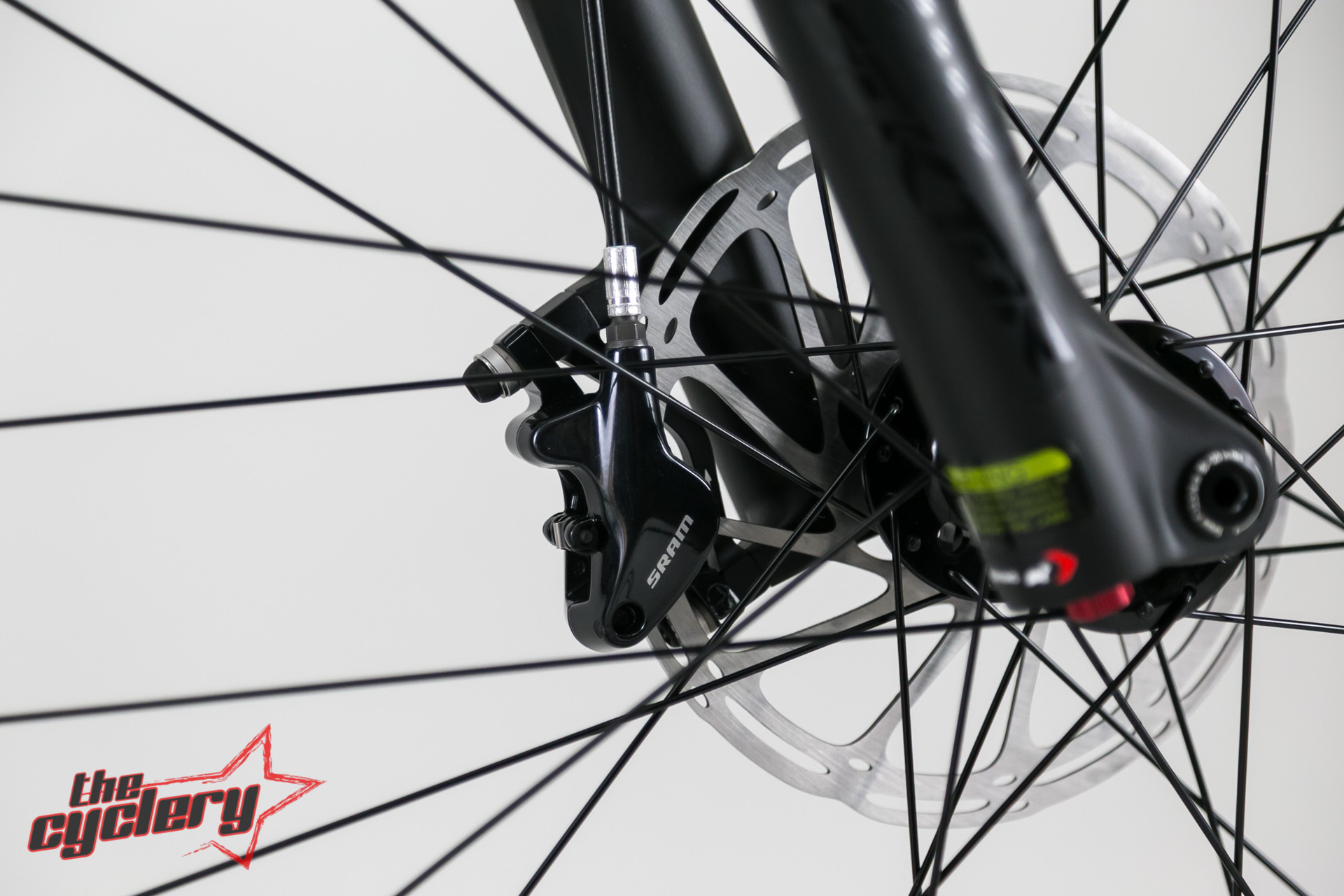

SRAM Level TL, hydraulic disc brakes, 180/180mm Centerline discs (f/r) |
| Brake levers: |
SRAM Level TL |
|
|
| Wheels |
|
| Front hub: |
All Terra, 15 x 110mm thru axle, 6-hole mount |
| Rear hub: |
All Terra, 12 x 148mm thru axle, 6-hole mount |
| Rims: |
WTB ST i29 TCS 2.0 29", 32 hole |
| Tires: |

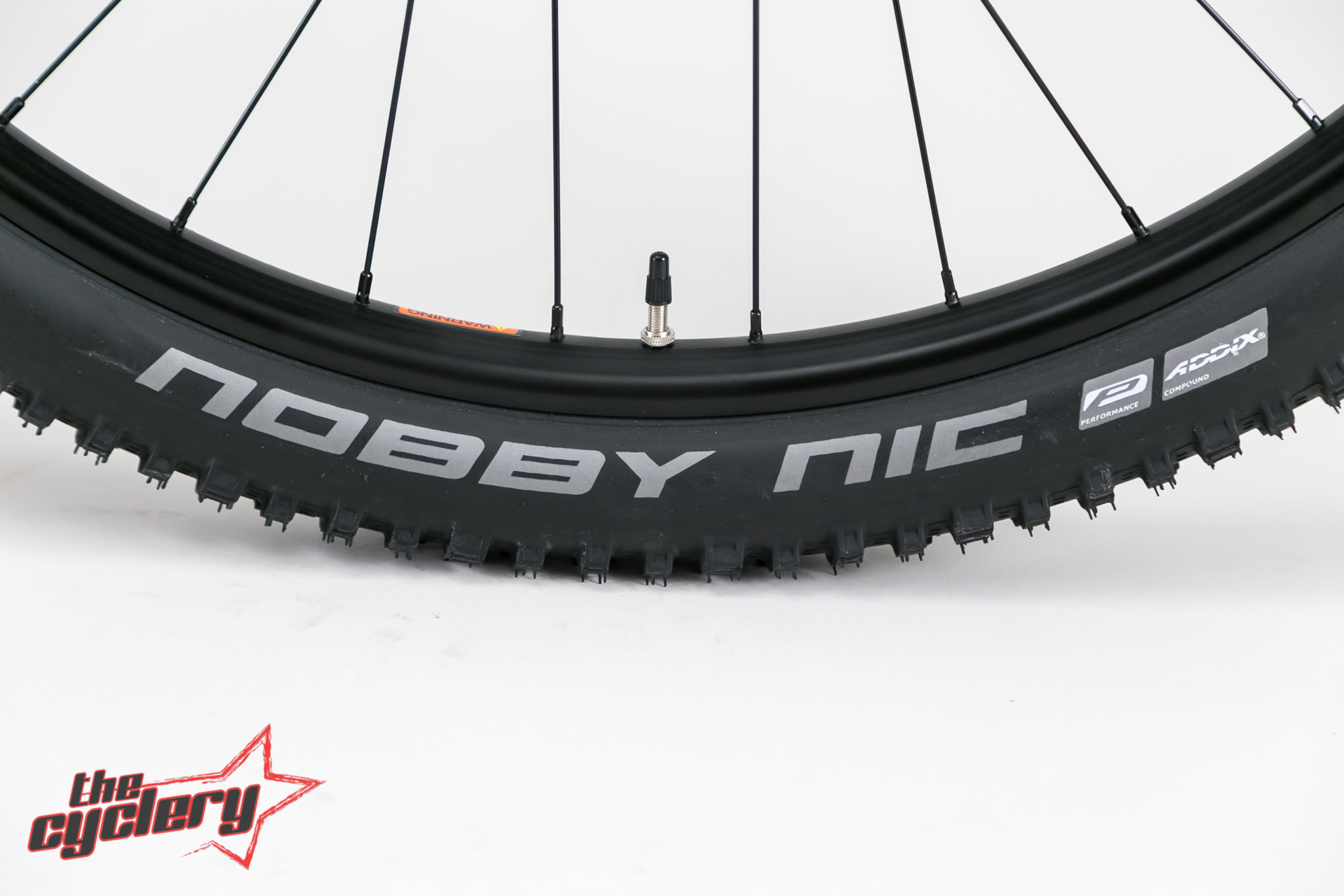

Schwalbe Nobby Nic Performance, tubeless ready, 29 x 2.35" (f/r) |
|
|
| Components |
|
| Stem: |
All Terra, 60mm length, 31,8mm clamp |
| Handlebar: |
All Terra, 15mm rise, 780mm width, 31,8mm clamp |
| Headset: |
FSA Orbit C-40-ACB, sealed bearings |
| Saddle: |
WTB Silverado Sport |
| Seatpost: |
X-Fusion Dropper, adjustable height via Remote Control, 31,6mm |
| Other: |
- |
|
|
