| Chassis | |

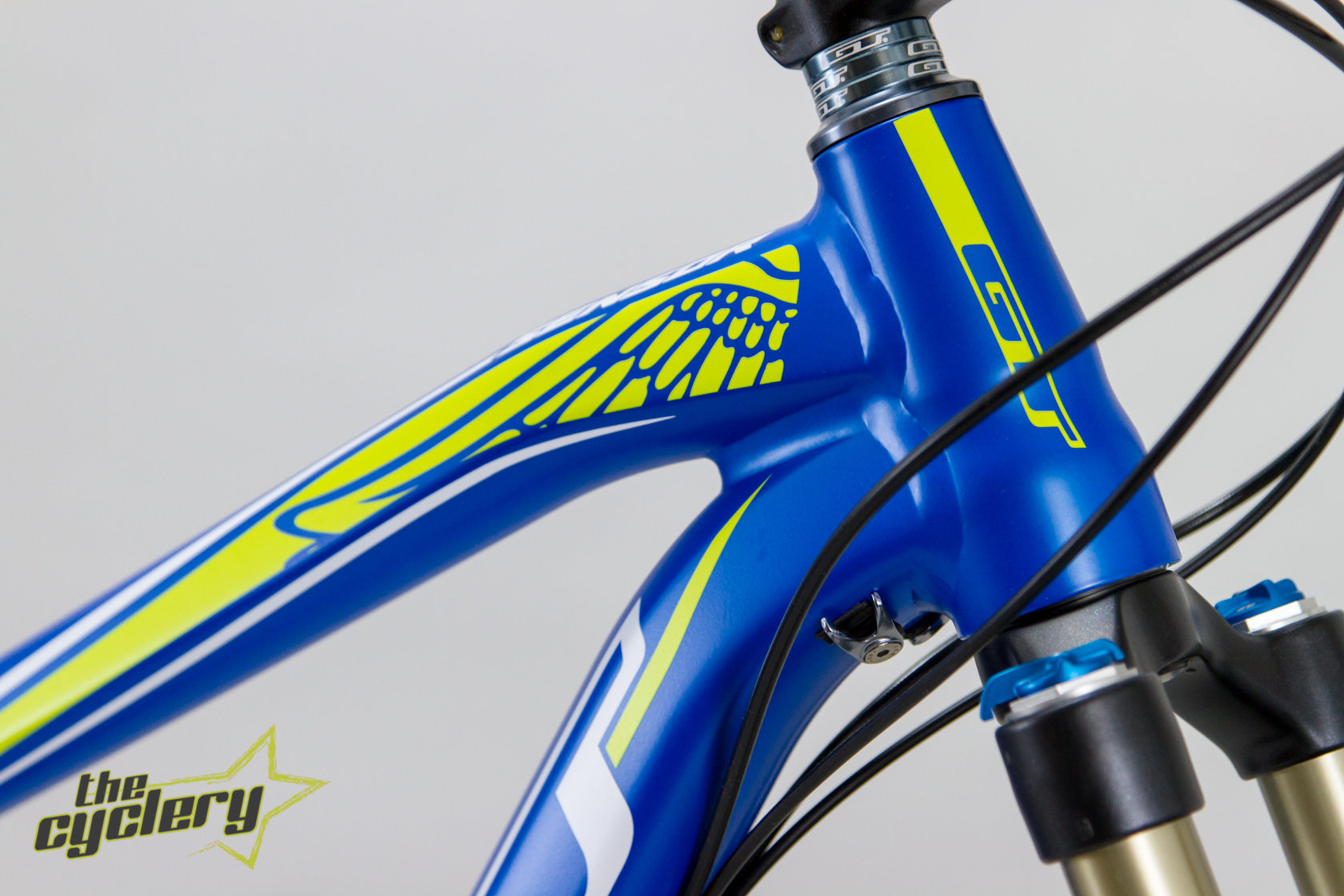

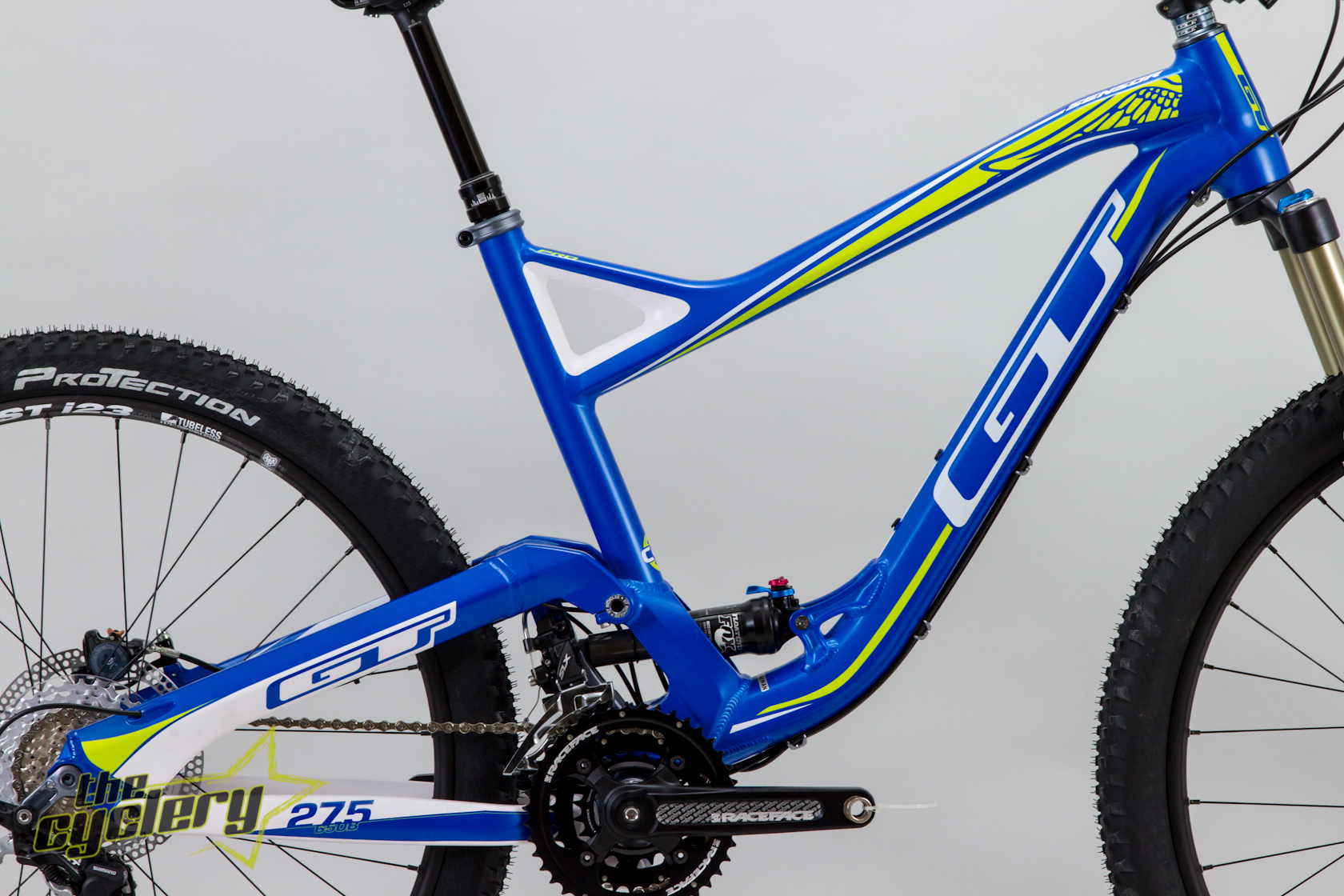

| Frame: | Trail frame with COR design (Centered on Rider), hydroformed 6069 aluminum, 130mm travel via AOS system (Angle Optimized Suspension), tapered headtube, 12 x 142mm thru axle |

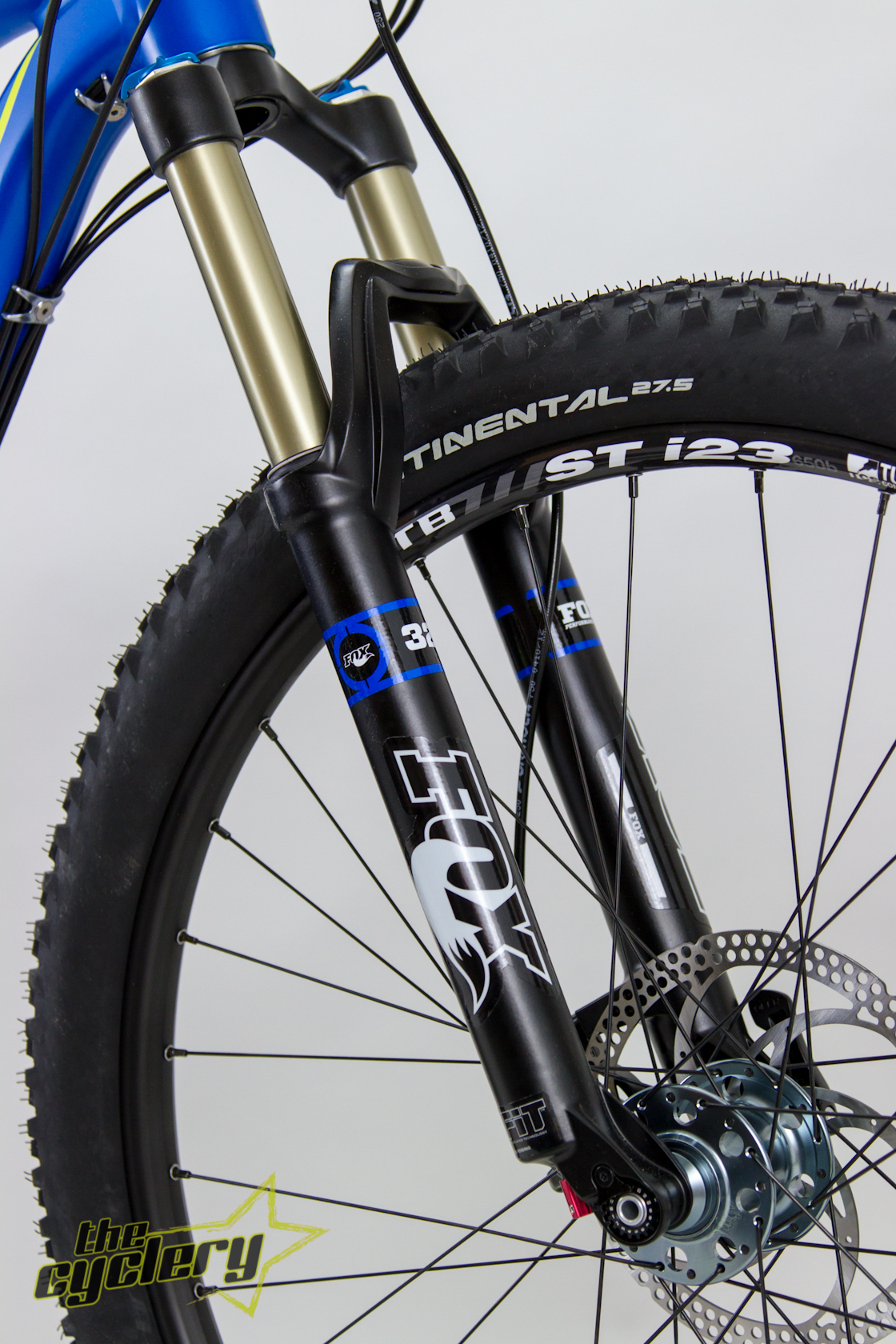

| Fork: | FOX 32 Float CTD FIT (black), air spring system (adjustable), 130mm travel, 15 x 100mm thru axle, CTD (Climb, Trail, Descent) adjustment, adjustable rebound and lock-out |
| Shock: | FOX Float CTD BV, air spring system (adjustable), CTD (Climb, Trail, Descent) adjustment, adjustable rebound and lock-out |
| Drivetrain/Brakes | |
| Shifters: | Shimano SLX (SL-M670), 3 x 10-speed |

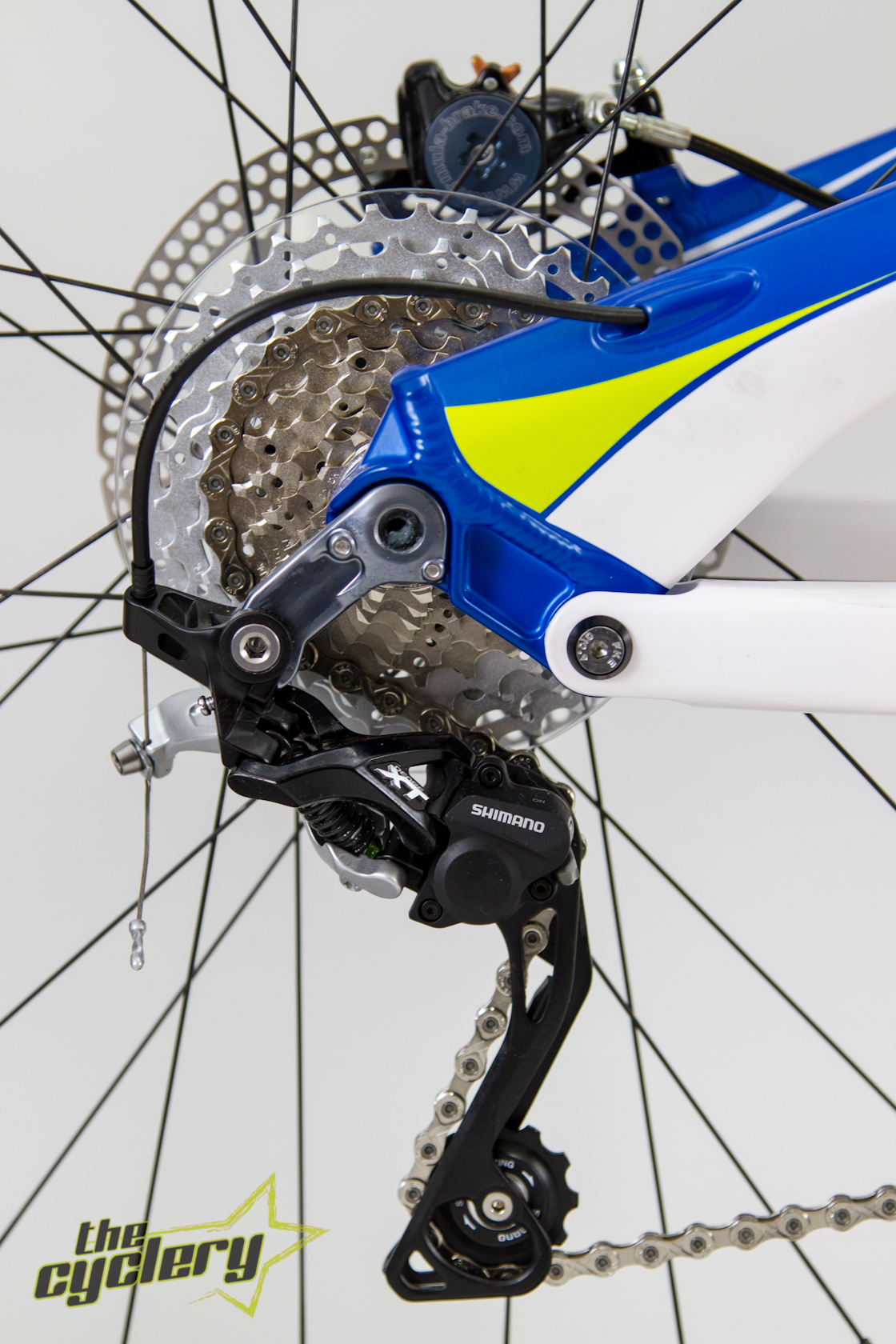

| Rear derailleur: | Shimano XT Shadow+ (RD-M786-D) |
| Front derailleur: | Shimano SLX (FD-M671-D) |
| Crankset: | Race Face Evolve, 42/32/22 teeth chain rings |
| Bottom bracket: | Race Face X-Type |
| Pedals: | - |
| Chain: | KMC X10 |
| Rear cogs: | Shimano SLX (CS-HG81-10), 10-speed, 11-36 teeth |
| Brakes: | Formula T1, hydraulic disc brakes, 180mm discs (f/r) |

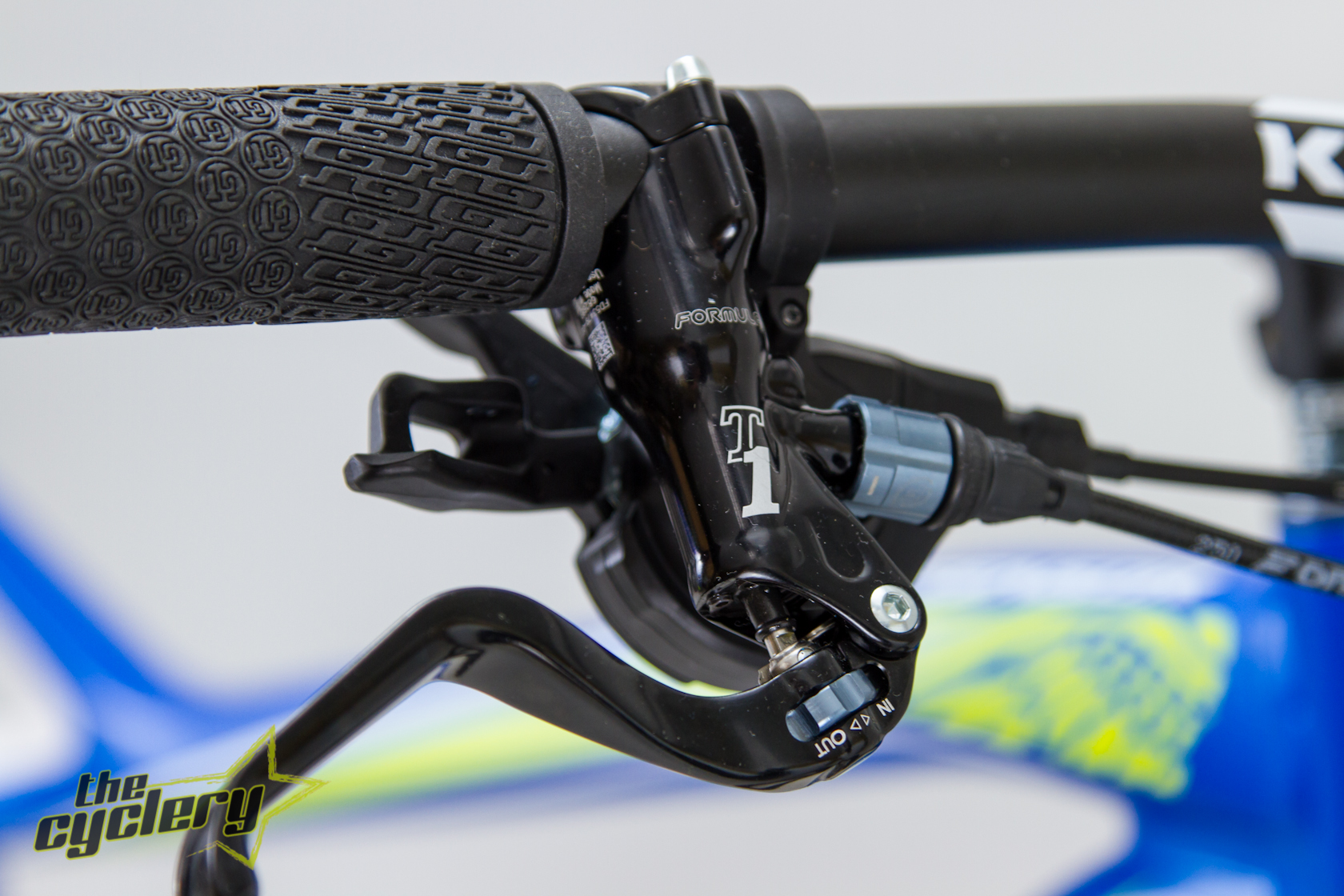

| Brake levers: | Formula T1 |
| Wheels | |

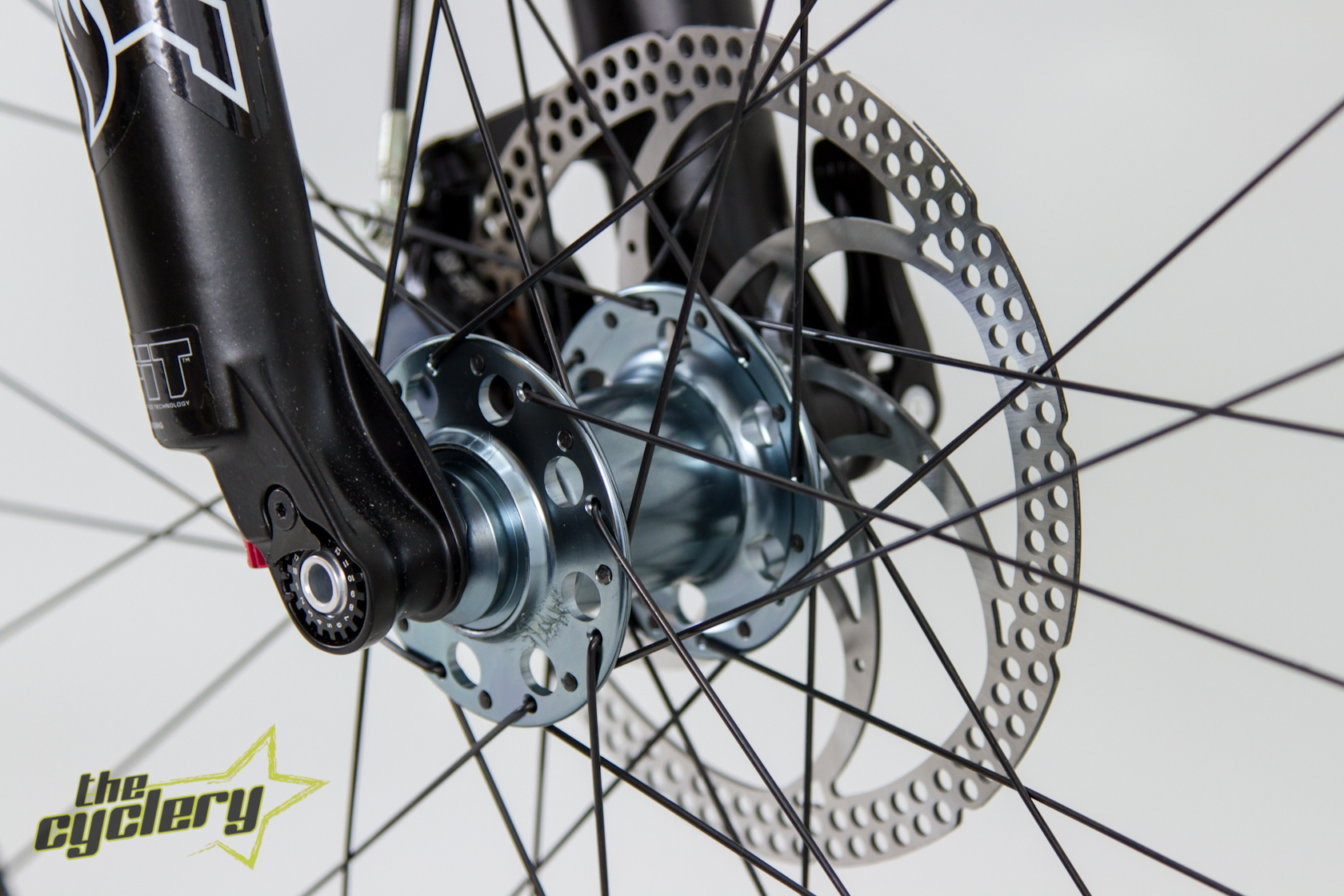

| Front hub: | All Terra, sealed bearings, 15 x 100mm thru axle |
| Rear hub: | AlL Terra, sealed bearings, 12 x 142mm thru axle |
| Rims: | WTB ST i23 TCS aluminum 650b |

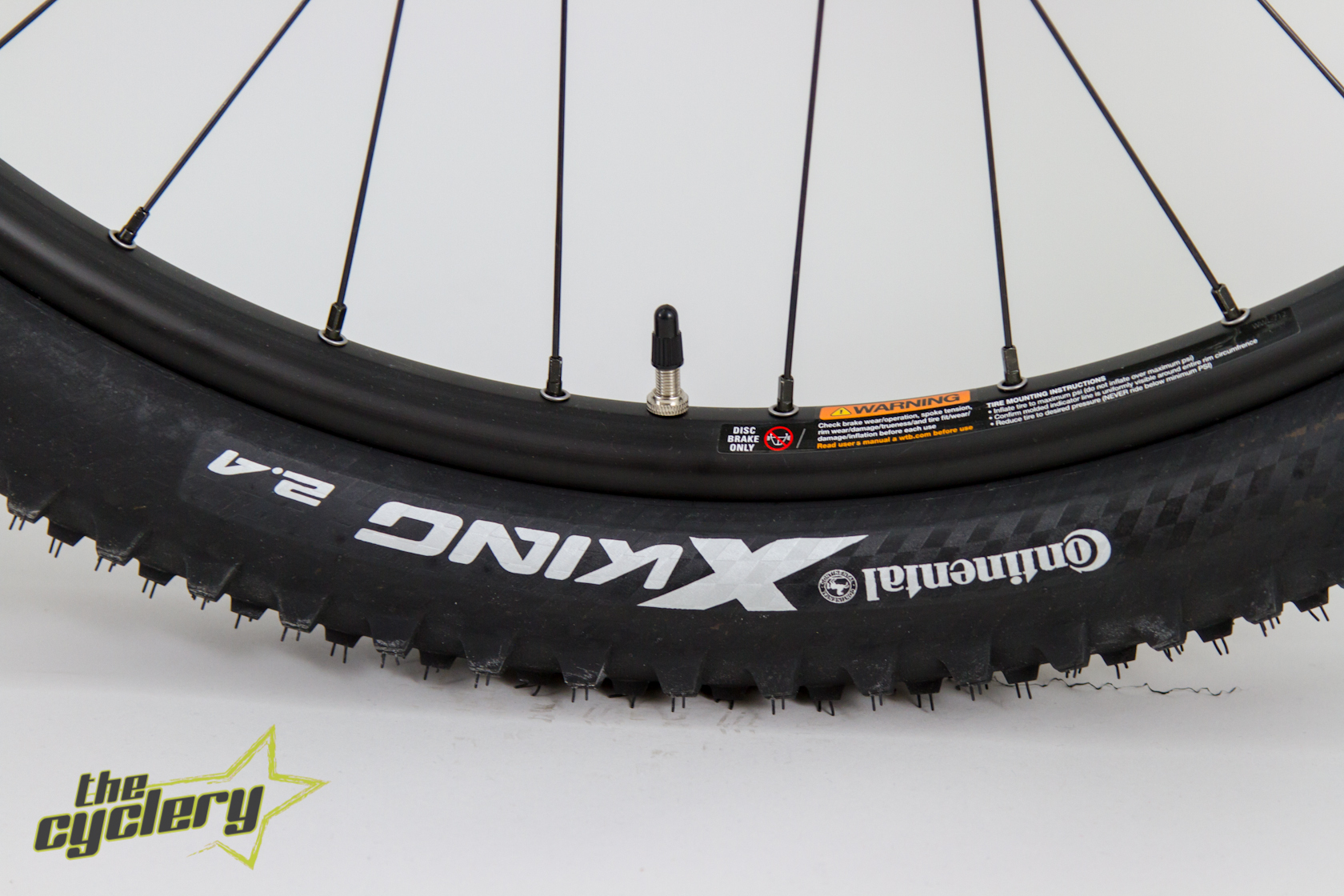

| Tires: | Continental X-King, ProTection, folding, 27,5 x 2,4"/2,2" (f/r) |
| Components | |

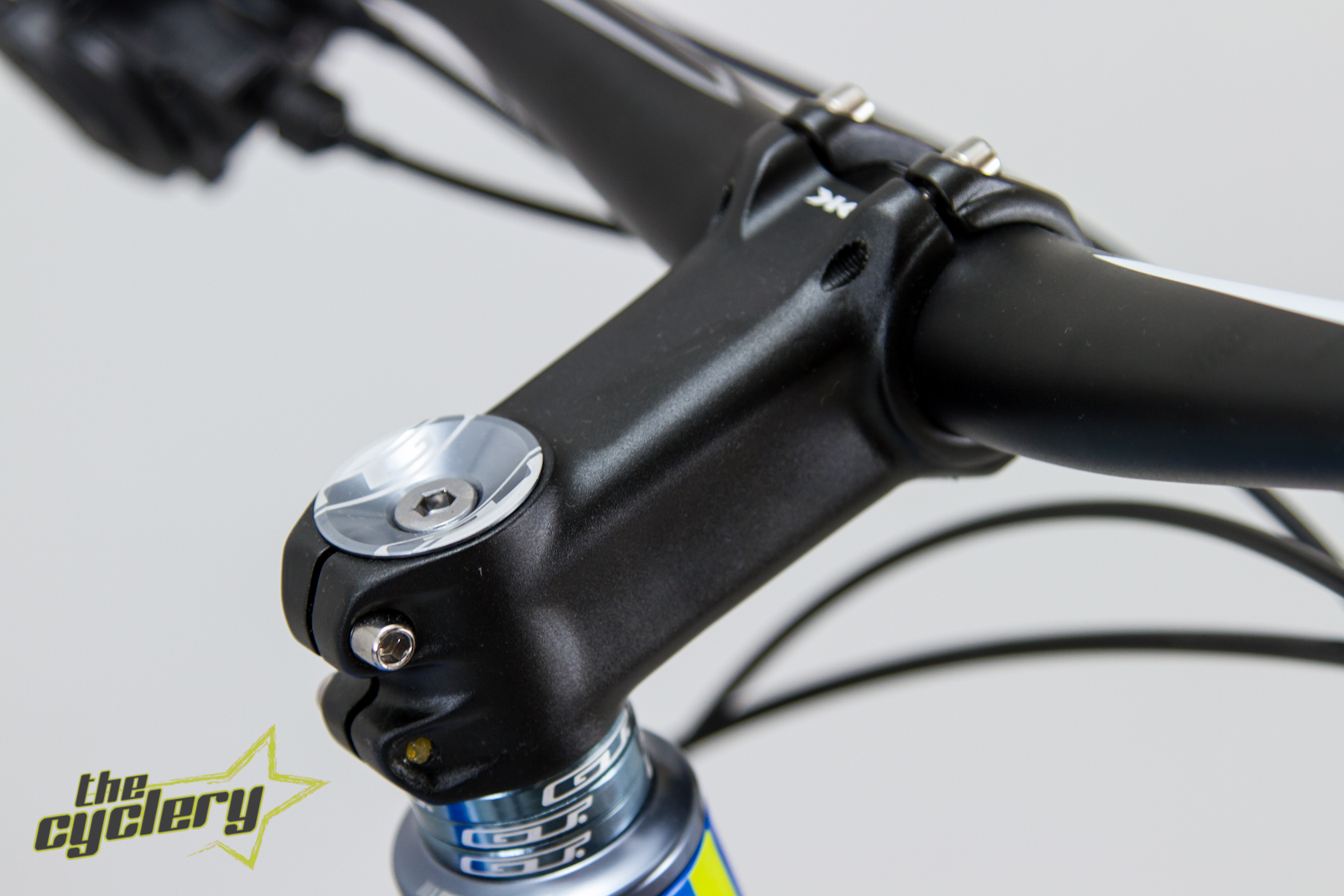

| Stem: | Kore Cubix, 80mm length, 6° rise, 31,8mm clamp |

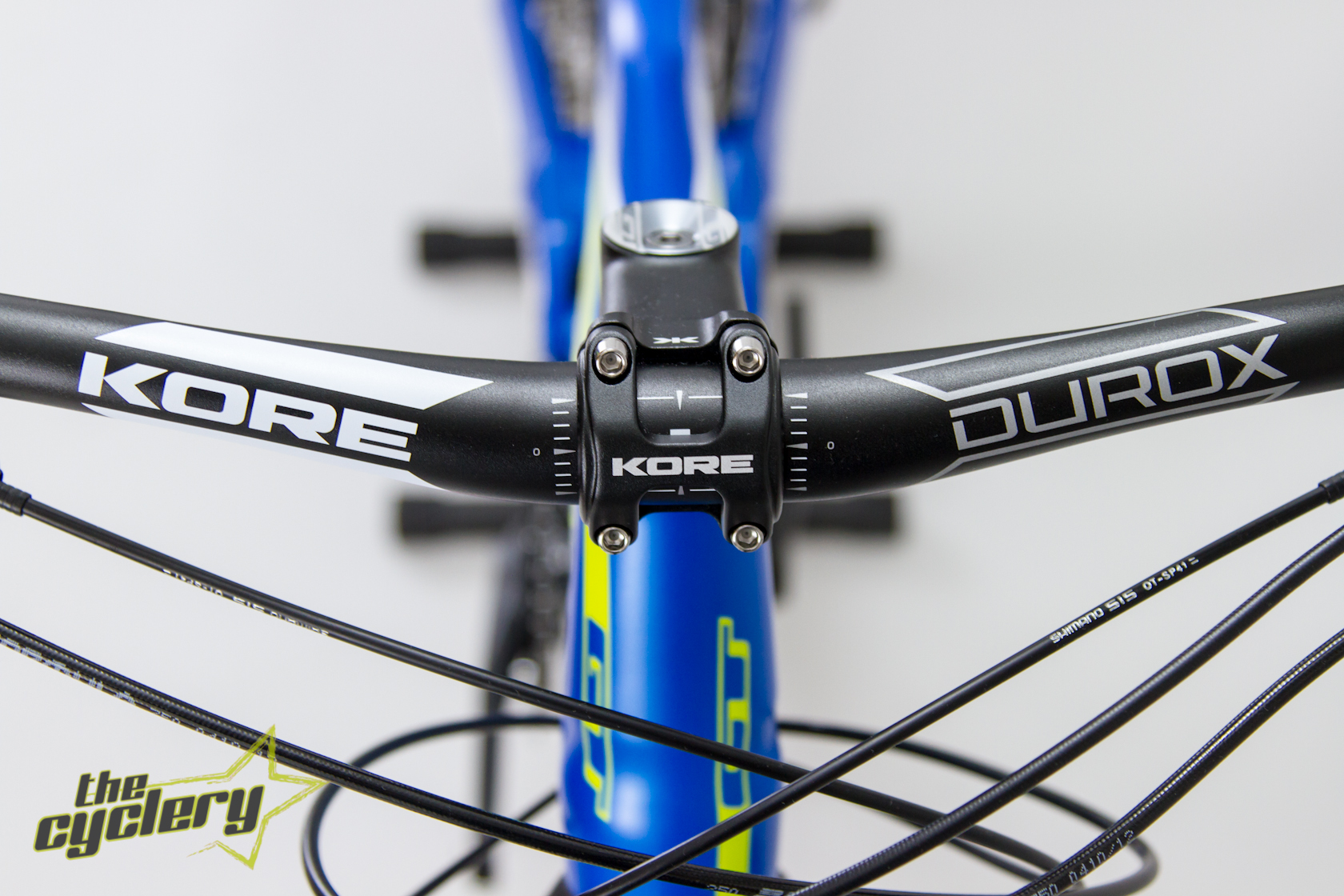

| Handlebar: | Kore Durox, 6061er aluminum (double butted), 740mm width, 31,8mm clamp |
| Headset: | FSA Orbit C-40-ACB |

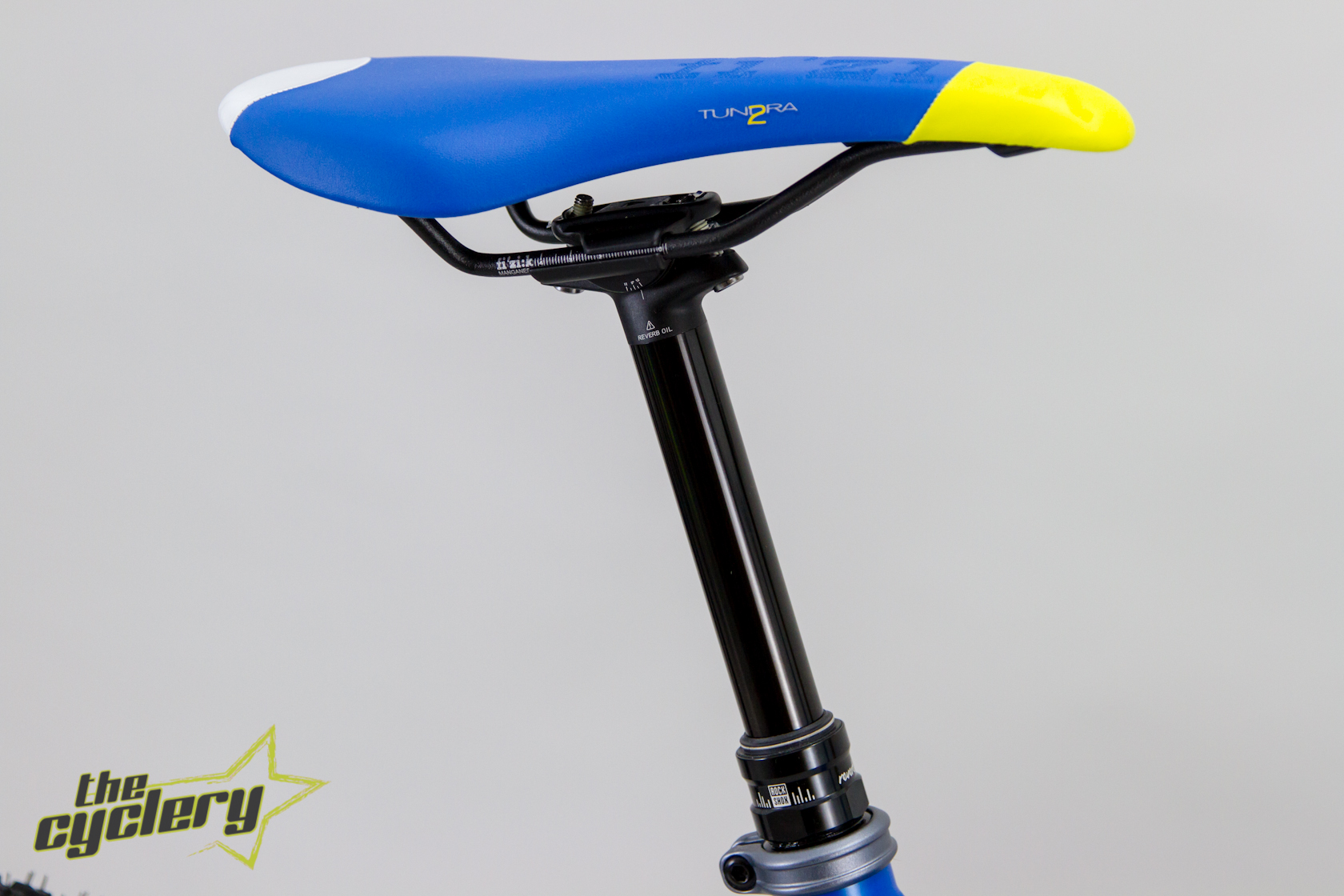

| Saddle: | Fizik Tundra 2, magnesium rails |
| Seatpost: | Rock Shox Reverb Stealth (internal routing), adjustable height via remote control |
| Other: | - |
Product video:
| Model year | 2014 |
| Intended use | Trail |
| Wheel size | 27.5"/650b |
| Frame material | Aluminum |
| Shifting type | Derailleur |
| Gears | 30 |
