| Chassis | |

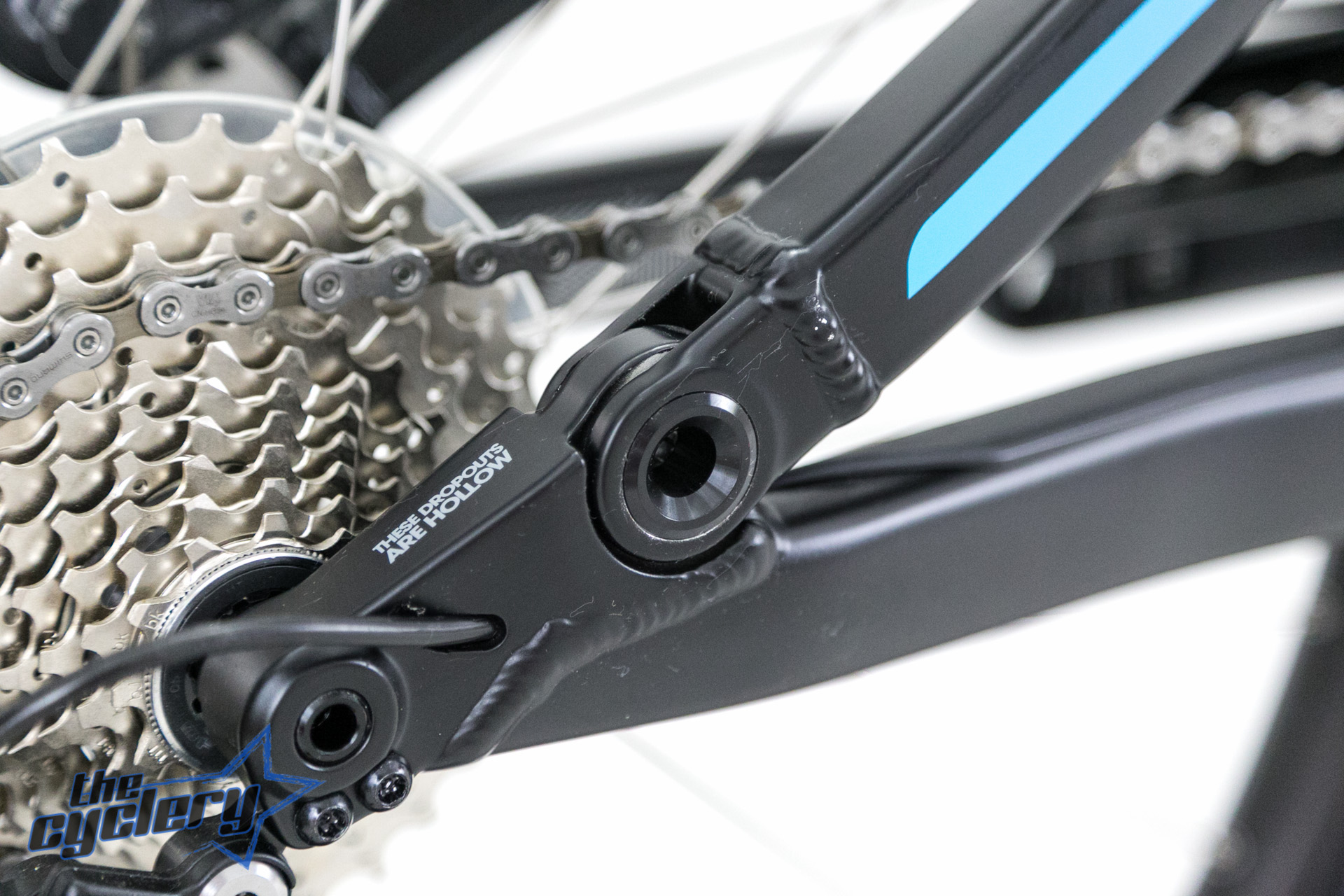

| Frame: | Butted 6061 aluminum frame, 134mm travel, tapered head tube, press fit bottom bracket housing, 12 x 142mm thru axle |
| Fork: | Rock Shox Revelation RL Solo Air, air spring system (adjustable), 140mm travel, tapered steerer, 15 x 100mm thru axle, adjustable rebound and compression |

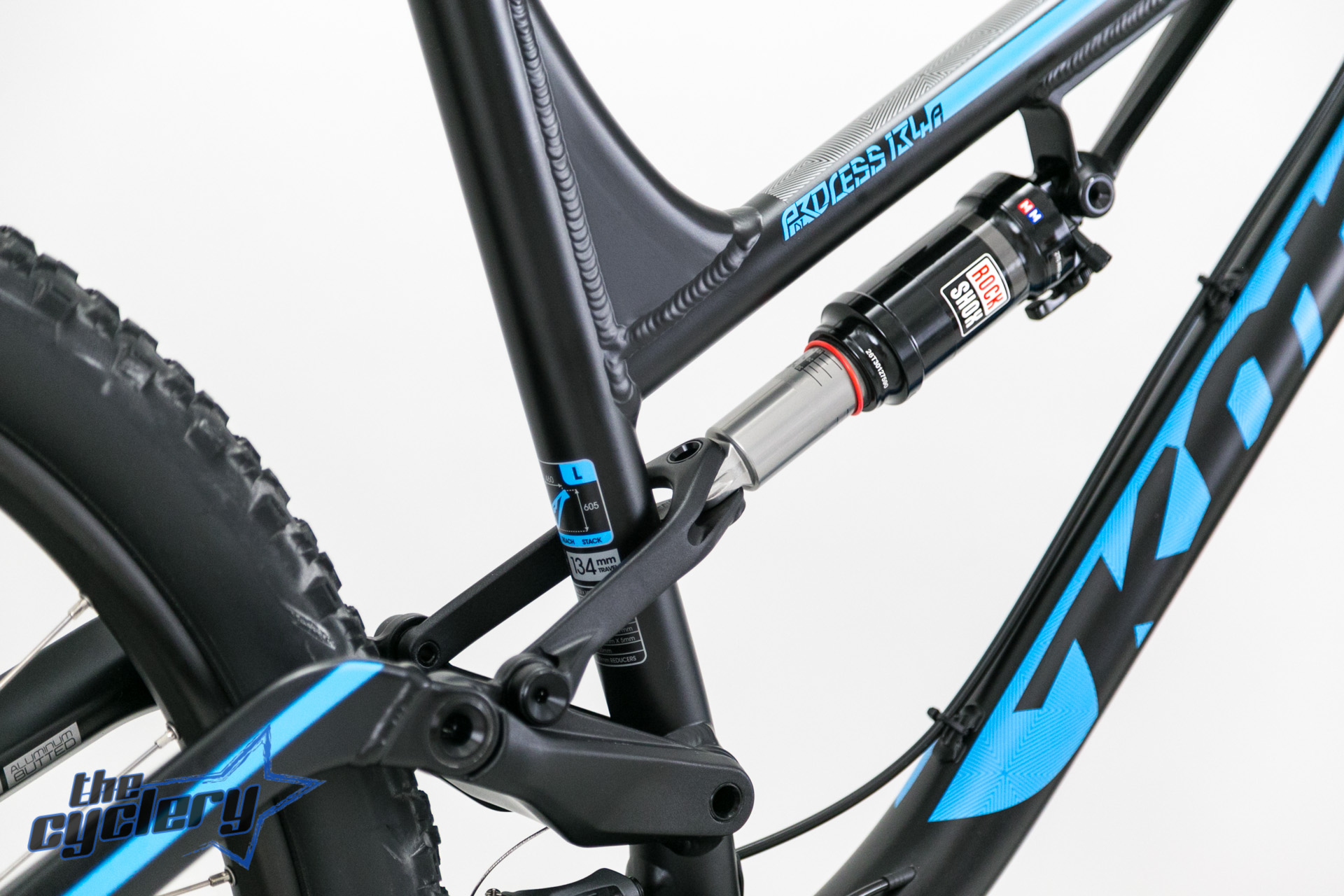

| Shock: | Rock Shox Monarch RT, air spring system (adjustable), adjustable rebound and lock-out |
| |
| Drivetrain/Brakes | |
| Shifters: | Shimano SLX, 2 x 10-speed |

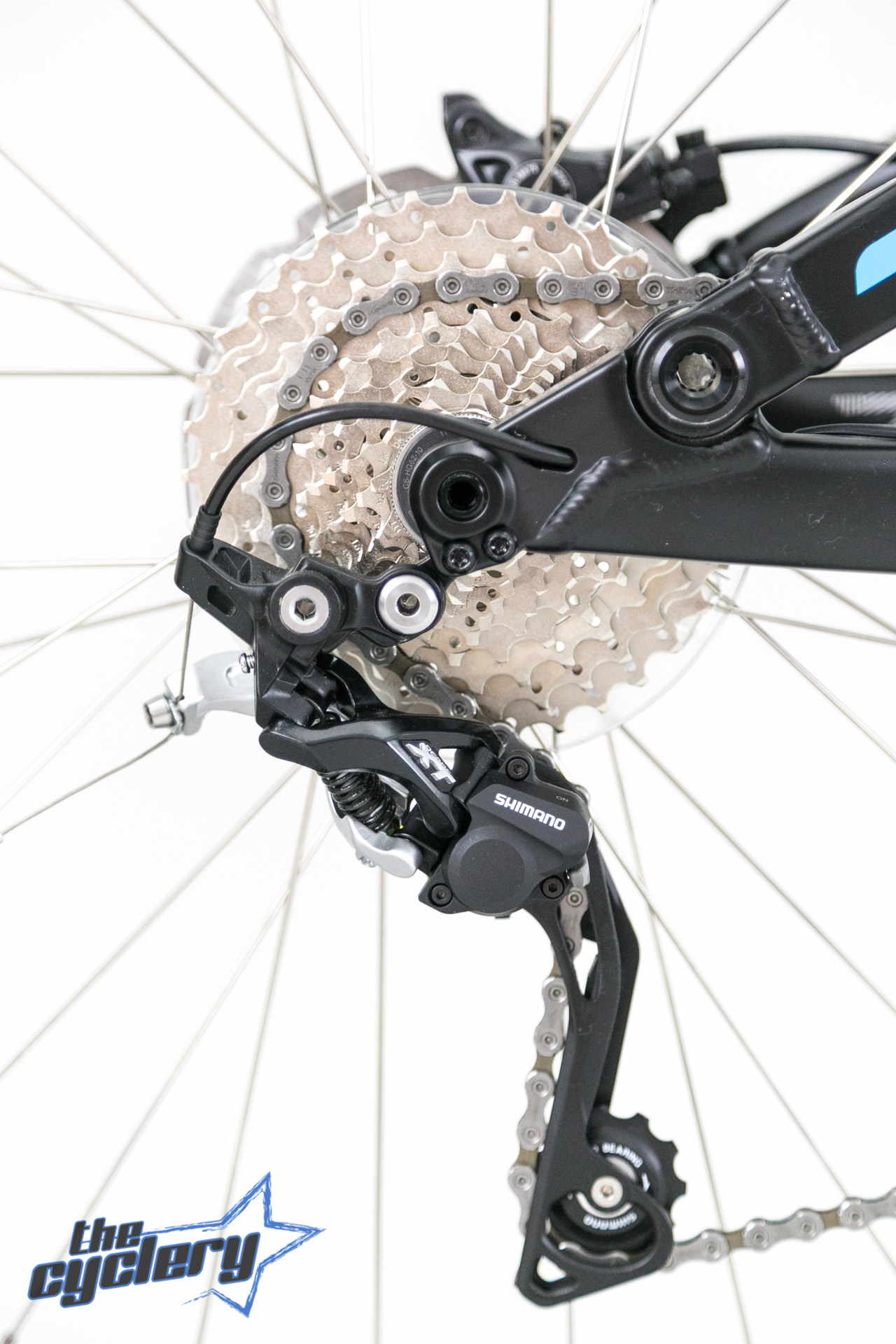

| Rear derailleur: | Shimano XT Shadow Plus |
| Front derailleur: | SRAM X7 |

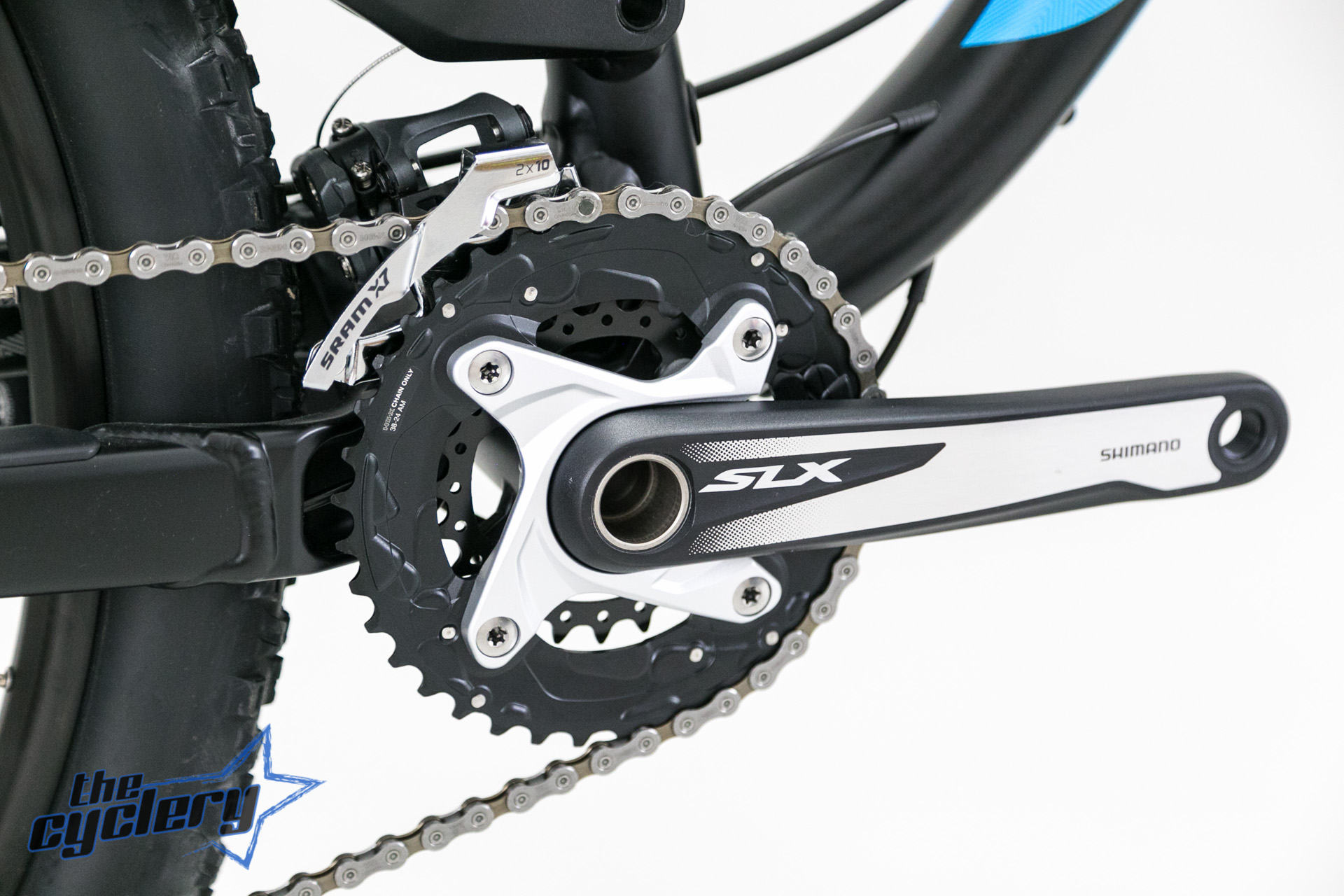

| Crankset: | Shimano SLX, 38/24 teeth chain rings |
| Bottom bracket: | Shimano SLX, press ftt |
| Pedals: | - |
| Chain: | Shimano Deore, 10-speed |
| Rear cogs: | Shimano Deore, 10-speed, 11-36 teeth |

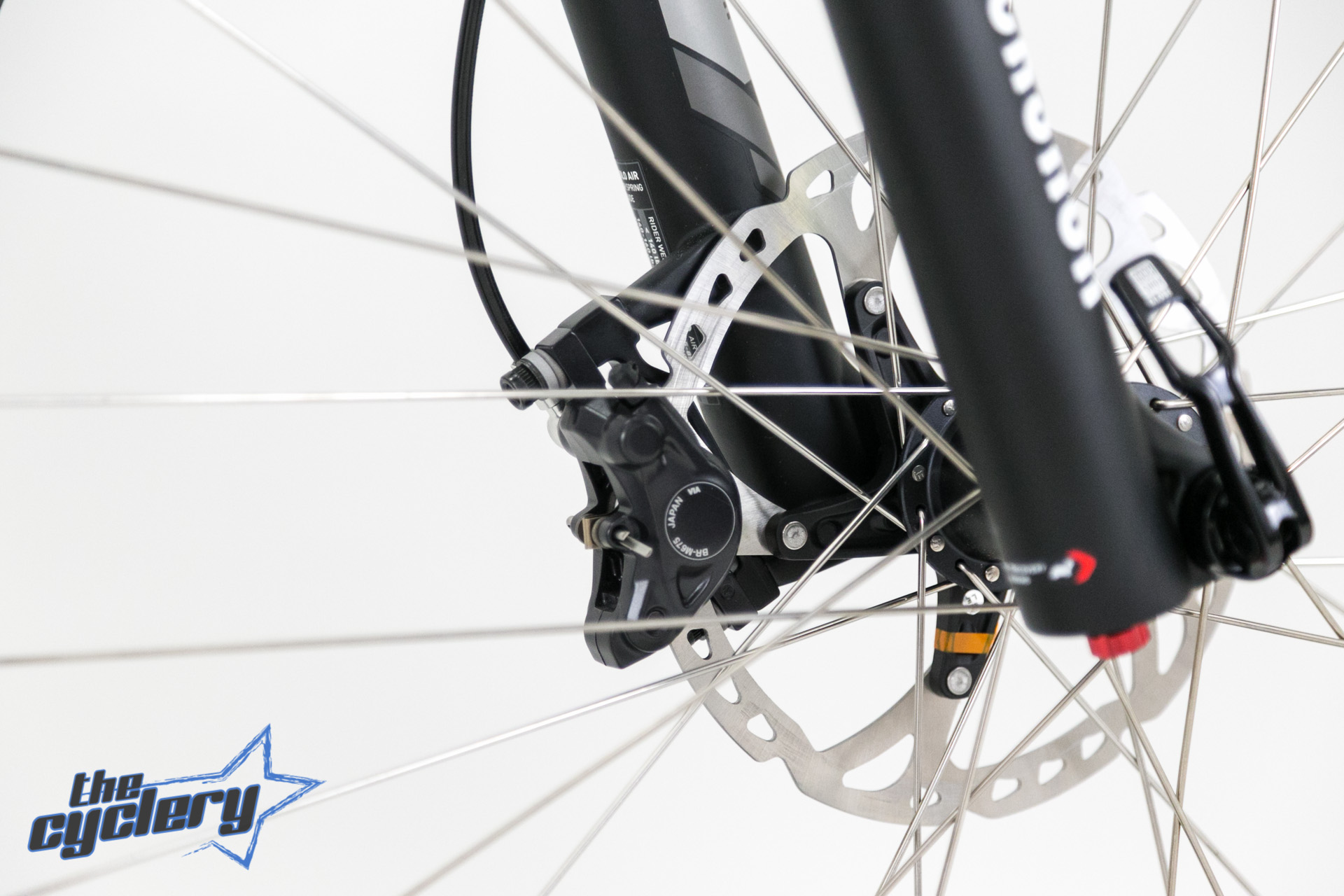

| Brakes: | Shimano SLX, hydraulic disc brakes, 180/160mm discs (f/r) |

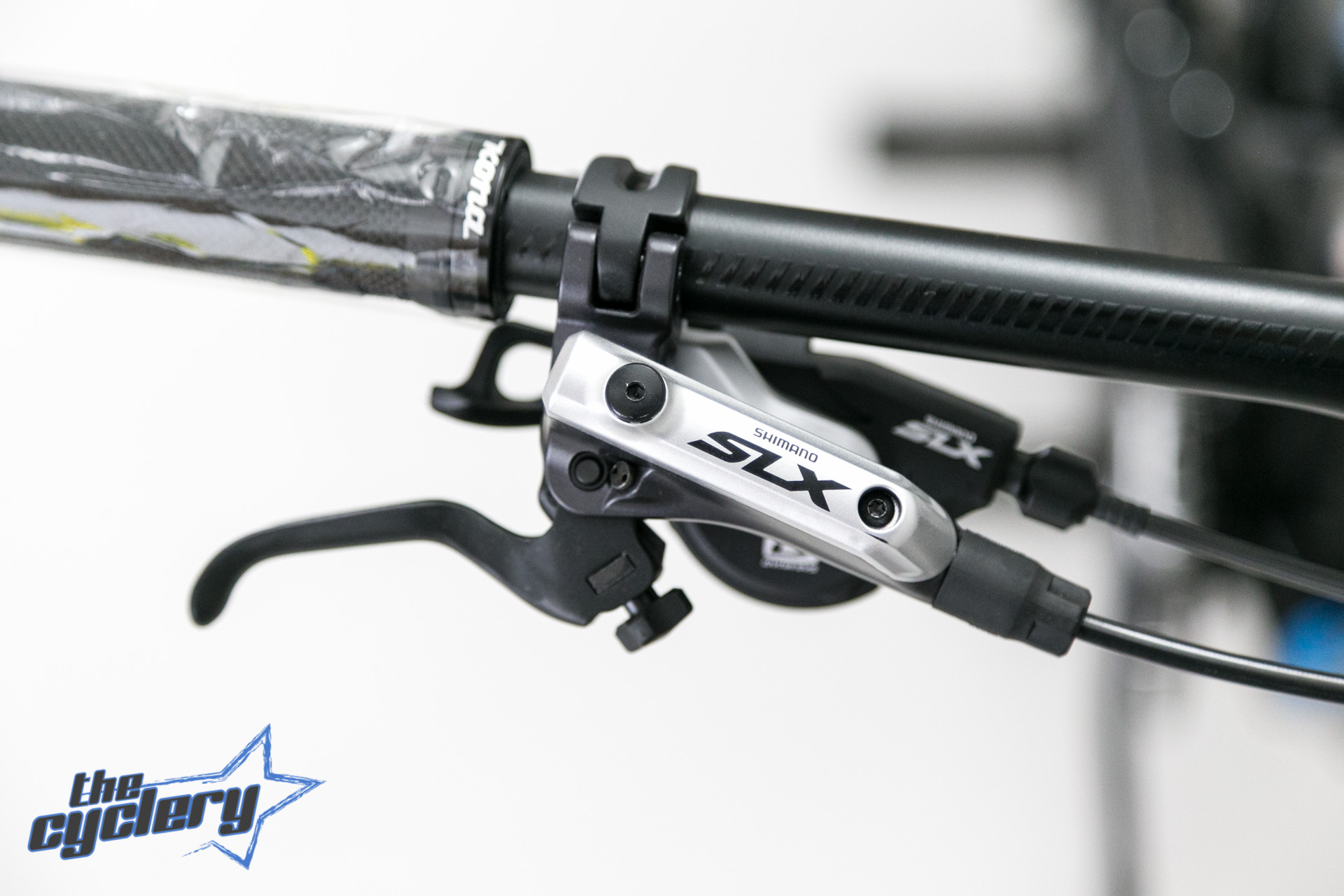

| Brake levers: | Shimano SLX |
| |
| Wheels | |
| Front hub: | Shimano SLX, 15 x 100mm thru axle |
| Rear hub: | Shimano SLX, 12 x 142mm thru axle |

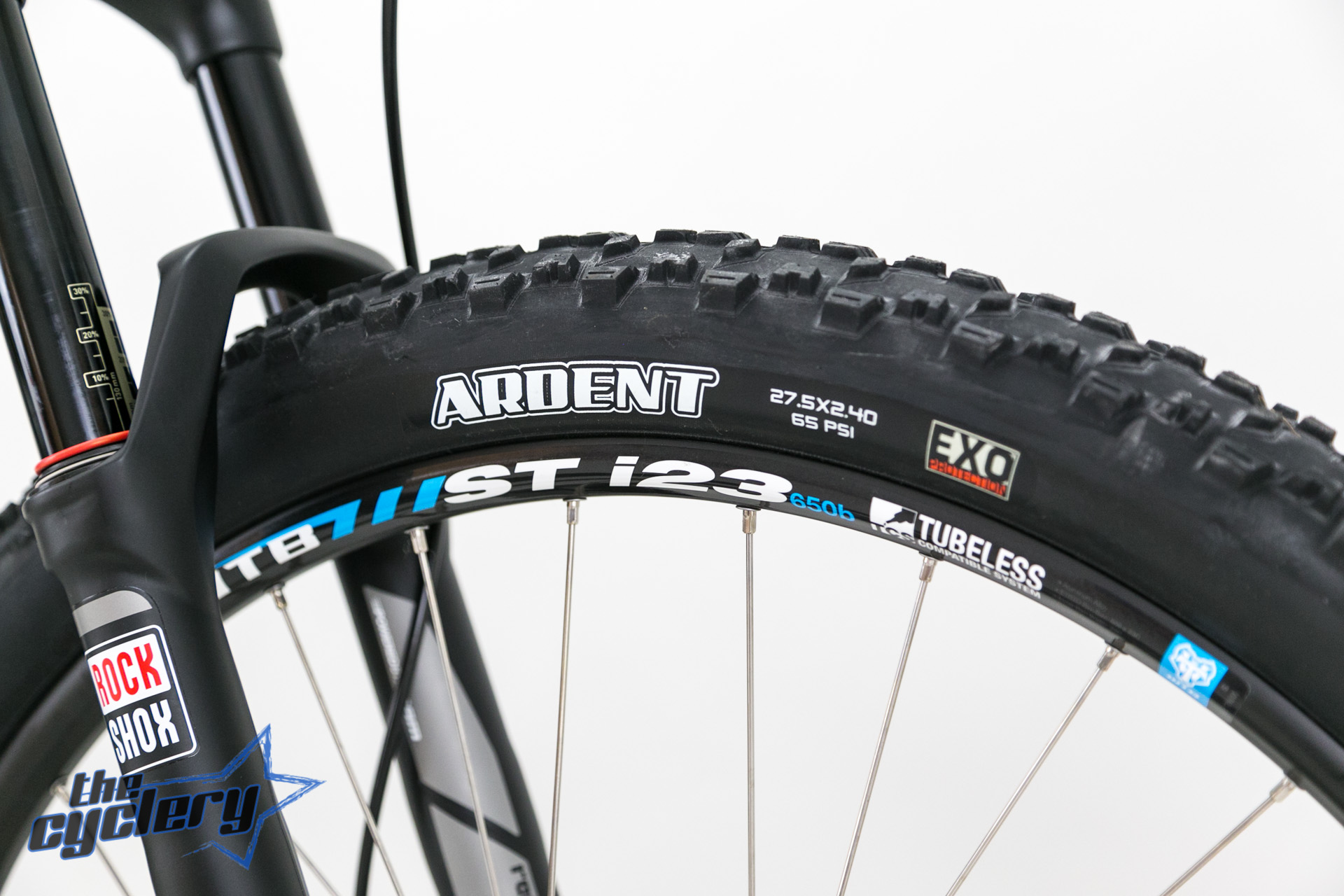

| Rims: | WTB ST i23 TCS 27.5" |
| Tires: | Maxxis Ardent 27.5 x 2.4"/2.25" (f/r) |
| |
| Components | |

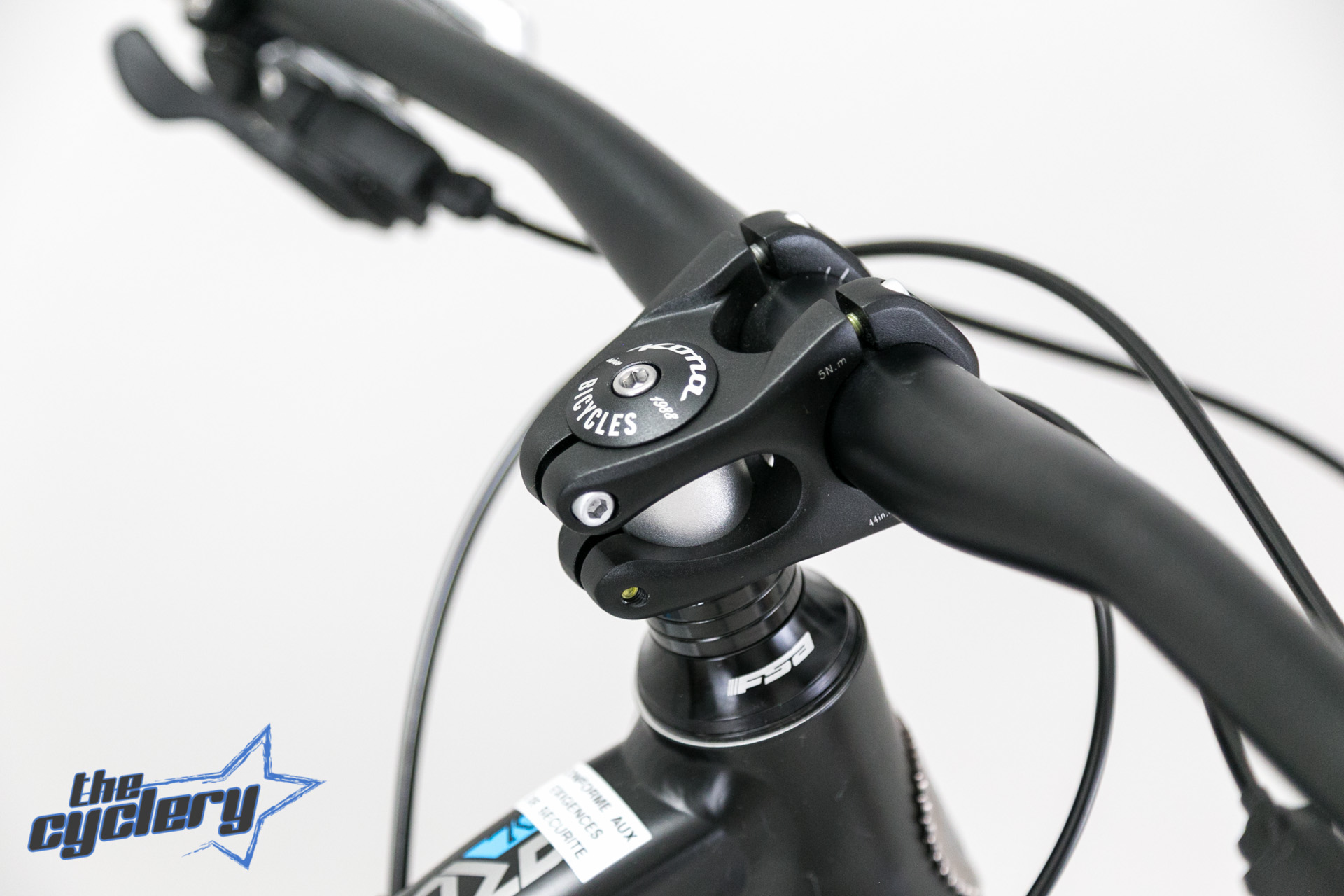

| Stem: | Kona, 40mm length, 31,8mm clamp |
| Handelbar: | Kona XC/BC riser, 31,8mm clamp |
| Headset: | FSA Orbit, 1.5" zero stack |
| Saddle: | WTB Volt Team |
| Seatpost: | Titec El Norte. 31,6mm aluminum |
| Other: | - |
| |
| Table of geometry | Click here |
