| Chassis | |

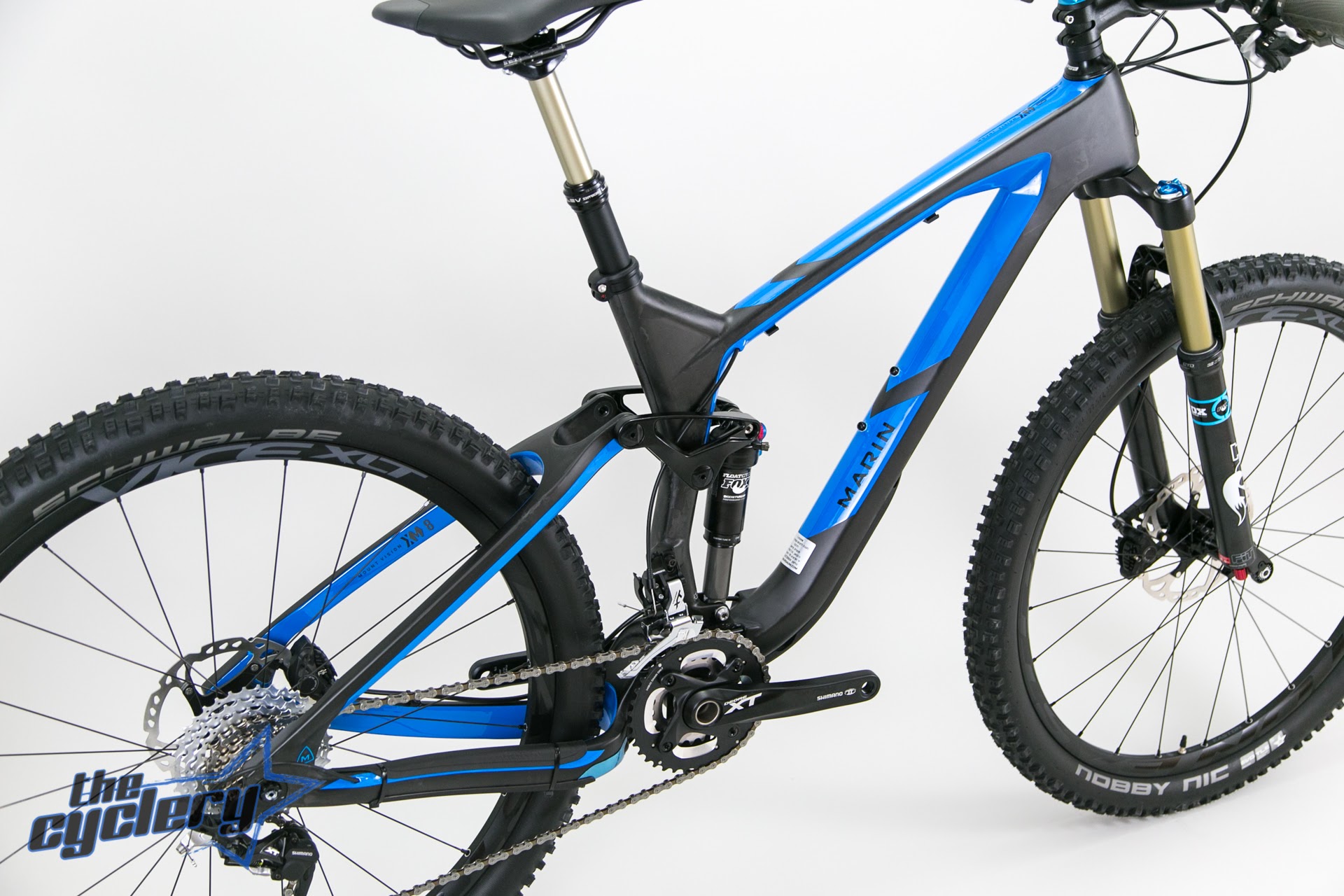

| Frame: | 27.5" carbon all mountain frame, 140mm travel via IsoTrac system, integrated tapered head tube, 12 x 142mm thru axle |

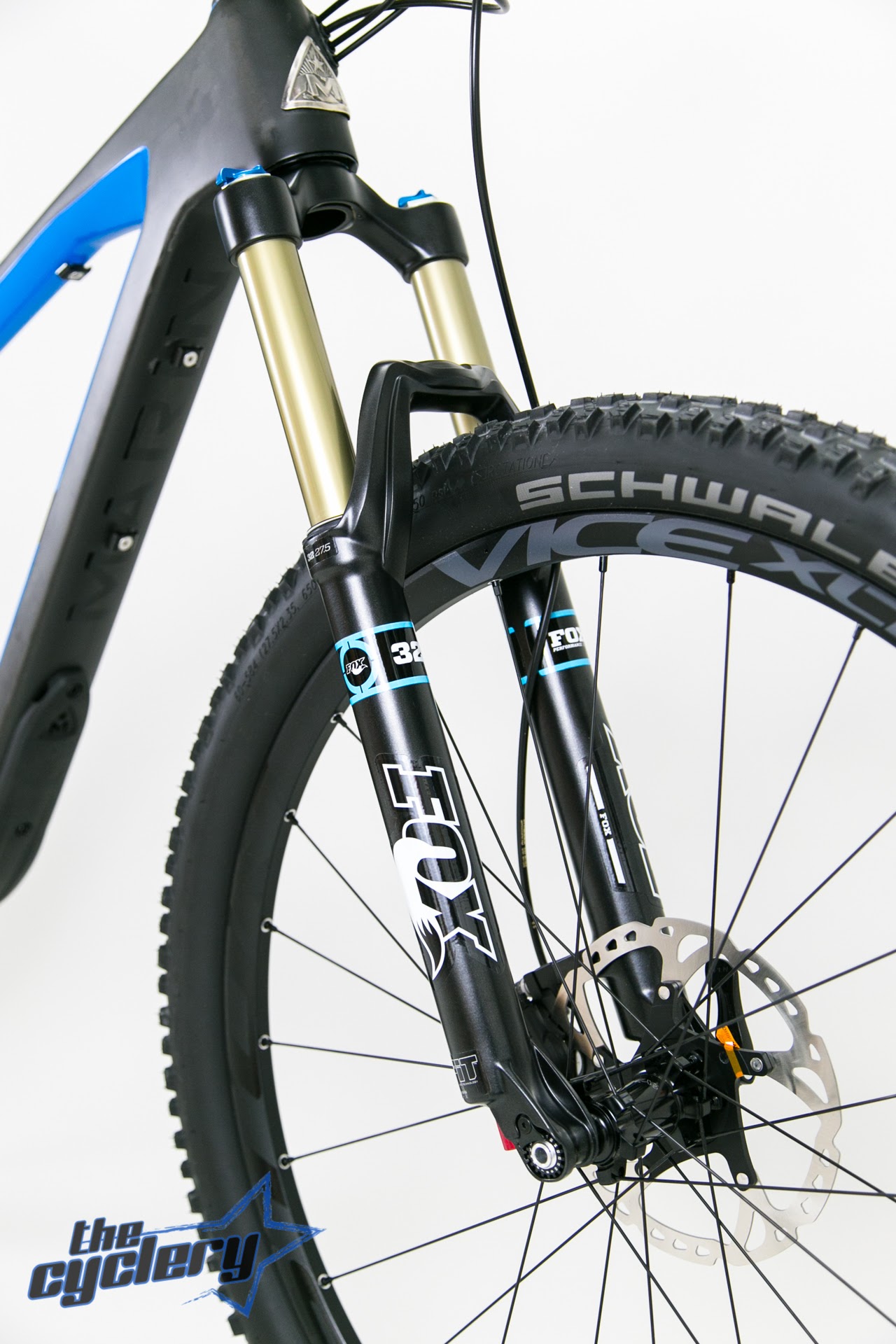

| Fork: | FOX 32 Float Performance CTD, air spring system (adjustable), 140mm travel, FIT damper, 15 x 100mm thru axle, CTD (Climb, Trail, Descent) adjustment, adjustable rebound |

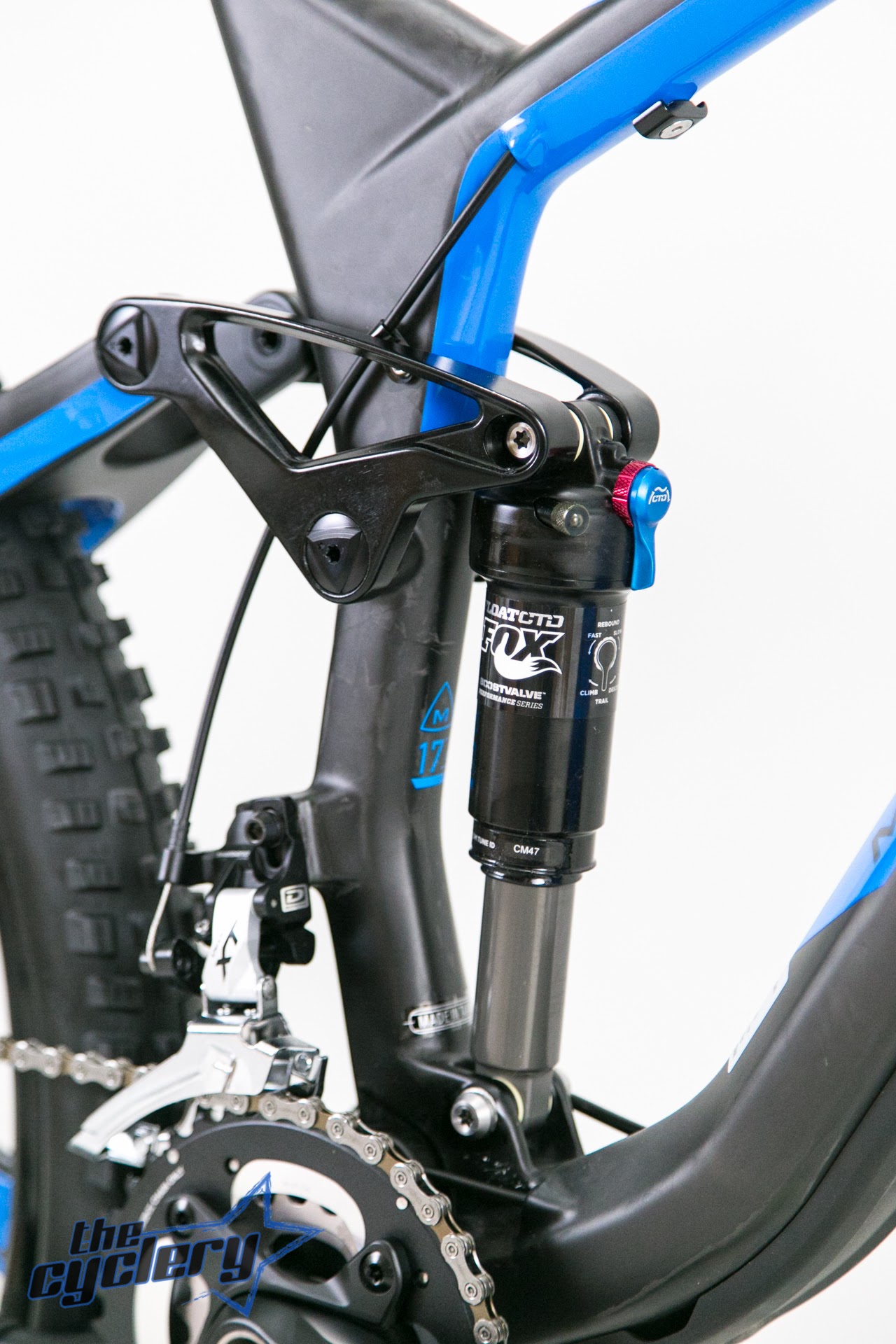

| Shock: | FOX Float Performance CTD, air spring system (adjustable), CTD (Climb, Trail, Descent) adjustment, adjustable rebound |
| |
| Drivetrain/Brakes | |
| Shifters: | Shimano XT, 2 x 10-speed |

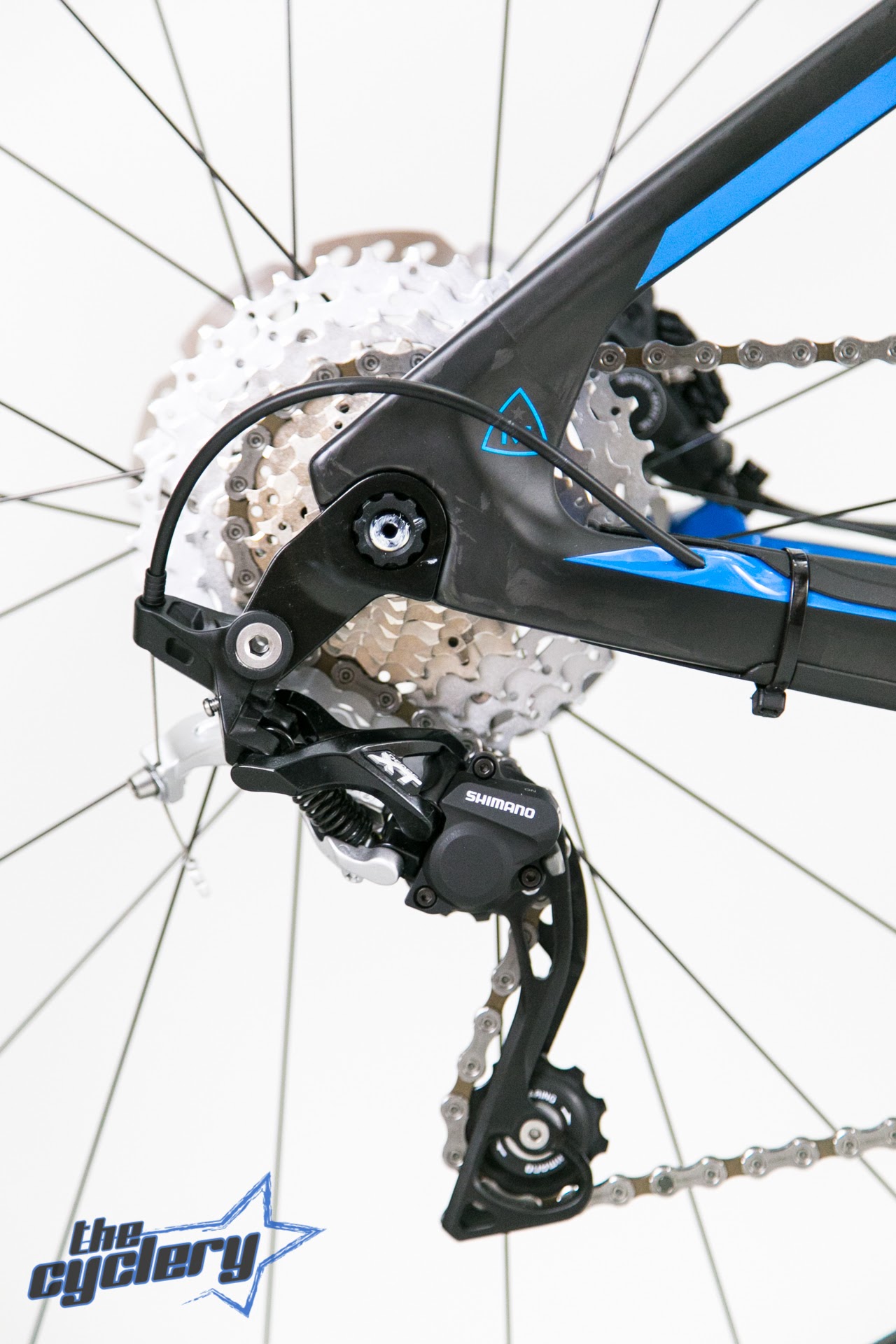

| Rear derailleur: | Shimano XT Shadow+, direct mount |
| Front derailleur: | Shimano XT, direct mount |

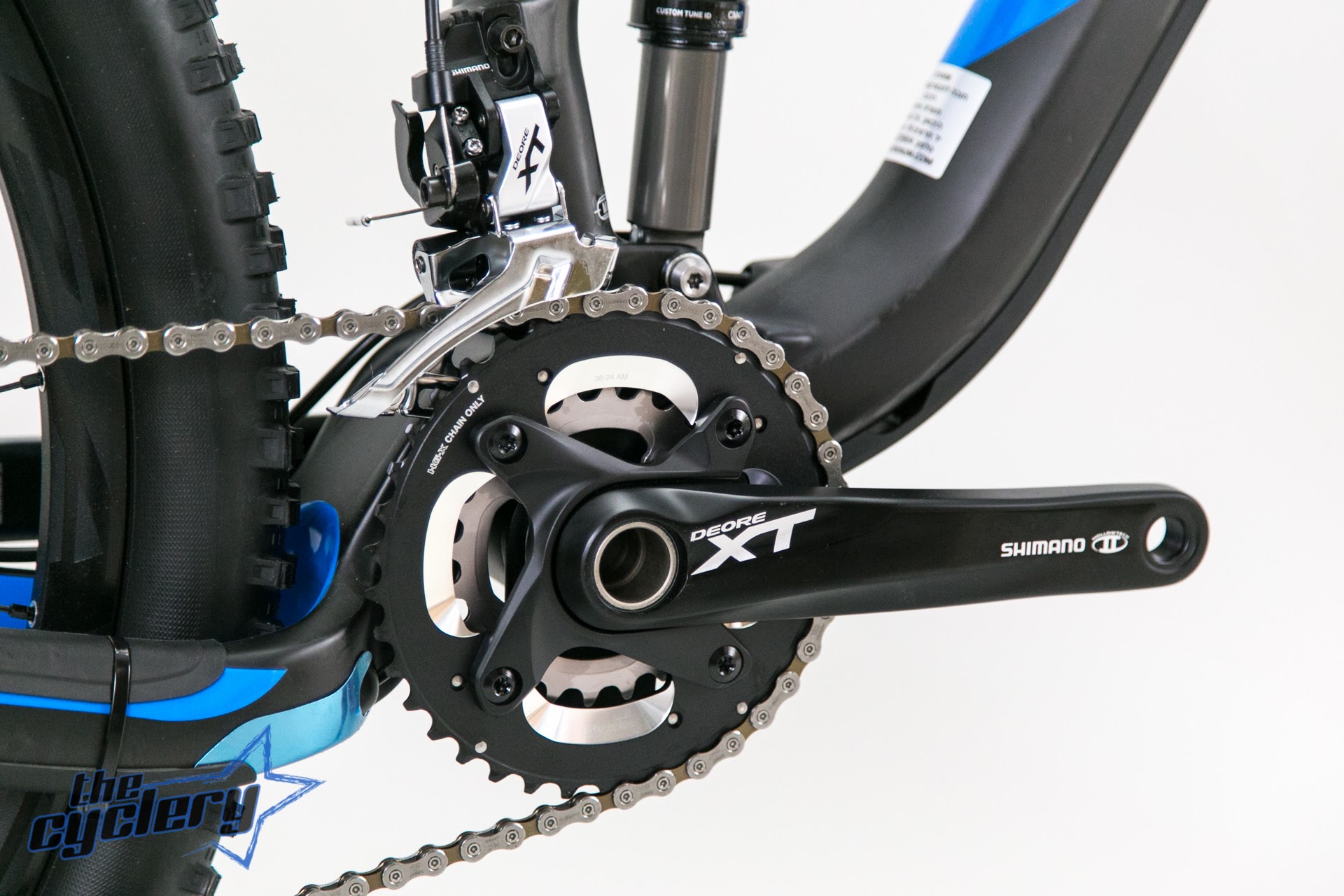

| Crankset: | Shimano XT, 38/24 teeth chain rings |
| Bottom bracket: | Shimano integrated |
| Pedals: | - |
| Chain: | Shimano HG54, 10-speed |
| Rear cogs: | Shimano SLX, 10-speed, 11-36 teeth |

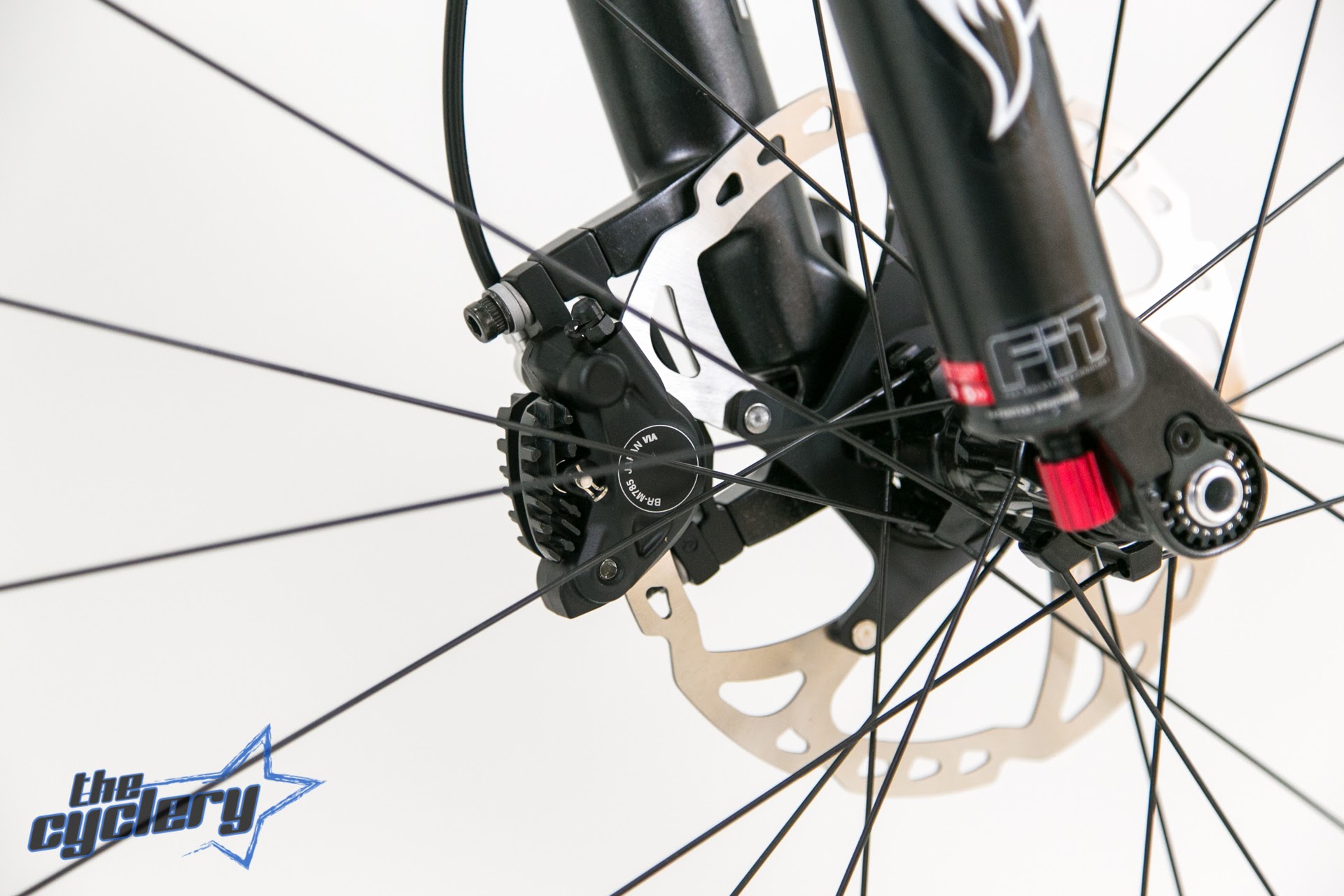

| Brakes: | Shimano XT, hydraulic disc brakes, 180/160mm discs (f/r) |

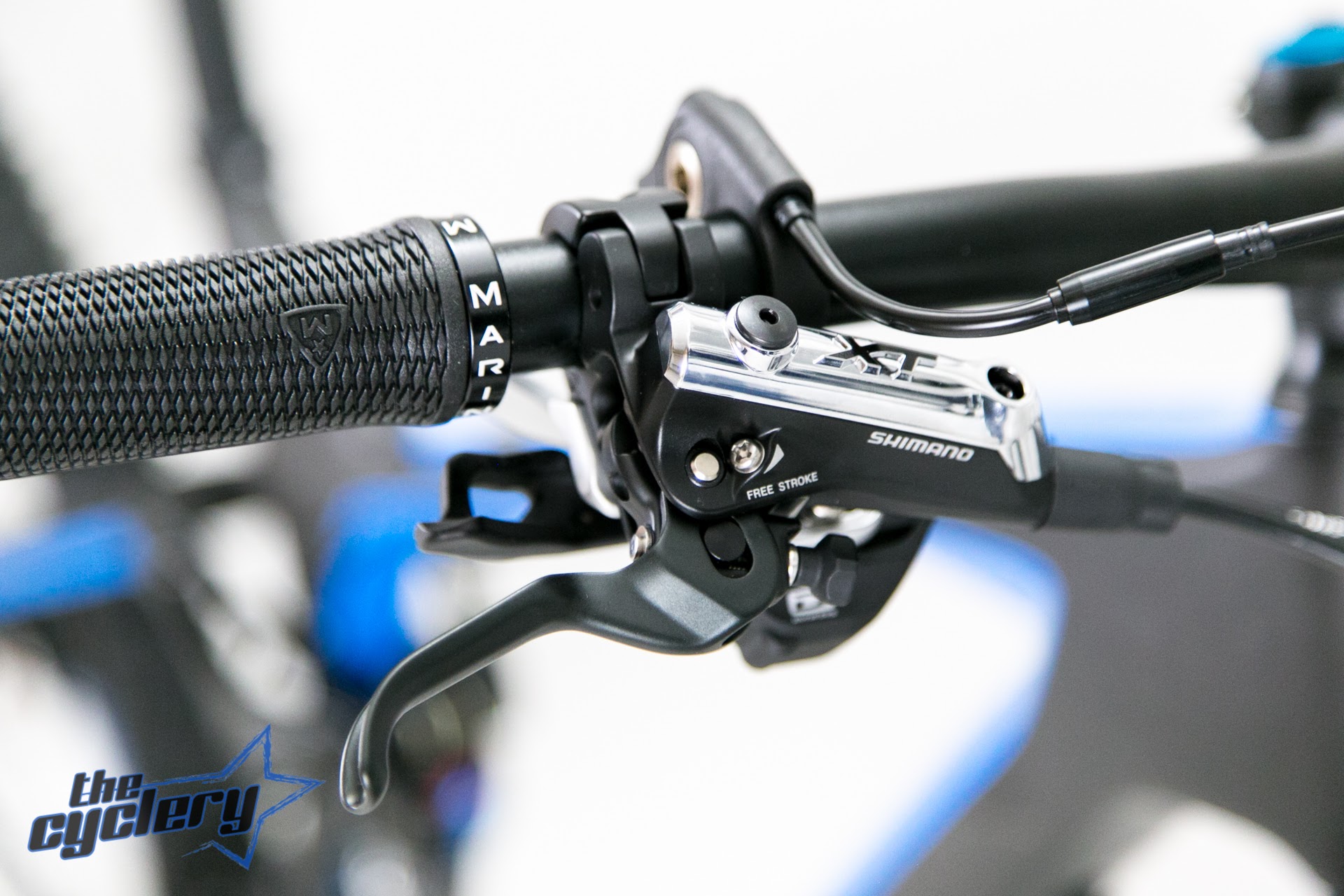

| Brake levers: | Shimano XT |
| |
| Wheels | |
| Front hub: | Easton, 15 x 100mm thru axle |
| Rear hub: | Easton, 12 x 142mm thru axle |
| Rims: | Easton Vice XLT, UST tubeless 27.5" |
| Tires: | Schwalbe Nobby Nic, Evolution series, SnakeSkin, tubeless ready, 27.5 x 2.35" (f/r) |
| |
| Components | |

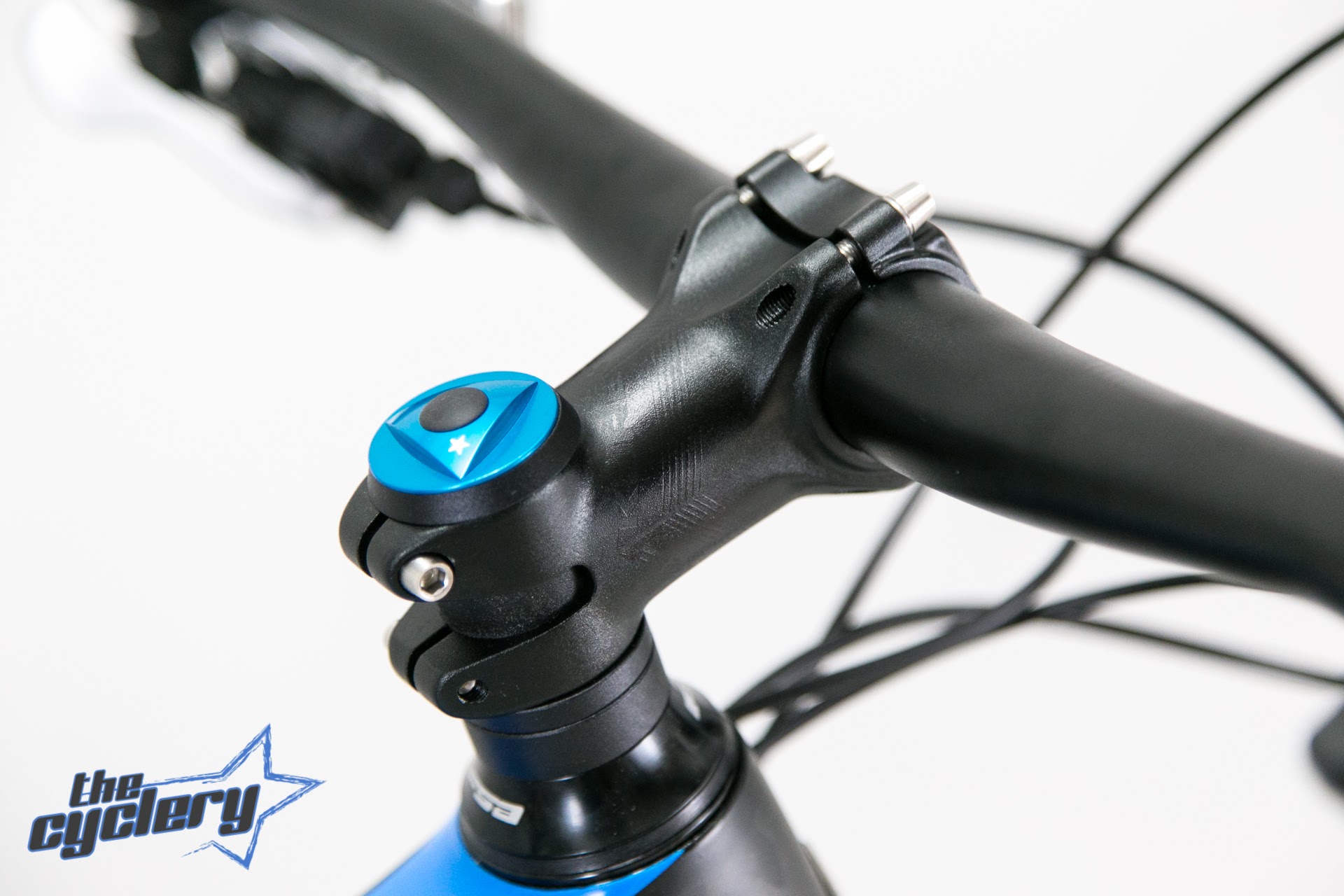

| Stem: | Kore Aerox, 31,8mm clamp |
| Handlebar: | Kore XCD1 Riser Bar, 15mm rise, 740mm width, 31,8mm clamp |
| Headset: | FSA Orbit, tero stack, sealed bearings |

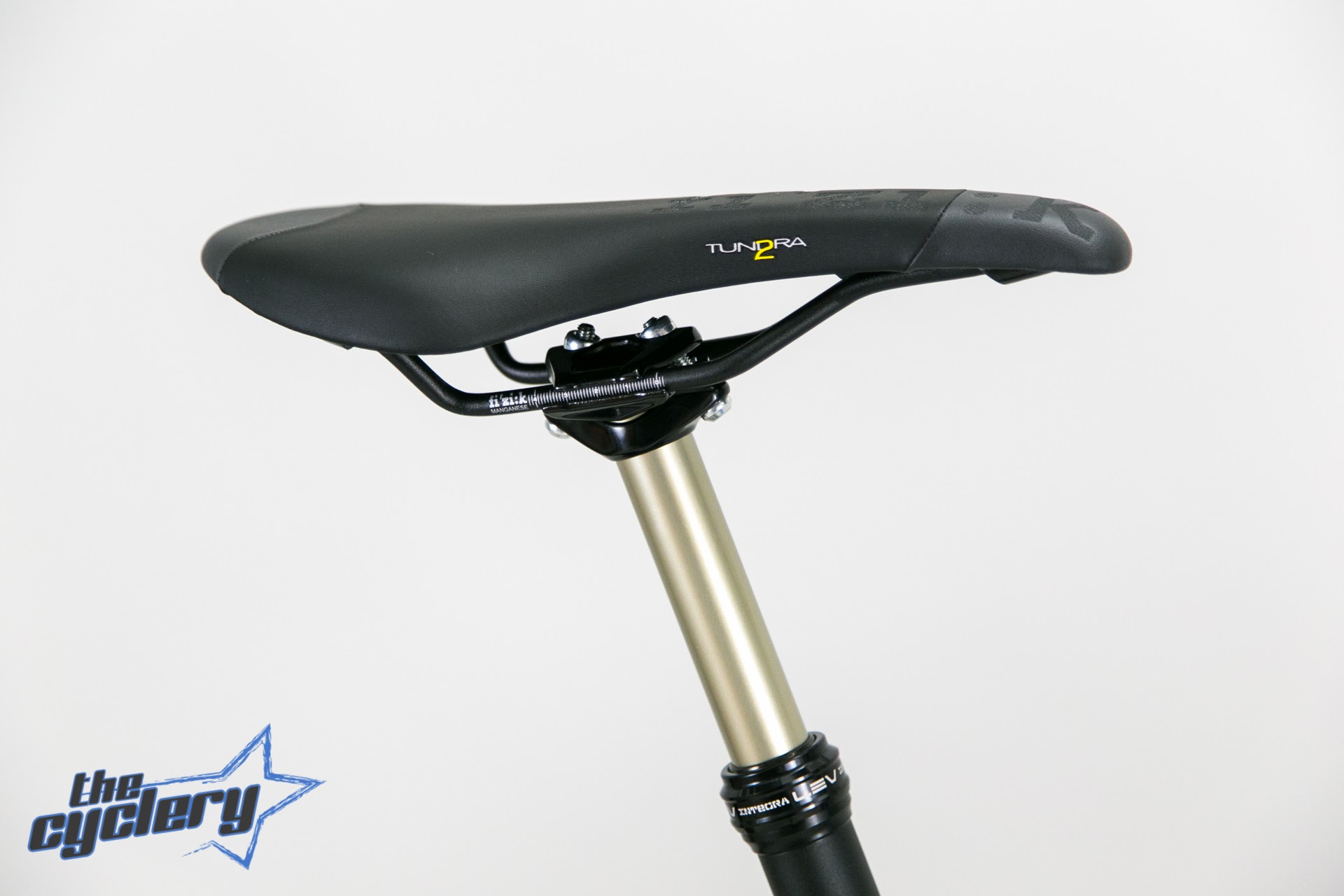

| Saddle: | Fizik Tundra, magnesium rails |
| Seatpost: | KS LEV Integra (internal routing), 125mm height adjustable via remote control |
| Other: | - |
| |
