Manufacturer Cannondale
Manufacturer part number C23400M10LG
GTIN 884603780404
Weight
Availability

Cannondale Habit 4 Trail Bike 2020

Chassis

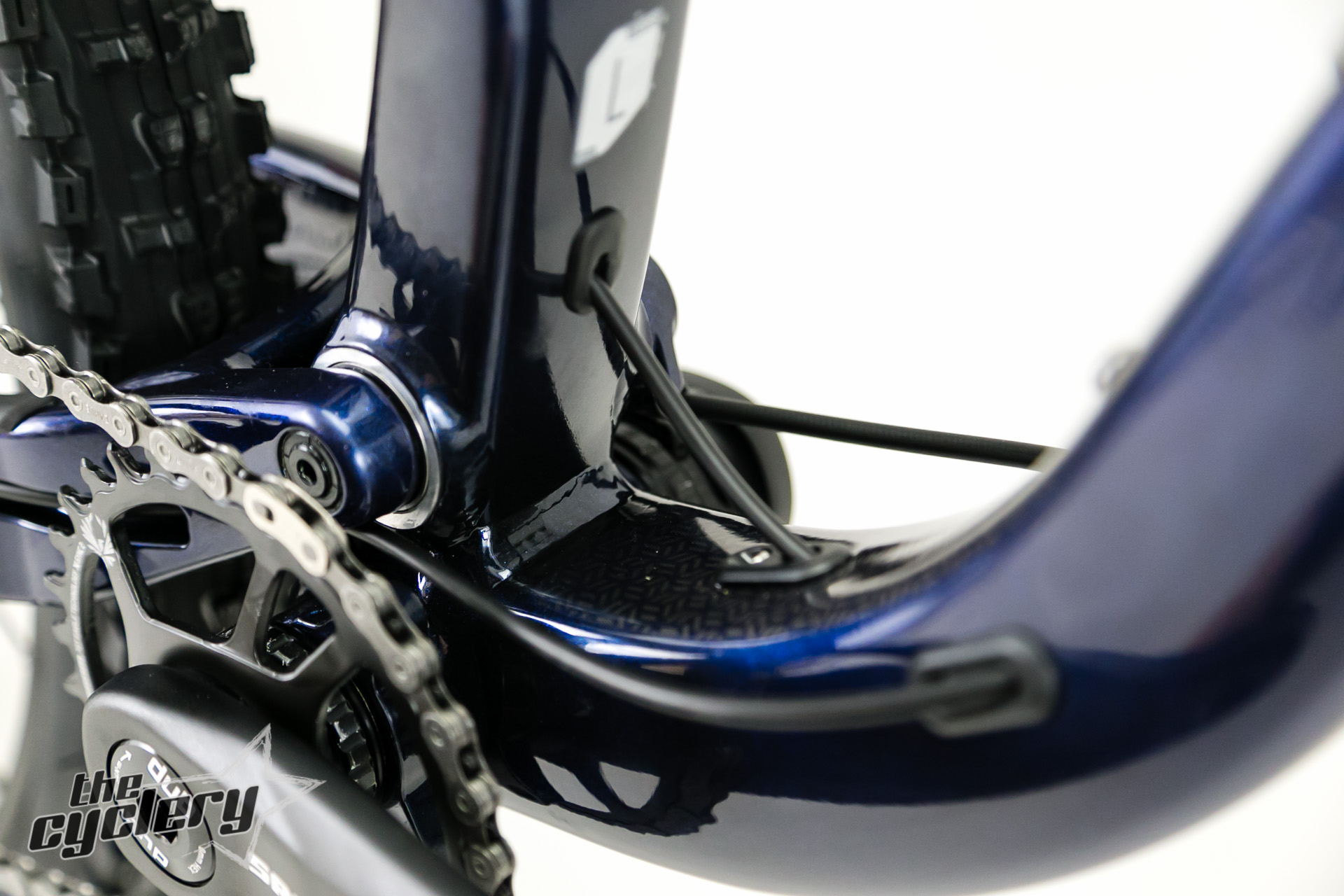

Frame: Habit SmartForm C1 aluminum frame, 130mm travel, integrated tapered head tube, 12 x 148mm thru axle, BSA housing, ISCG05 chain guide mount, Post mount
Fork: FOX Float Rhythm 34, air spring system (adjustable), 140mm travel, 15 x 110mm thru axle, Grip damper, adjustable rebound

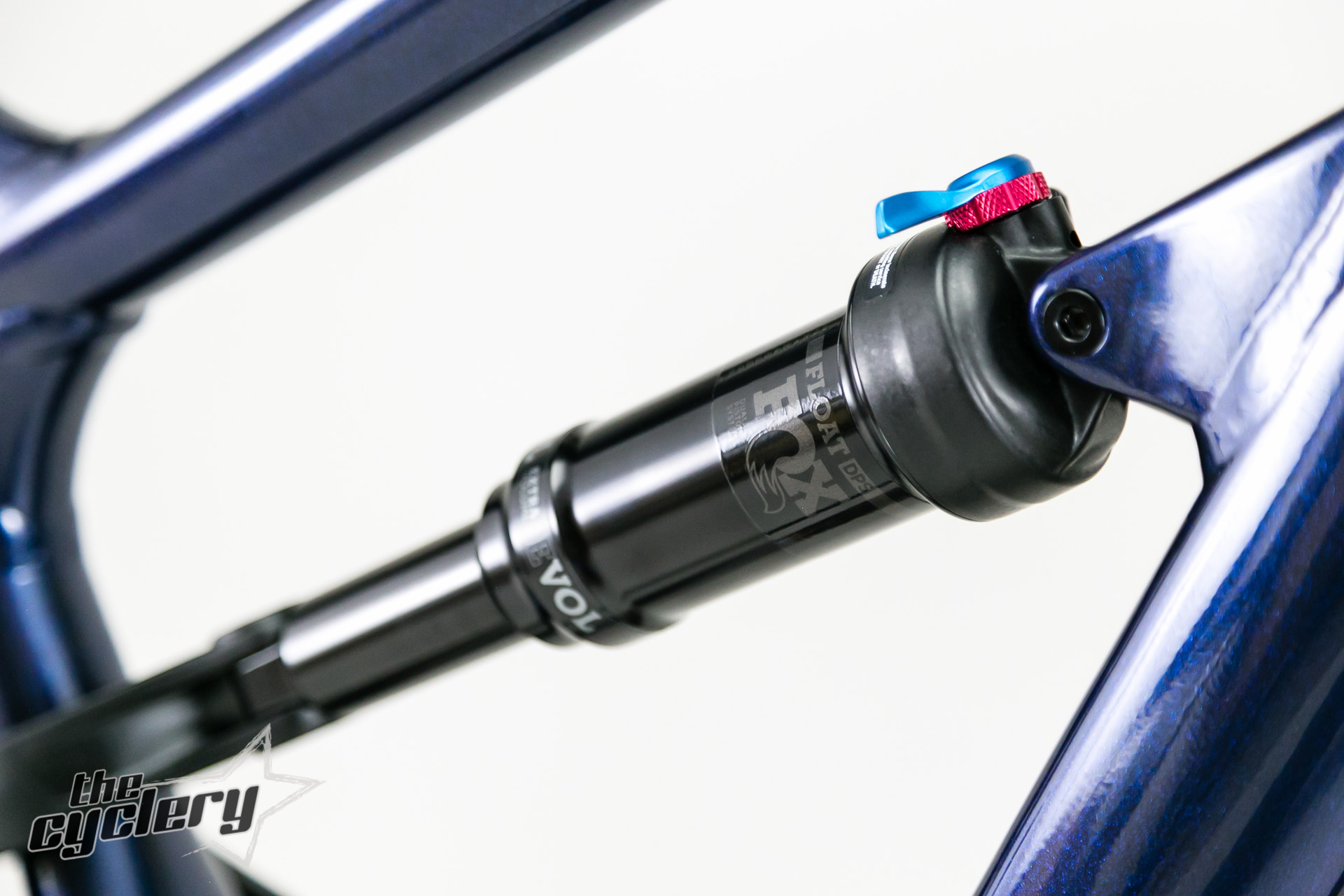

Shock: FOX Float Performance DPS EVOL, air spring system (adjustable), adjustable compression (3-stop) and rebound
Drivetrain/Brakes
Shifters: SRAM NX Eagle, 1 x 12-speed

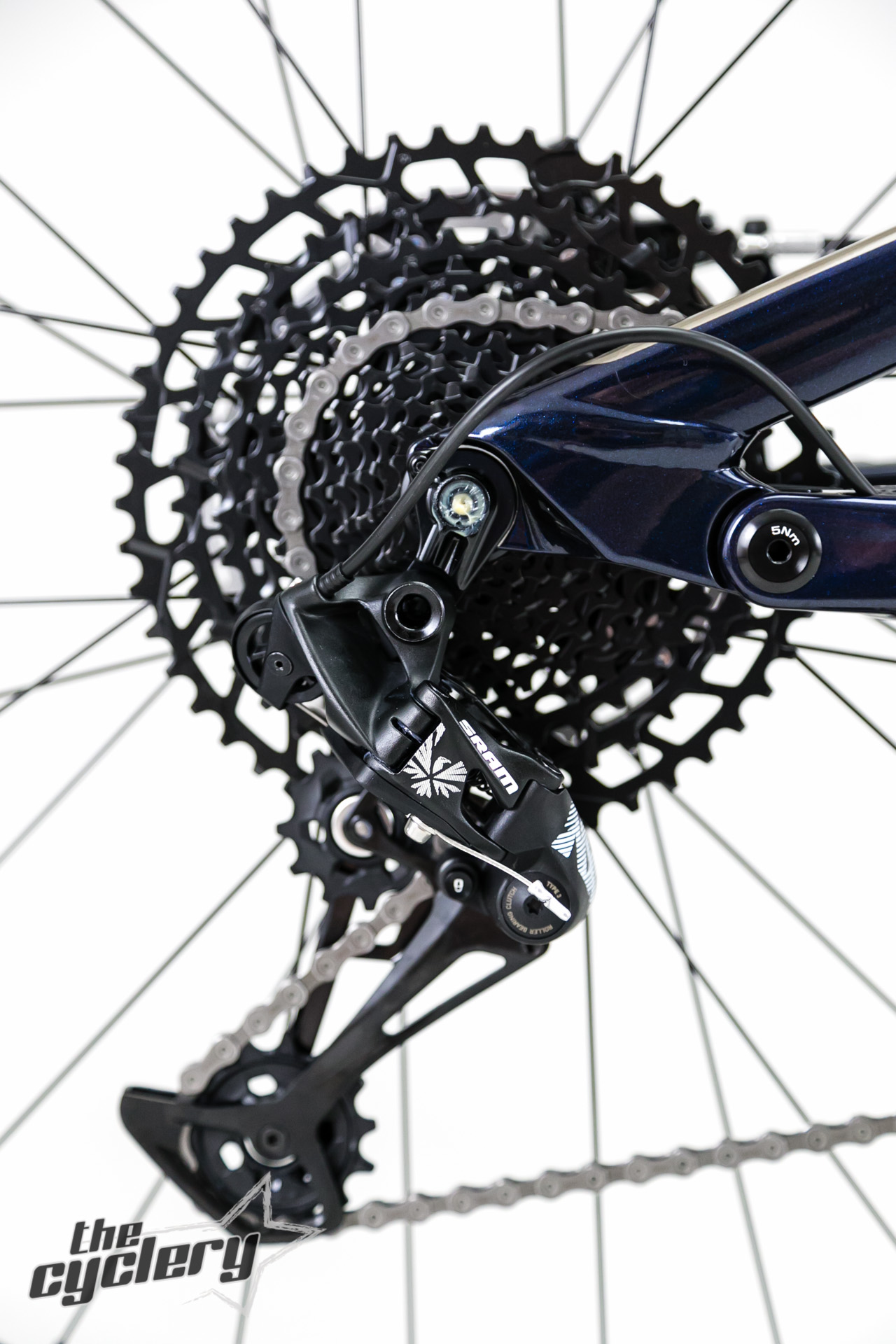

Rear derailleur: SRAM NX Eagle
Front derailleur: -

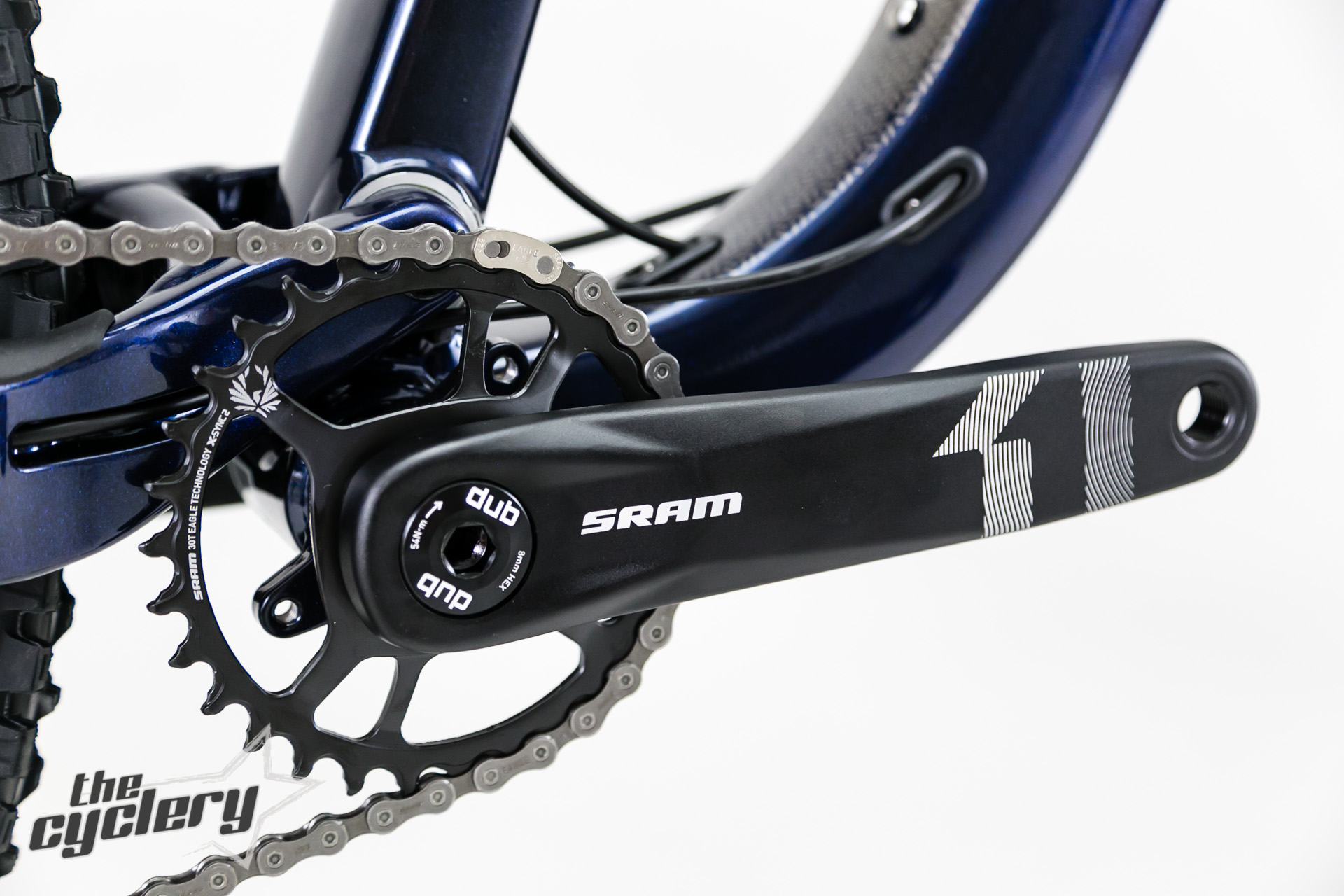

Crankset: SRAM X1-1000 Eagle DUB, 30 teeth chain ring
Bottom bracket: SRAM DUB BSA
Pedals: -
Chain: SRAM NX Eagle, 12-speed
Cogs: SRAM PG-1230, 12-speed, 11-50 teeth

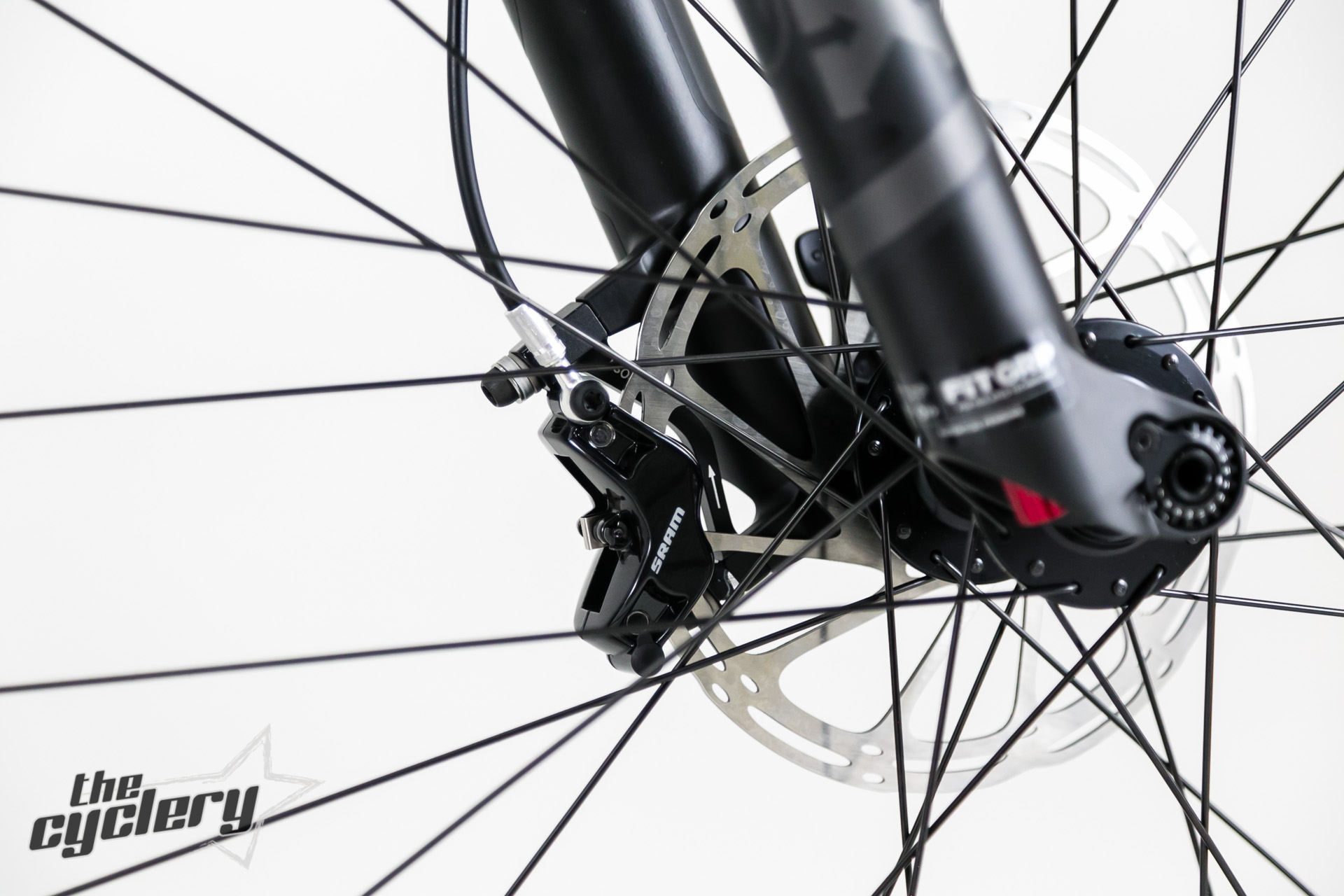

Brakes: SRAM Guide T, hydraulic disc brakes, 180/180mm discs (f/r)
Brake levers: SRAM Guide T
Wheels
Front hub: Forumula, 15 x 110mm thru axle
Rear hub: Formula with HG-freehub, 12 x 148mm thru axle
Rims: WTB STX i25 TCS, 32 hole, tubeless ready

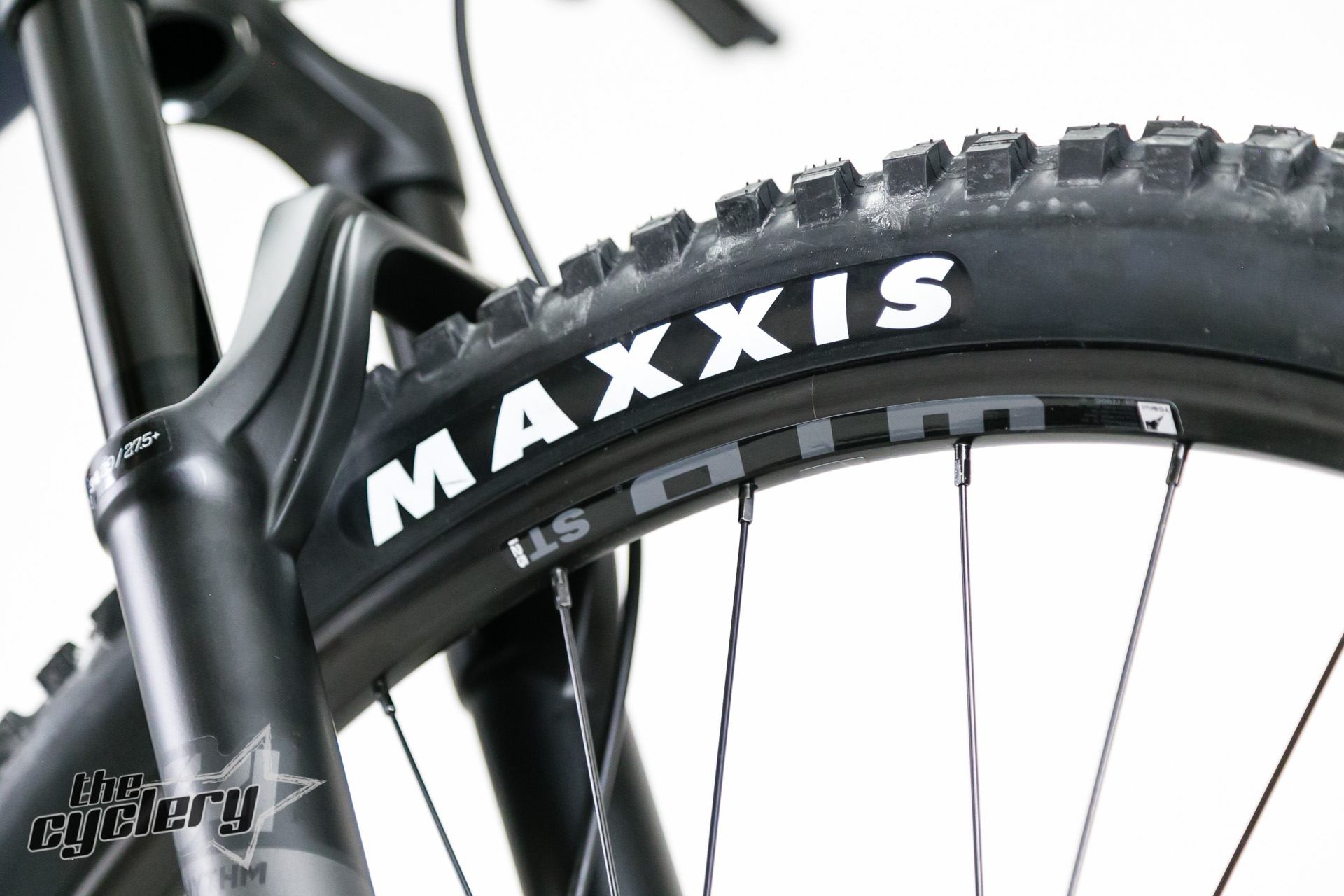

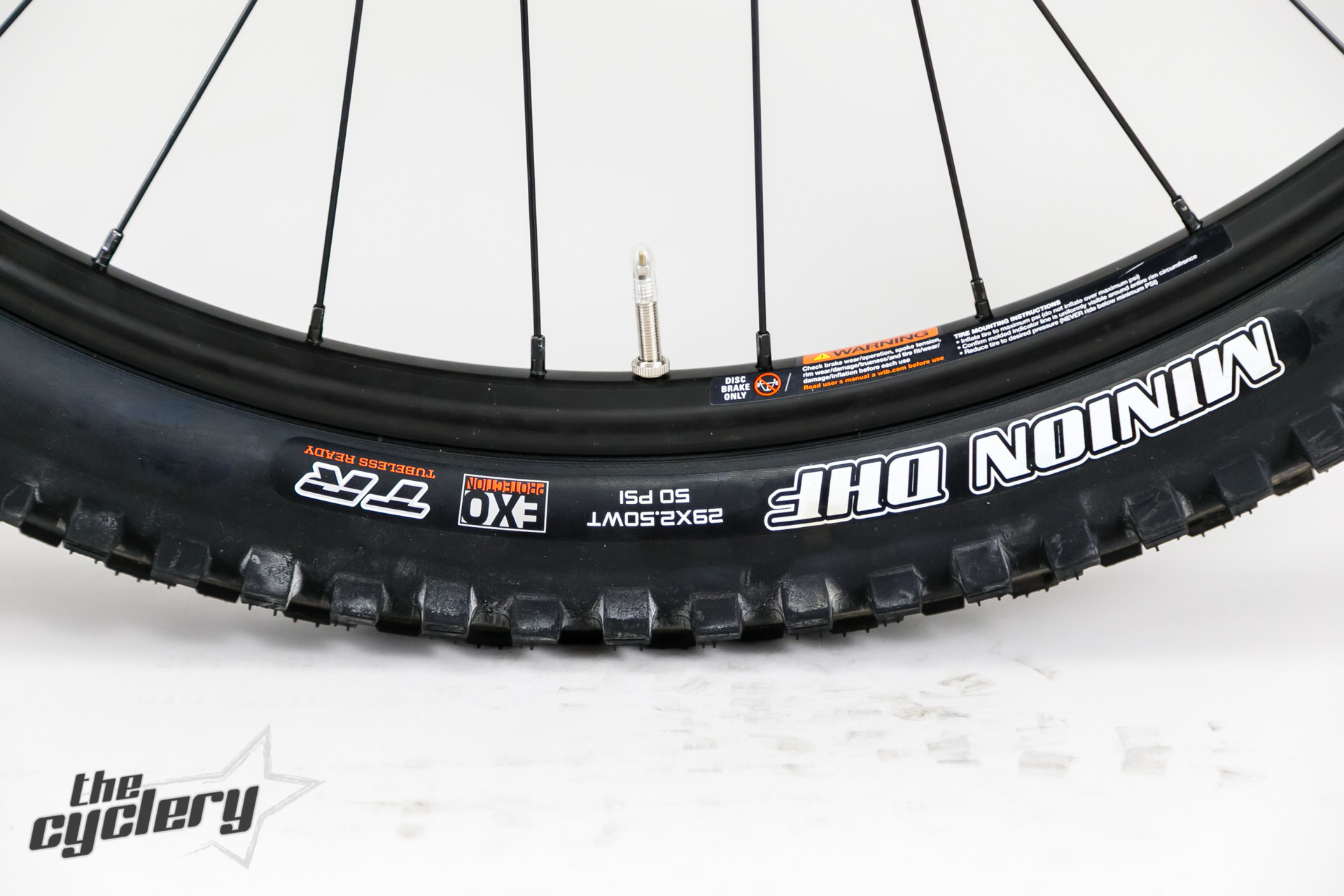

Tires: Maxxis Minion DHF, 29 x 2.5" Dual compound, Exo protection, tubeless ready (f)/Maxxis High Roller II, 29 x 2.3" Dual compound, Exo protection, tubeless ready (r)
Components

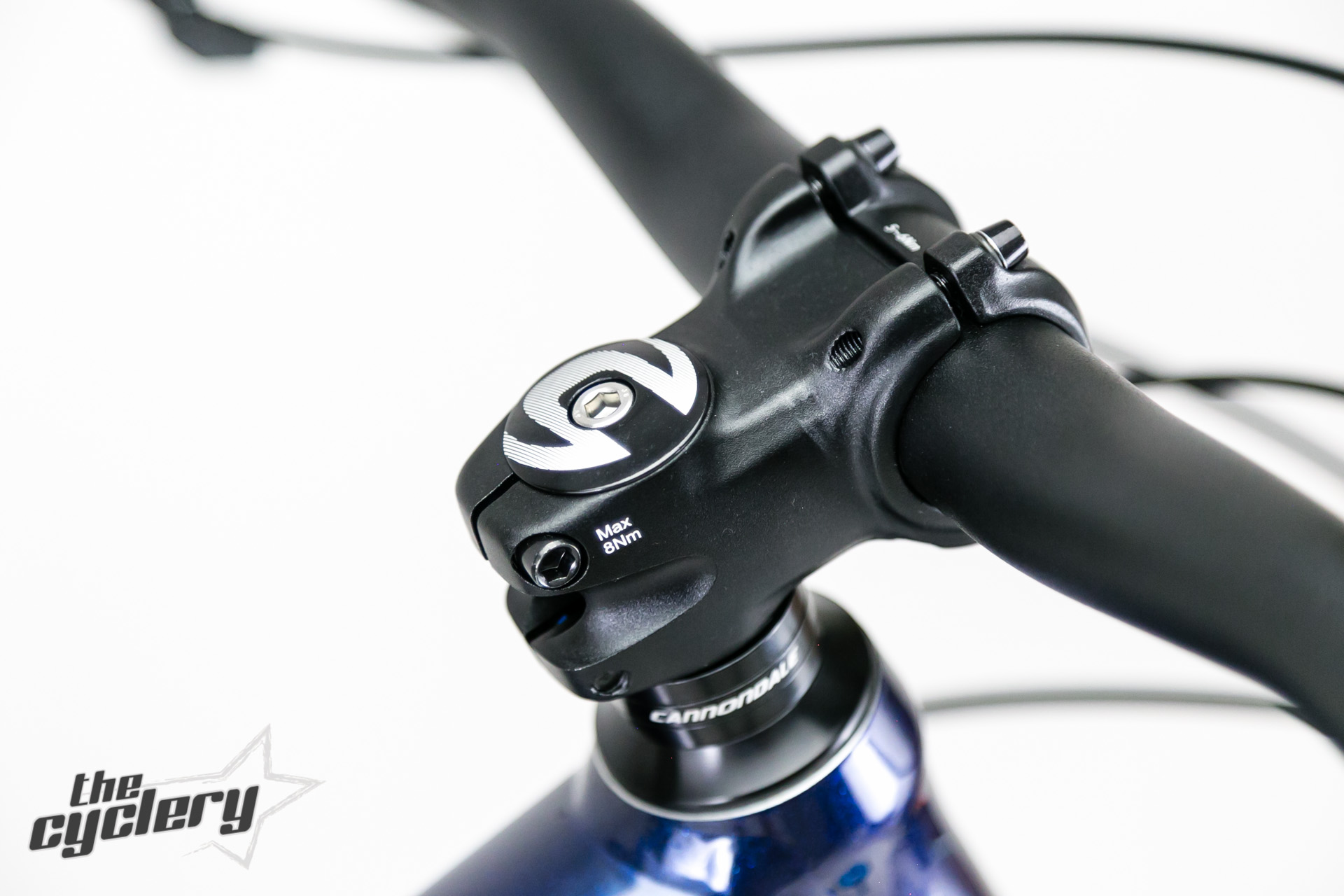

Stem: Cannondale 3, 3D-forged 6061 aluminum, 31,8mm clamp
Handlebar: Cannondale 3 Riser, 6061 aluminum, 15mm rise, 780mm width, 31,8mm clamp
Headset: Integrated 1 1/8" >>> 1.5", sealed bearings
Saddle: Fabric Scoop Shallow Sport, steel rails
Seat post: Cannondale DownLow Dropper, 125mm (S)/150mm (M - XL) adjustable height via remote control, 31,6mm
Others: -
Table of Geometry Click here
Summary (PDF) Click here

Video about the Habit series:

Model year 2020
Intended use Trail
Wheel size 29"
Frame material Aluminum
Shifting type Derailleur
Gears 12
