| Chassis | |
| Frame: | Habit SmartForm C1 aluminum frame, 130mm travel, integrated tapered head tube, 12 x 148mm thru axle, BSA housing, ISCG05 chain guide mount, Post mount, compatible with height adjustable seat posts |

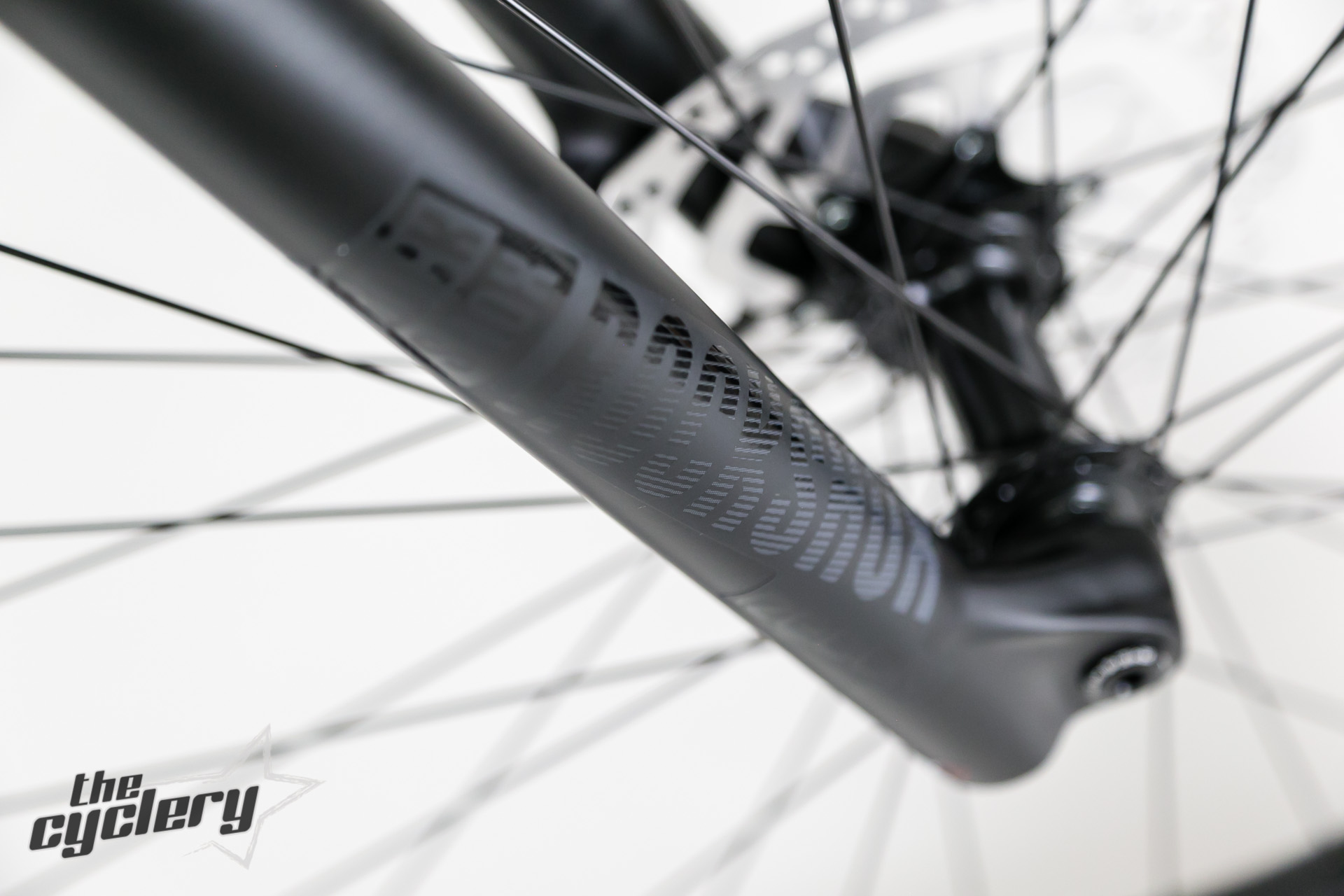

| Fork: | Rock Shox Recon RL, DebonAir air spring system (adjustable), 130mm travel, 15 x 110mm thru axle, adjustable rebound |
| Shock: | Rock Shox Deluxe Select, DebonAir air spring system (adjustable), adjustable rebound |
| Drivetrain/Brakes | |
| Shifters: | Shimano SLX, 1 x 11-speed |

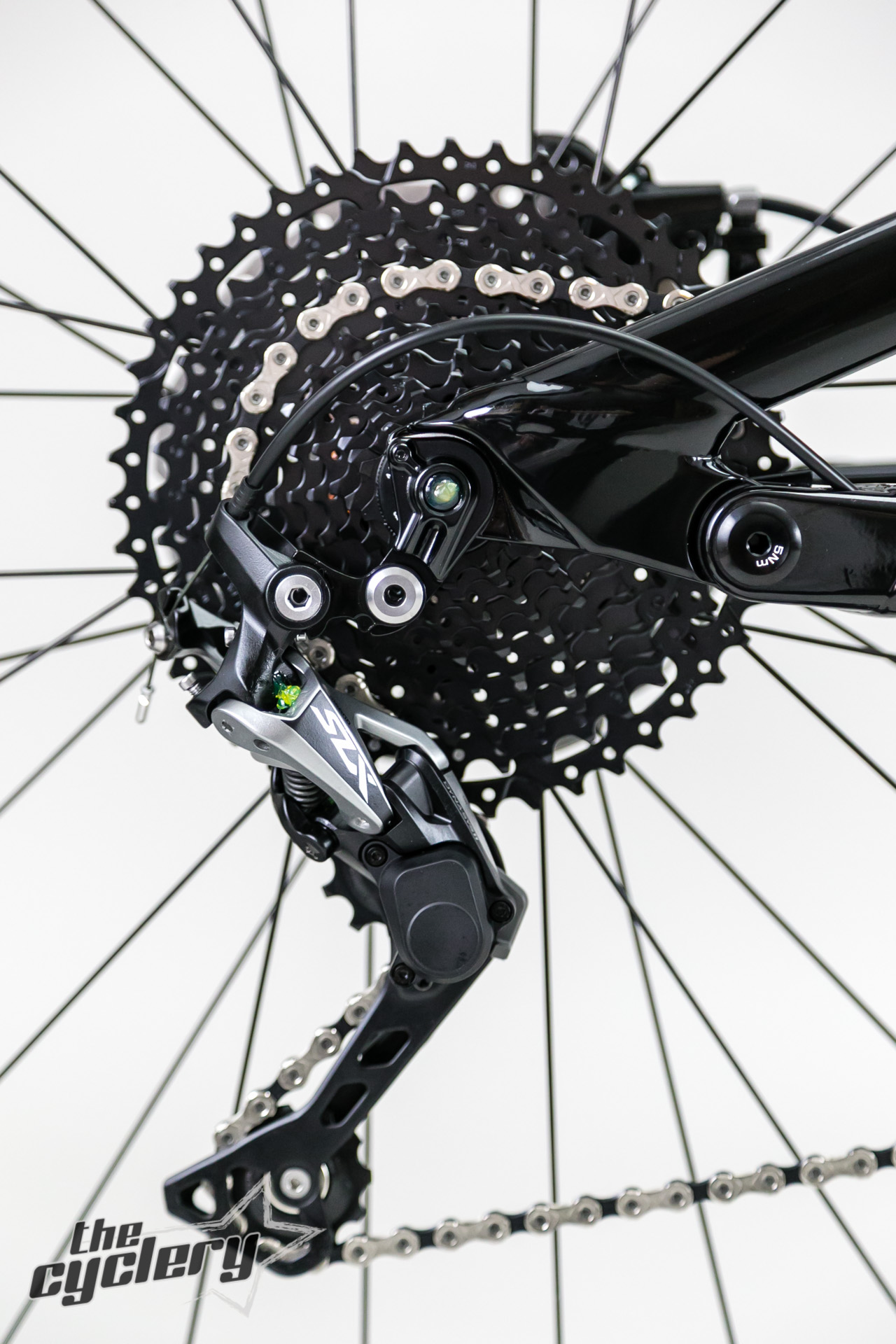

| Rear derailleur: | Shimano SLX, GS cage |
| Front derailleur: | - |
| Crankset: | Race Face Ride Cinch, 30 teeth chain ring |
| Bottom bracket: | Race Face Outboard |
| Pedals: | Not included (order here separately) |

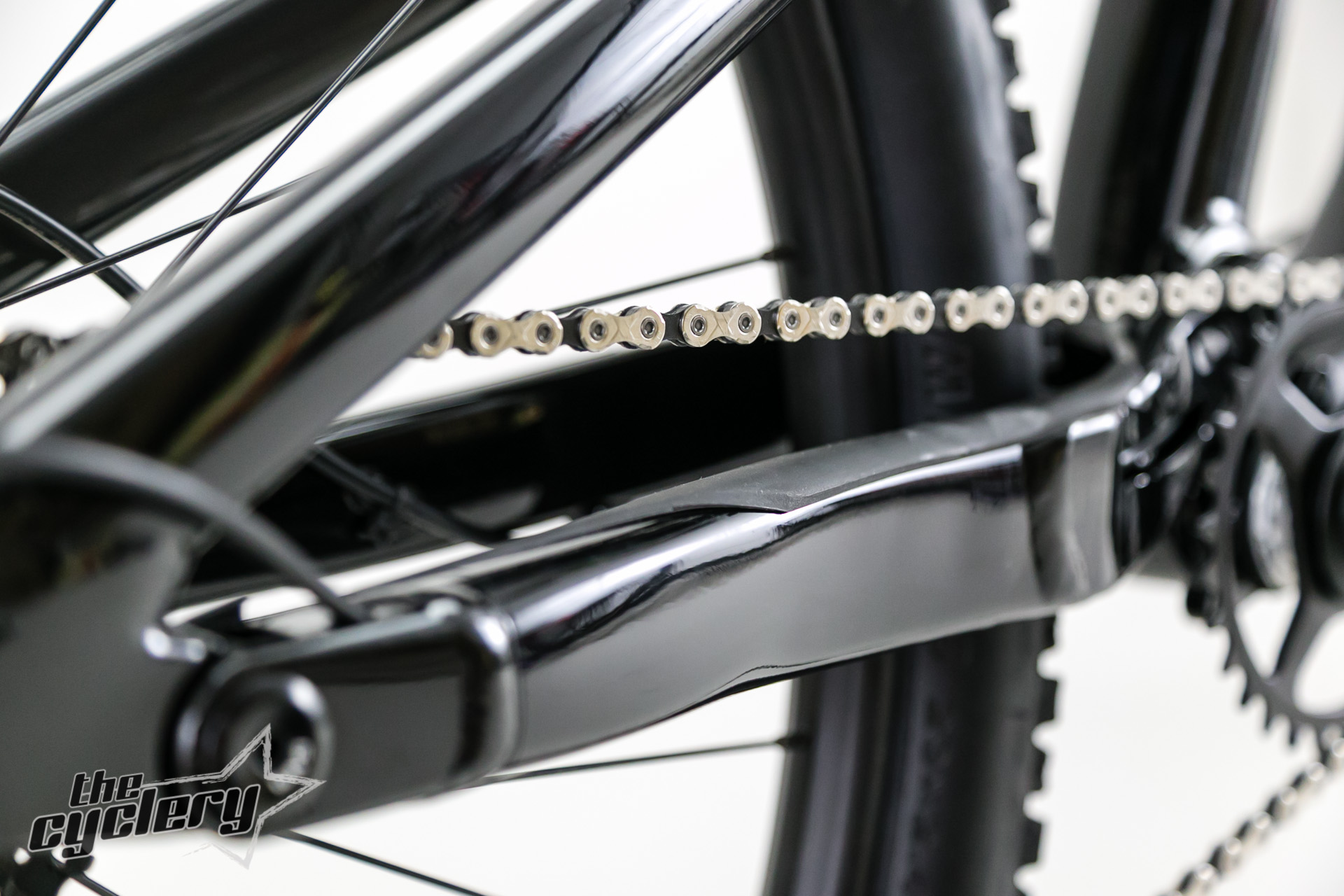

| Chain: | KMC X11, 11-speed |
| Cogs: | Sunrace, 11-speed, 11-46 teeth |

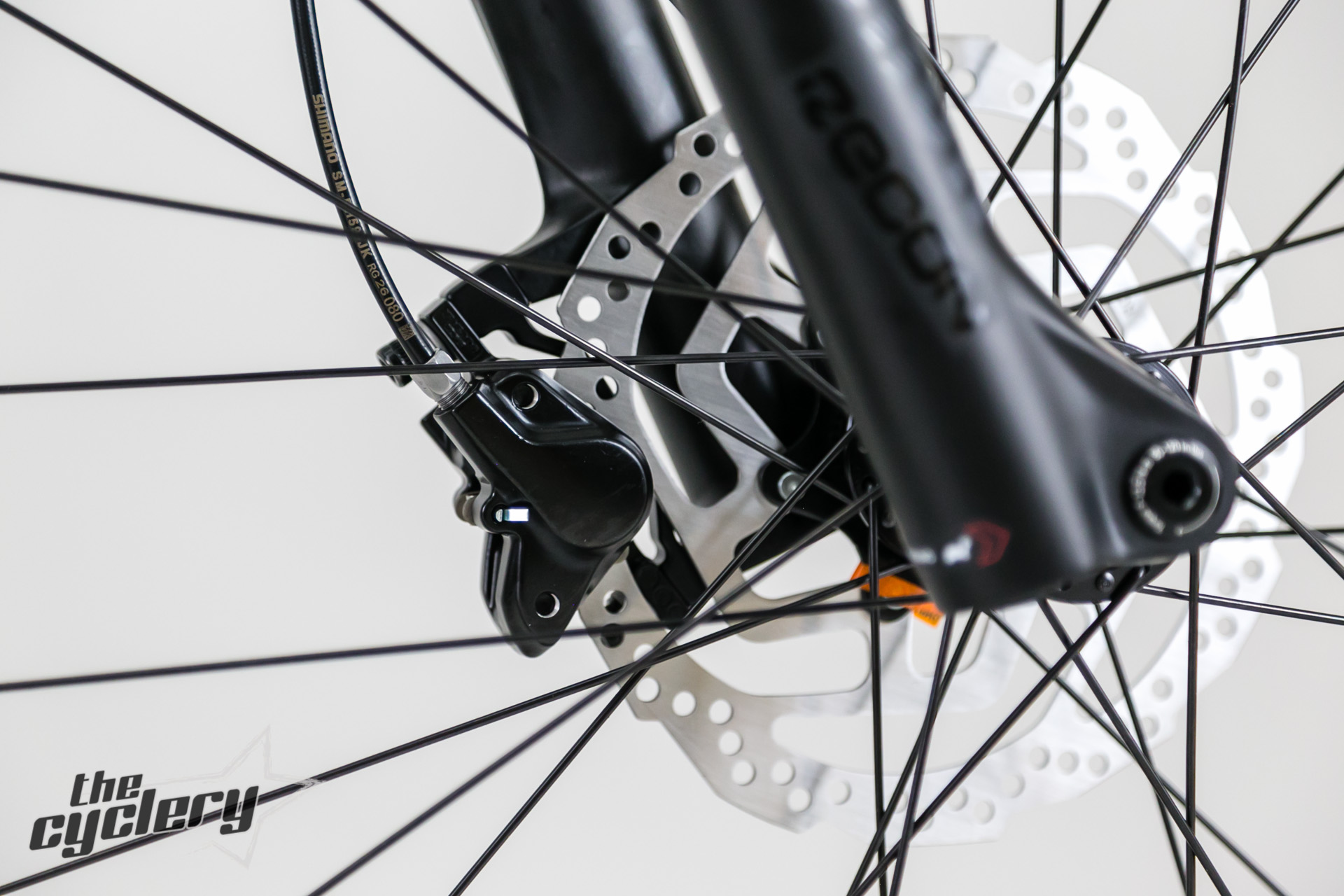

| Brakes: | Shimano MT200, hydraulic disc brakes, 180/180mm brakes (f/r) |
| Brake levers: | Shimano MT200 |
| Wheels | |
| Front hub: | Shimano MT400, 15 x 110mm thru axle |
| Rear hub: | Shimano MT400, 12 x 148mm thru axle |
| Rims: | WTB STX i23 TCS, 32 hole, tubeless ready |
| Tires: | Maxxis Ardent, 29 x 2.4" Dual compound, Exo protection |
| Components | |

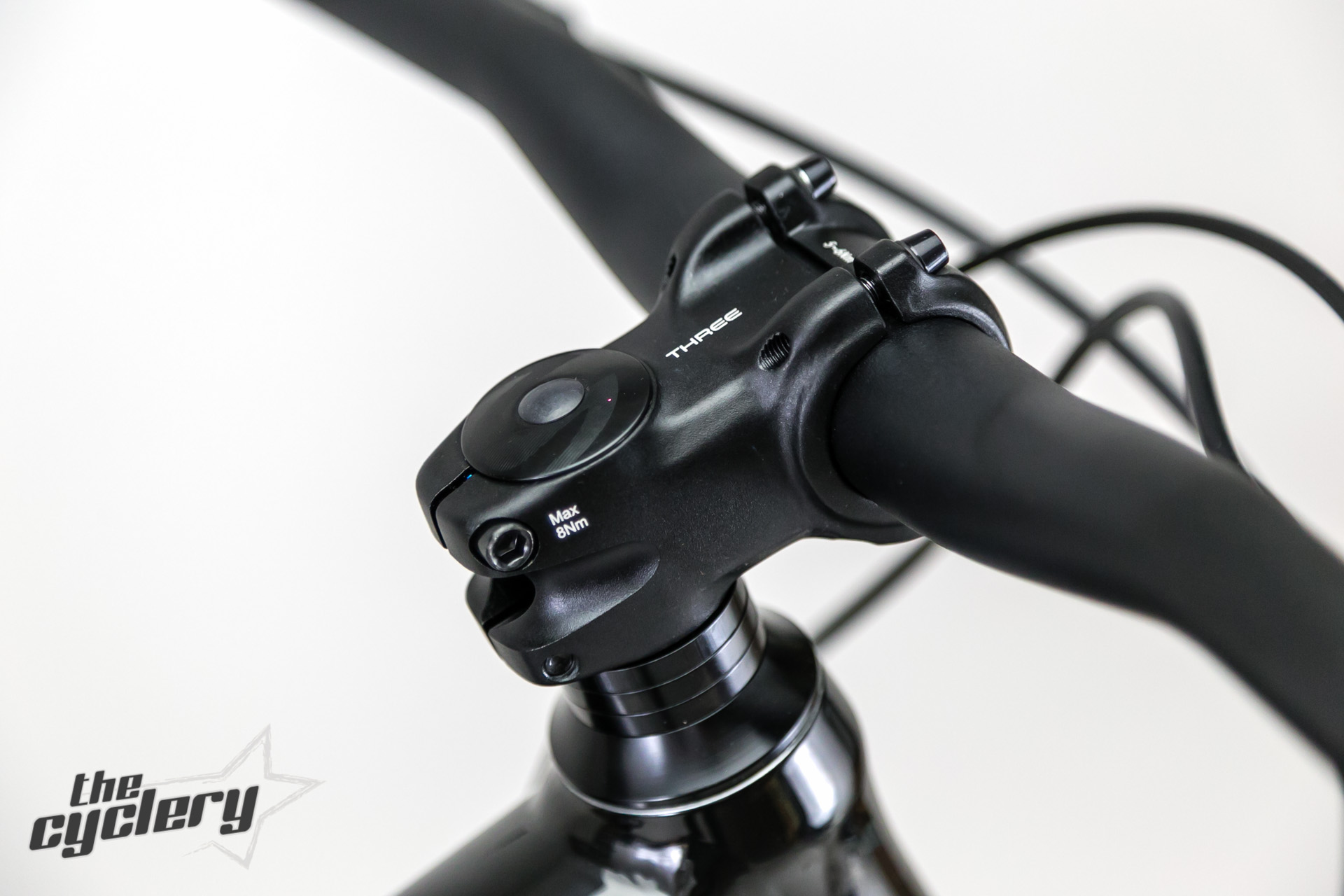

| Stem: | Cannondale 3, 3D-forged 6061 aluminum, 31,8mm clamp |
| Handlebar: | Cannondale 3 Riser, 6061 aluminum, 15mm Rise, 780mm width, 31,8mm clamp |
| Headset: | Integrated 1 1/8" >>> 1.5", sealed bearings |
| Saddle: | Cannondale Stage 3 |
| Seat post: | Cannondale 3, 6061 aluminum, 31,6 x 350mm |
| Others: | - |
| Summary (PDF) | Click here |
Video about the Habit series:
| Model year | 2020 |
| Intended use | Trail |
| Wheel size | 29" |
| Frame material | Aluminum |
| Shifting type | Derailleur |
| Gears | 11 |
