| Chassis | |

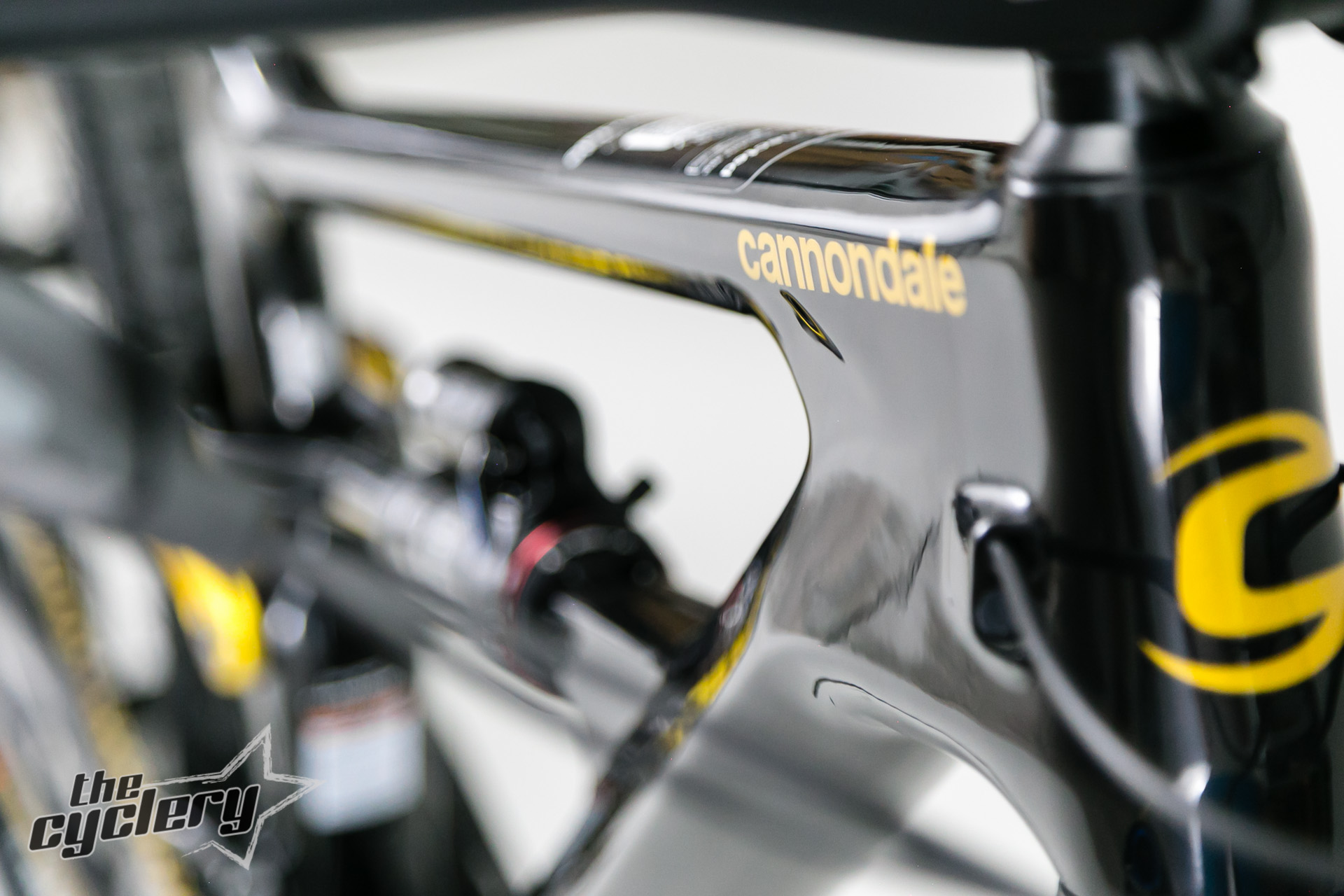

| Frame: | Habit BallisTec carbon main frame, SmartForm C1 aluminum rear end, 130mm of travel, integrated tapered head tube, 12 x 148mm thru axle, PF30 bottom bracket housing, ISCG05 cahin guide mount, Post Mount |

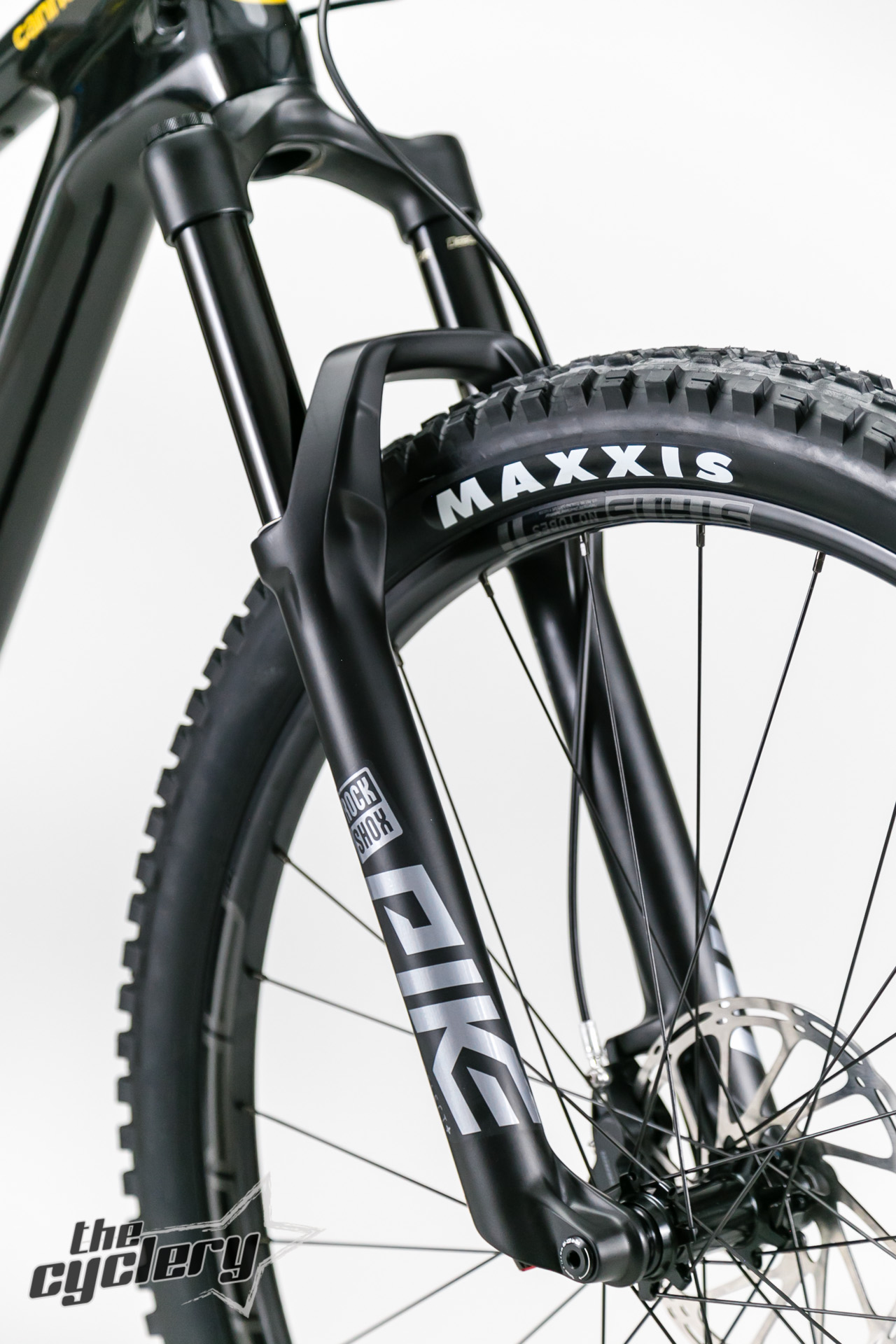

| Fork: | Rock Shox Pike Select+RC, air spring system (adjustable), 140mm of travel, 15 x 110mm thru axle, tapered steerer, adjustable rebound and compression |

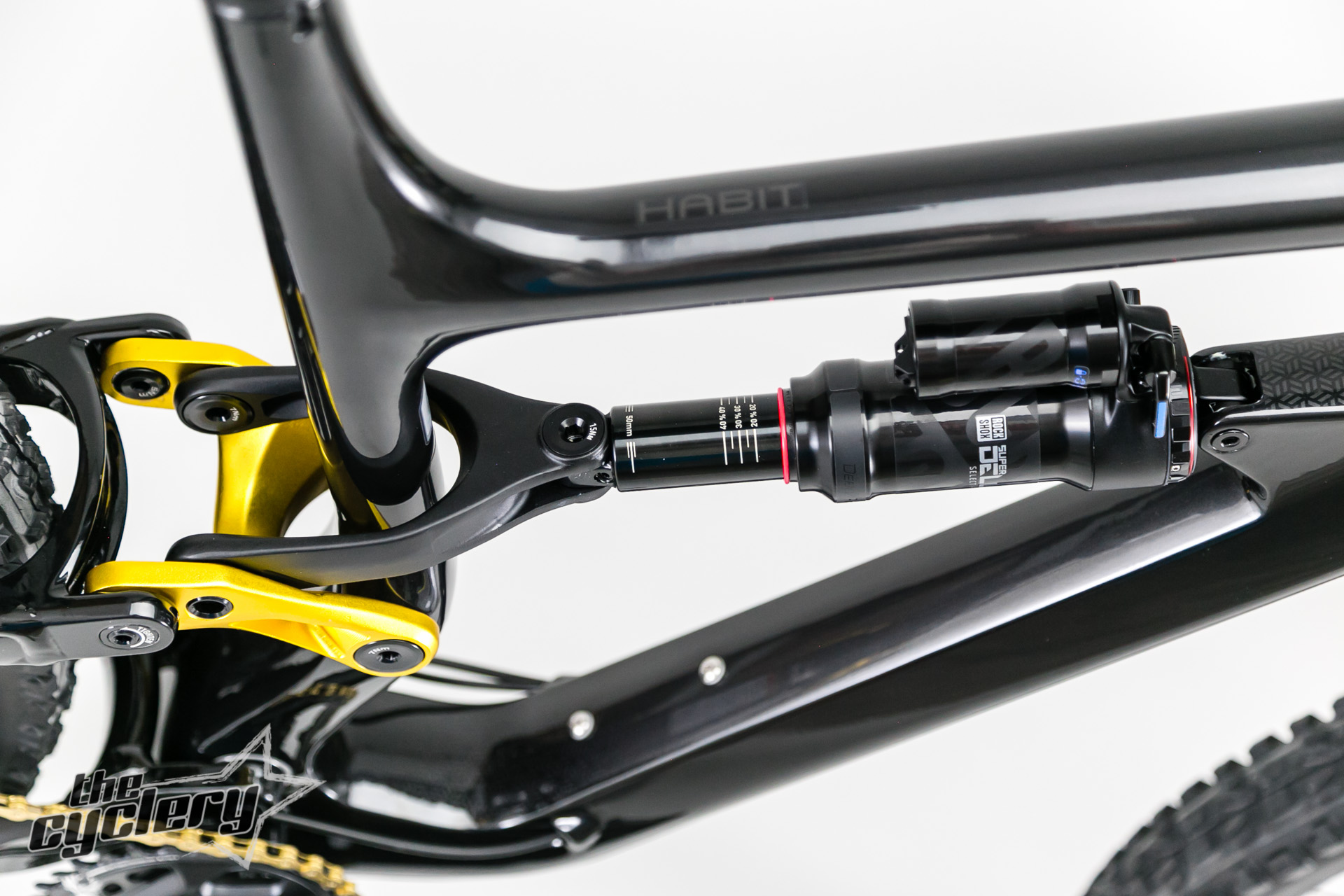

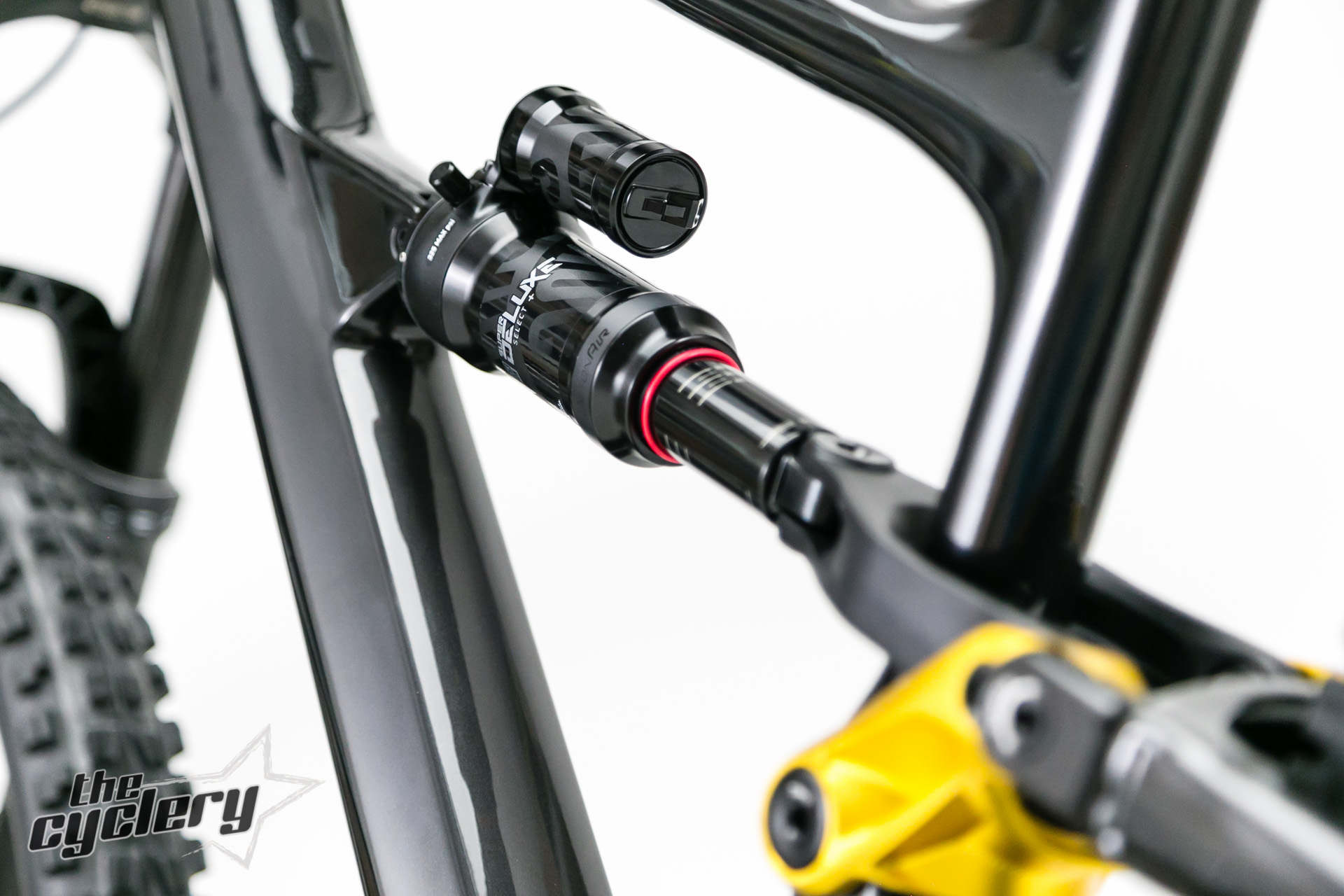

| Shock: | Rock Shox Super Deluxe Select+, Debon air spring system (adjustable), RT damping, adjustable rebound and compression |
| Drivetrain/Brakes | |
| Shifters: | SRAM GX Eagle, 1 x 12-speed |

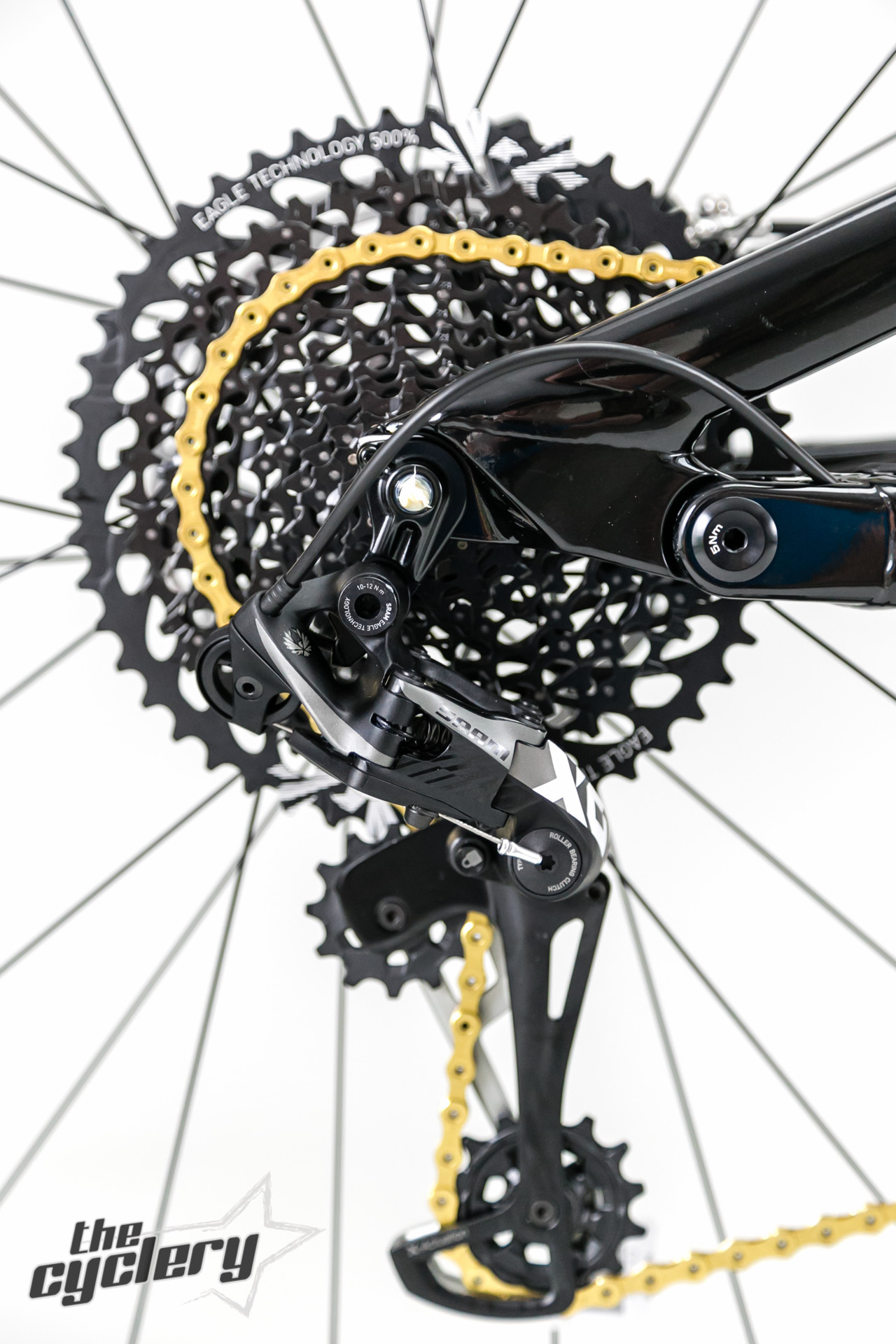

| Rear derailleur: | SRAM X01 Eagle |
| Front derailleur: | - |

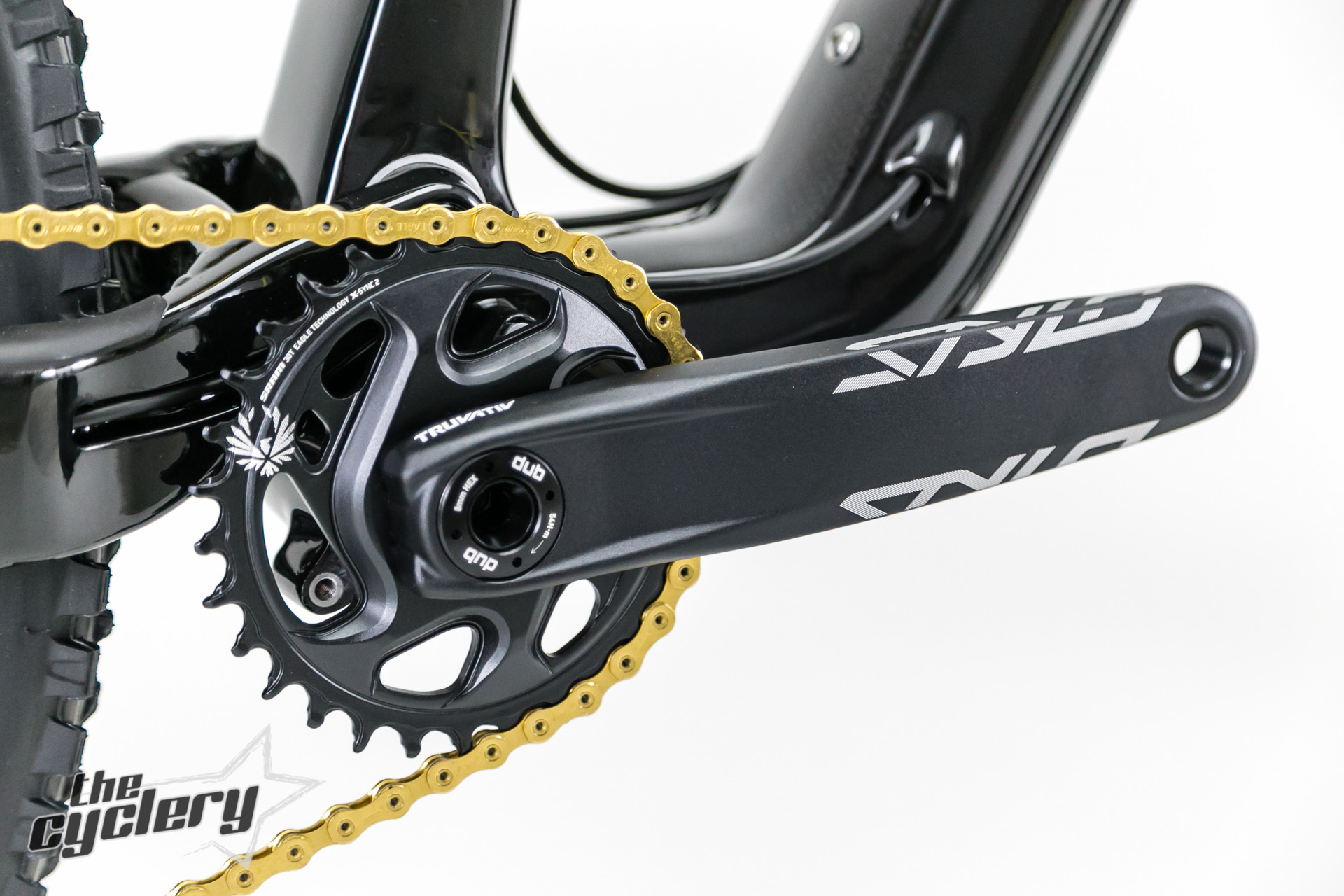

| Crankset: | Truvativ Stylo 7K DUB, 30 teeth chain guide |
| Bottom bracket: | SRAM DUB PF30 |
| Pedals: | Not included (order here separately) |
| Chain: | SRAM XX1 Eagle, 12-speed |
| Rear cogs: | SRAM XG-1275, 12-speed, 11-50 teeth |

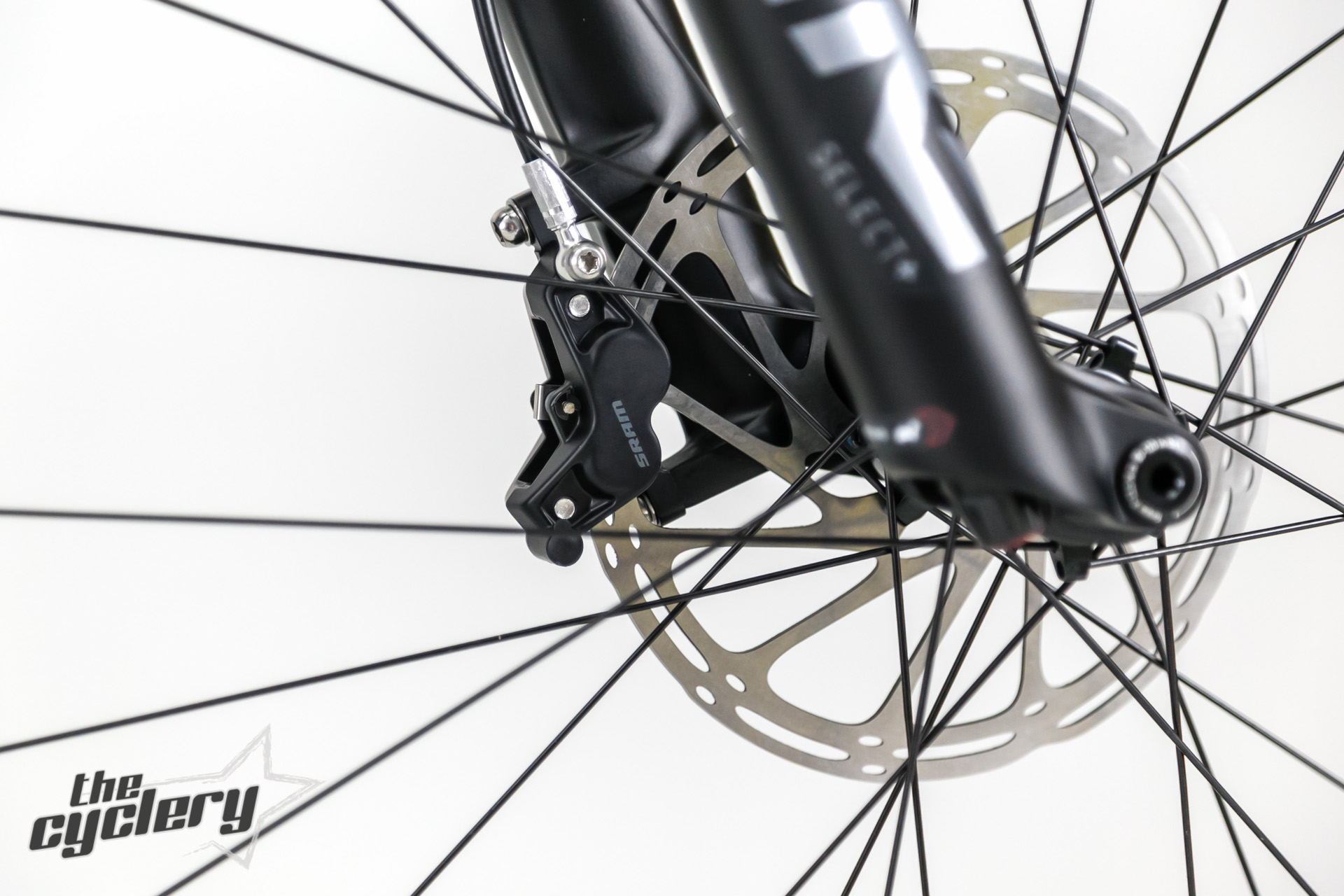

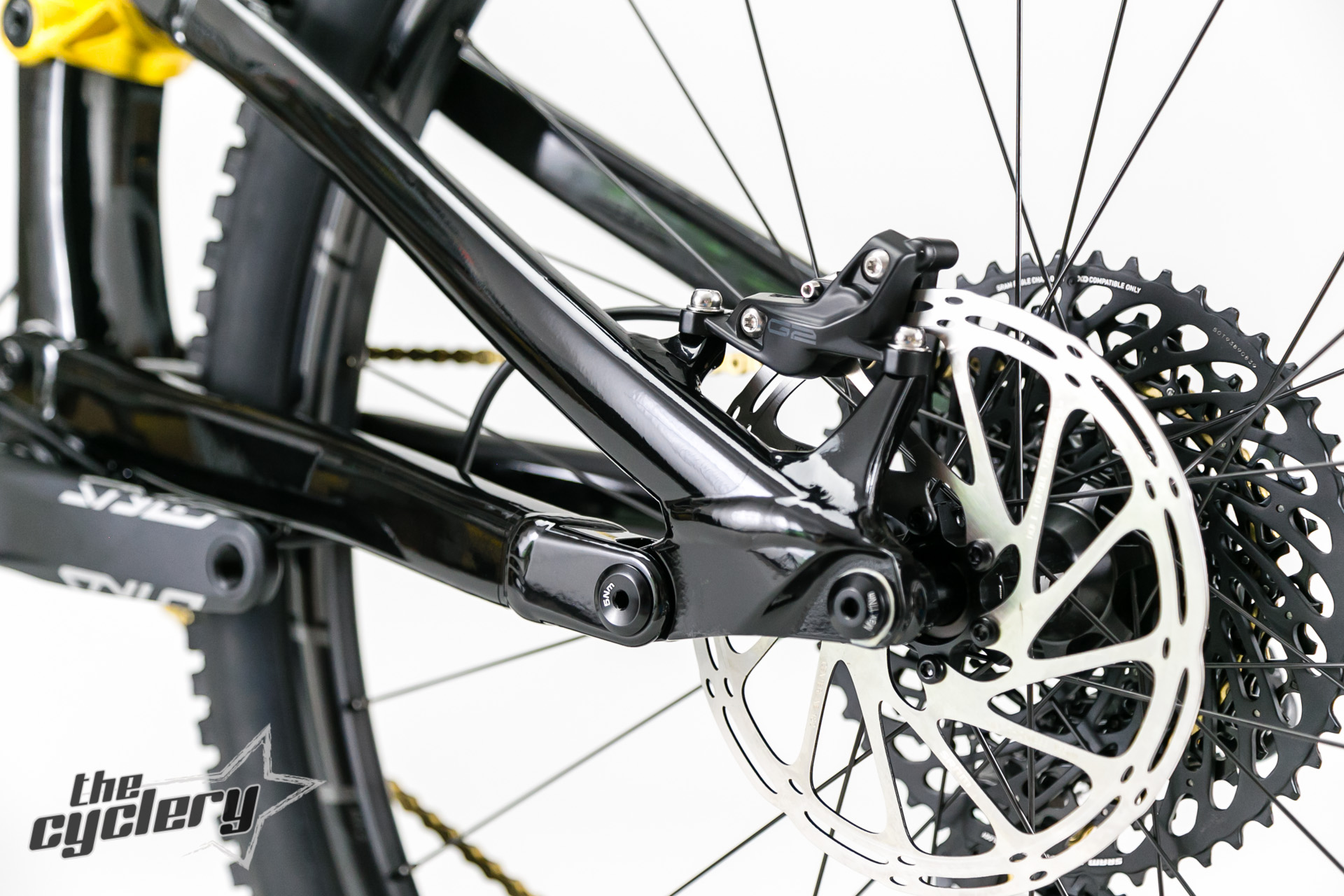

| Brakes: | SRAM G2 RSC, hydraulic disc brakes, 180/180mm discs (f./r.) |

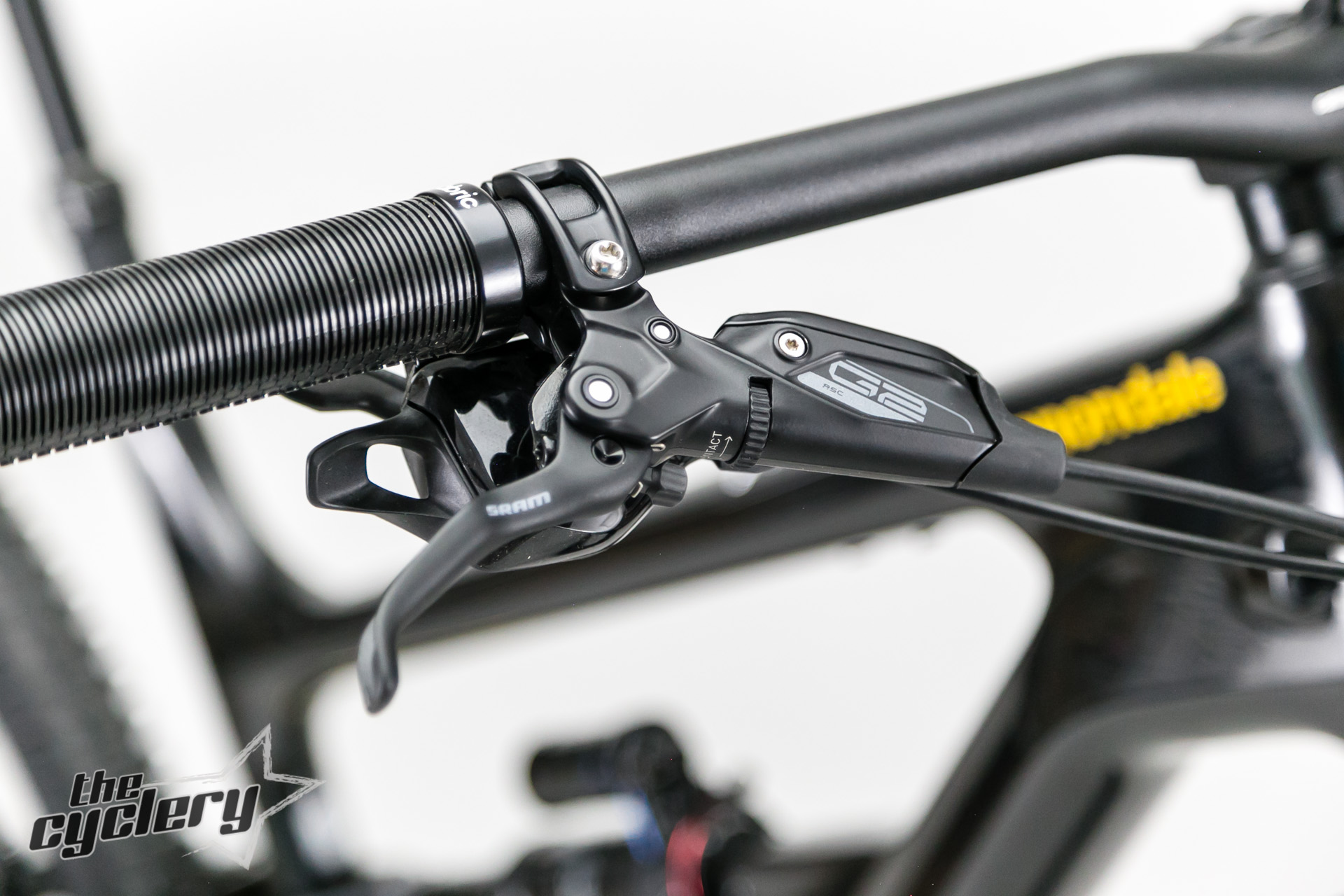

| Brake levers: | SRAM G2 RSC |
| Wheels | |
| Front hub: | HollowGram, 15 x 110mm thru axle |
| Rear hub: | HollowGram (by DT Swiss) with XD-freehub, 12 x 148mm thru axle |
| Rims: | Stan's NoTubes Arch MK2, 32 hole, tubeless ready |

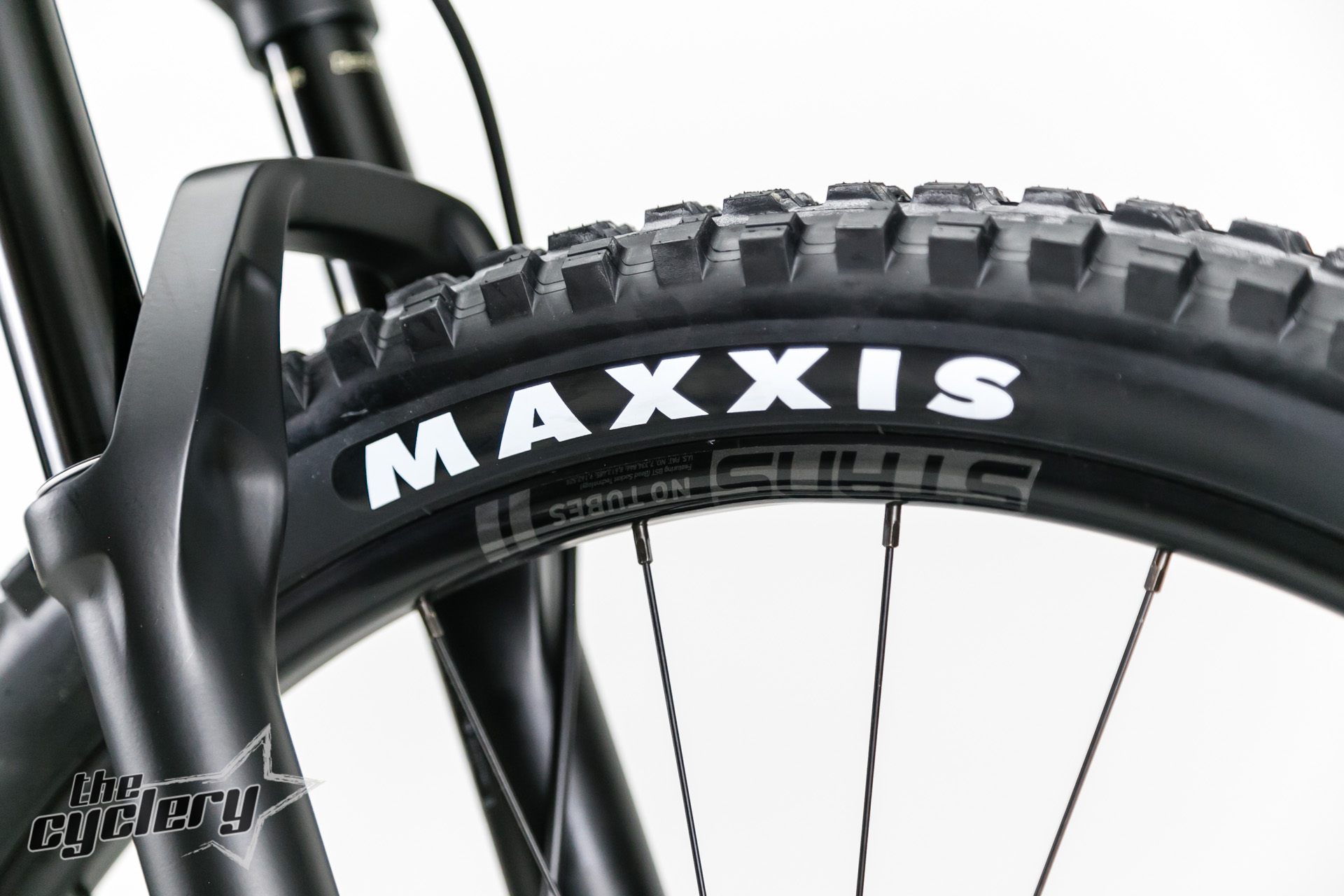

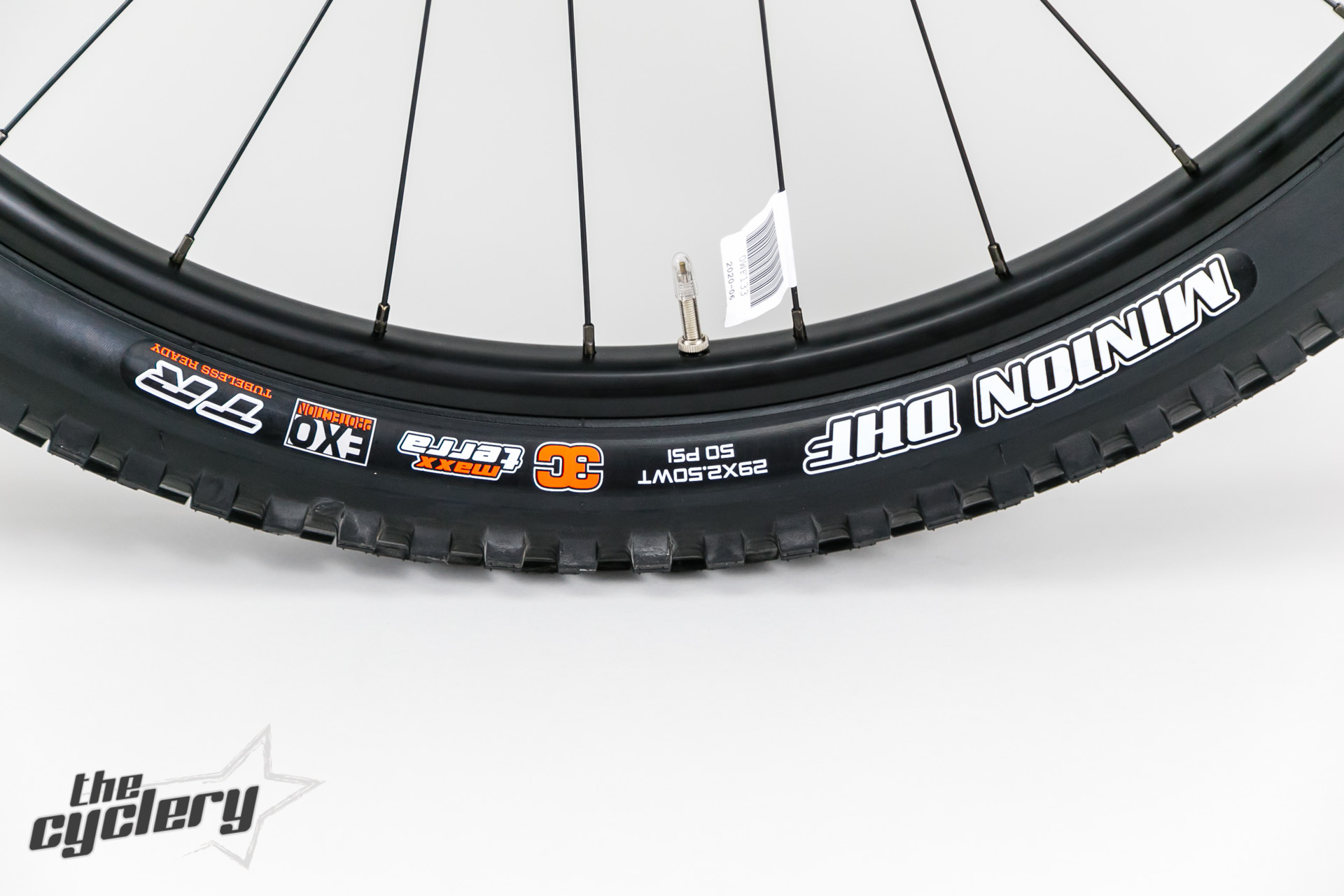

| Tires: | Maxxis Minion DHF, 29 x 2.5" 3C Maxx Terra compound, Exo puncture protection, tubeless ready (f.)/Maxxis High Roller II, 29 x 2.3" 3C Maxx Terra compound, Exo puncture protection, tubeless ready (r.) |
| Components | |

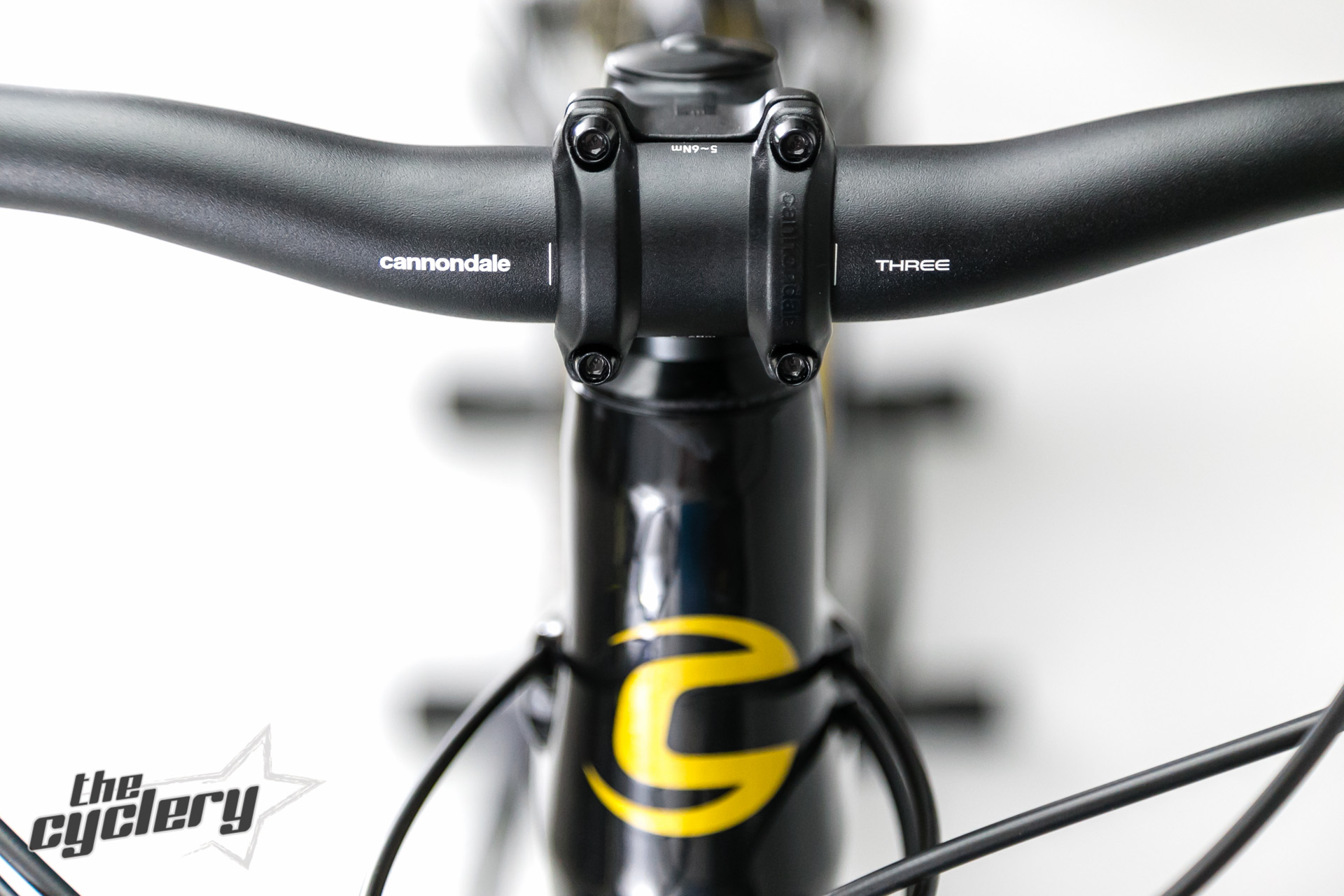

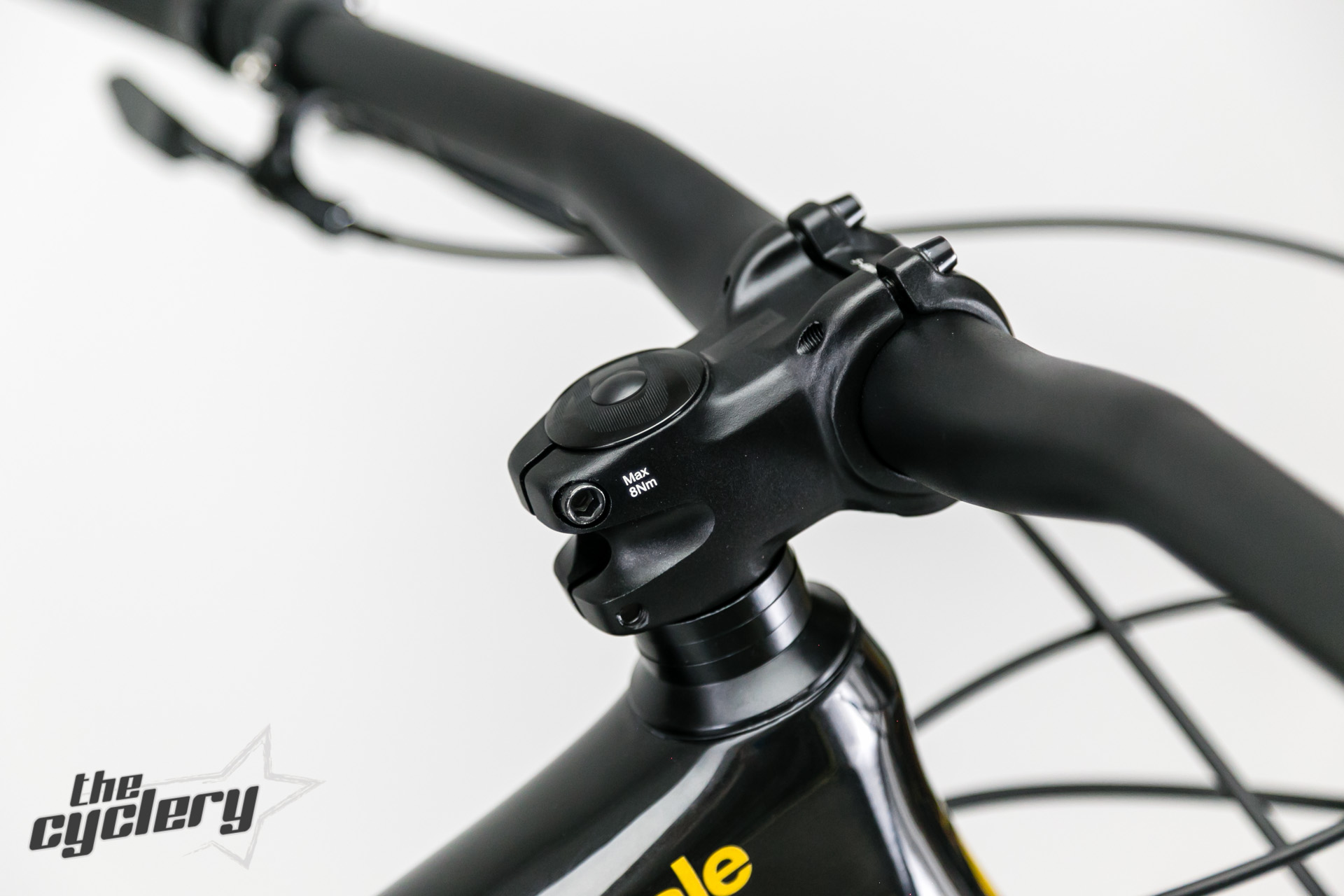

| Stem: | Cannondale 1, 3D-forged 6061er aluminum, 31,8mm clamp |
| Handelbar: | Cannondale 3 Riser, 6061 aluminum, 15mm rise, 780mm width, 31,8mm clamp |
| Headset: | Integrated 1 1/8" >>> 1.5", sealed bearings |

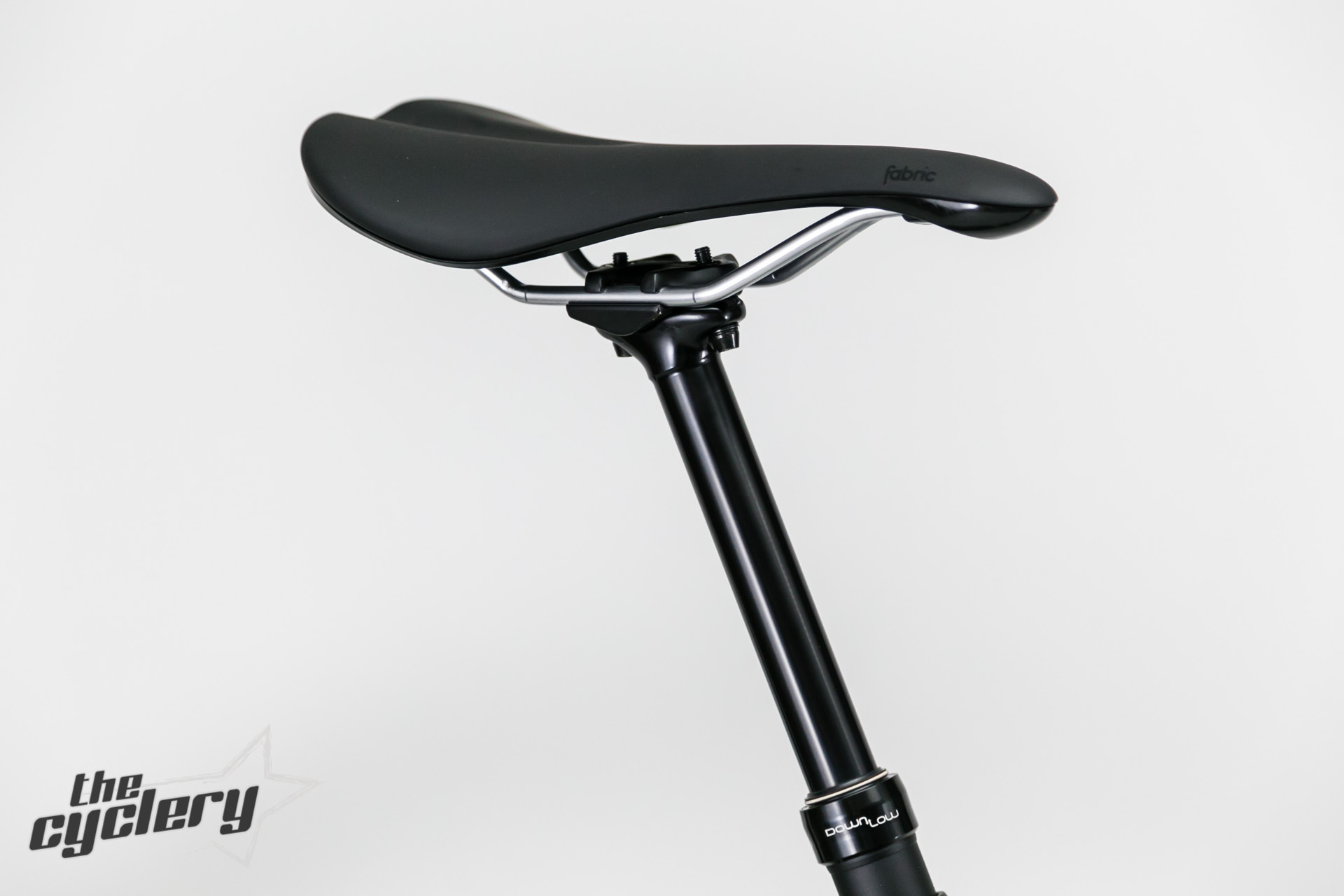

| Saddle: | Fabric Scoop Shallow Elite, CroMo rails |
| Seatpost: | Cannondale DownLow Dropper, 125mm (S)/150mm (M - XL) adjustable height via remote control, 31,6mm |
| Other: | - |
Video about the Habit series:
| Model year | 2020 |
| Intended use | Trail |
| Wheel size | 29" |
| Frame material | Carbon/Aluminum |
| Shifting type | Derailleur |
| Gears | 12 |
