| Chassis |
|
| Frame: |
Chromoly frame with fender/rack mounts, 650b/700c compatible |
| Fork: |
Chromoly fork with fender/rack mounts |
| Shock: |
- |
|
|
| Drivetrain/Brakes |
|
| Shifters: |
SRAM Apex 1, 1 x 11-soeed |

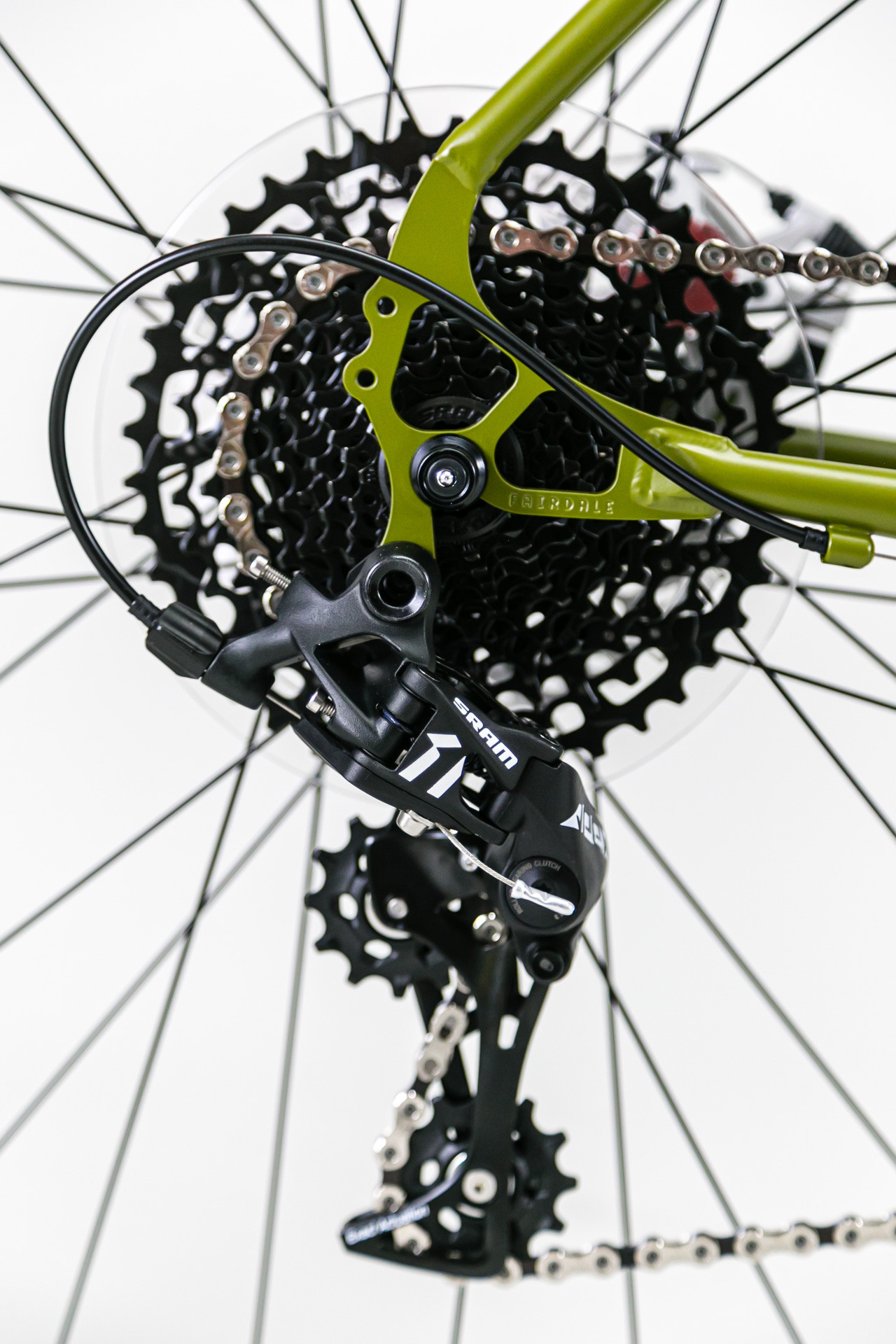

| Rear derailleur: |
SRAM Apex 1, long cage |
| Front derailleur: |
- |

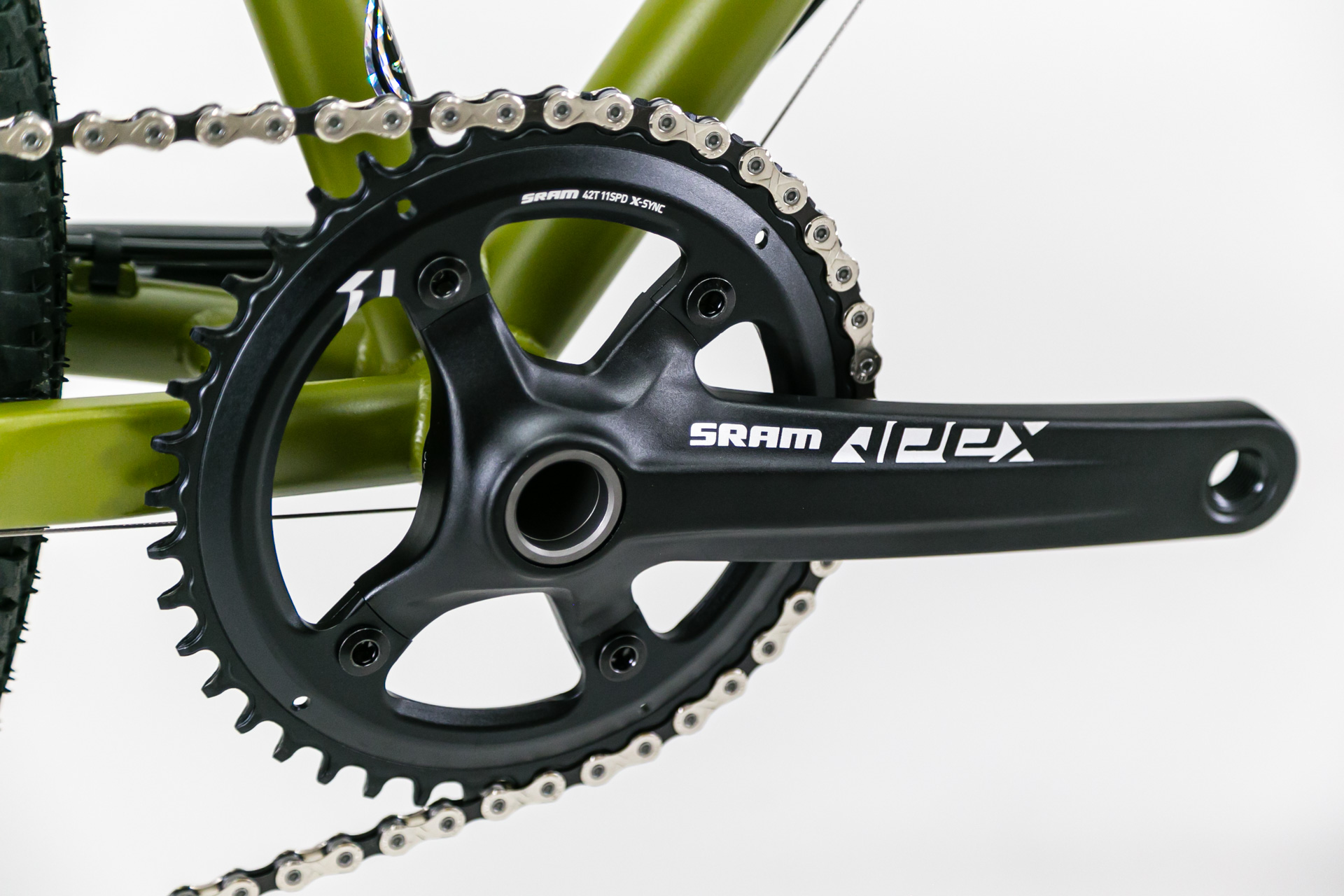

| Crankset: |
SRAM Apex 1, 165mm (S)/172,5mm (M)/175mm (L/XL) length, 42 teeth Narrow Wide chain ring |
| Bottom bracket: |
Neco BB-501 |
| Pedals: |
Odyssey Twisted PC |
| Chain: |
KMC X11, 11-speed |
| Rear cogs: |
SRAM PG-1130, 11-speed, 11-42 teeth |

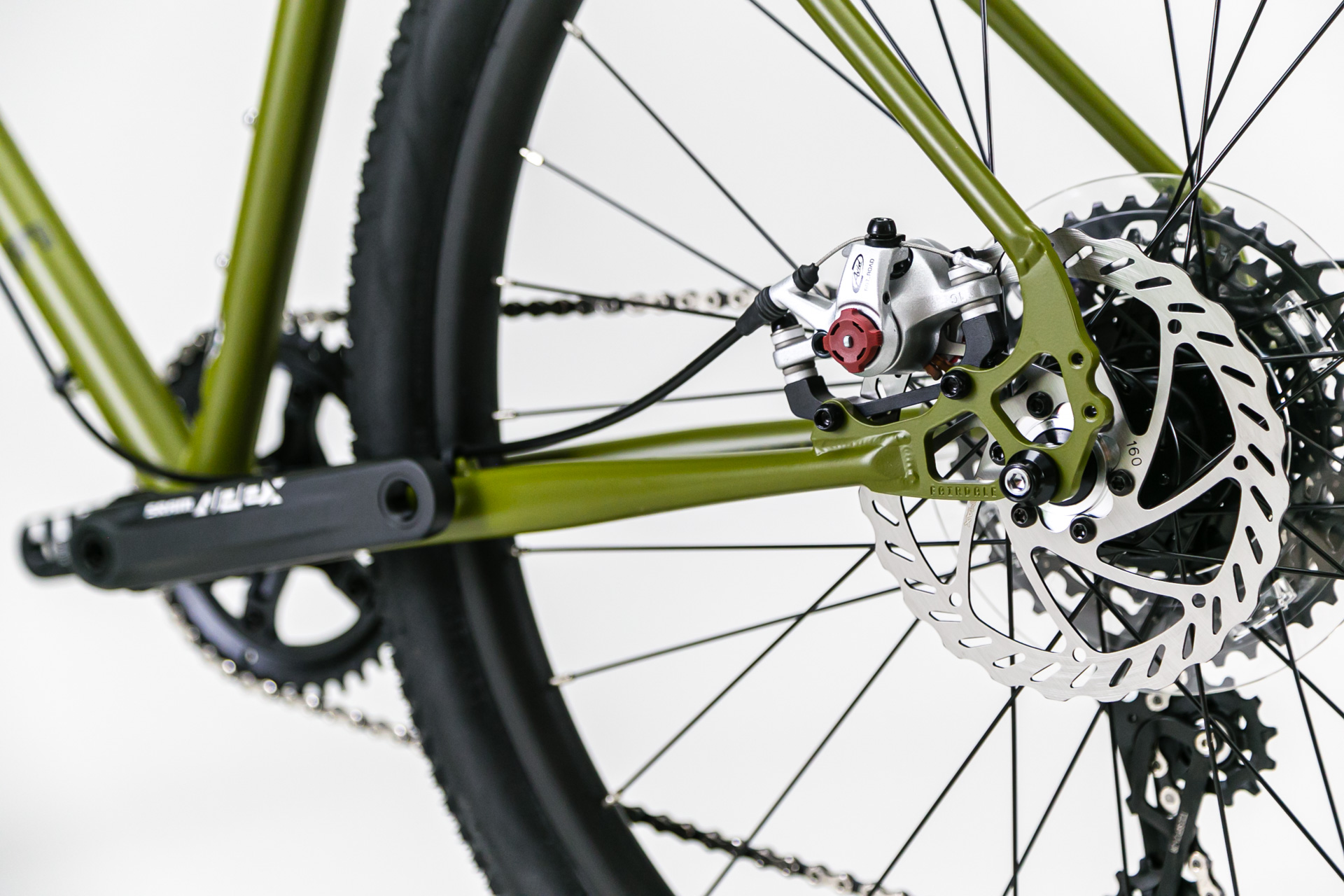

| Brakes: |
Avid BB7 Road, mechanical disc brakes, 160mm discs (f/r) |
| Brake levers: |
SRAM Apex 1 |
|
|
| Wheels |
|
| Front hub: |
Aluminum, sealed bearings, 32 hole |
| Rear hub: |
Aluminum, sealed bearings, 32 hole |
| Rims: |
Aluminum double wall, 32 hole, Tubeless ready, 27,5"/650b |
| Tires: |
Continental Double Fighter, 27,5" x 2.0" (M - XL), manufacturer-side change to an equivalent alternative model possible |
|
|
| Components |
|
| Stem: |
6061 T6 Aluminum, 60mm (S)/70mm (M)/80mm (L/XL) length |

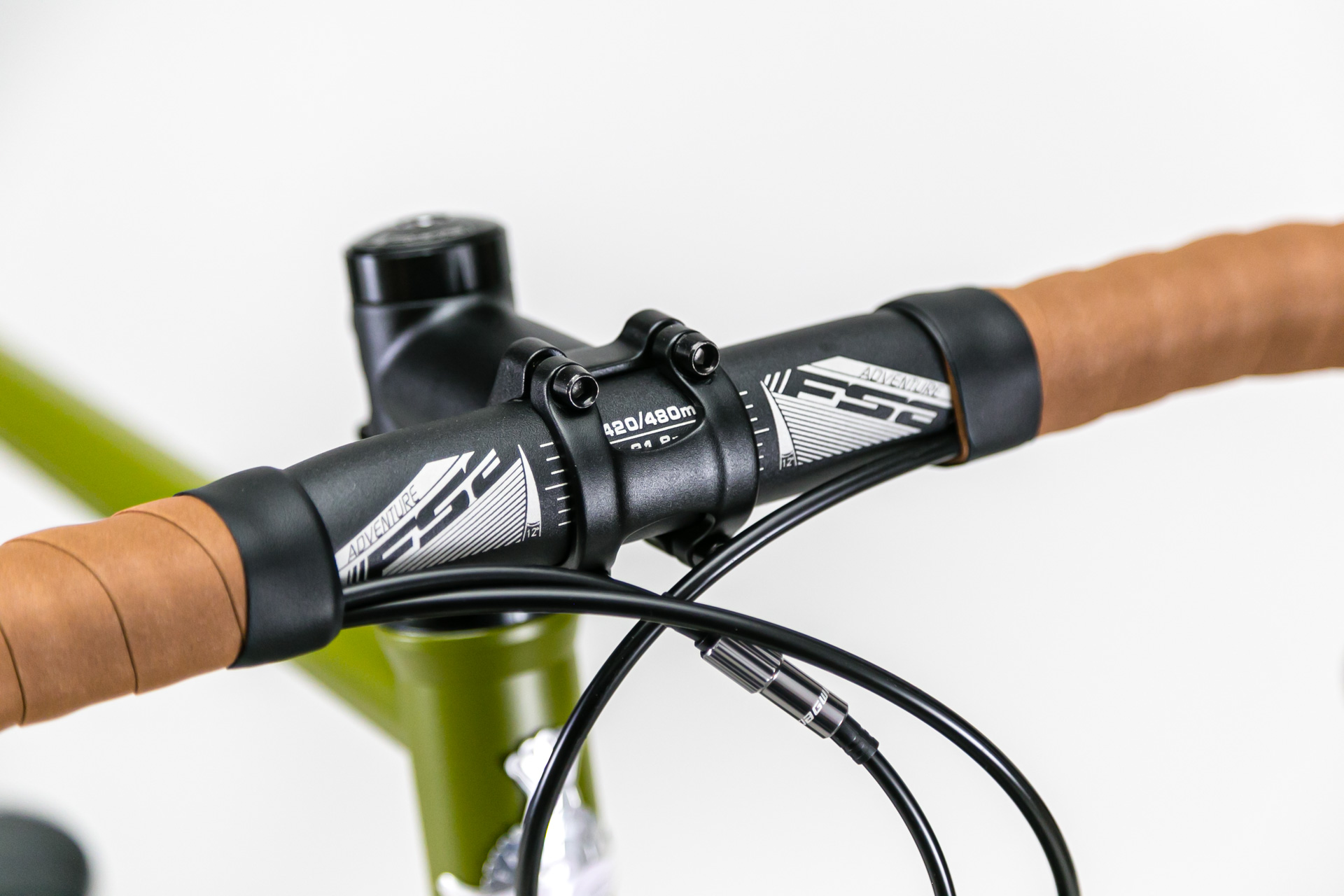

| Handelbar: |
FSA Adventure, 400mm (S)/420mm (M/L)/440mm (XL) width
|
| Headset: |
FSA, sealed bearings |

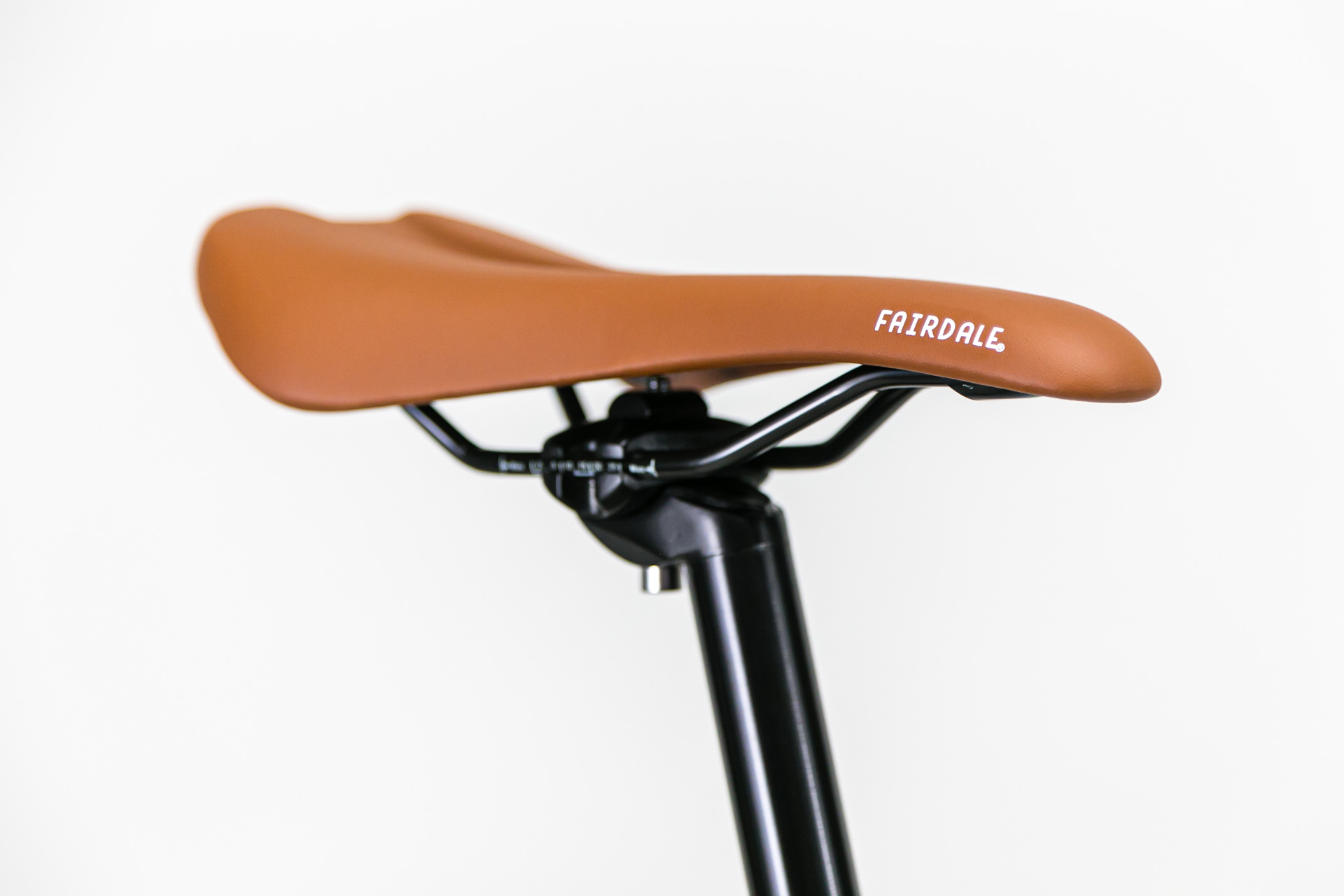

| Saddle: |
Fairdale Race |
| Seatpost: |
Micro Adjust, 27,2mm |
|
