| Chassis | |
| Frame: | Habit BallisTec carbon main frame, SmartForm C1 aluminum rear end, 130mm of travel, integrated tapered head
tube, 12 x 148mm thru axle, PF30 bottom bracket housing, ISCG05 cahin guide mount, Post Mount |

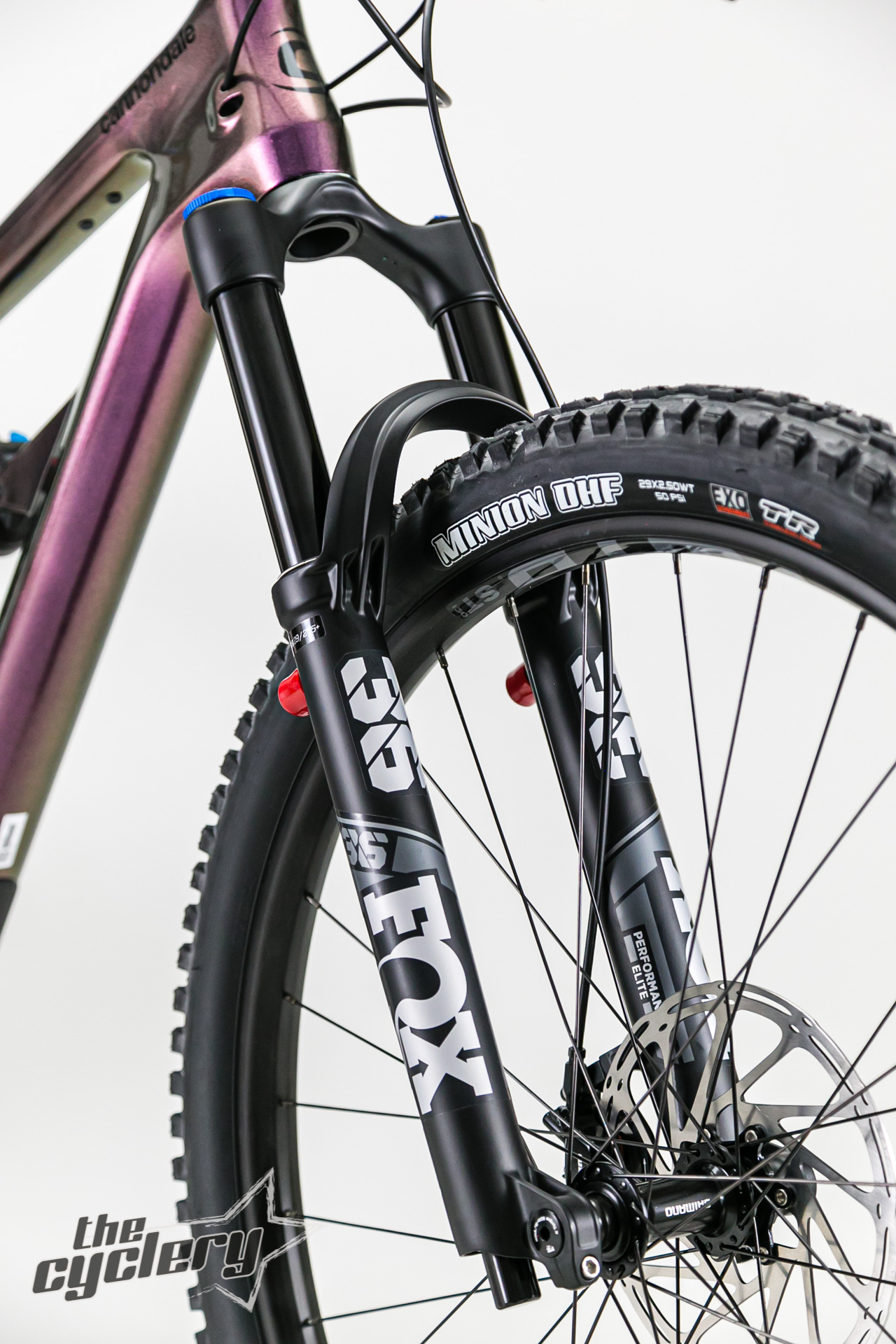

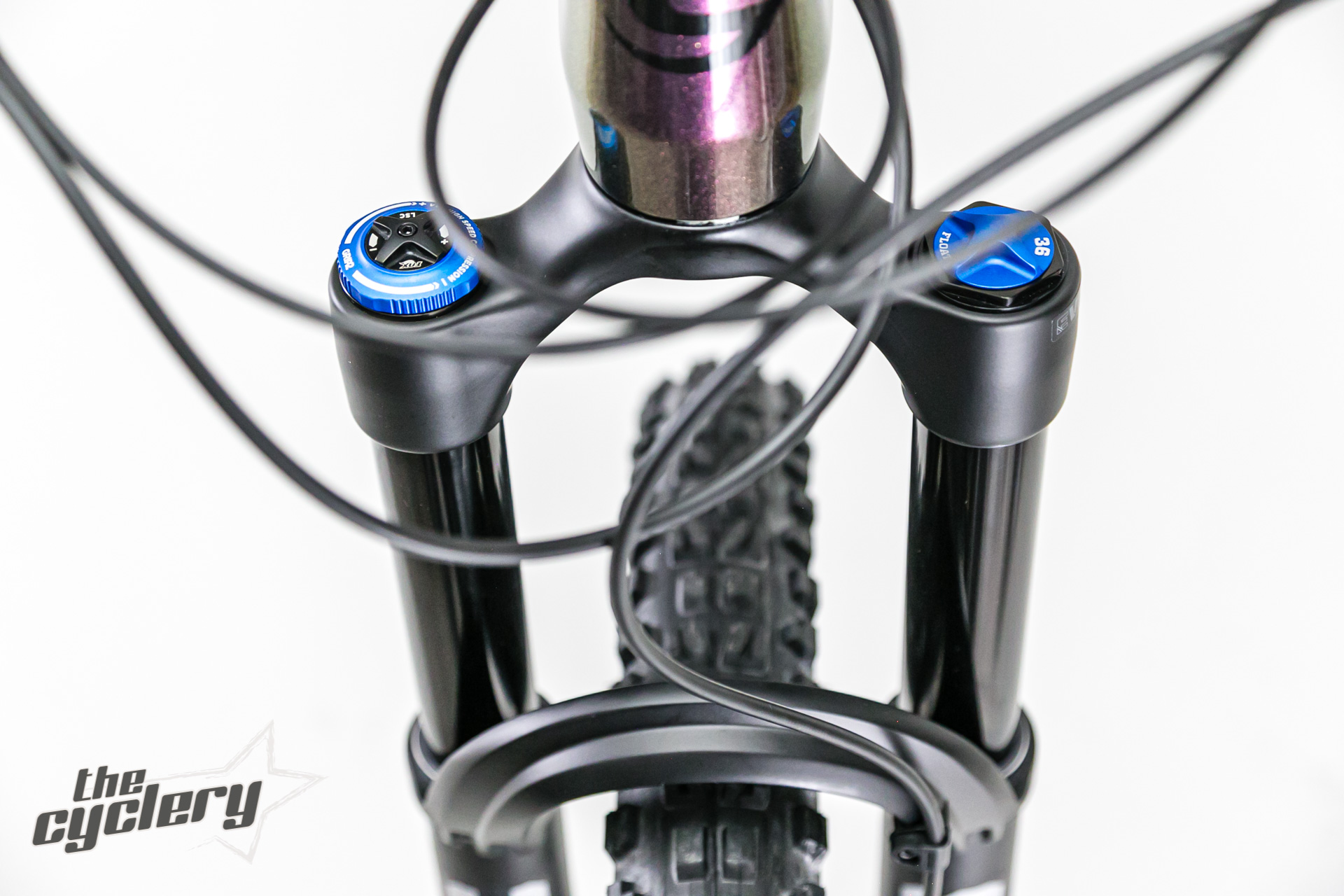

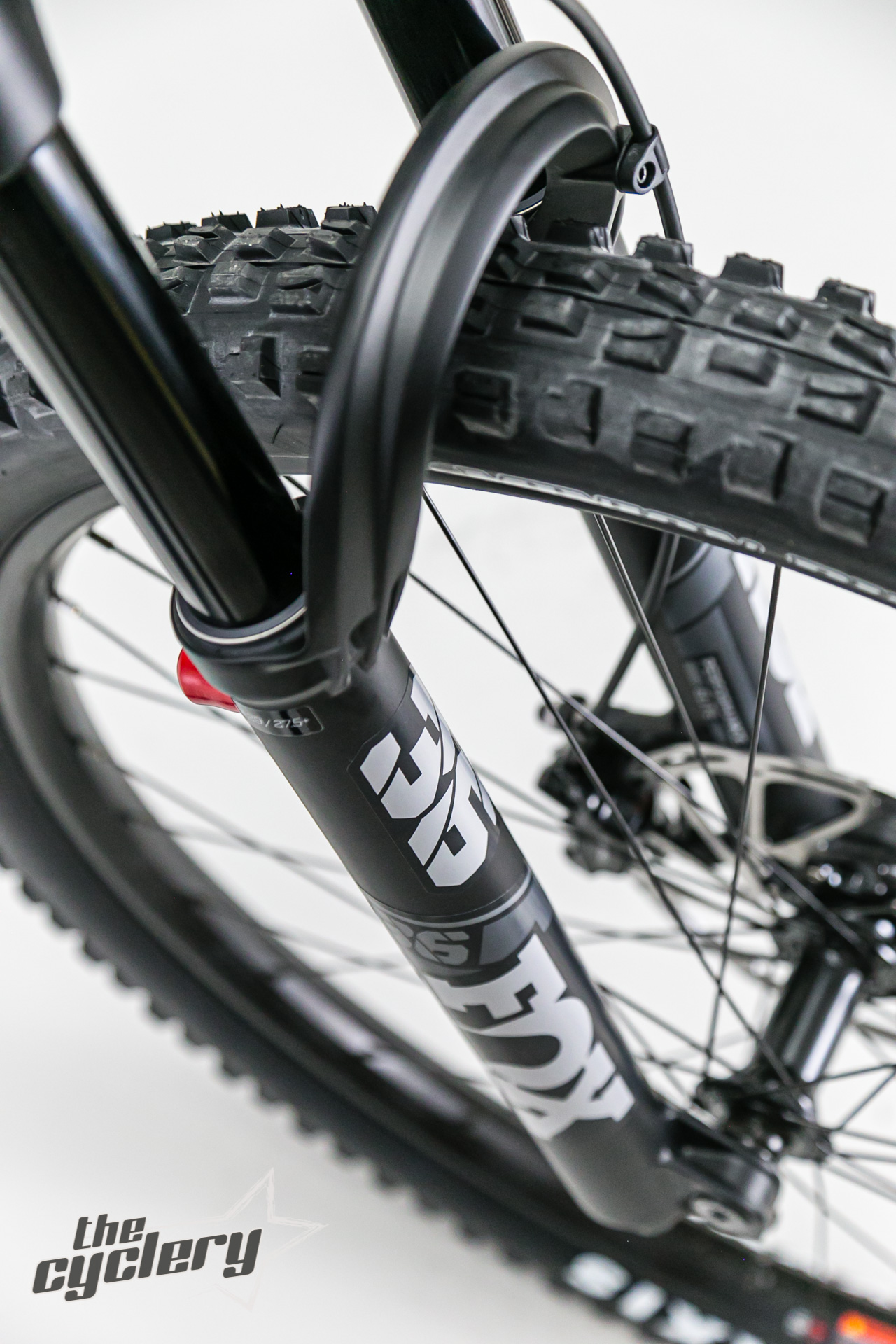

| Fork: | FOX Float 36 Performance Elite, air spring system (adjustable), 140mm of travel, 15 x 110mm thru axle, Grip 2 damping, tapered steerer, adjustable rebound and compression |
| Shock: | FOX Float DPX2 Performance EVOL, air spring system (adjustable), adjustable rebound and compression (3-way) |
| Drivetrain/Brakes | |
| Shifters: | SRAM NX Eagle, 1 x 12-speed |

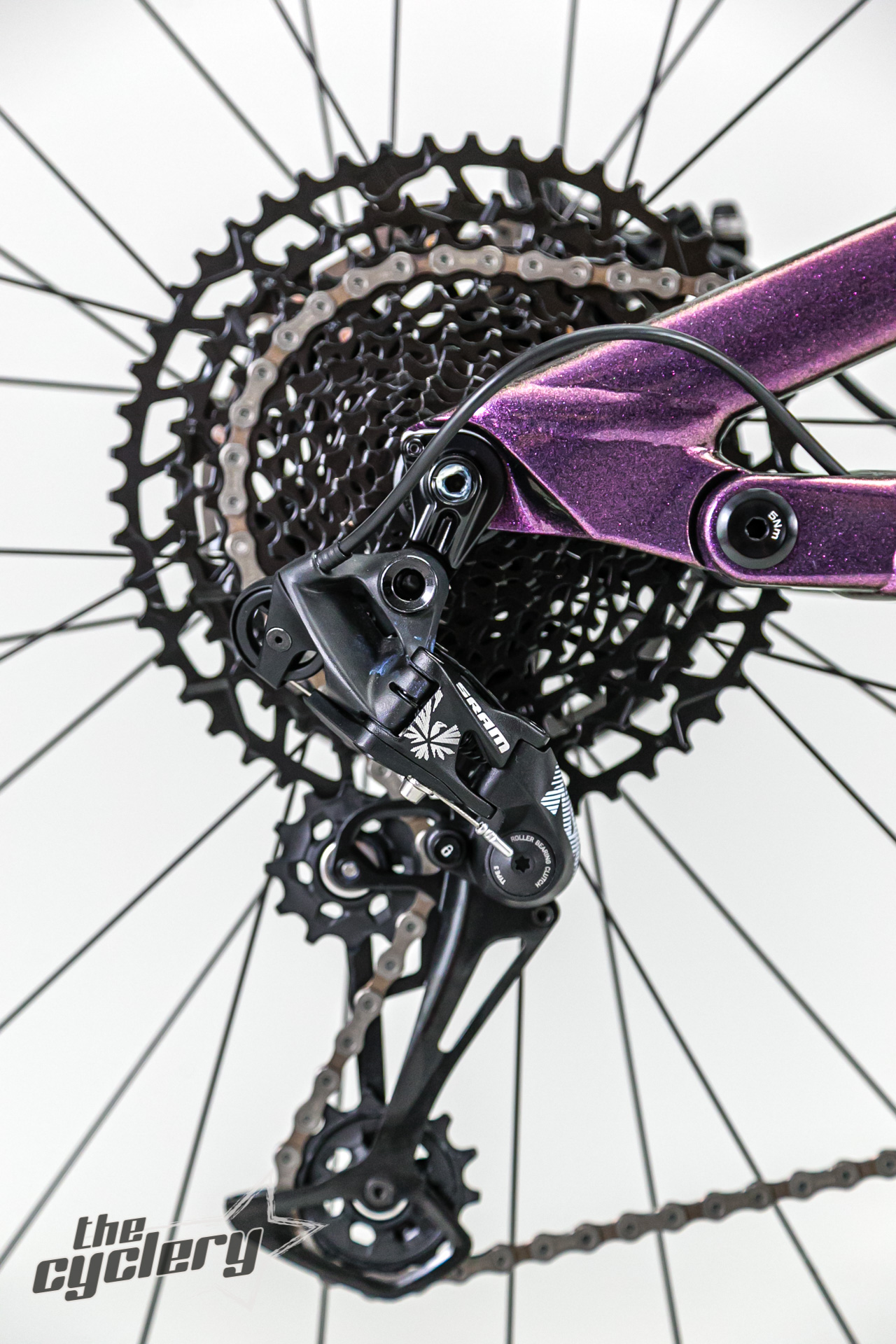

| Rear derailleur: | SRAM NX Eagle |
| Front derailleur: | - |

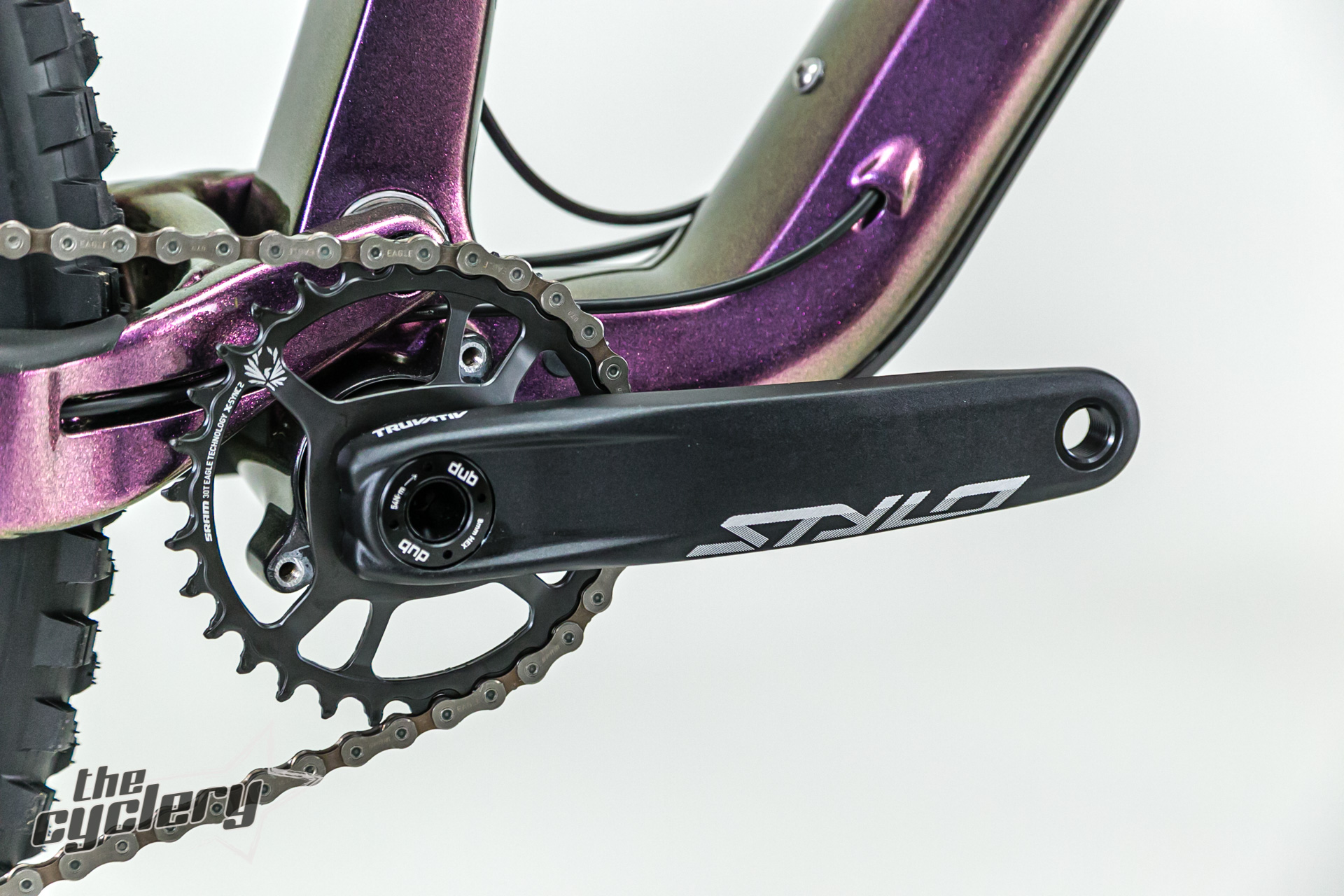

| Crankset: | Truvativ Stylo 6K DUB, 30 teeth chain ring |
| Bottom bracket: | SRAM DUB PF30 |
| Pedals: | Not included (order here
separately) |
| Chain: | SRAM SX Eagle, 12-speed |
| Rear cogs: | SRAM PG-1230, 12-speed, 11-50 teeth |

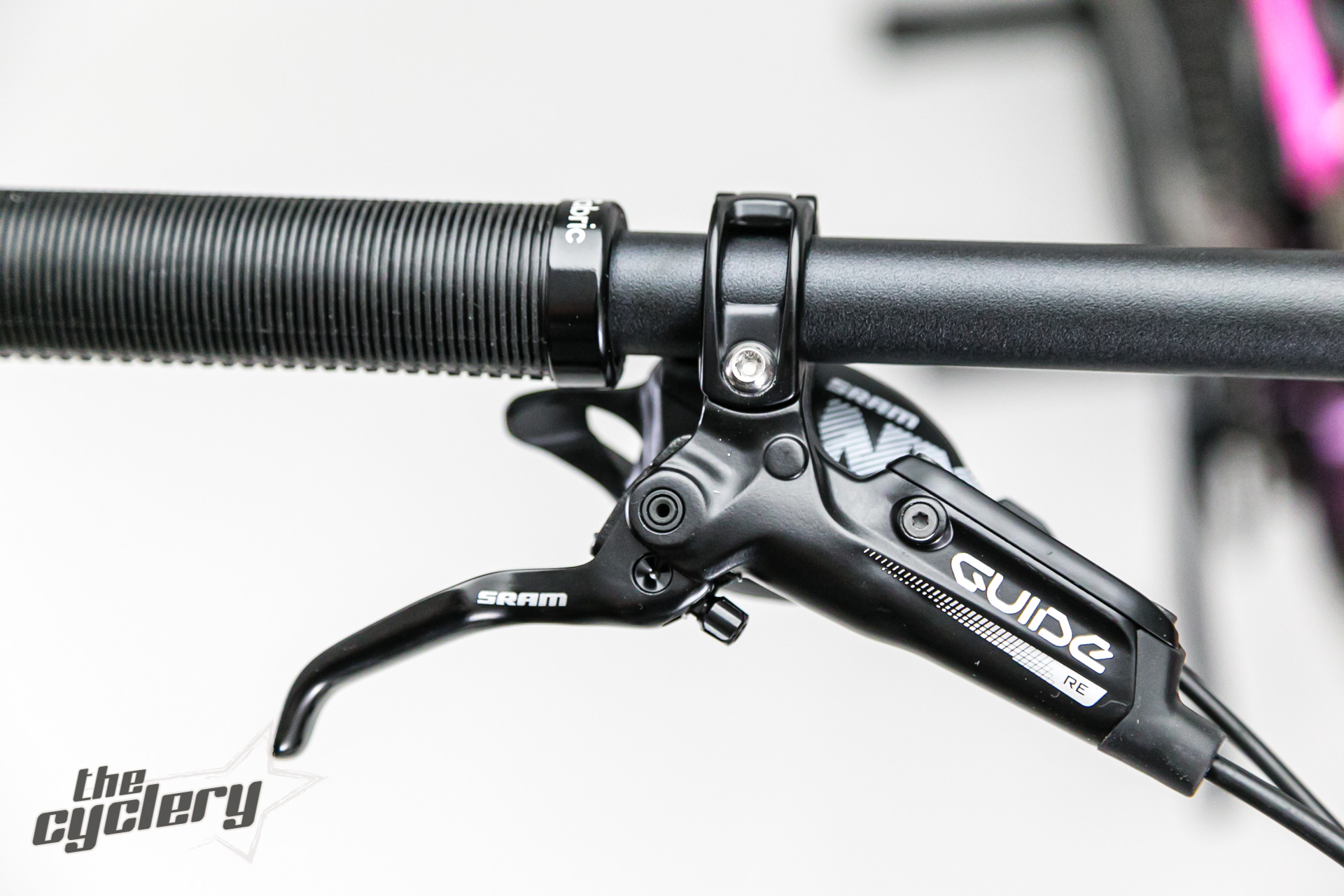

| Brakes: | SRAM Guide RE, hydraulic disc brakes, 180/180mm discs (f./r.) |
| Brake levers: | SRAM Guide RE |
| Wheels | |
| Front hub: | Shimano MT400, 15 x 110mm thru axle |
| Rear hub: | Shimano MT400, 12 x 148mm thru axle |
| Rims: | WTB ST i39 TCS, 32 hole, tubeless ready |

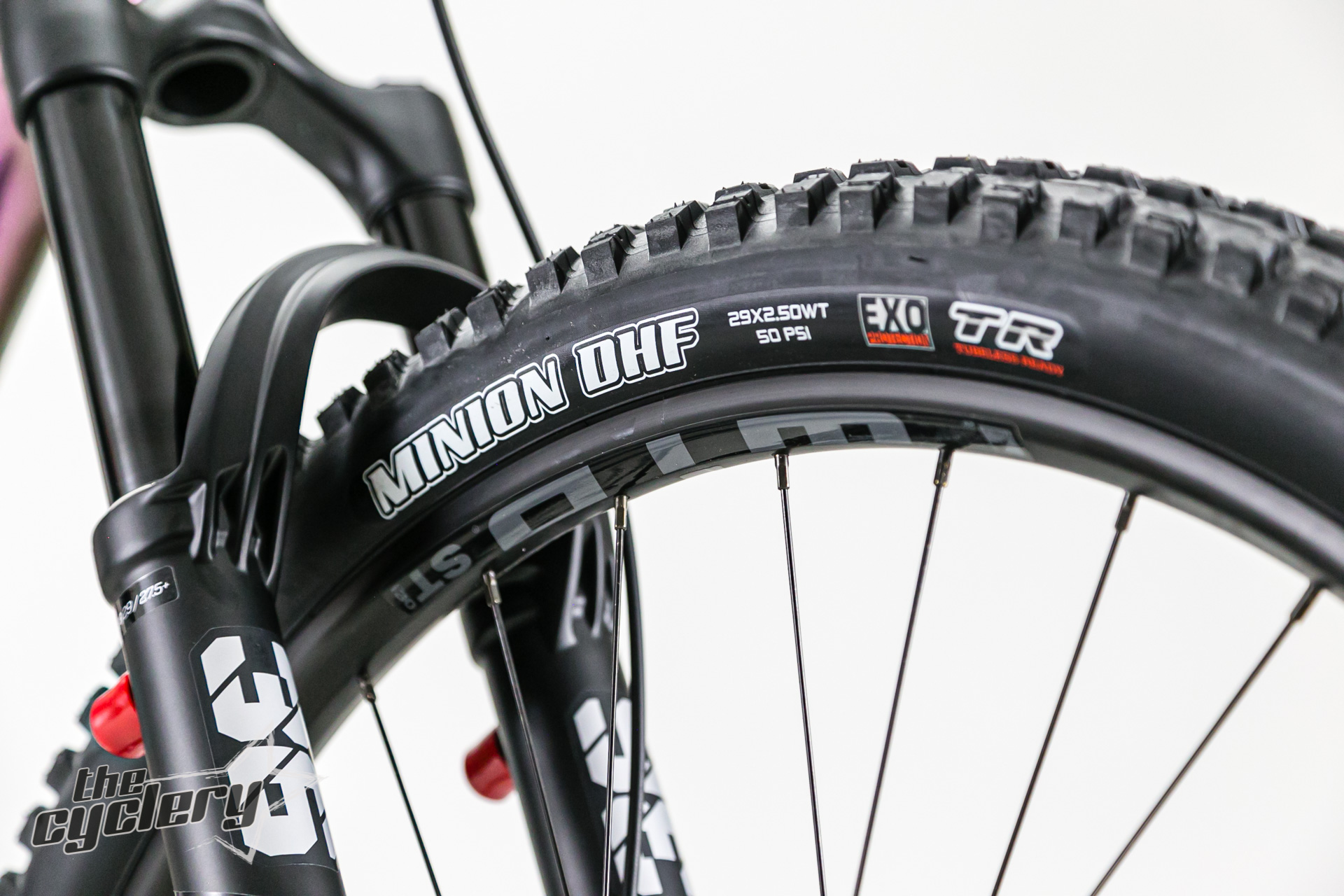

| Tires: | Maxxis Minion DHF II, 29 x 2.5", Exo puncture protection, tubeless ready (f.)/Maxxis Dissector, 29 x 2.4", Exo puncture protection, tubeless ready (r.) |
| Components | |
| Stem: | Cannondale 3, 3D-forged 6061 aluminum, 31,8mm clamp |
| Handlebar: | Cannondale 3 Riser, 6061er aluminum, 15mm rise, 780mm width, 31,8mm clamp |
| Headset: | Integrated 1 1/8" >>> 1.5", sealed bearings |

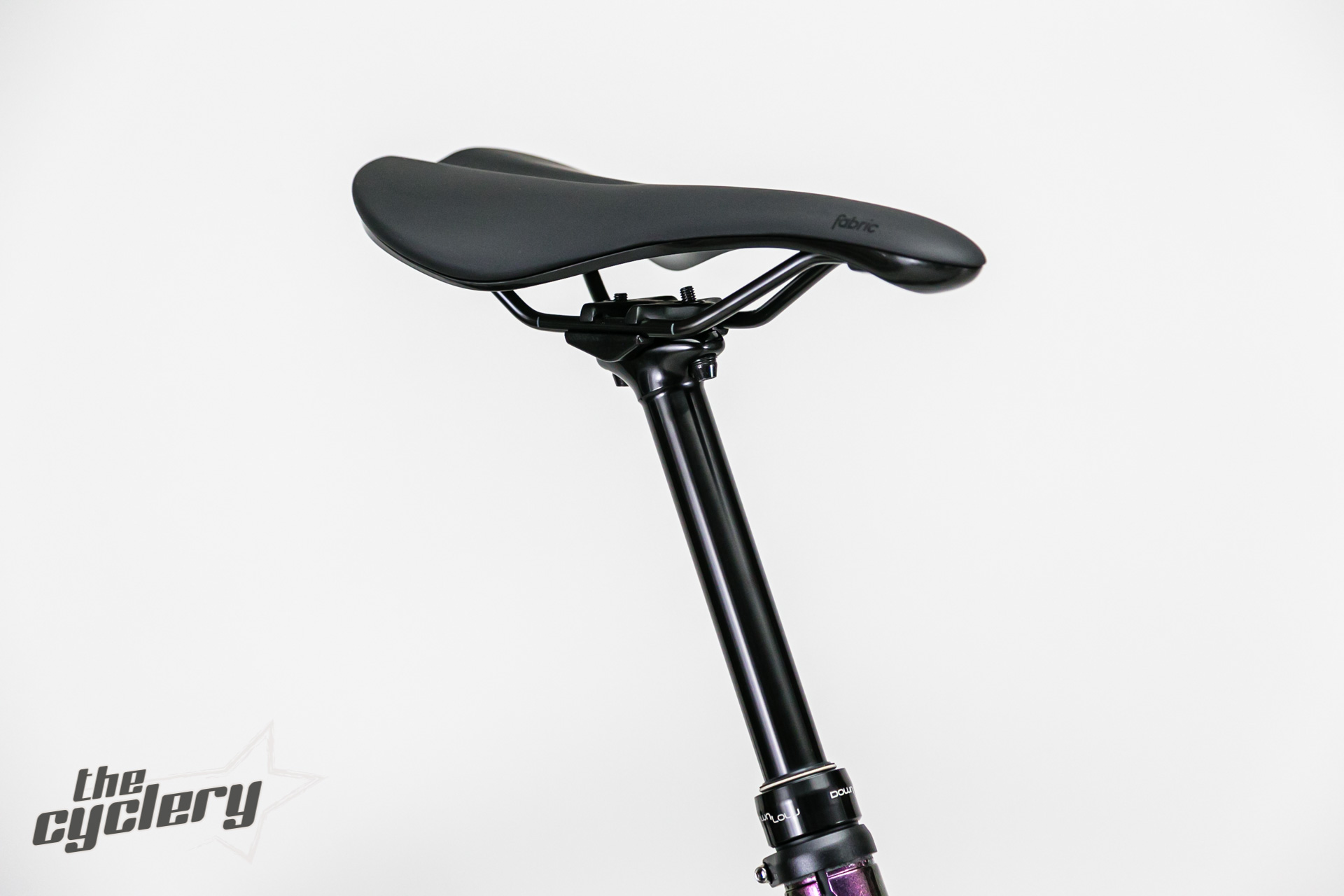

| Saddle: | Fabric Scoop Shallow Sport, steel rails |
| Seatpost: | Cannondale DownLow Dropper, 125mm (S)/150mm (M - XL) adjustable height via remote control, 31,6mm |
| Other: | - |
Video about the Habit series:
| Model year | 2021 |
| Intended use | Trail |
| Wheel size | 29" |
| Frame material | Carbon/Aluminum |
| Shifting type | Derailleur |
| Gears | 12 |
