| Chassis |
|
| Frame: |
Ballistec hi-mod carbon frame, 140/85mm travel (flow/elevation mode), 1.5" head tube, PF30 bottom bracket, ISCG03 chain guide mount, 12 x 142mm thru axle |
| Fork: |

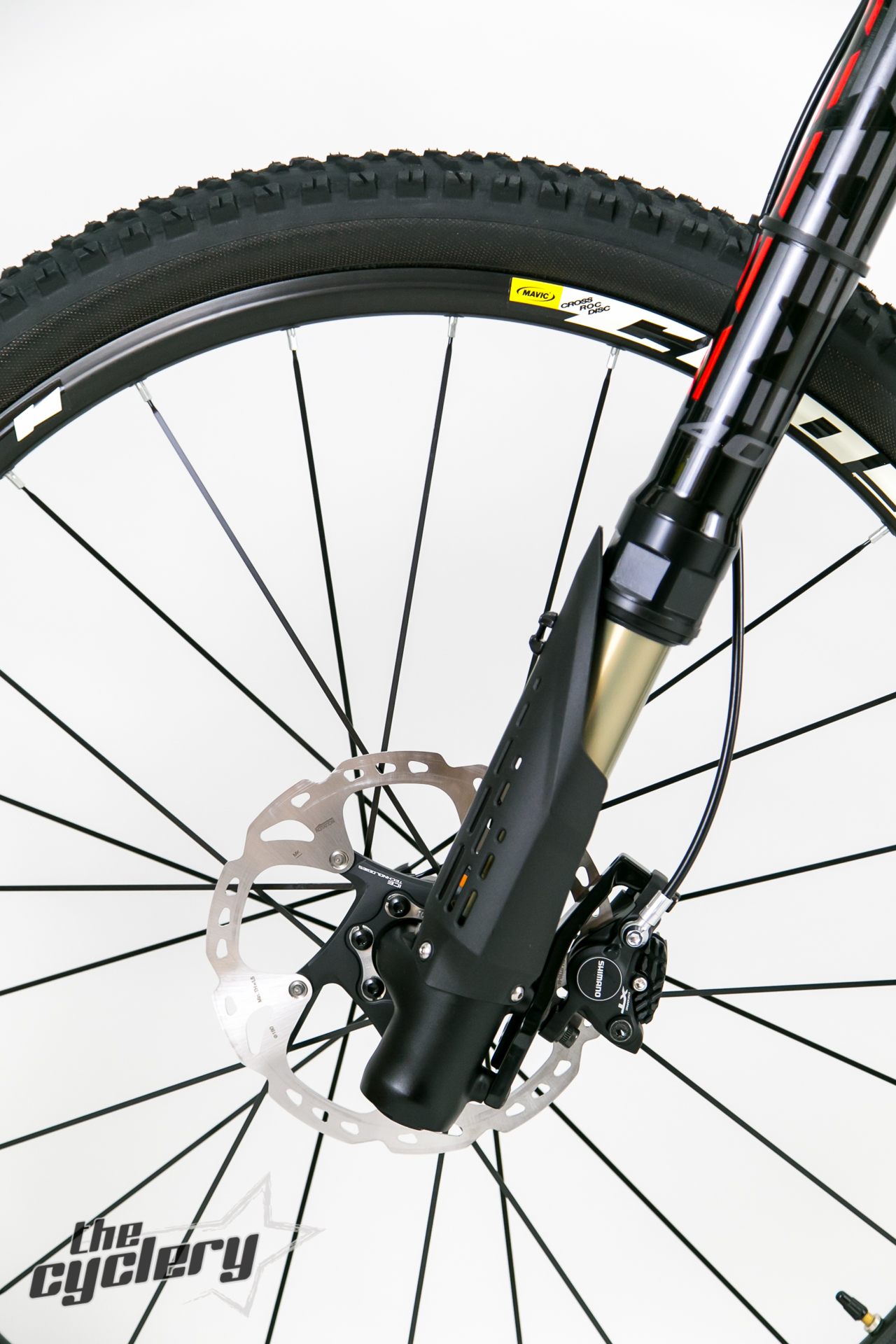

Lefty Supermax PBR 2.0, air suspension system (adjustable), 140mm travel, adjustable rebound and lock out
|
| Shock: |
FOX Dyad RT2, air suspension system (adjustable) with new tune, adjustable rebound and compression, remote control |
|
|
| Drivetrain/Brakes |
|
| Shifters: |
Shimano XT, 2 x 10-speed |
| Rear derailleur: |
Shimano XT Shadow+ |
| Front derailleur: |
SRAM X7, direct mount |
| Crankset: |
SRAM S1400, 36/22 teeth chain guide + bash guard |
| Bottom bracket: |
SRAM PF30 |
| Pedals: |
- |
| Chain: |
KMC X10, 10-speed |
| Cogs: |
Shimano XT, 10-speed, 11-36 teeth |
| Brakes: |

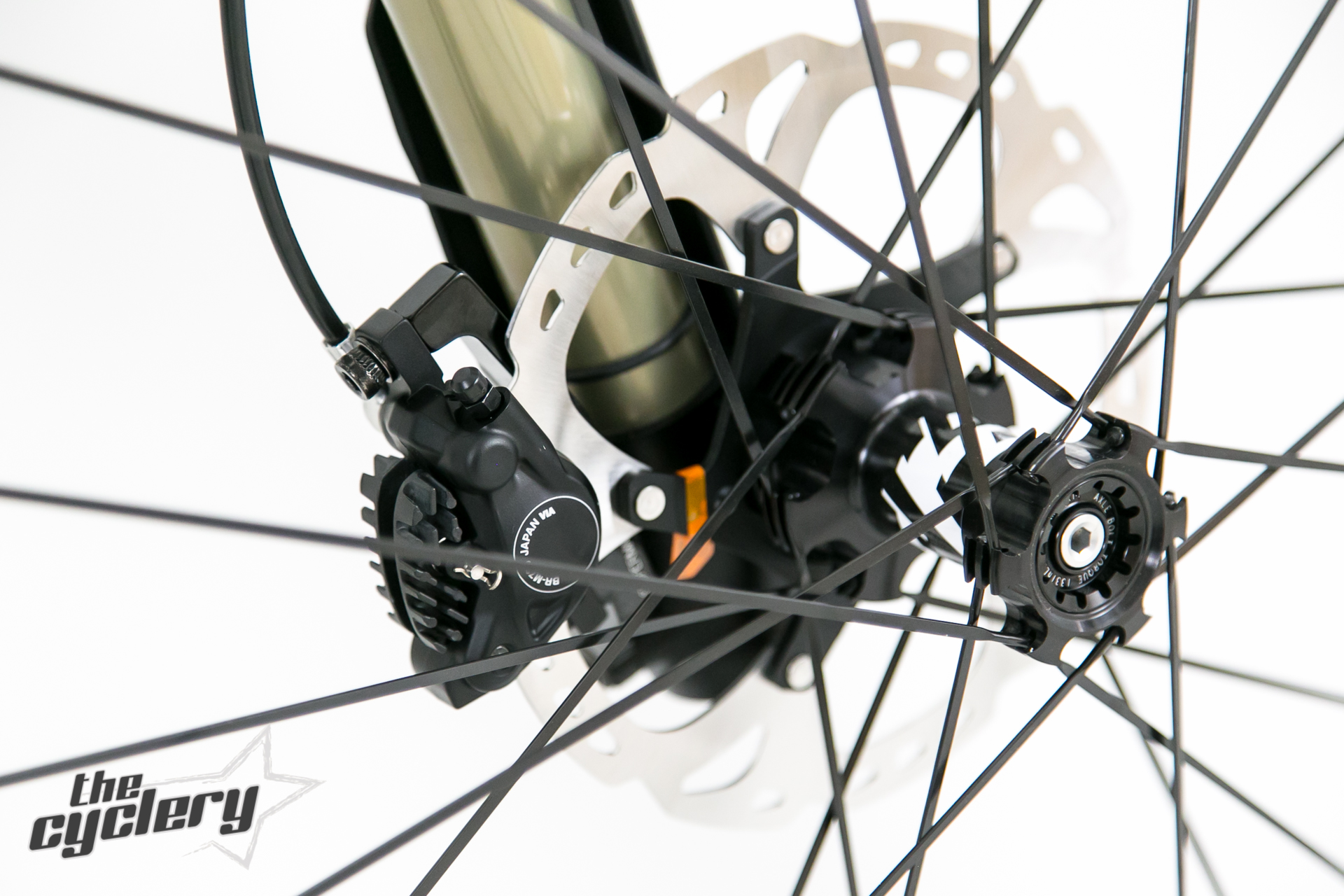

Shimano XT Trail, hydraulic disc brakes, 180/160mm discs (f/r) |
| Brake levers: |

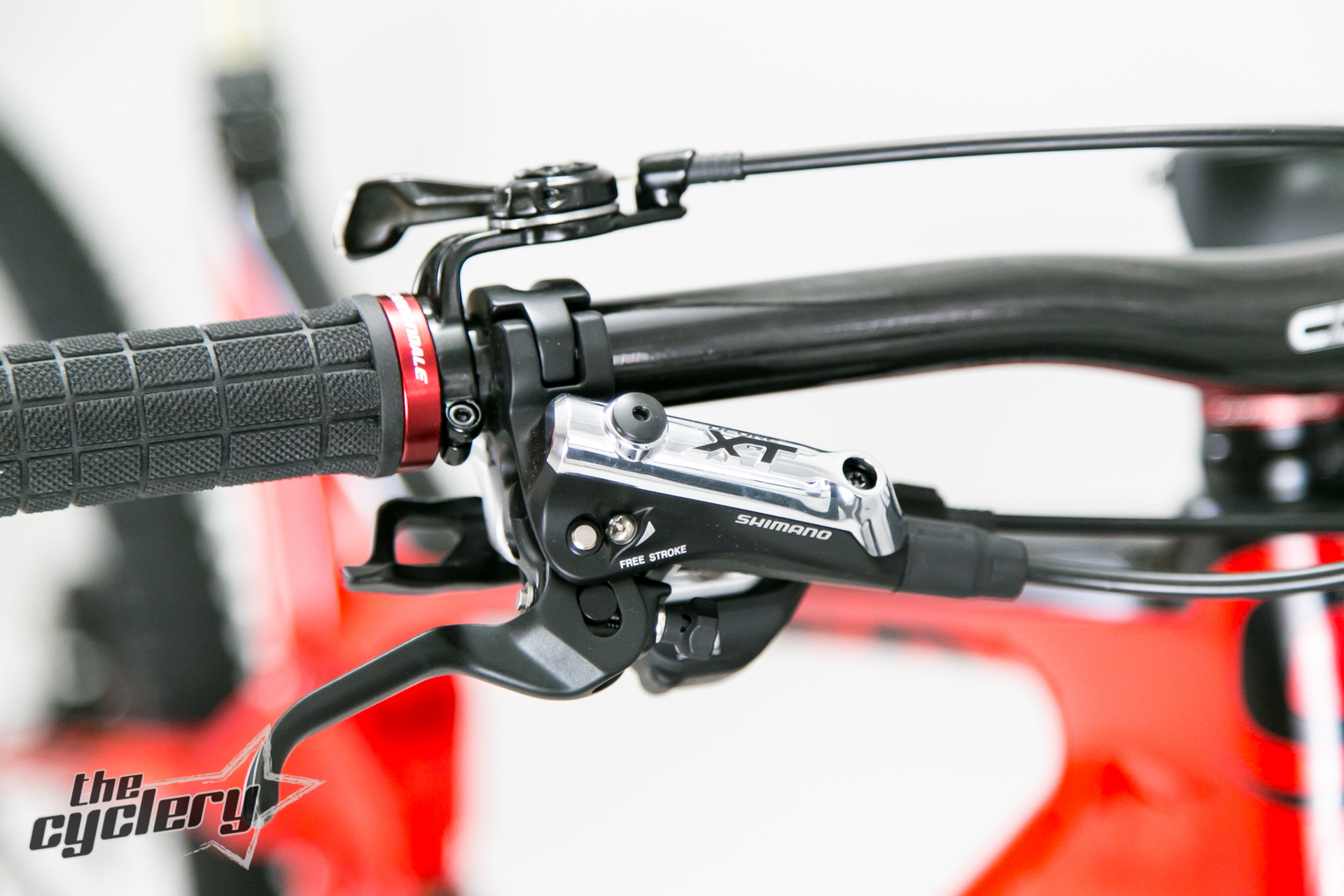

Shimano XT |
|
|
| Wheels |
|
| Front hun: |
Mavic Crossroc, for Lefty |
| Rear hub: |
Mavic Crossroc, 12 x 142mm thru axle |
| Rims: |
Mavic Crossroc WTS, tubeless ready |
| Tires: |
Mavic Crossroc WTS 27,5 x 2,2", foldable, tubeless ready |
|
|
| Components |
|
| Stem: |

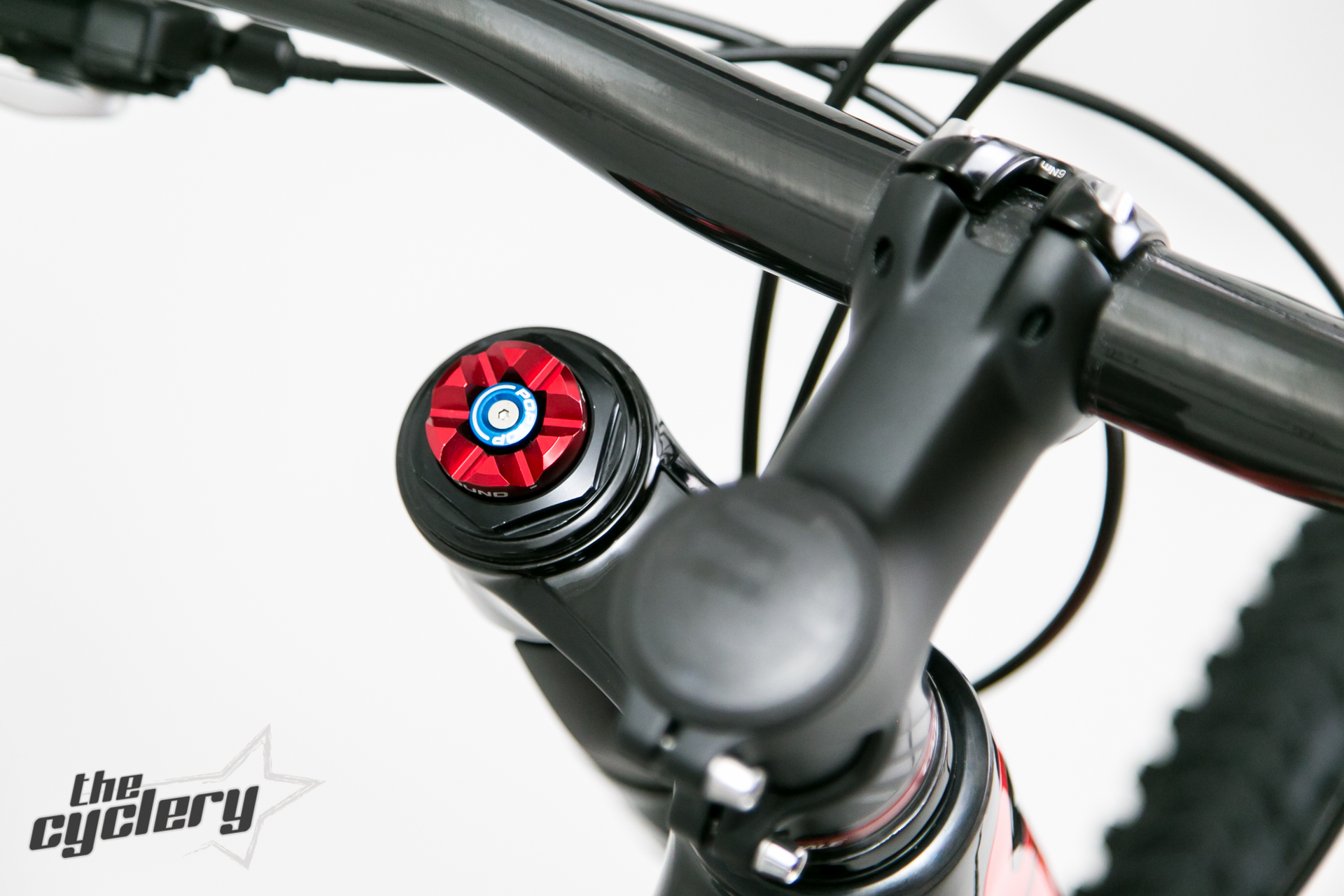

Cannondale C1 1.5", 31,8mm diameter |
| Handlebar: |
Cannondale C1 carbon riser, 15mm rise, 740mm width, 31,8mm diameter |
| Headset: |
Cannondale Headshock SI |
| Saddle: |

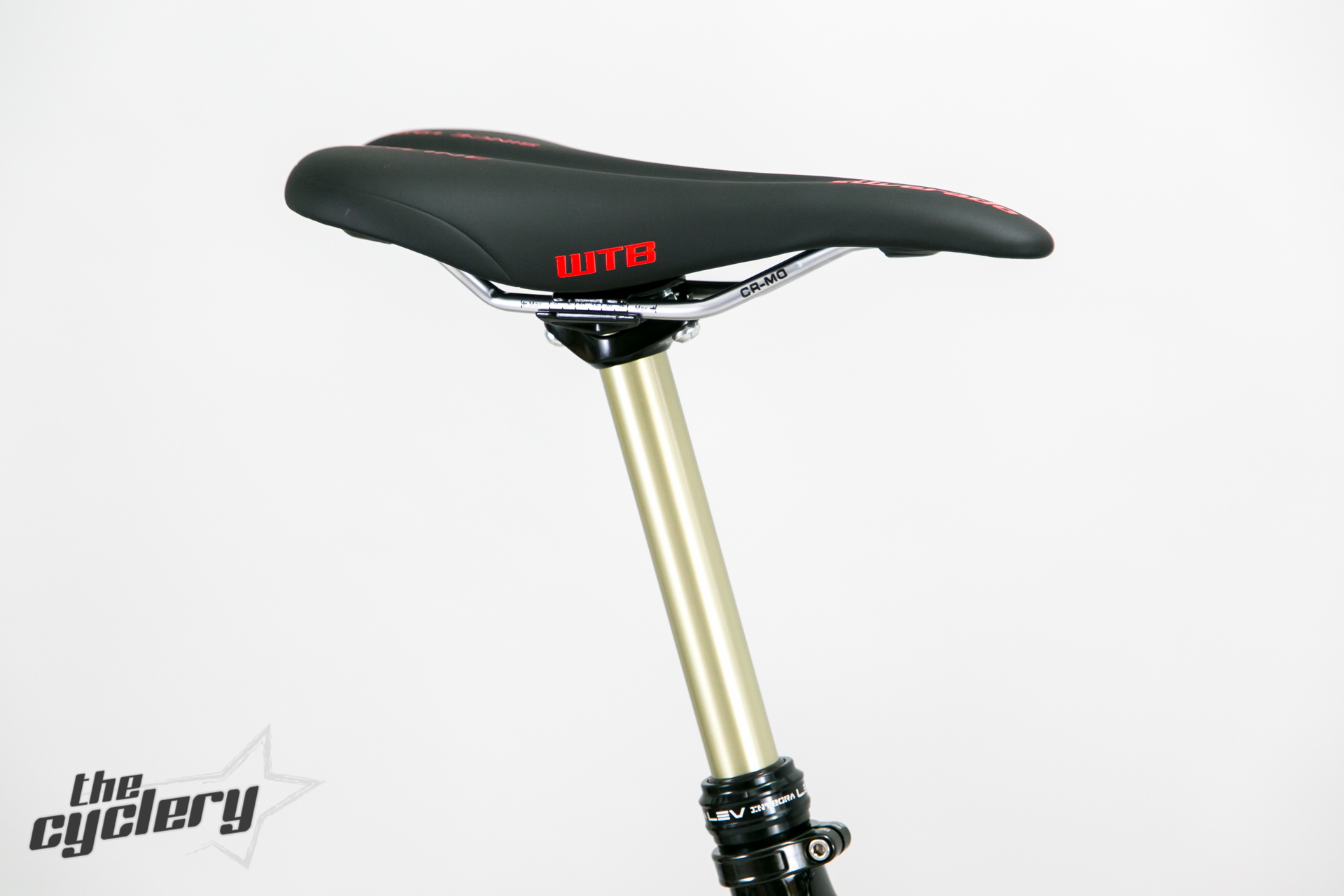

WTB Volt CroMo |
| Seat post: |
KS Lev Integra (internal cable), adjustable height with remote control |
| Other: |
high pressure air pump (for suspension setup) |
