| Chassis |
|

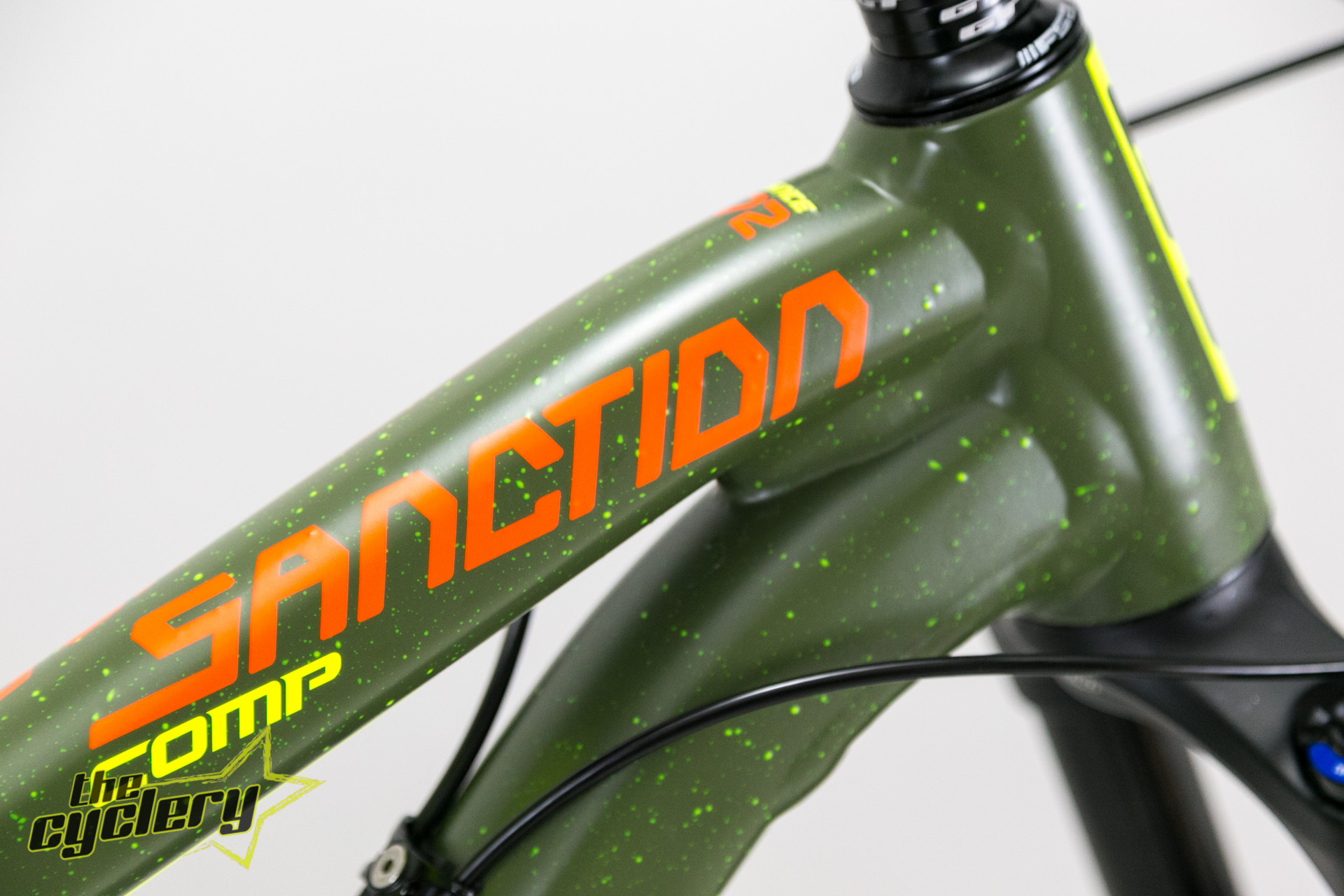

| Frame: |
Enduro frame with COR design (Centered on Rider) and 27.5" specific geometry, 6069-T6 aluminum, 160mm travel via independent drivetrain system, 1.5" head tube, ISCG03 chain guide mount, 12 x 142mm thru axle |

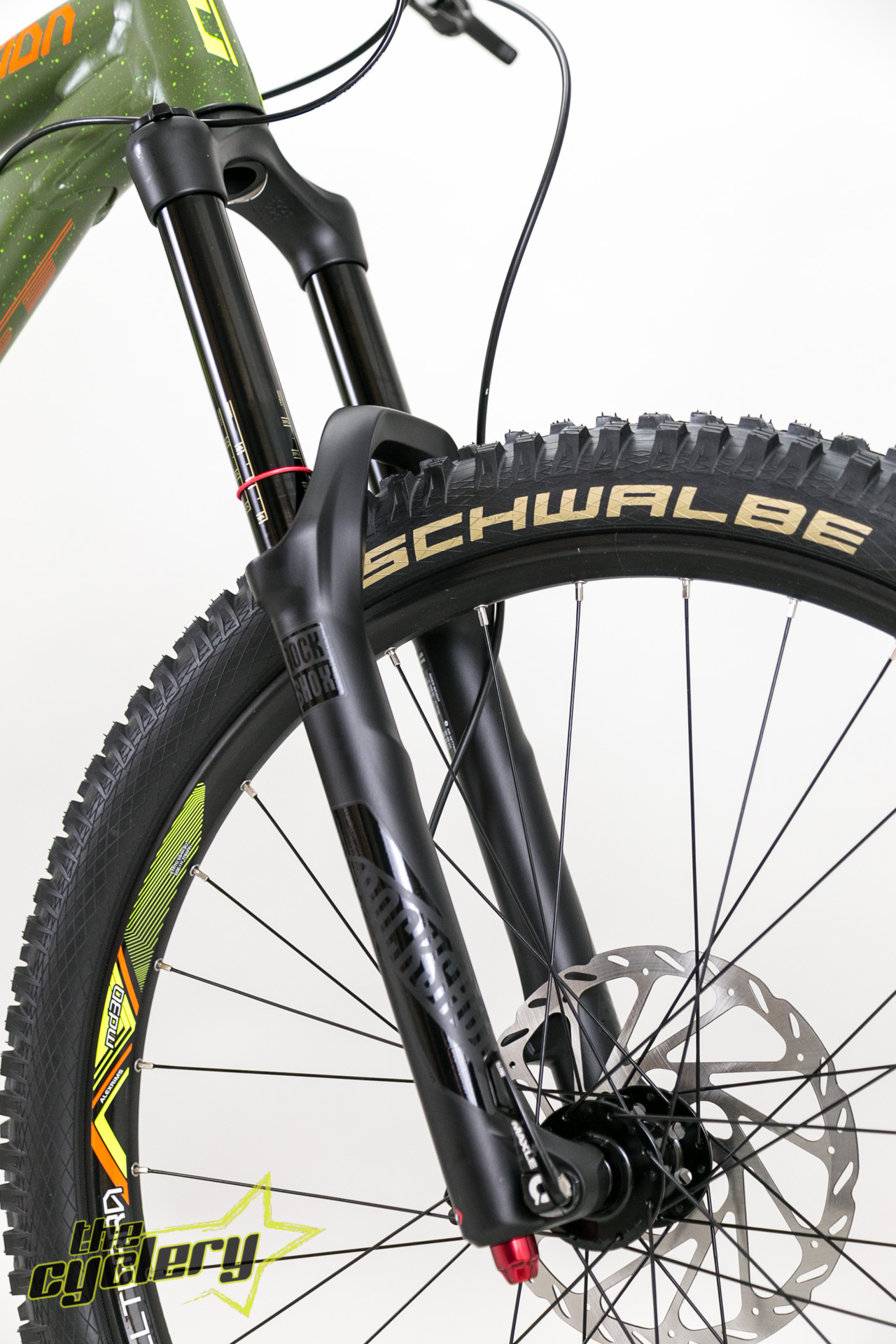

| Fork: |
Rock Shox Yari RC Boost, Solo Air system (adjustable), 170mm travel, 15 x 110mm thru axle, adjustable rebound and compression |

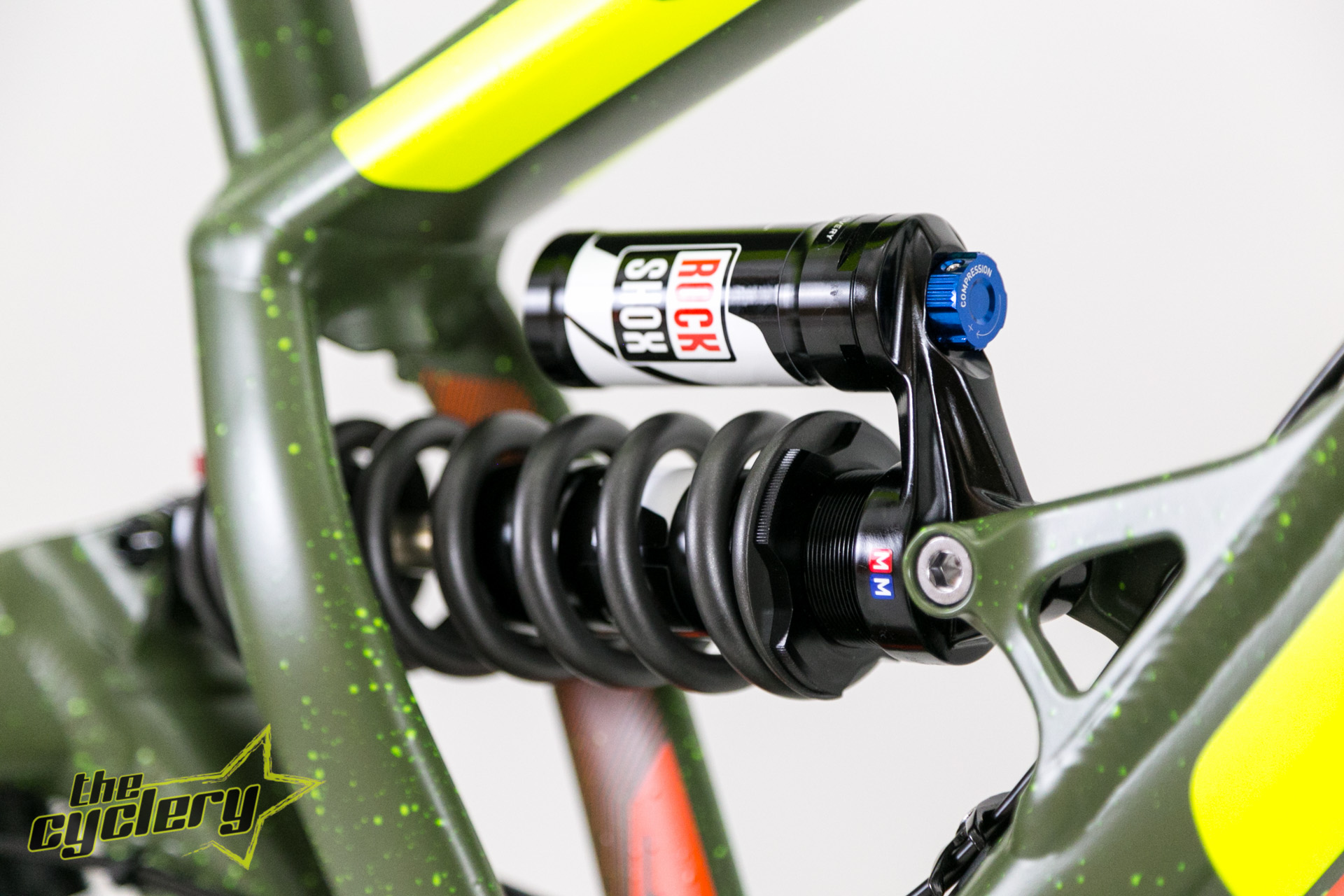

| Shock: |
Rock Shox Kage RC, Coil spring system (adjustable), adjustable rebound and compression |
|
|
| Drivetrain/Brakes |
|
| Shifters: |
SRAM X5, 10-speed |
| Rear derailleur: |
SRAM X7 Type 2.1, long cage |

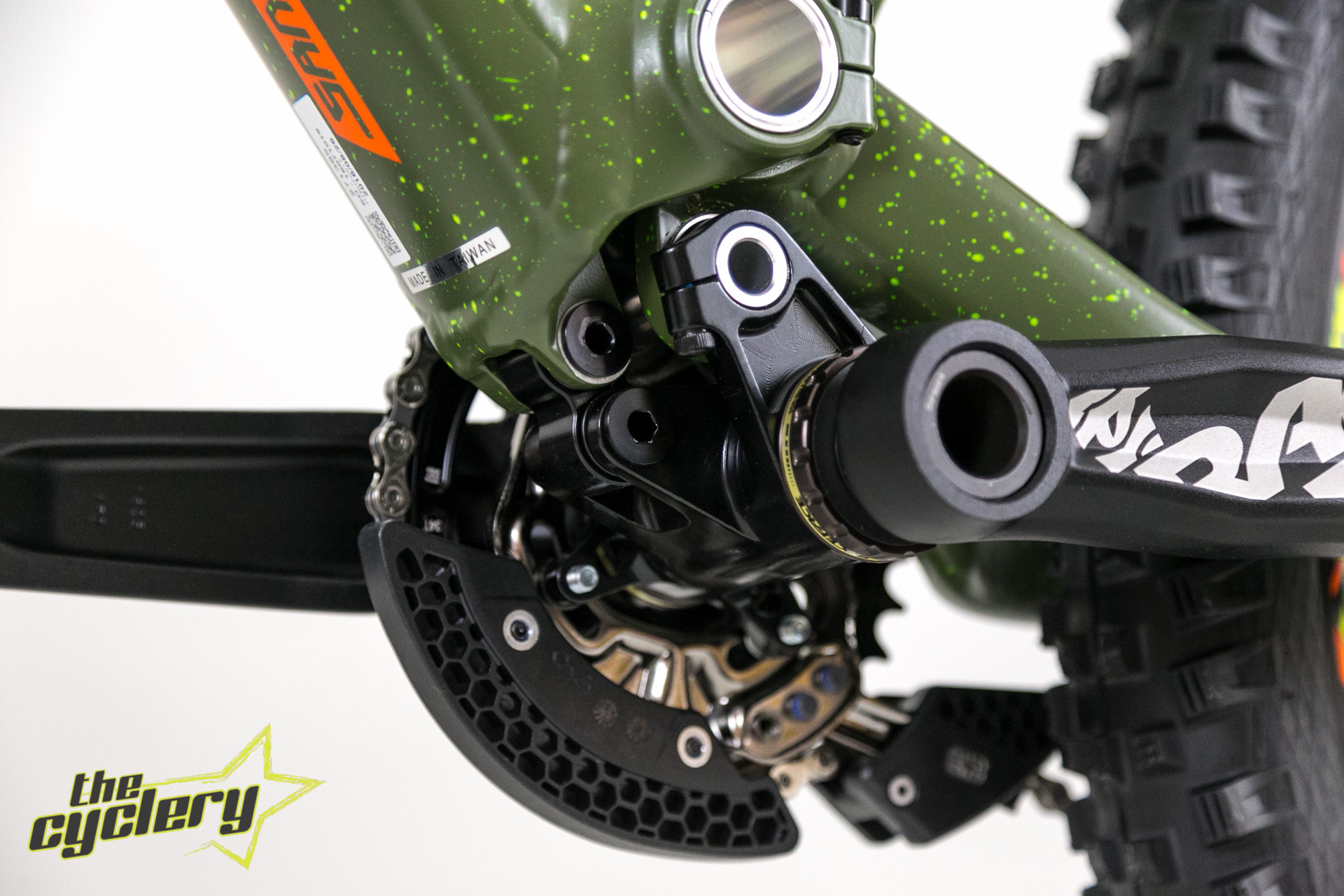

| Chain guide: |
e.thirteen LG1+ with bash guard |
| Crankset: |
Race Face Chester, 32 teeth chain ring |
| Bottom bracket: |
Race Face |
| Pedals: |
- |
| Chain: |
KMC X10 |
| Cogs: |
SRAM PG-1020, 10-speed, 11-36 teeth |
| Brakes: |

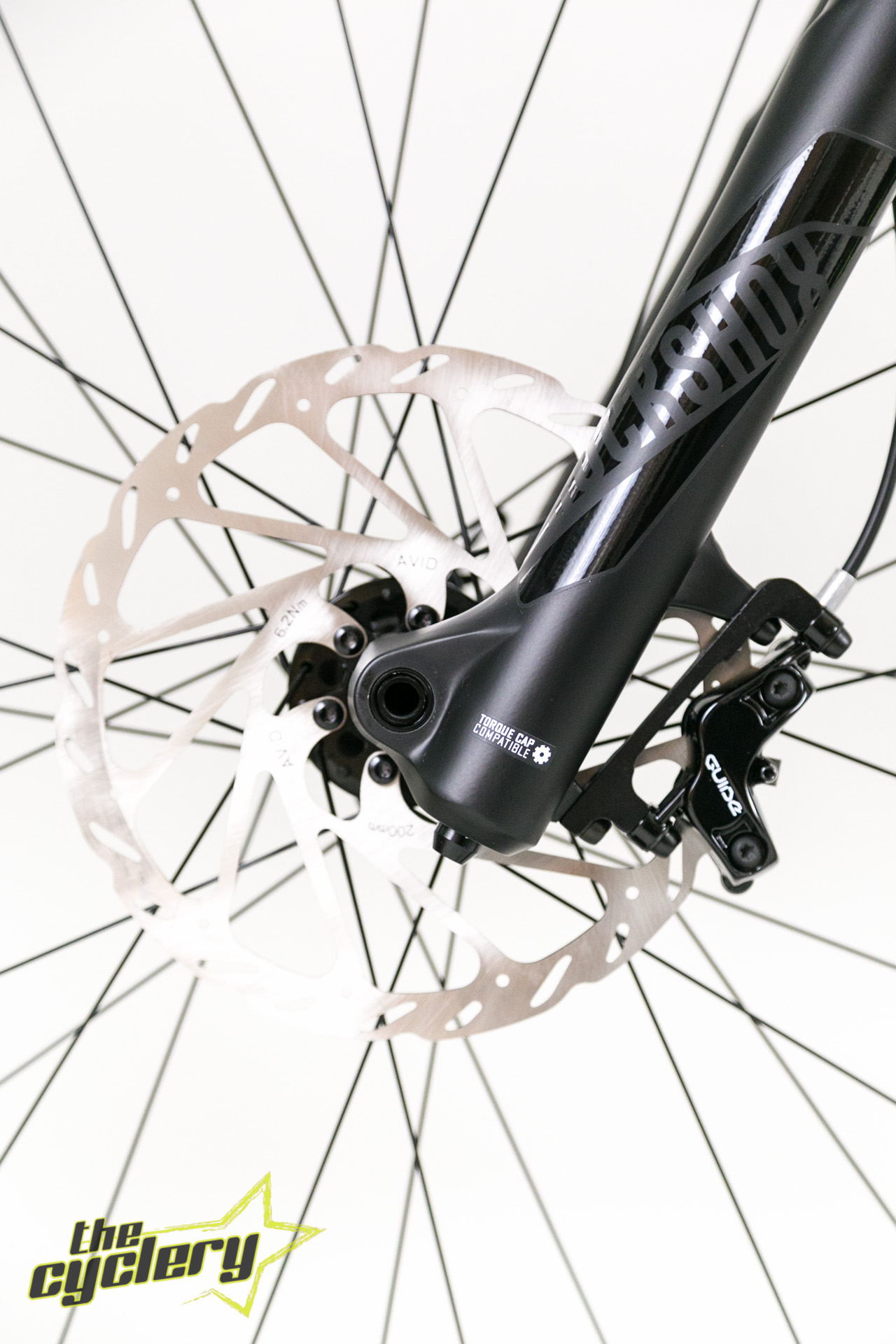

SRAM Guide R, hydraulic disc brakes, 200/200mm G2 discs (f/r) |

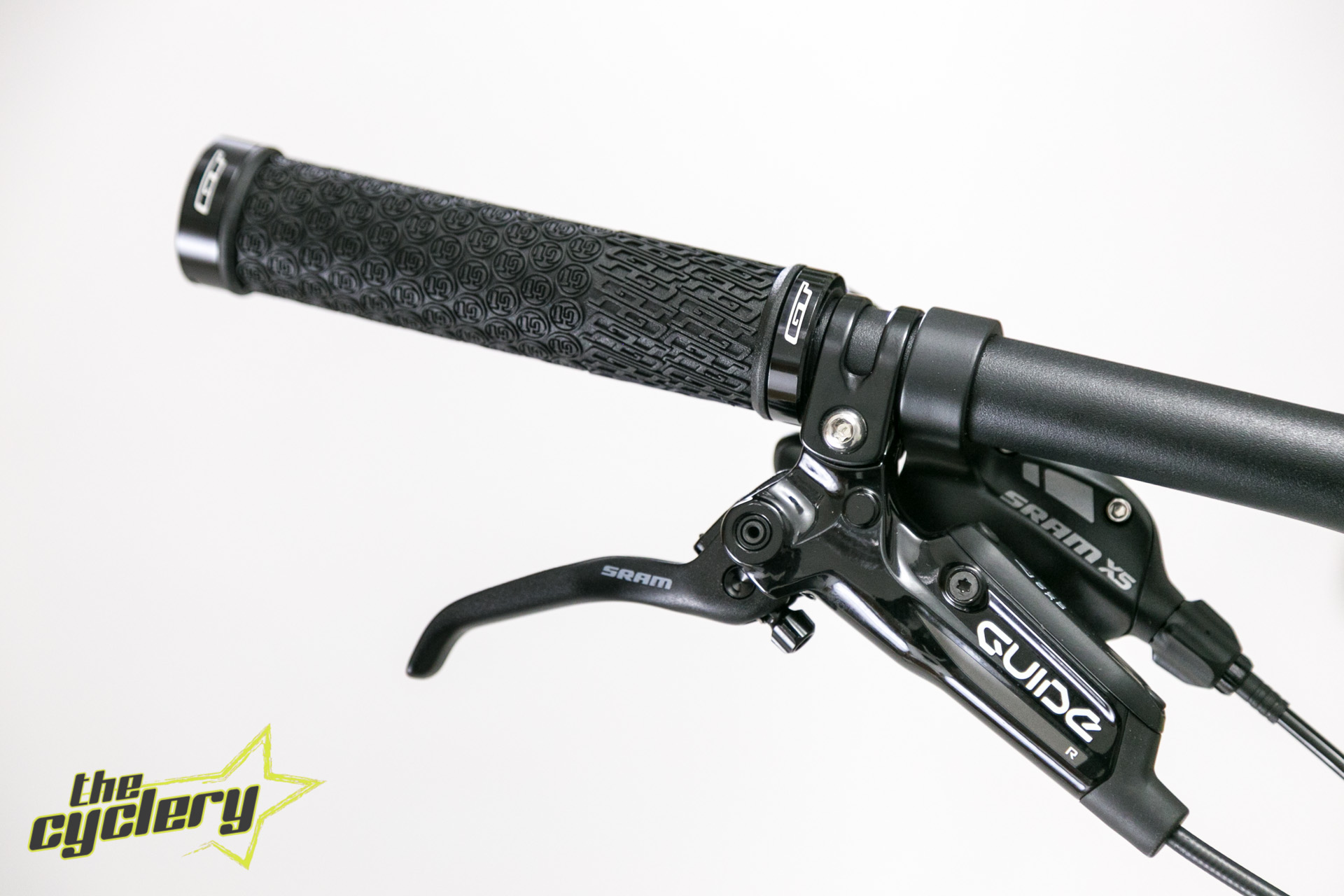

| Brake levers: |
SRAM Guide R |
|
|
| Wheels |
|
| Front hub: |
All Terra, sealed bearings, 15 x 110mm thru axle, 6-hole mount |
| Rear hub: |
All Terra, 12 x 142mm thru axle, 6-hole mount |
| Rims: |
Alex MD-30 double wall 27.5", 32 hole |
| Tires: |
Schwalbe Magic Mary Bikepark, 27.5 x 2.35" (f/r) |
|
|
| Components |
|

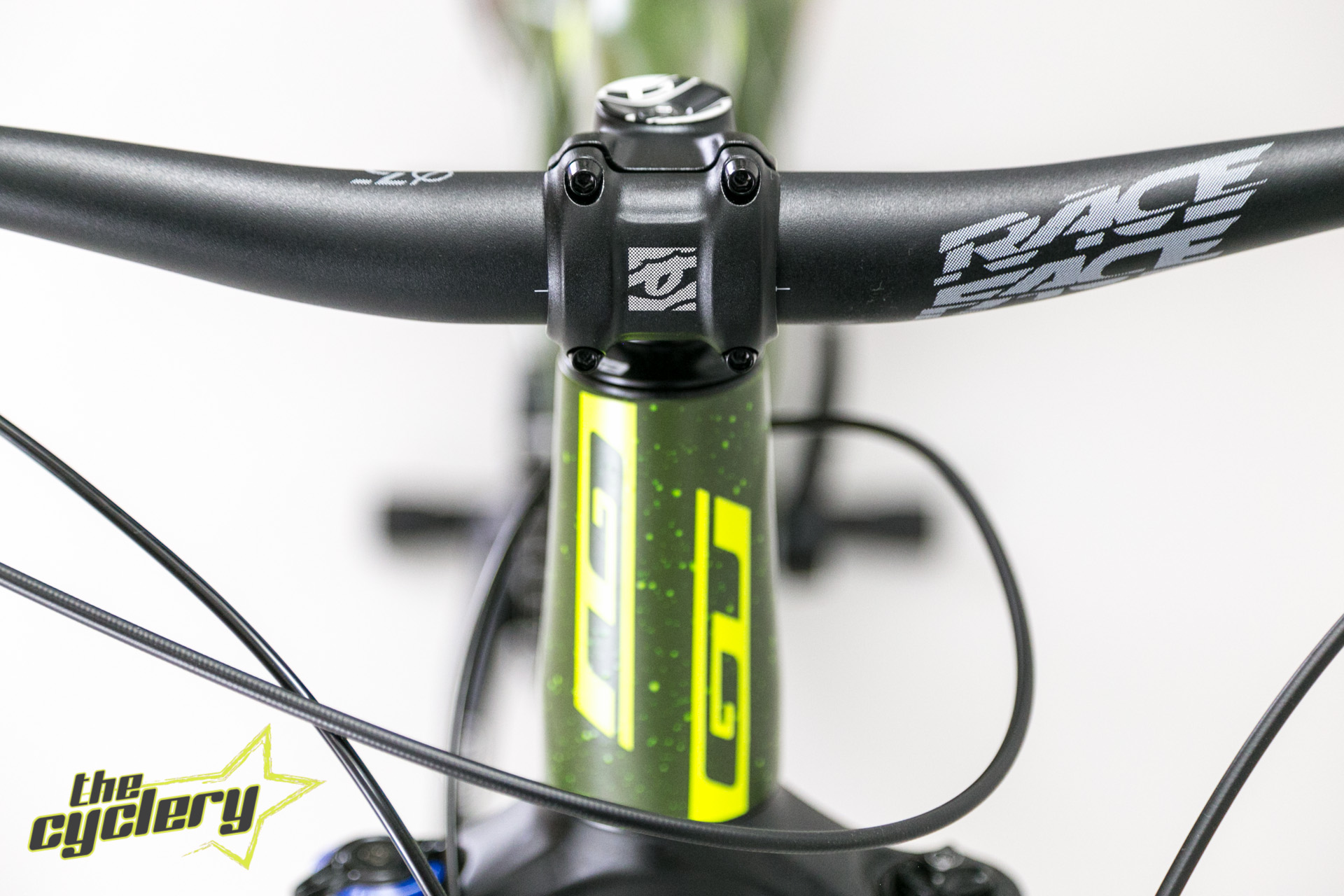

| Stem: |
Race Face Chester, 40mm length |
| Handlebar: |
Race Face Chester, 20mm rise, 780mm width |
| Headset: |
FSA Orbit 1.5 Zero Stack, sealed bearings |
| Saddle: |
WTB Silverado Sport, cromoly rails |
| Seat post: |
All Terra, aluminum |
| Other: |
- |
|
|
| Table of geometry |
click here |
