| Chassis |
|
| Frame: |
Trail frame with COR design (Centered on Rider) and 27.5" specific geometry, FOC (Force Optimized Construction) ultra carbon,
130mm travel via AOS-system (Angle Optimized Suspension), interated tapered head tube, 12 x 142mm thru axle |
| Fork: |

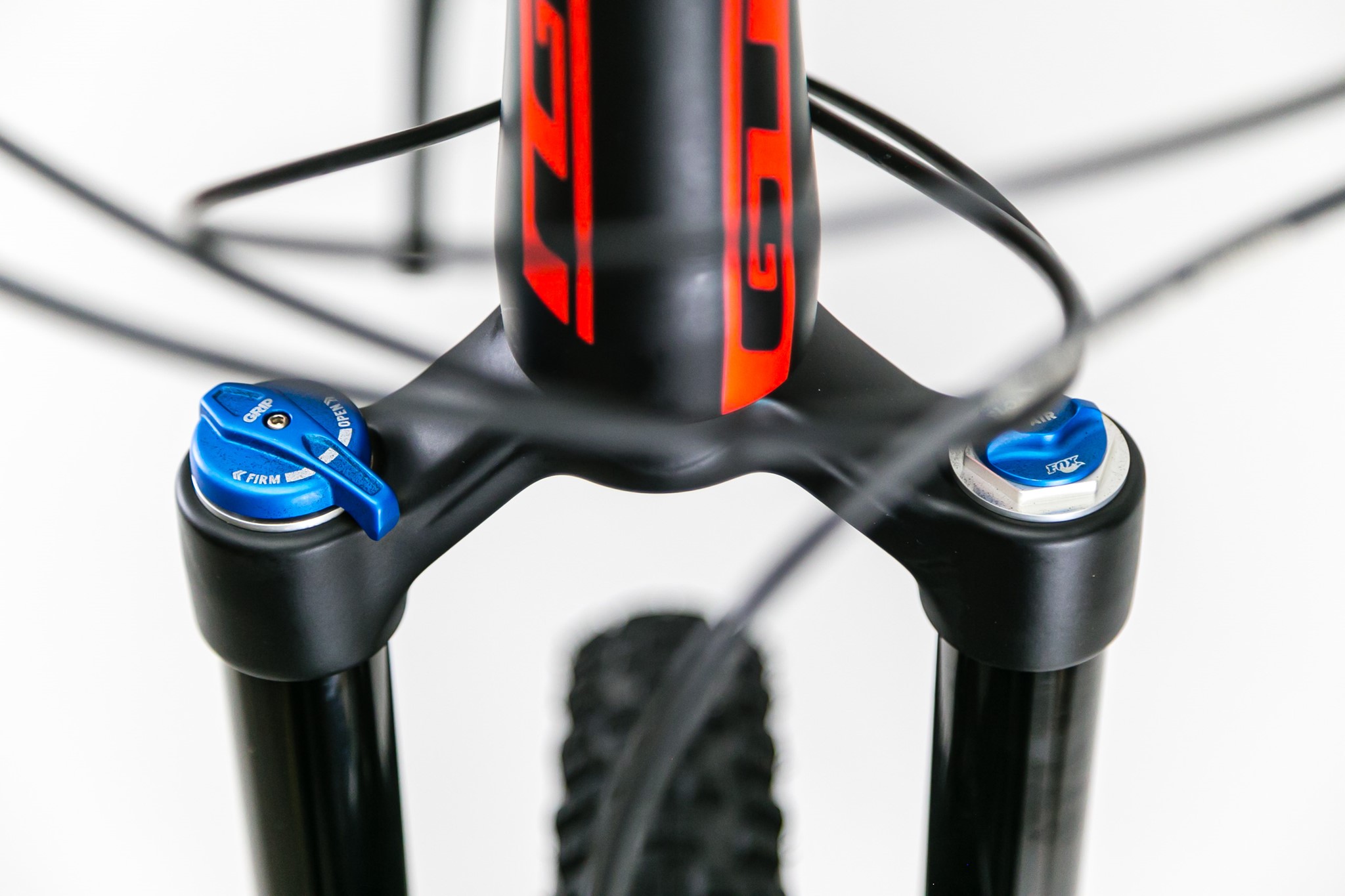

FOX 34 Float Performance, air spring system (adjustable), 140mm travel, FIT
damper, 15 x 110mm thru axle, adjustable rebound, lock-out |
| Shock: |
FOX Float Performance, air spring system (adjustable), adjustable rebound, lock-out |
|
|
| Drivetrain/Brakes |
|
| Shifters: |
Shimano Deore XT, 11-speed |
| Rear derailleur: |

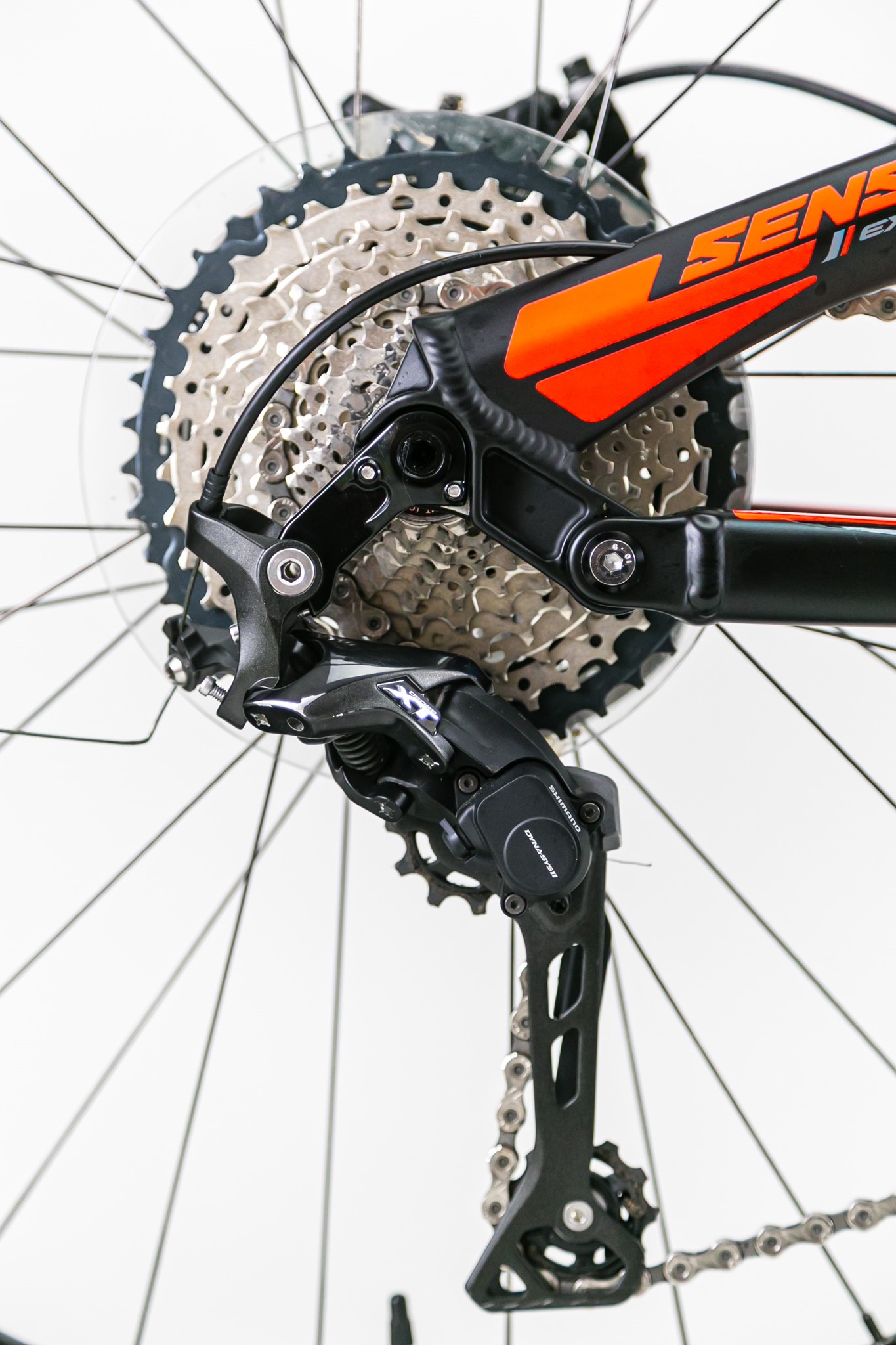

Shimano Deore XT Shadow+, SGS cage |
| Chain Guide: |
e.thirteen TRS Race, high direct mount |
| Crankset: |

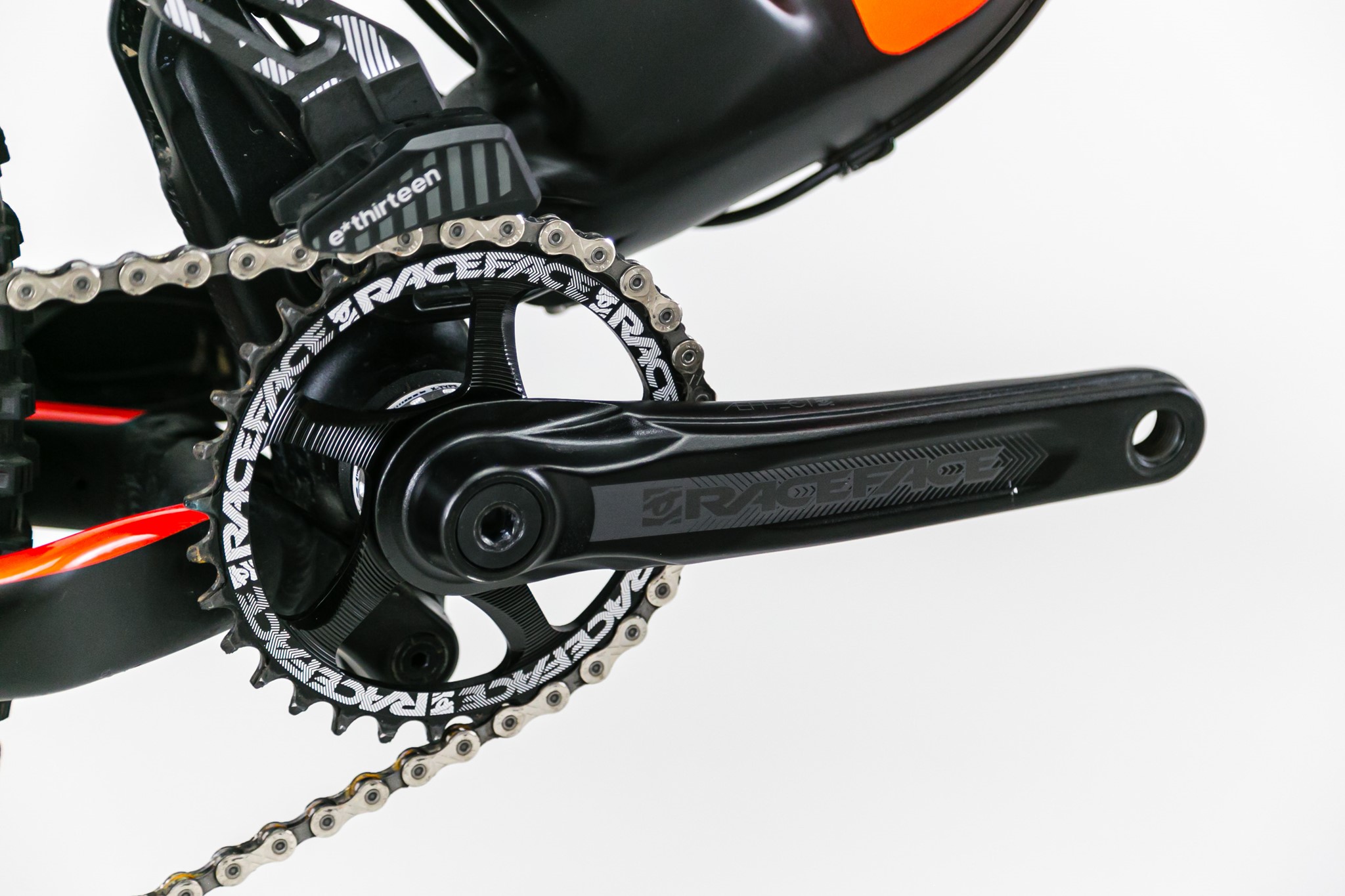

Race Face Aeffect, 32 teeth chain ring |
| Bottom bracket: |
Race Face X-Type |
| Pedals: |
- |
| Chain: |
KMC X11 |
| Cogs: |
Shimano CS-M7000, 11-speed, 11-42 teeth |
| Brakes: |

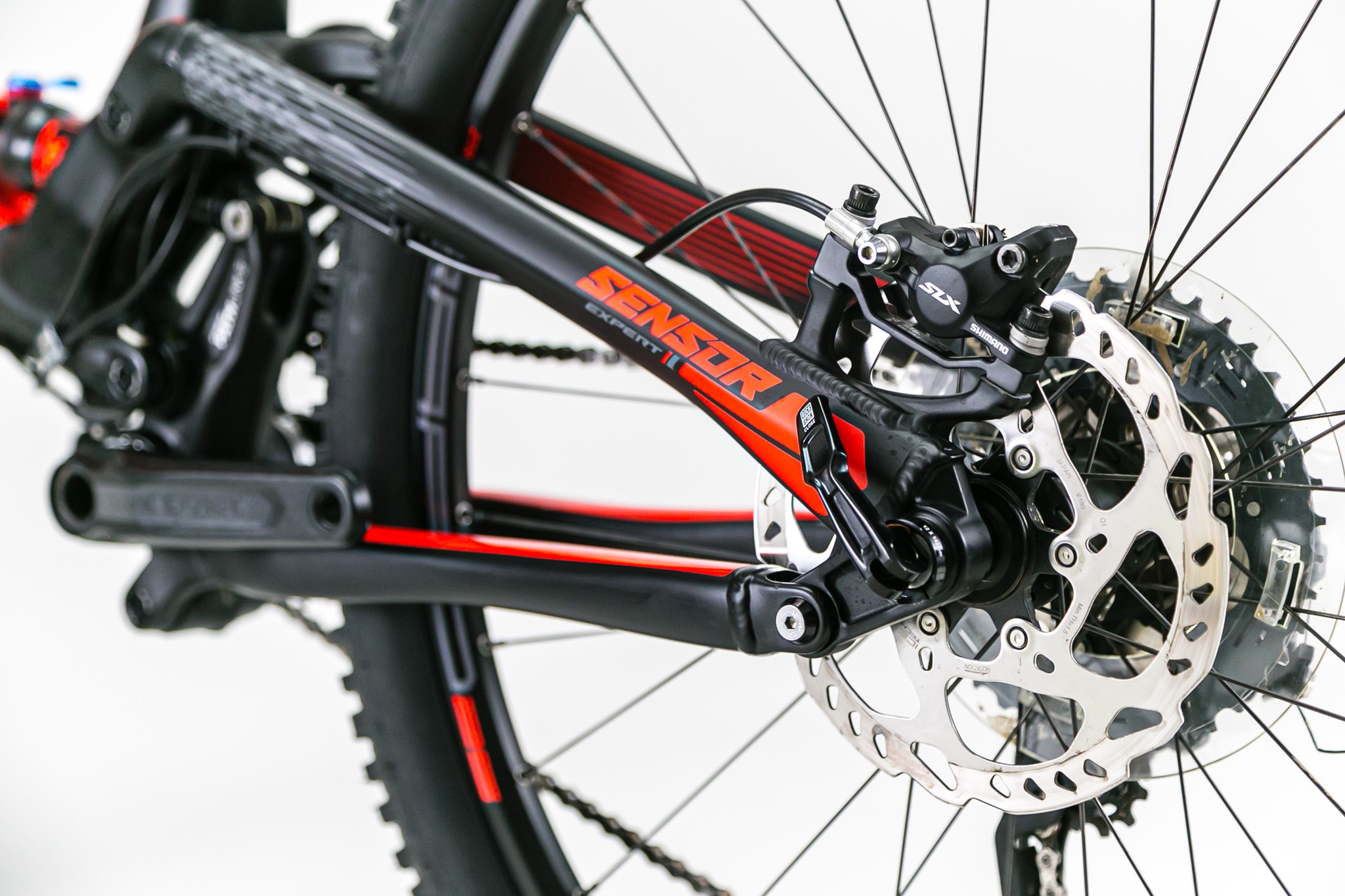

Shimano SLX, hydraulic disc brakes, 180/180mm Centerlock discs (f/r) |
| Brake levers: |

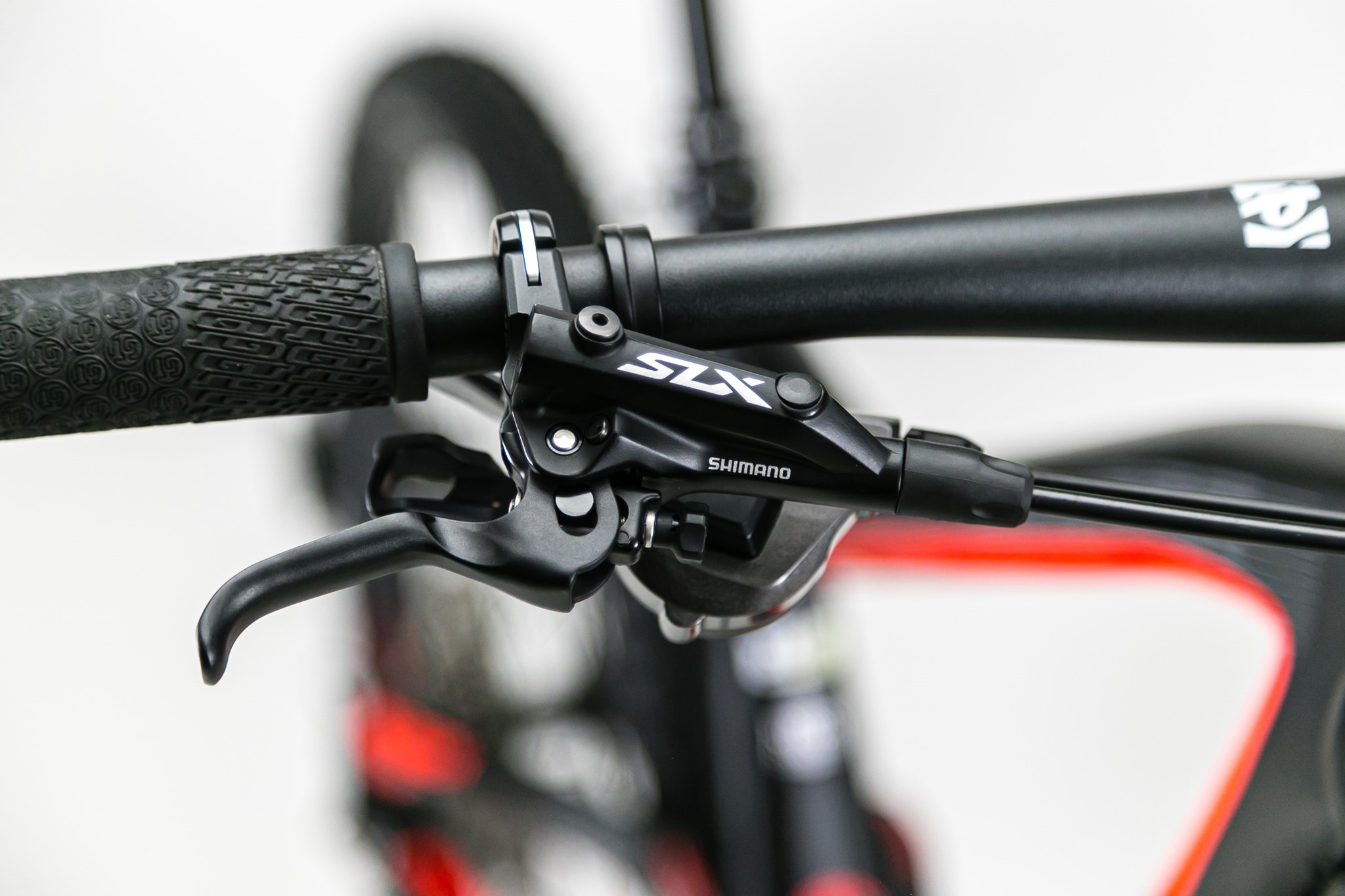

Shimano SLX |
|
|
| Wheels |
|
| Front hub: |
Shimano SLX, 15 x 110mm thru axle, Centerlock mount |
| Rear hub: |
Shimano SLX, 12 x 142mm thru axle, Centerlock mount |
| Rims: |
Stan's NoTubes Rapid 25 27.5", 32 hole |
| Tires: |

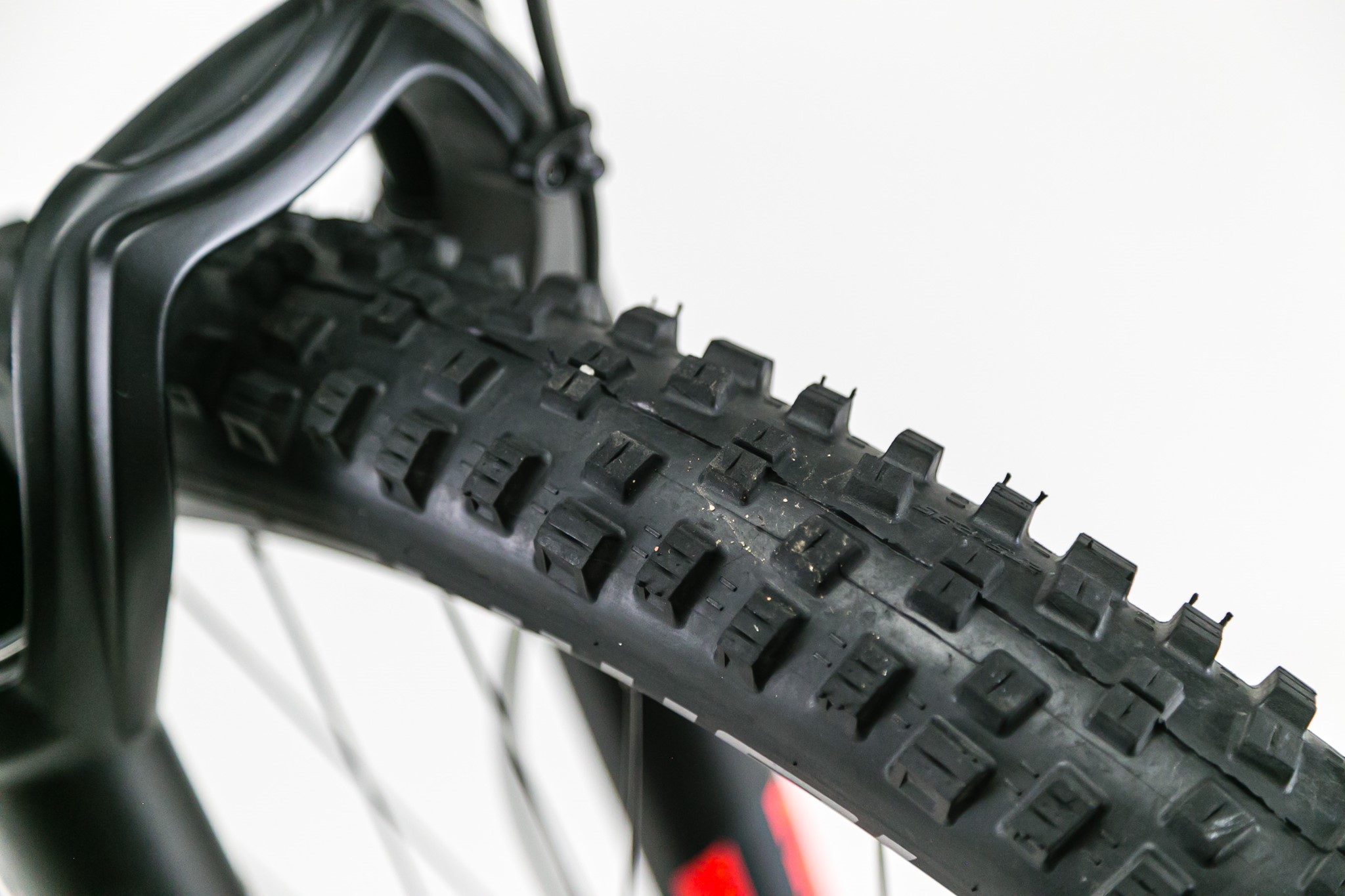

Schwalbe Nobby Nic Performance, TL Easy, 27.5 x 2.35/2.25" (f/r) |
|
|
| Components |
|
| Stem: |

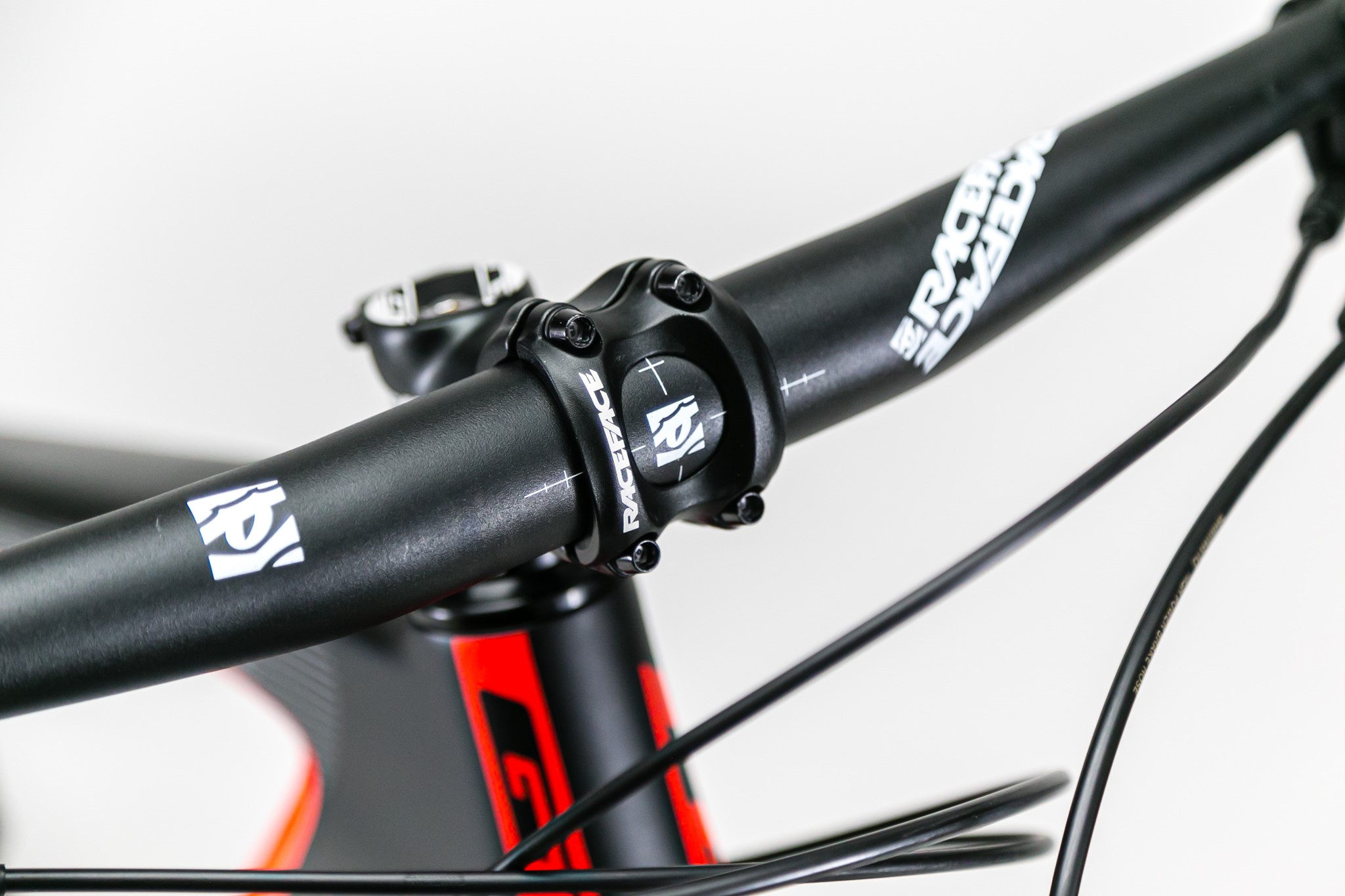

Race Face Ride, 60mm length, 6° rise, 31,8mm diameter |
| Handlebar: |
Race Face Ride, low rise, 760mm width, 31,8mm diameter |
| Headset: |
FSA Orbit C-40-ACB, sealed bearings |
| Saddle: |
WTB Silverado Race SL, cromoly rails |
| Seat post: |
KS LEV Integra, adjustable height via remote control |
| Other: |
- |
